DID chain kit for Malaguti X3M Motard 125 (cast wheel) 08-09 428 D chain kit

DID chain kit for Malaguti X3M Motard 125 (cast wheel) 08-09 428 D chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Malaguti X3M Motard 125 (cast wheel) 2008-2009 chain kit

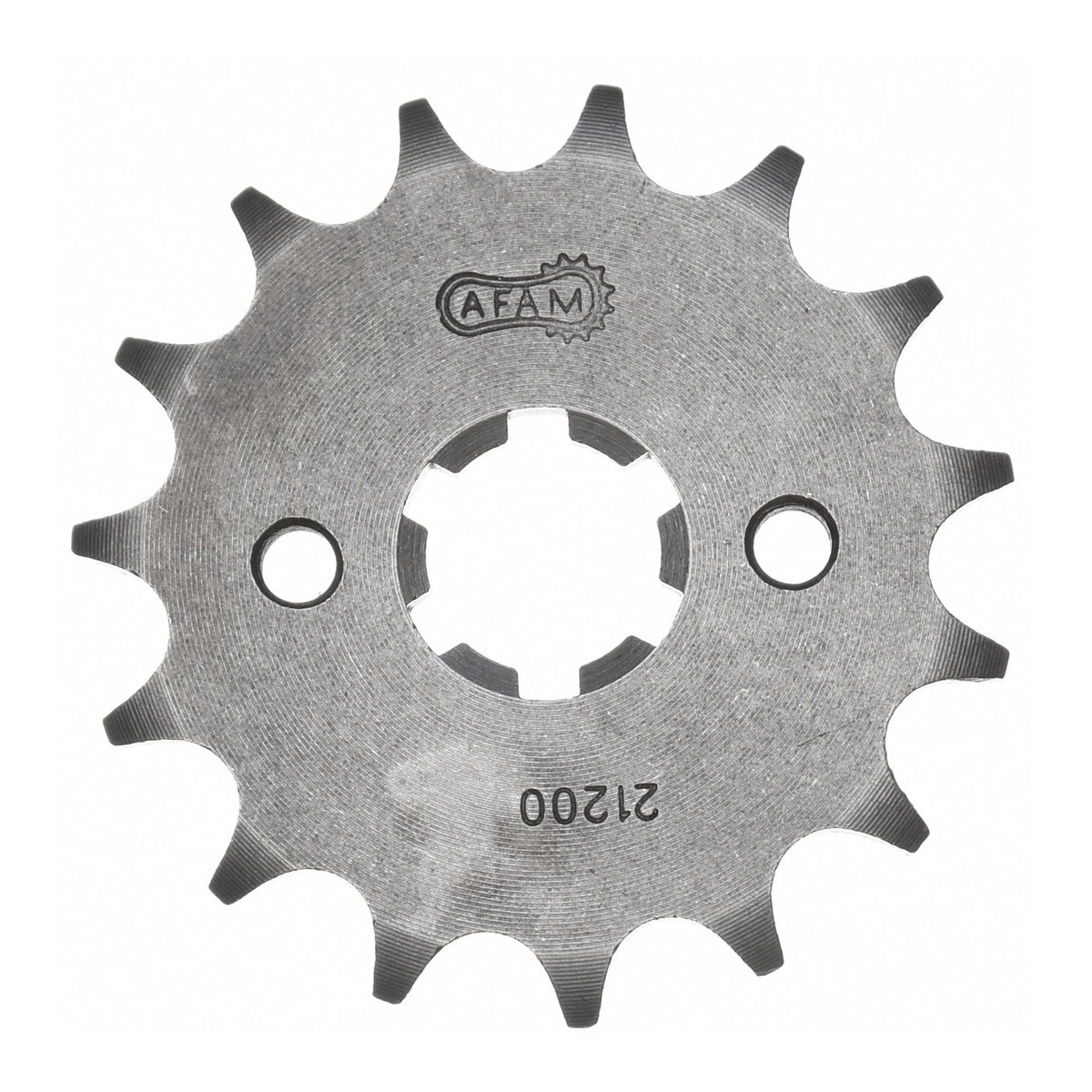

• Sprocket: AFAM sprocket #428 14 teeth - a21200.14
• Chain: DID chain 428 D 126 with clip link - d6242800126

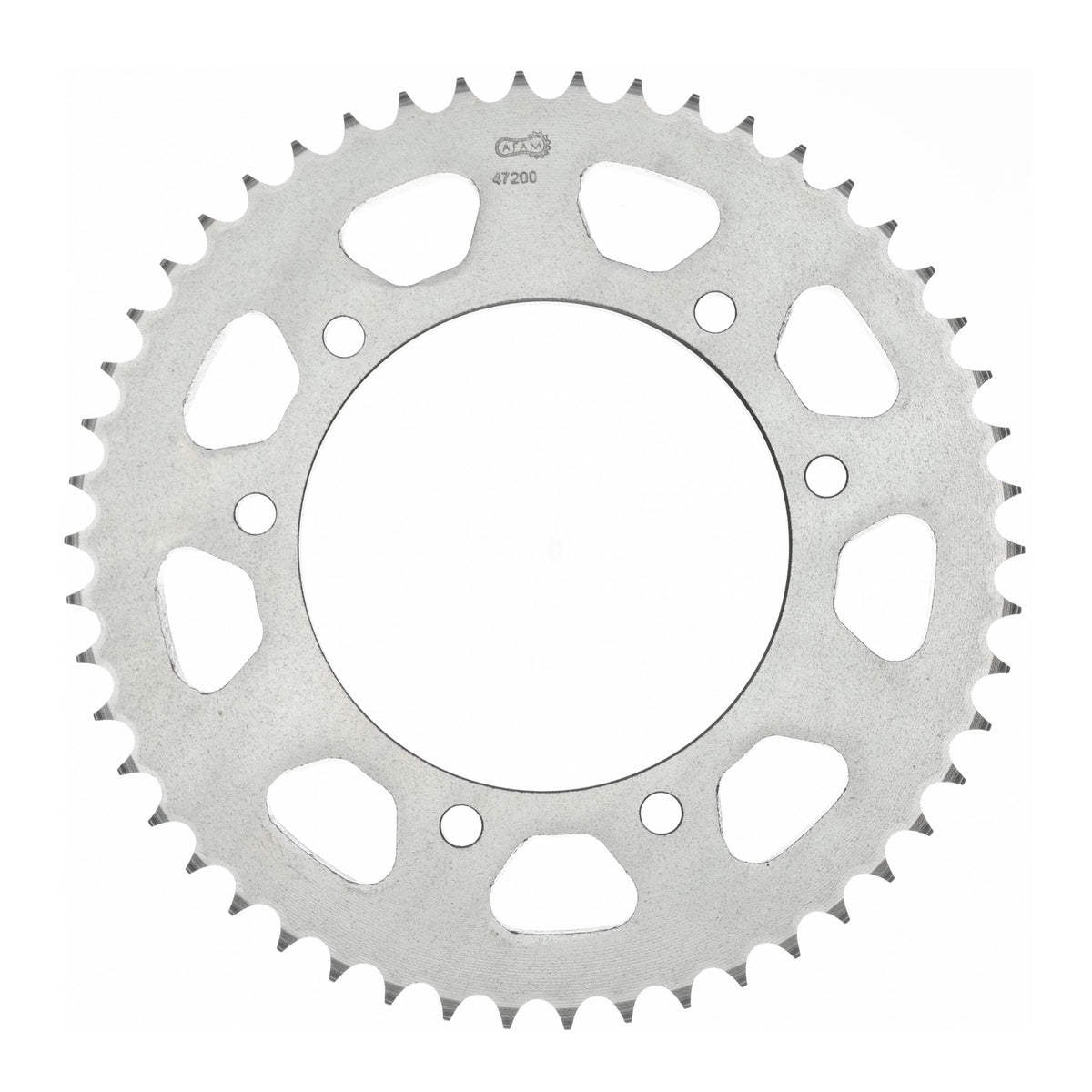

• Rear sprocket: AFAM STEEL rear sprocket #428 48 teeth - a47200.48
• Gear ratio sprocket-chain-rear sprocket: 14-126-48

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-29890

Suitable for

Malaguti 101 - 125 cc X3M Motard 125 (cast wheel) 2008
Malaguti 101 - 125 cc X3M Motard 125 (cast wheel) 2009
