DID chain kit for Malaguti XSM 125 Supermoto 19-21 428 NZ chain kit

DID chain kit for Malaguti XSM 125 Supermoto 19-21 428 NZ chain set

Chain set or chain kit for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are only for the purpose of indicating compatibility!

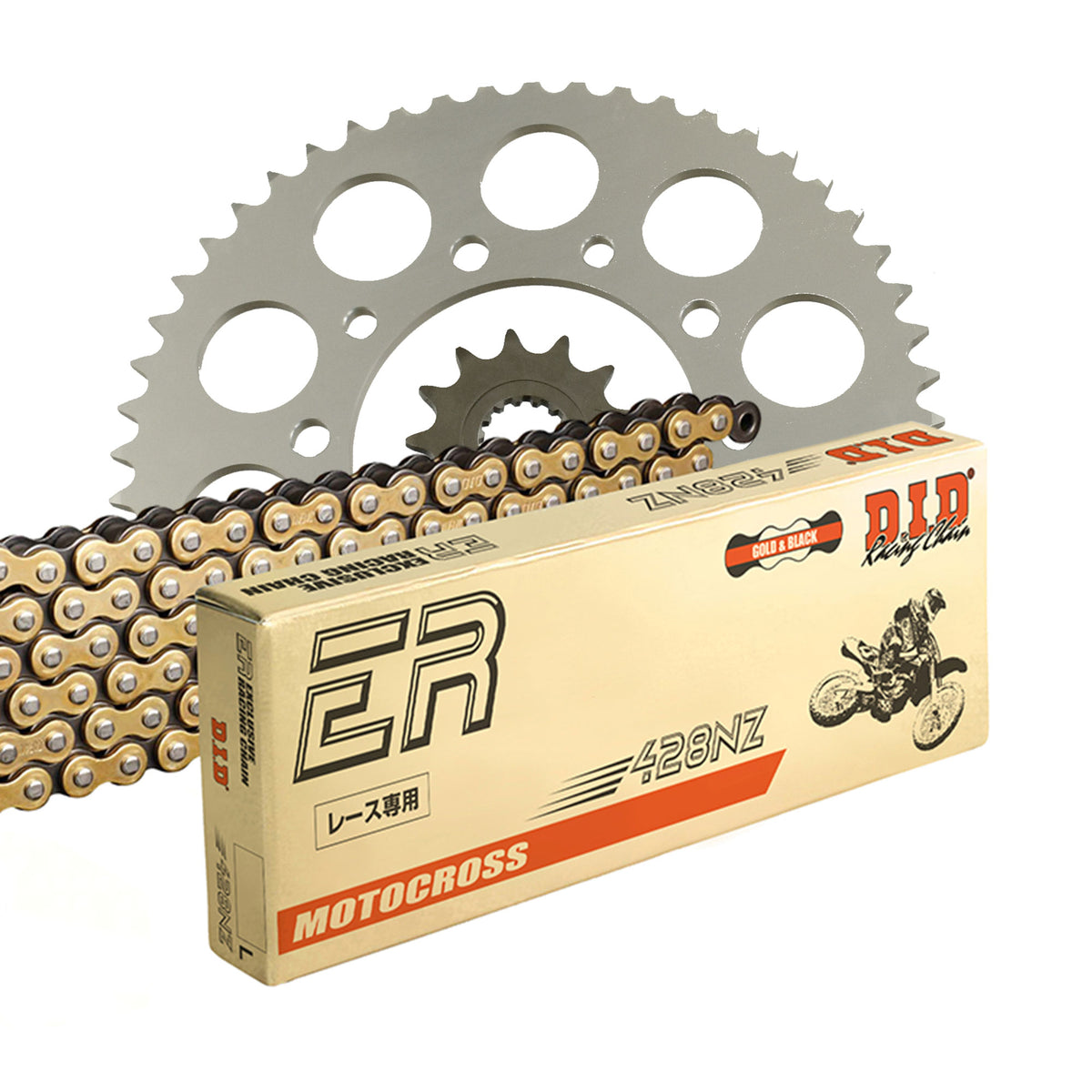

Components of the chain kit Malaguti XSM 125 Supermoto LC - 4-stroke 2019-2021

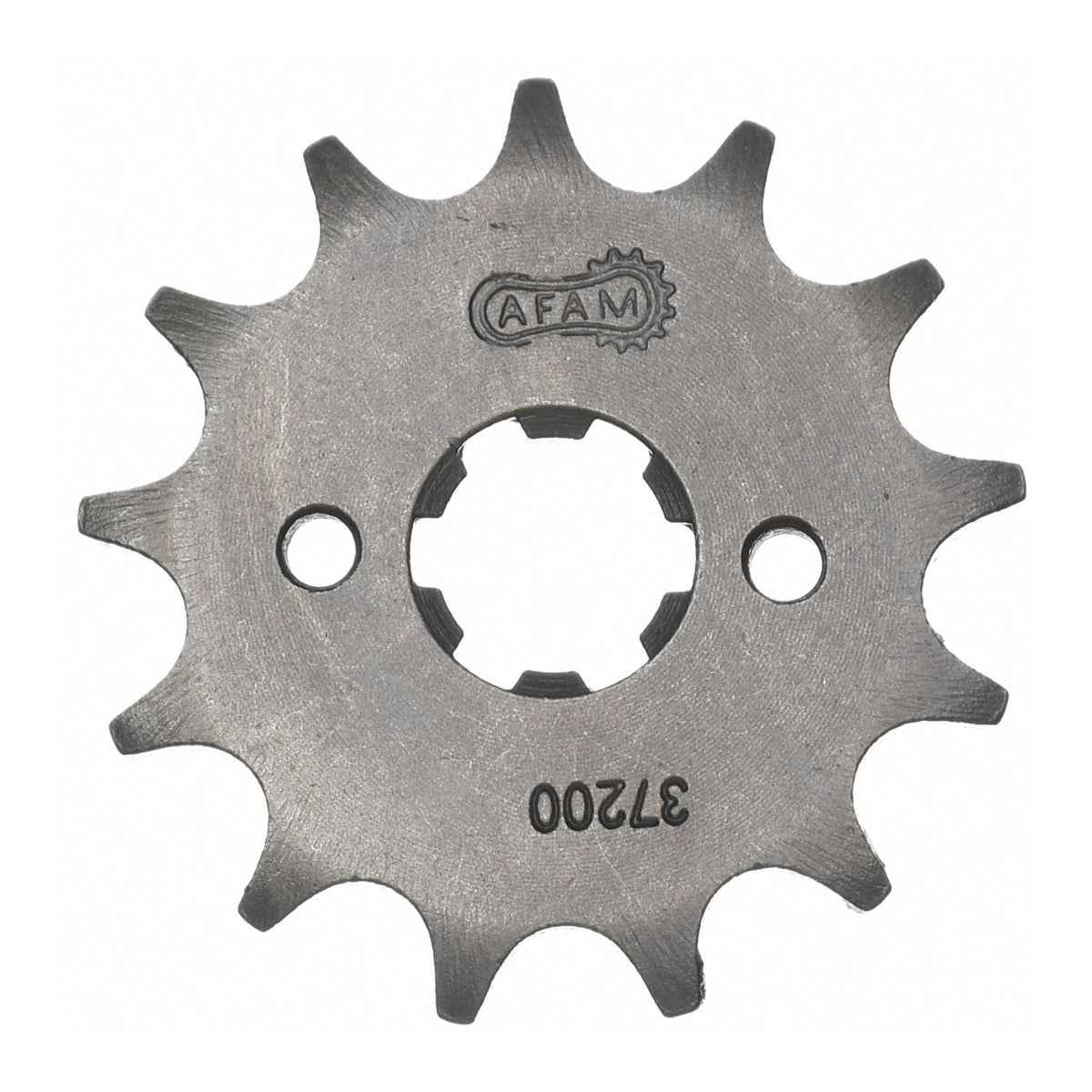

• Front sprocket: AFAM sprocket #428 13 teeth - a37200.13

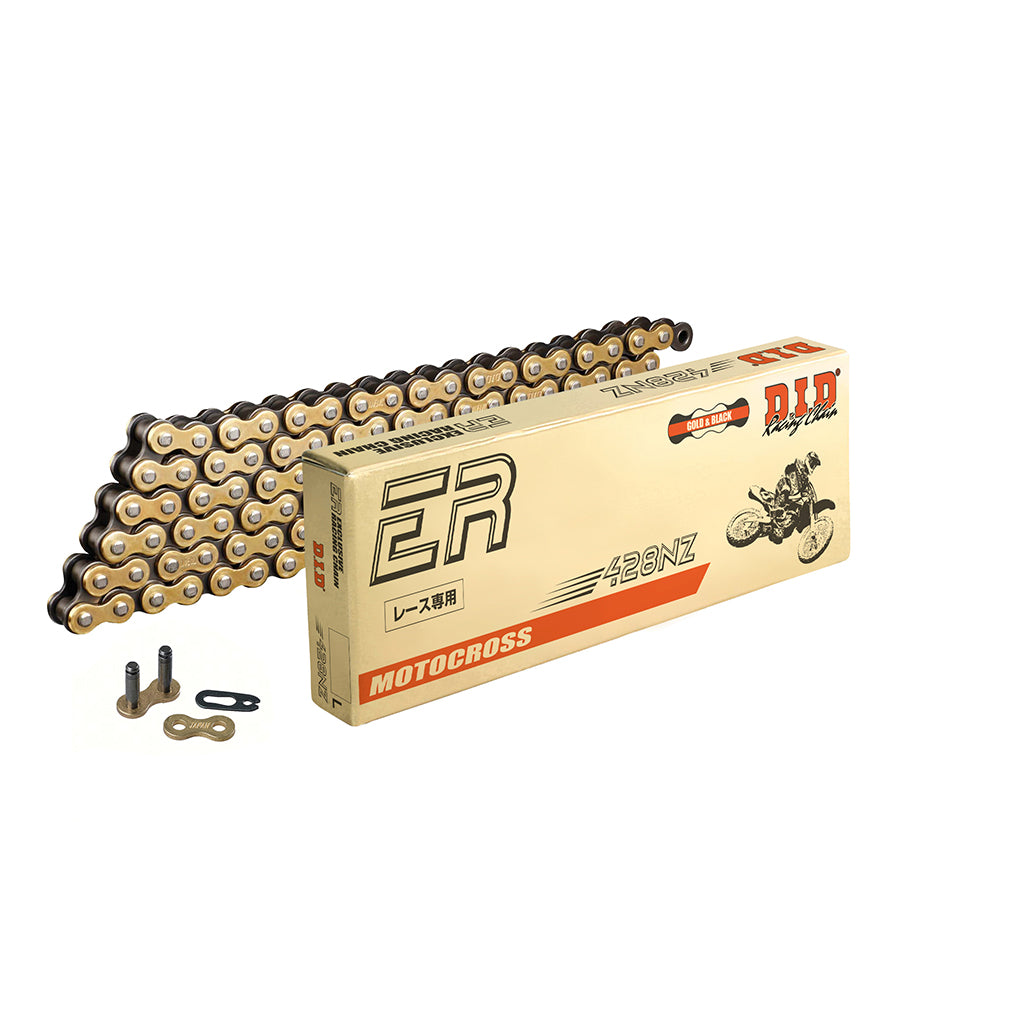

• Chain: DID chain 428 NZ G&B 138 with clip master link - d6242802138

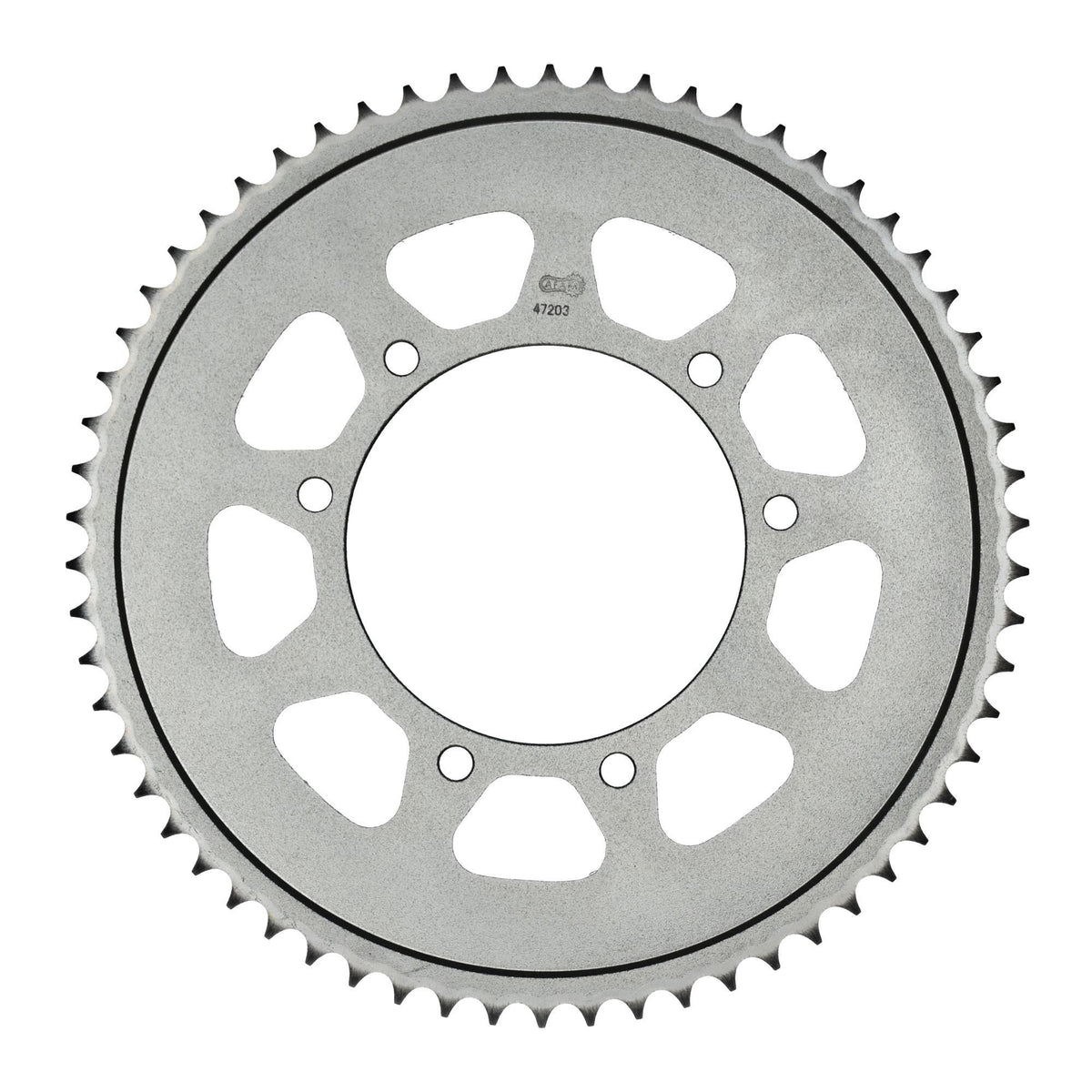

• Rear sprocket: AFAM rear sprocket STEEL #428 62 teeth - a47203.62
• Gear ratio sprocket-chain-rear sprocket: 13-138-62

DID 428 NZ

Extra reinforced chain
Without O-rings
Color: Gold/Black
Application by displacement: up to 150 cc

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 410
Tensile strength: 25.50 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-39621

Fits

Malaguti 101 - 125 ccm XSM 125 Supermoto LC - 4-stroke 2019
Malaguti 101 - 125 ccm XSM 125 Supermoto LC - 4-stroke 2020
Malaguti 101 - 125 ccm XSM 125 Supermoto LC - 4-stroke 2021
