DID chain kit for Malaguti XSM 125 Supermoto 19-21 428 VX chain kit

DID chain set for Malaguti XSM 125 Supermoto 19-21 428 VX chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

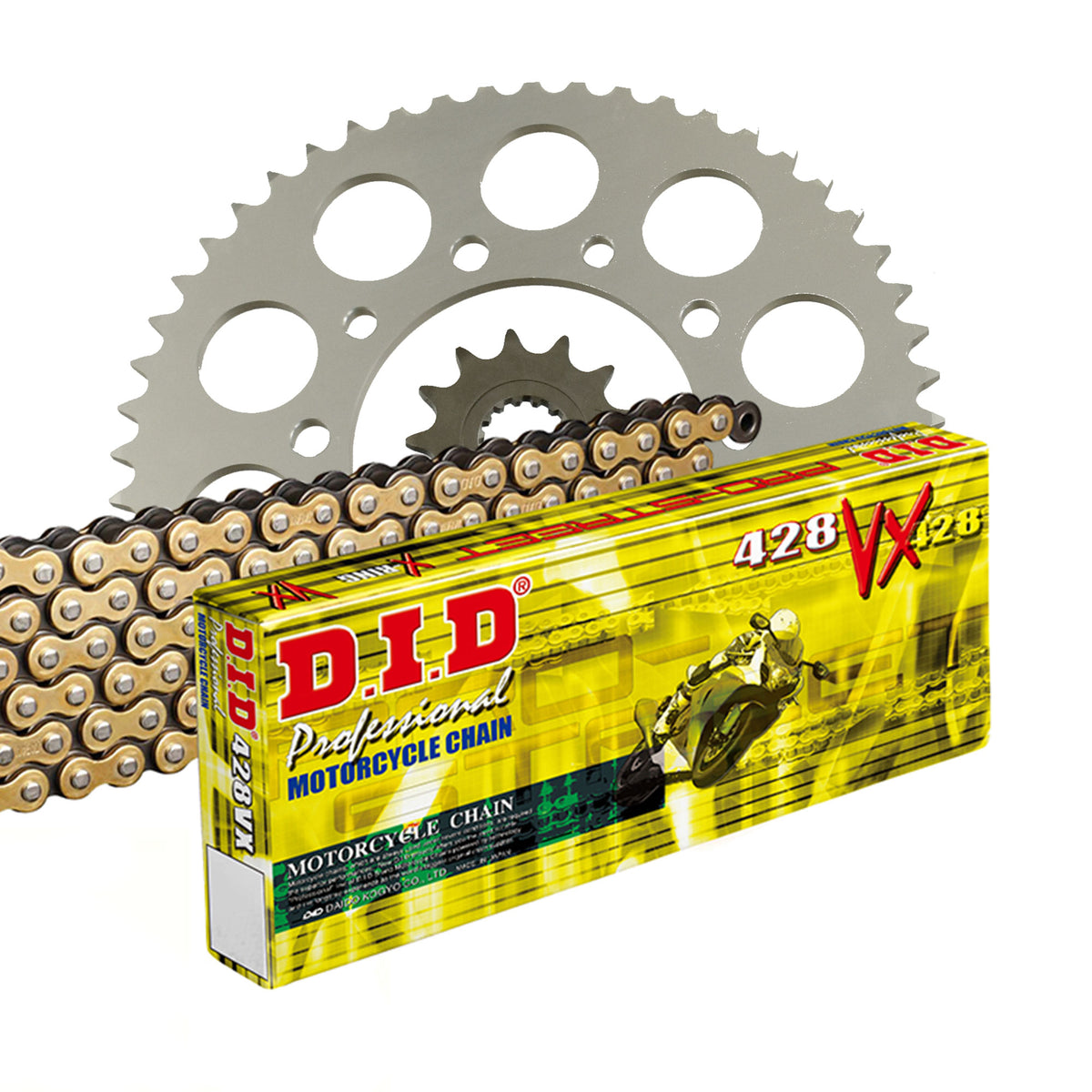

Components of the chain kit Malaguti XSM 125 Supermoto LC - 4-stroke 2019-2021

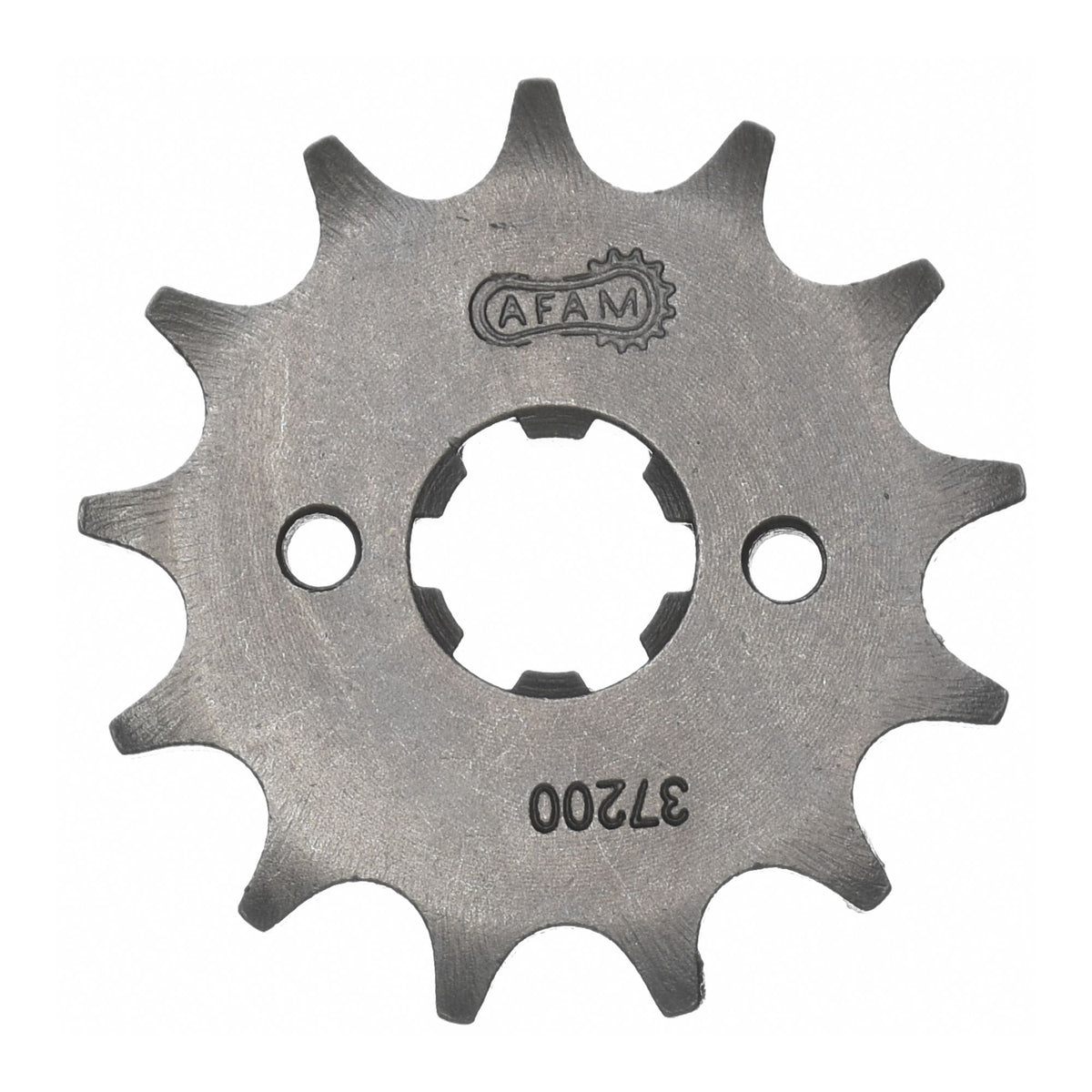

• Sprocket: AFAM sprocket #428 13 teeth - a37200.13
• Chain: DID chain 428 VX G&B 138 with clip link - d6242825138

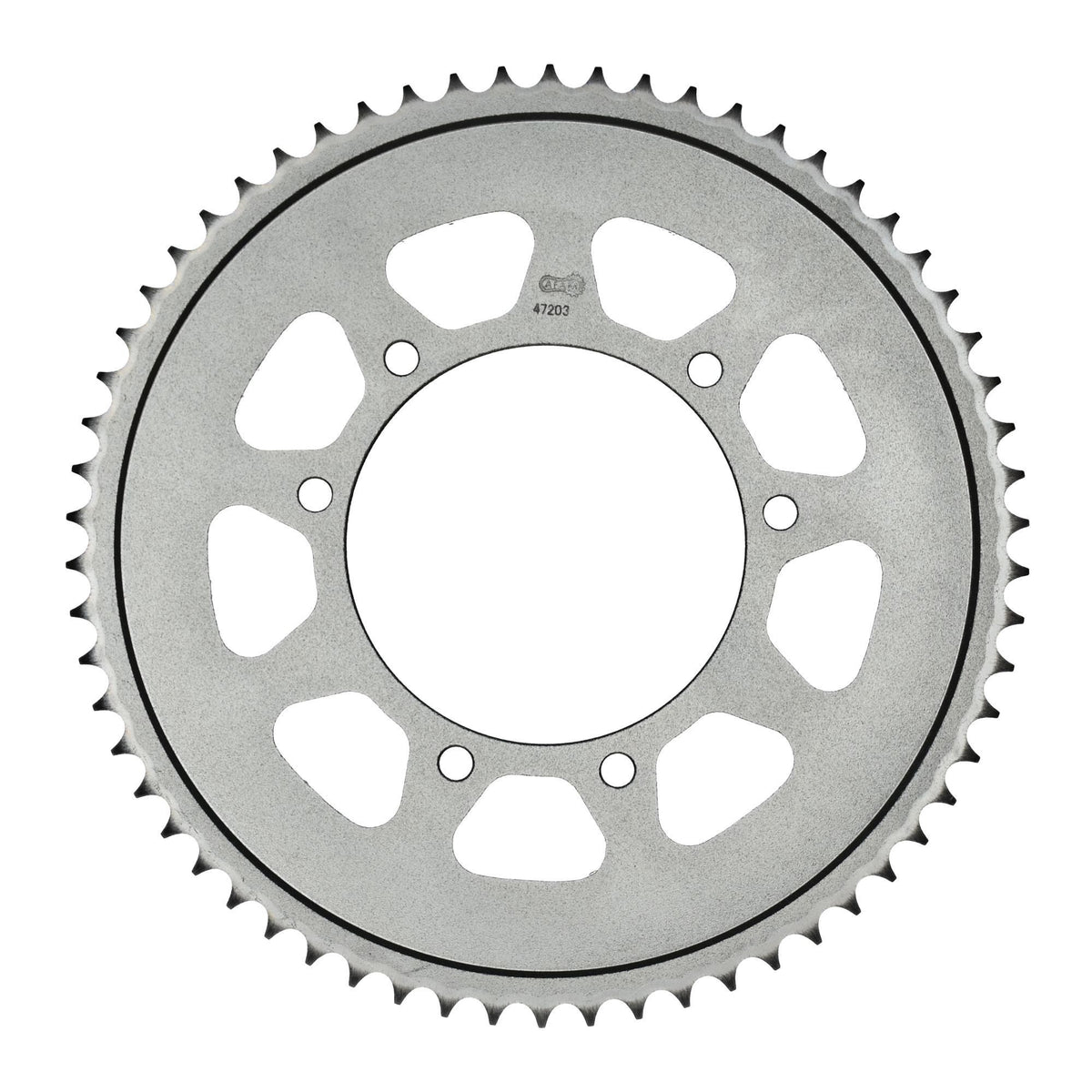

• Chain wheel: AFAM chain wheel STEEL #428 62 teeth - a47203.62
• Gear ratio sprocket-chain-chain wheel: 13-138-62

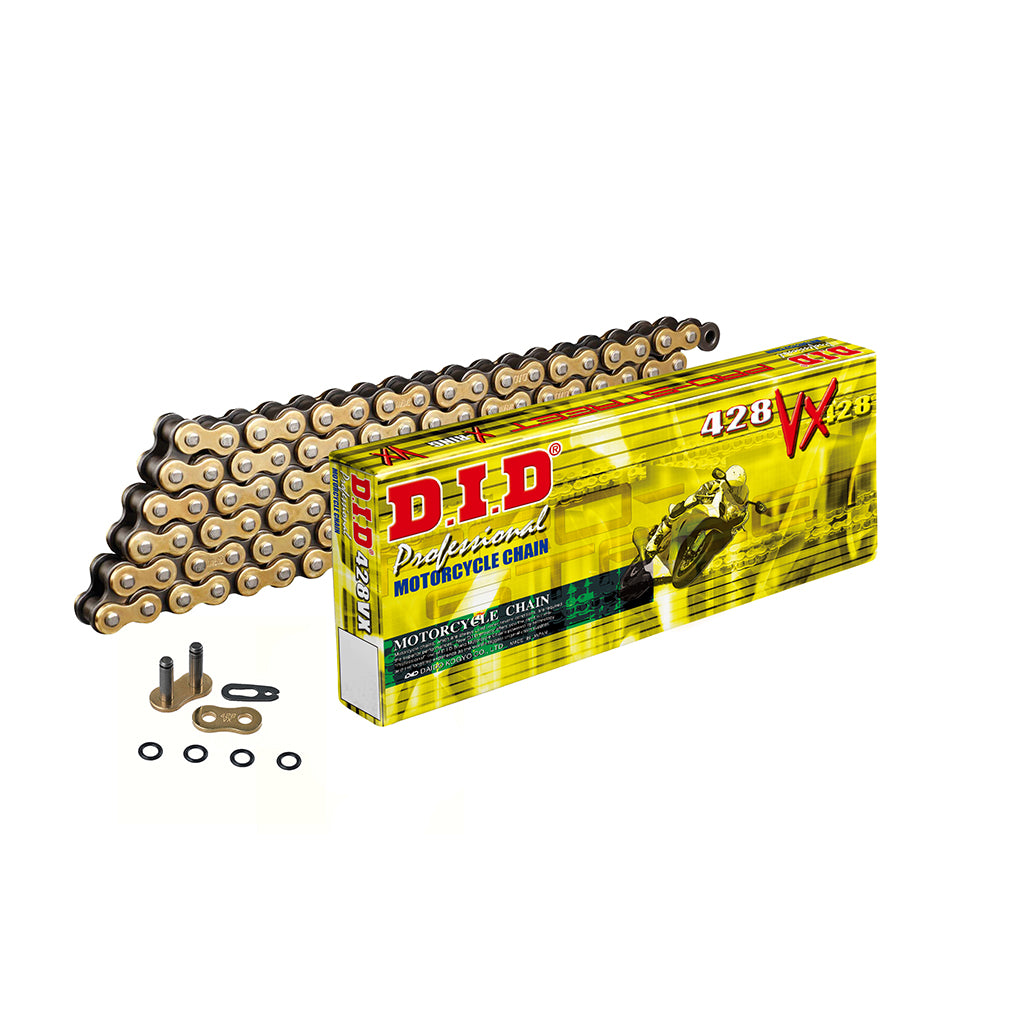

DID 428 VX

Very good quality in the 428 segment
X-ring chain
Color: Gold/Black

Technical data:
Pitch: 428
Pin length: 20.65 mm
Roller Ø: 8.6 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 2700
Tensile strength: 33.00 kN
Weight per 100 links: 1.21 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-29933

Suitable for

Malaguti 101 - 125 ccm XSM 125 Supermoto LC - 4-stroke 2019
Malaguti 101 - 125 ccm XSM 125 Supermoto LC - 4-stroke 2020
Malaguti 101 - 125 ccm XSM 125 Supermoto LC - 4-stroke 2021
