DID chain kit for Mash Cafe Racer 125 15-16 428 D chain kit

DID Chain Kit for Mash Cafe Racer 125 15-16 428 D Chain Set

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer name is used only to indicate compatibility!

Components of the chain kit Mash Cafe Racer 125 (Euro 3) 2015-2016

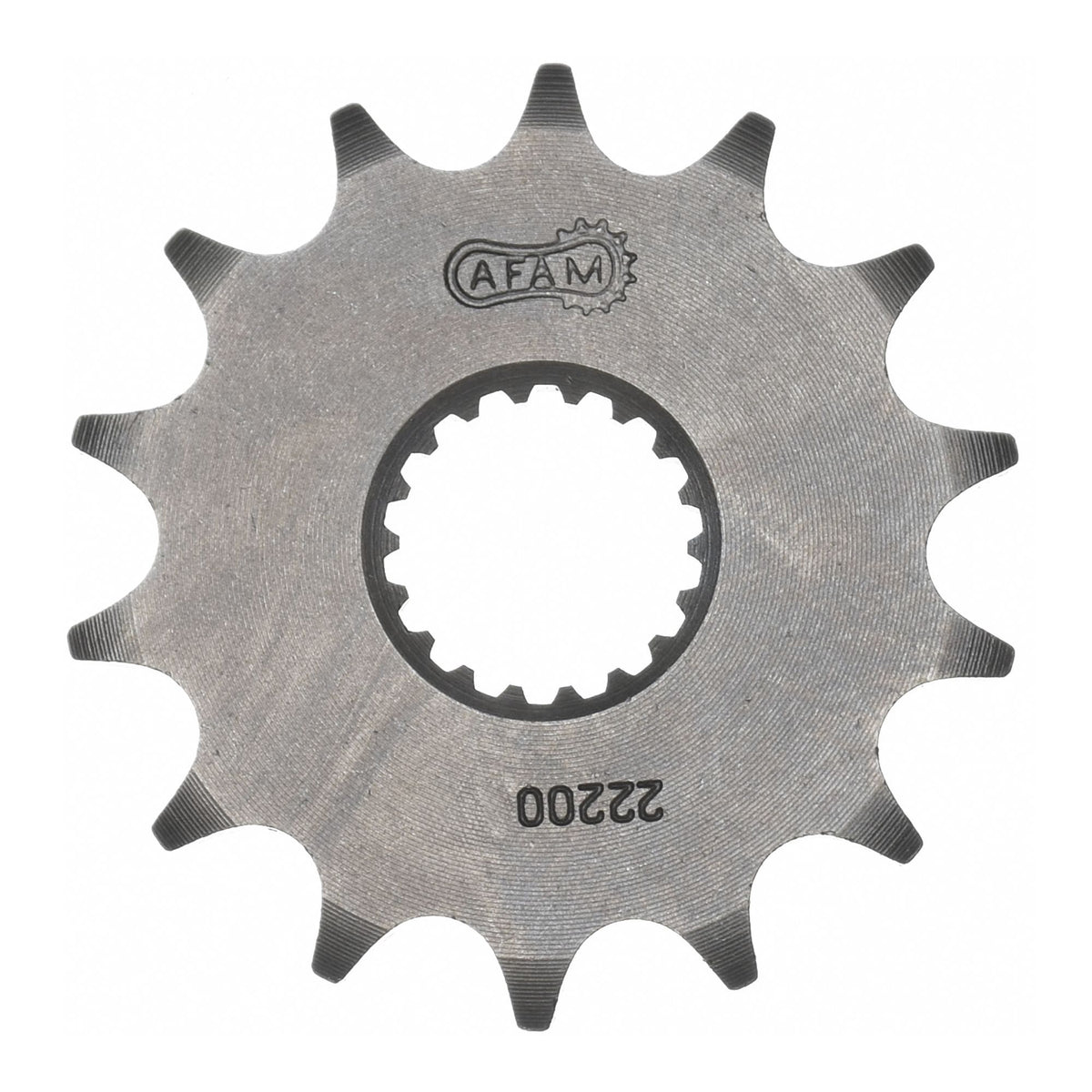

• Front sprocket: AFAM front sprocket #428 14 teeth - a22200.14
• Chain: DID chain 428 D 118 with clip master link - d6242800118

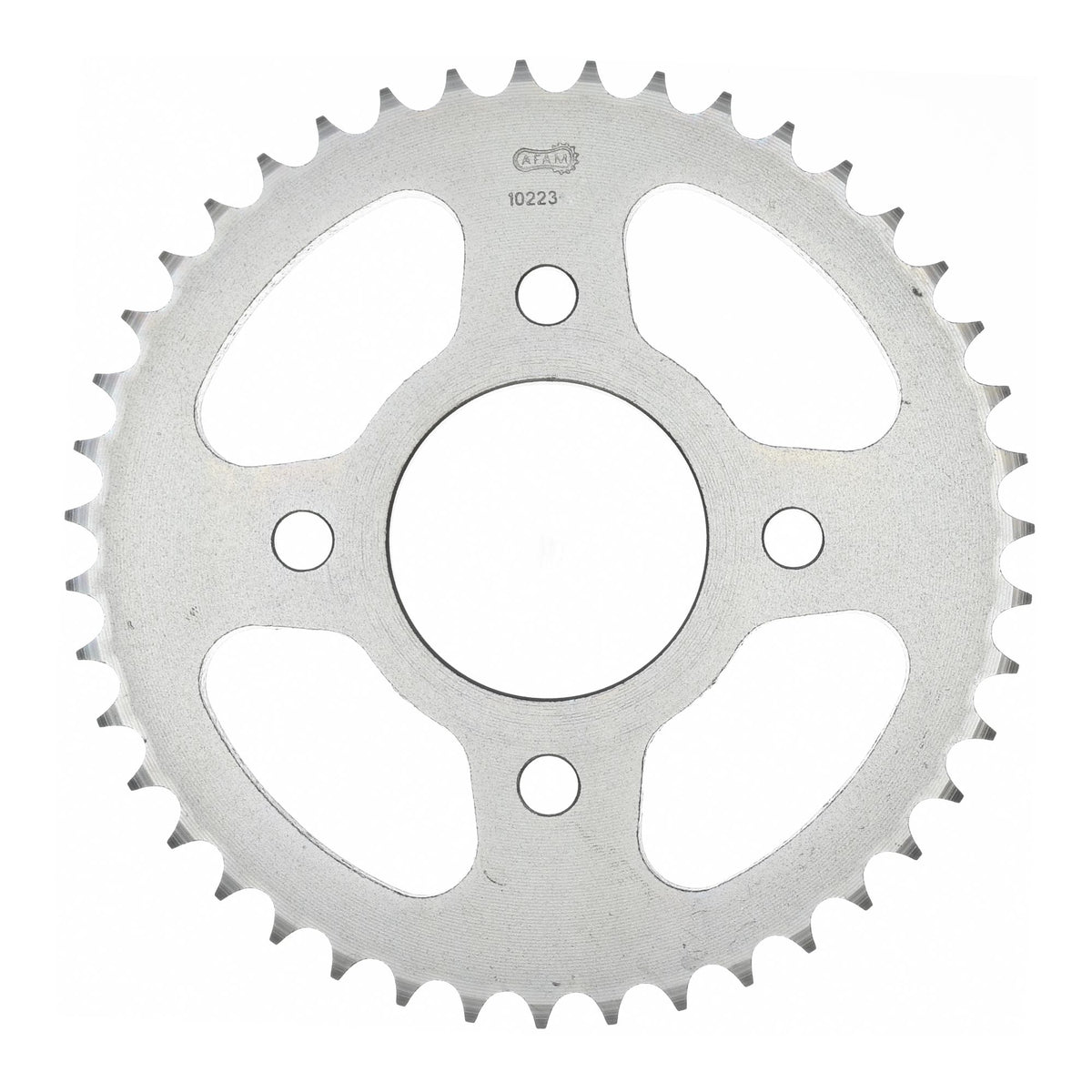

• Rear sprocket: AFAM rear sprocket STEEL #428 4-hole 42 teeth - a10223.42
• Transmission ratio front sprocket-chain-rear sprocket: 14-118-42

DID 428 D

Affordable and simple standard chain
Without sealing rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-39462

Fits

Mash 101 - 125 cc Cafe Racer 125 (Euro 3) 2015
Mash 101 - 125 cc Cafe Racer 125 (Euro 3) 2016
