DID chain kit for Mash Seventy 125 15-16 428 D chain kit

DID chain kit for Mash Seventy 125 15-16 428 D chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Mash Seventy 125 (Euro 3) 2015-2016

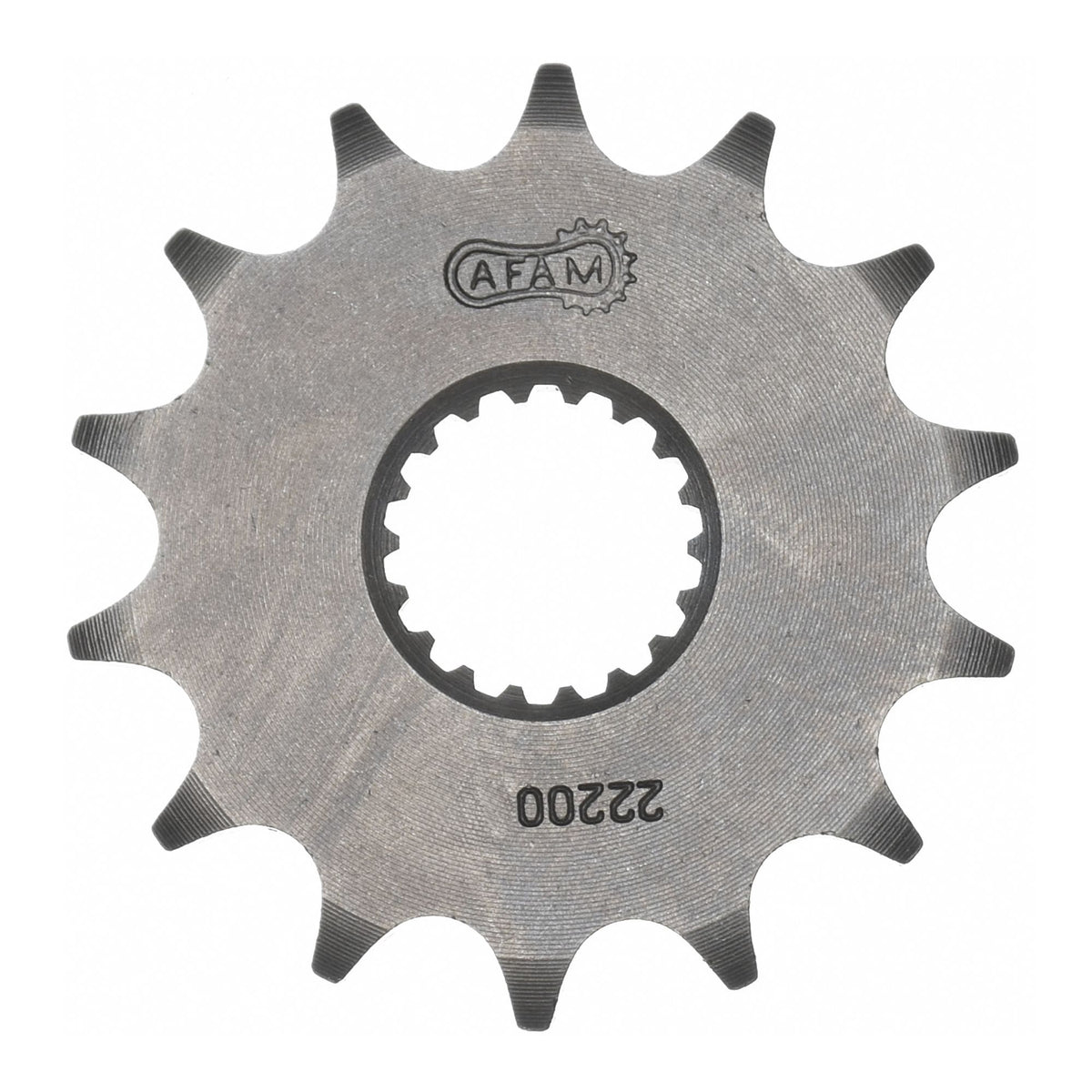

• Front sprocket: AFAM front sprocket #428 14 teeth - a22200.14
• Chain: DID chain 428 D 118 with clip link - d6242800118

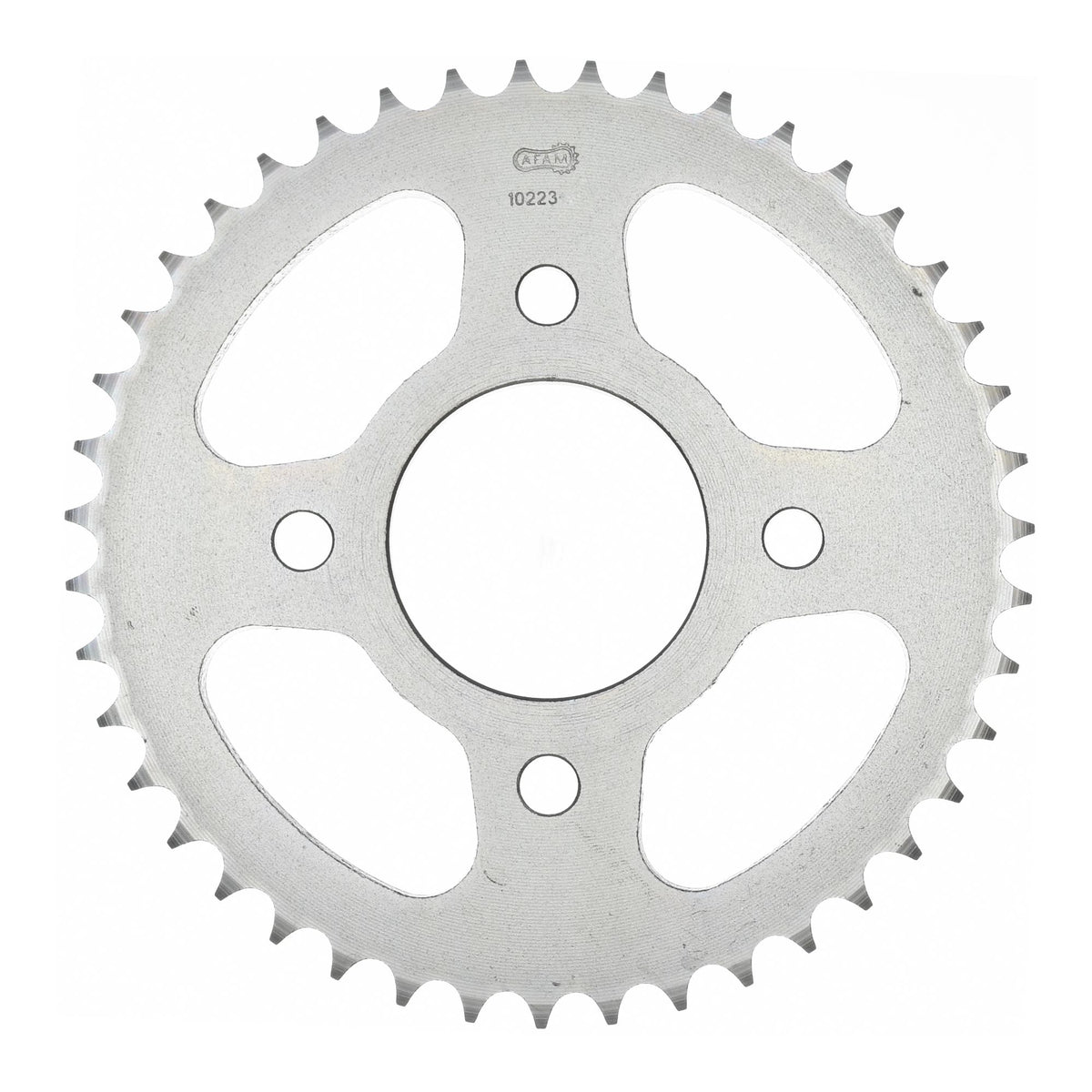

• Rear sprocket: AFAM rear sprocket STEEL #428 4-hole 42 teeth - a10223.42
• Gear ratio front sprocket-chain-rear sprocket: 14-118-42

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-29943

Fits

Mash 101 - 125 ccm Seventy 125 (Euro 3) 2015
Mash 101 - 125 ccm Seventy 125 (Euro 3) 2016
