DID chain kit for MBK X-Limit Enduro 50 07-08 420 D chain kit

DID chain kit for MBK X-Limit Enduro 50 07-08 420 D chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

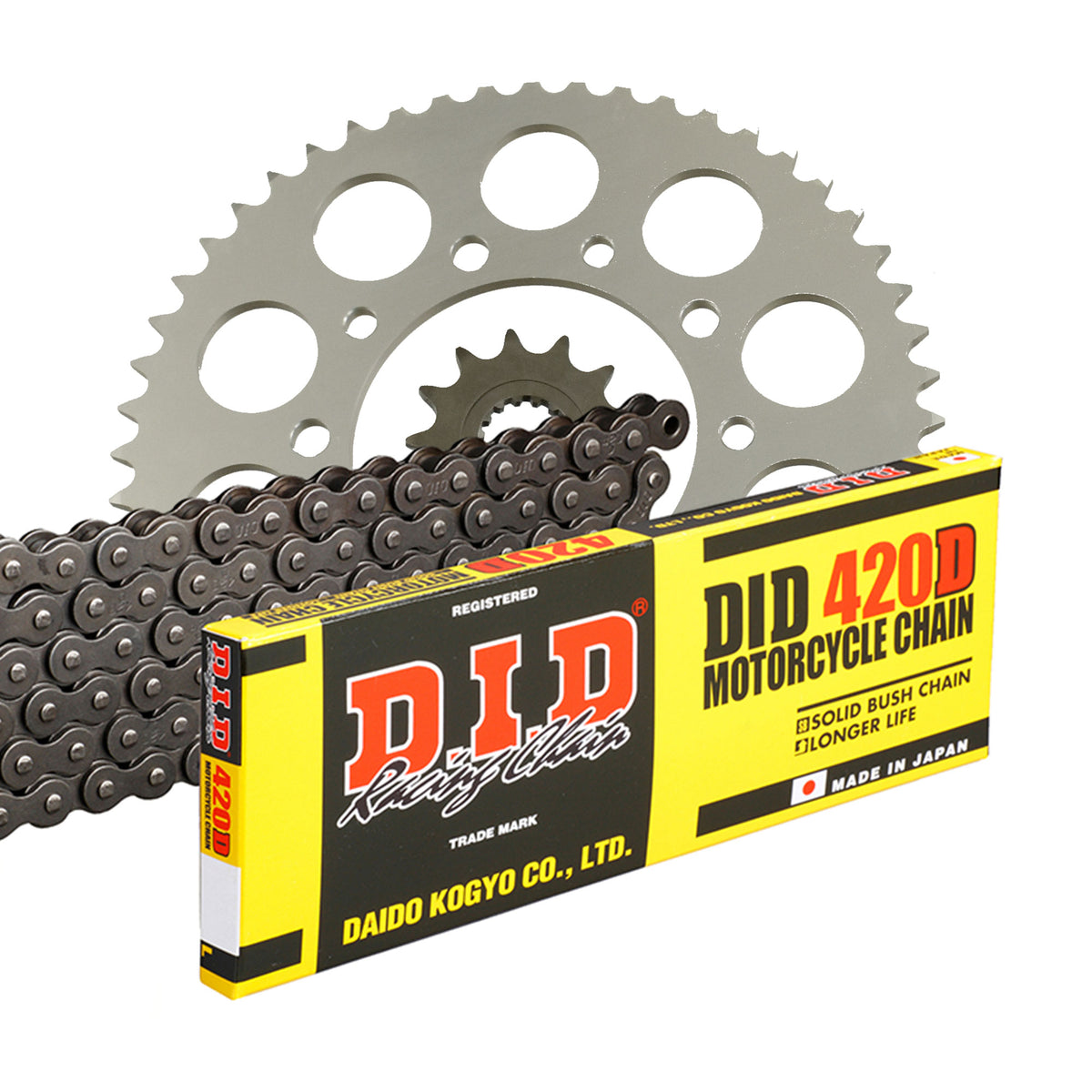

Components of the chain kit MBK X-Limit Enduro 50 2007-2008

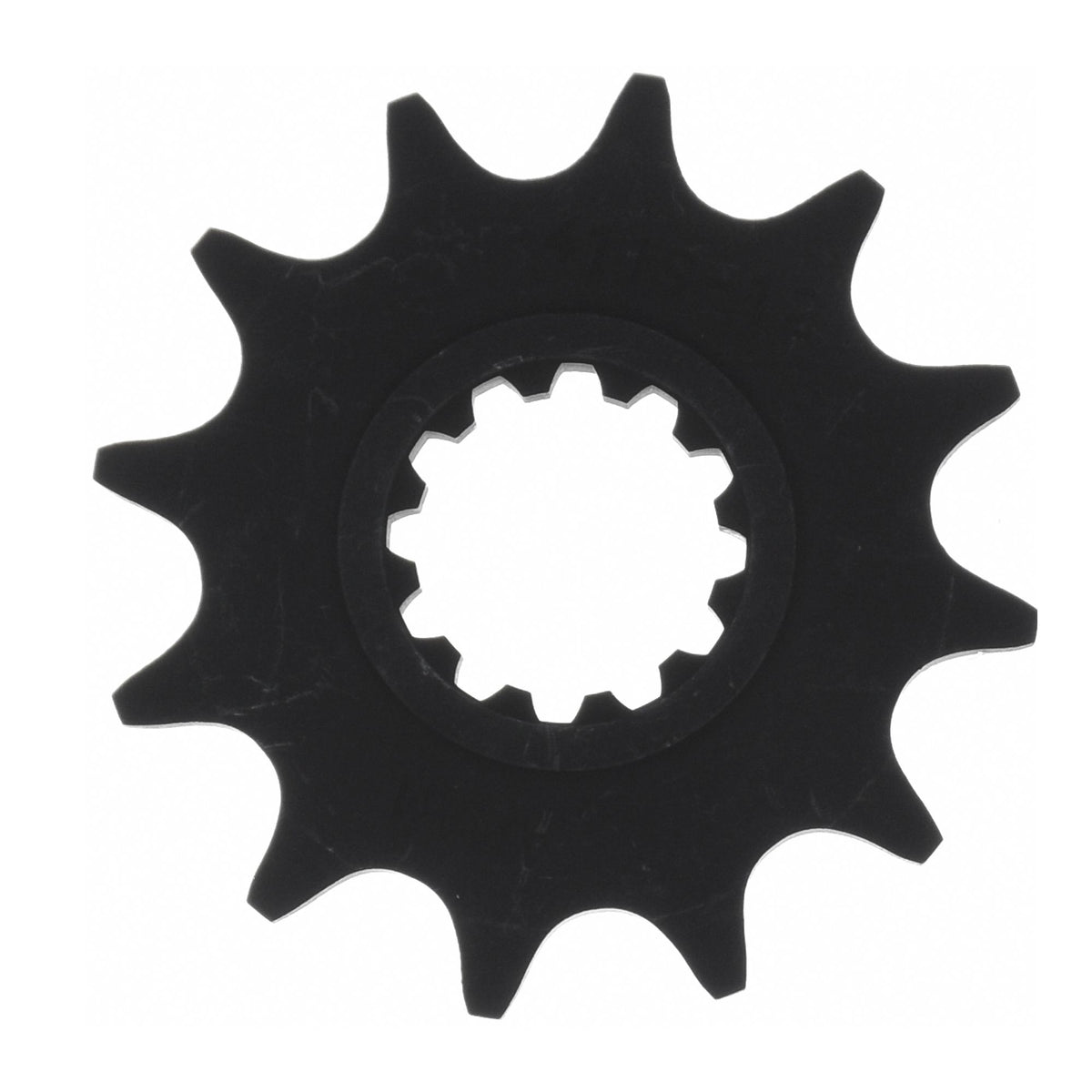

• Front sprocket: AFAM front sprocket #420 11 teeth - a94119.11

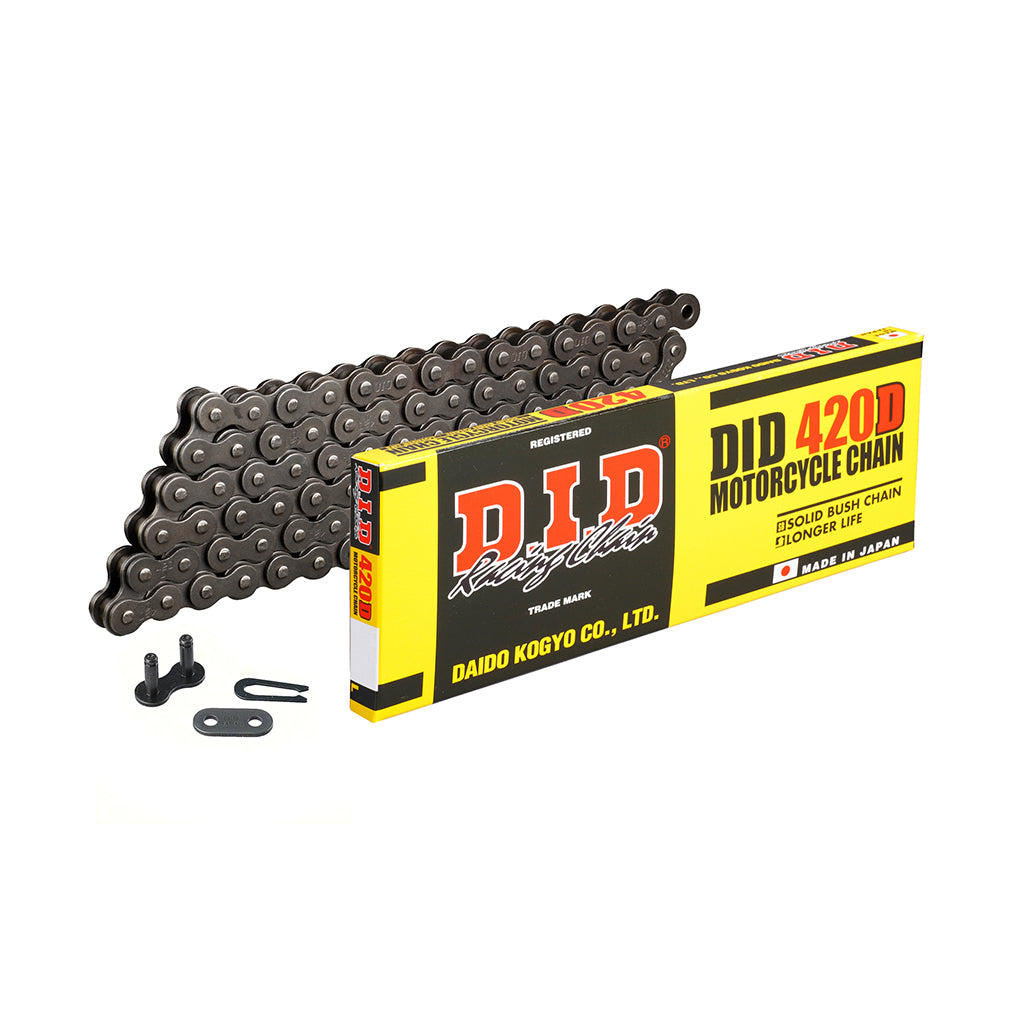

• Chain: DID chain 420 D 134 with clip link - d6242000134

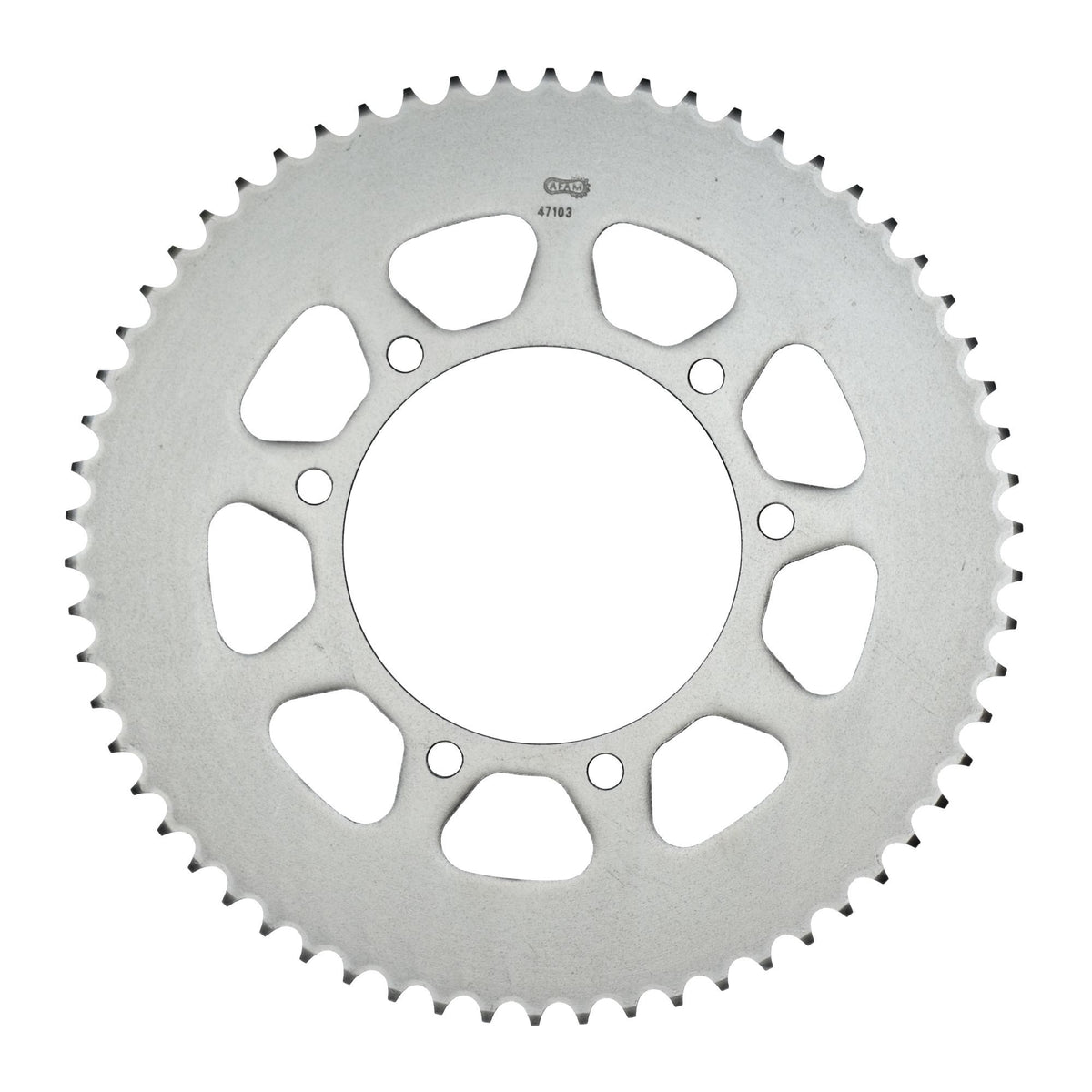

• Rear sprocket: AFAM rear sprocket STEEL #420 62 teeth - a47103.62
• Transmission ratio front sprocket-chain-rear sprocket: 11-134-62

DID 420 D

Affordable and simple standard chain
Without sealing rings
Color: Black

Technical specifications:
Pitch: 420
Pin length: 14.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 17.70 kN
Weight per 100 links: 0.74 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-29946

Fits

MBK 0 - 100 ccm X-Limit Enduro 50 2007
MBK 0 - 100 ccm X-Limit Enduro 50 2008
