DID chain kit for MBK X-Power 50 07-11 420 NZ3 chain kit

DID chain kit for MBK X-Power 50 07-11 420 NZ3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only for compatibility purposes!

Components of the chain kit MBK X-Power 50 2007-2011

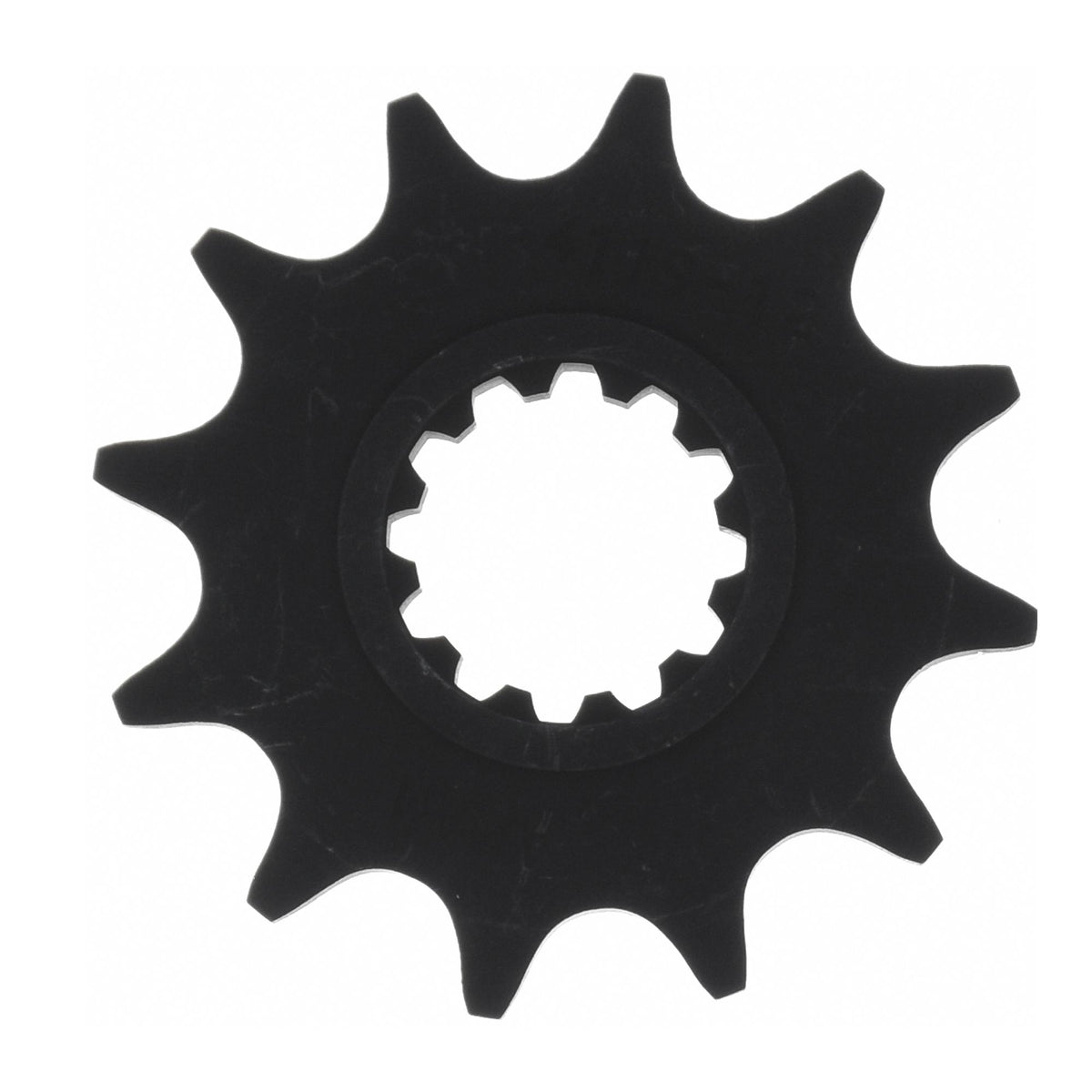

• Sprocket: AFAM sprocket #420 11 teeth - a94119.11
• Chain: DID chain 420 NZ3 G&B 138 with clip connecting link - d6242002138
• Rear sprocket: AFAM rear sprocket STEEL #420 60 teeth - a12115.60
• Gear ratio sprocket-chain-rear sprocket: 11-138-60

DID 420 NZ3

Extra reinforced chain
Without O-rings
Color: Gold/Black
Application by displacement: up to 150 cc

Technical specifications:
Pitch: 420
Pin length: 16.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.8 mm
Outer plate thickness: 1.8 mm
Wear resistance index: 410
Tensile strength: 21.90 kN
Weight per 100 links: 0.82 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-44713

Suitable for

MBK 0 - 100 cc X-Power 50 2007
MBK 0 - 100 cc X-Power 50 2008
MBK 0 - 100 cc X-Power 50 2009
MBK 0 - 100 cc X-Power 50 2010
MBK 0 - 100 cc X-Power 50 2011
