DID chain set for Moto Morini Corsaro 1200 06-07 525 VX3 chain kit

DID chain kit for Moto Morini Corsaro 1200 06-07 525 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Moto Morini Corsaro 1200 2006-2007

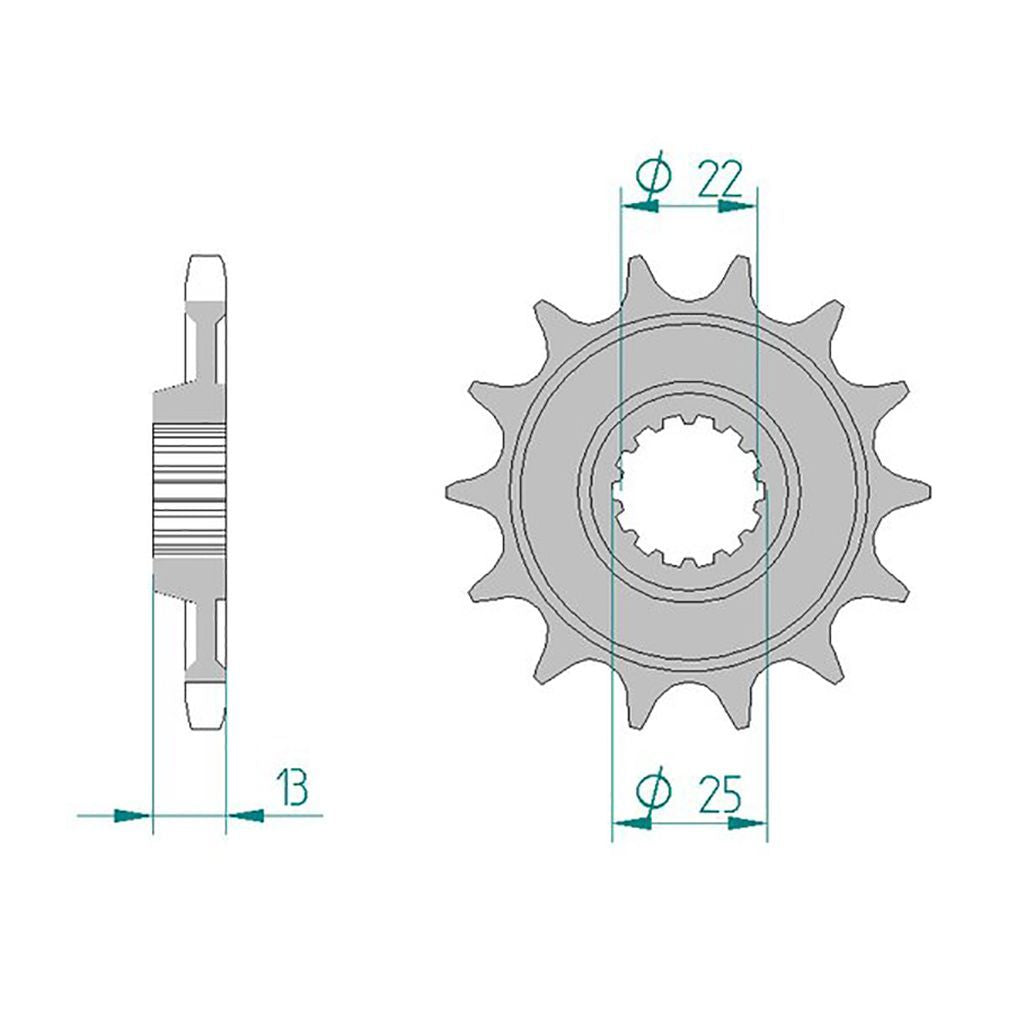

• Front sprocket: AFAM front sprocket #525 17 teeth - a94902.17
• Chain: DID chain 525 VX3 G&B 104 with rivet link - d525vx3.g-104

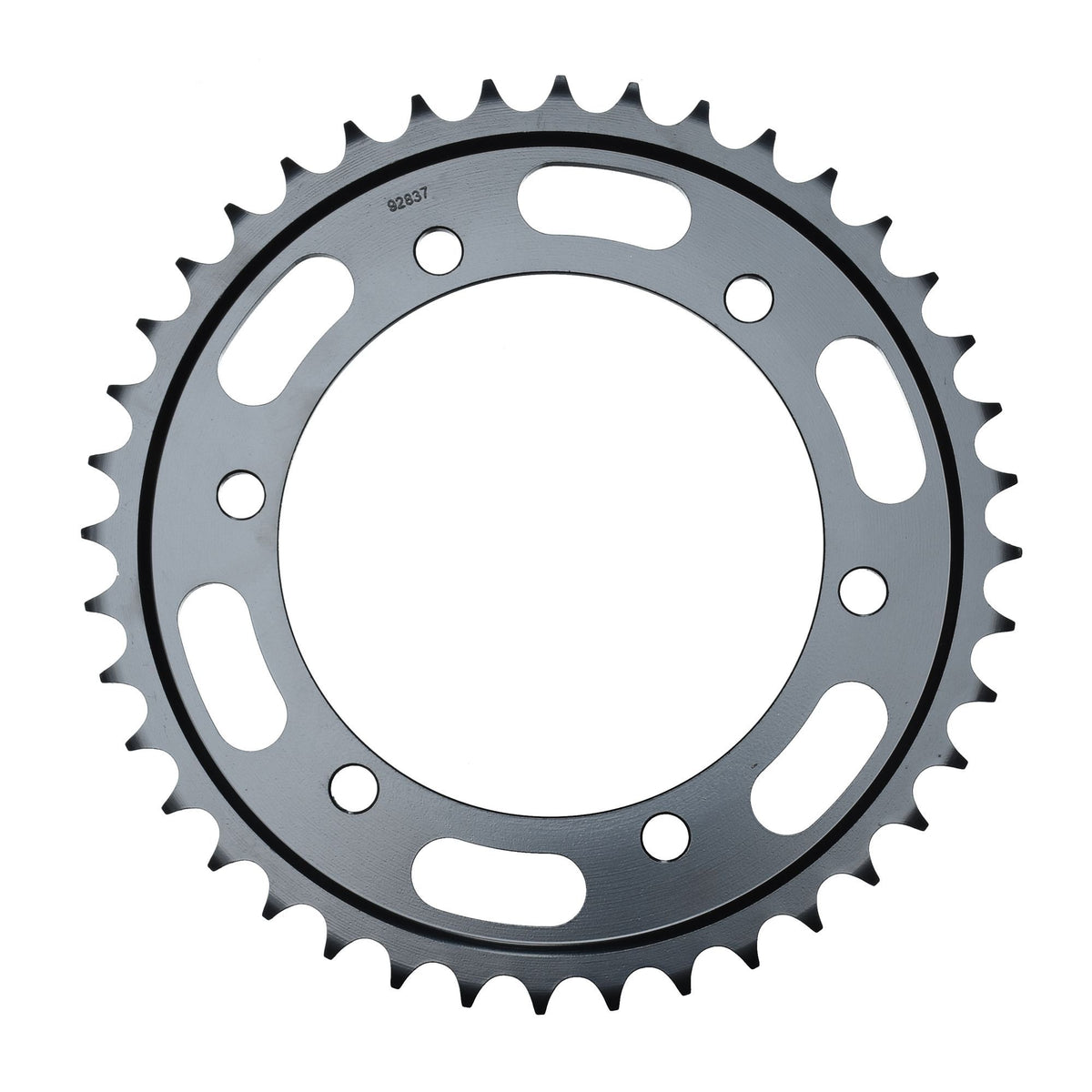

• Rear sprocket: AFAM rear sprocket STEEL #525 40 teeth - a92837.40
• Gear ratio front sprocket-chain-rear sprocket: 17-104-40

DID 525 VX3

Successor to the proven 525 VX
X-Ring chain
Color: Gold/Black
Application by engine displacement: up to 1000 cc

Technical specifications:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear life index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-30372

Suitable for

Moto Morini over 1001 cc Corsaro 1200 2006
Moto Morini over 1001 cc Corsaro 1200 2007
