DID chain kit for Moto Morini Corsaro 1200 Avio 08-09 525 ZVMX chain kit

DID chain kit for Moto Morini Corsaro 1200 Avio 08-09 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

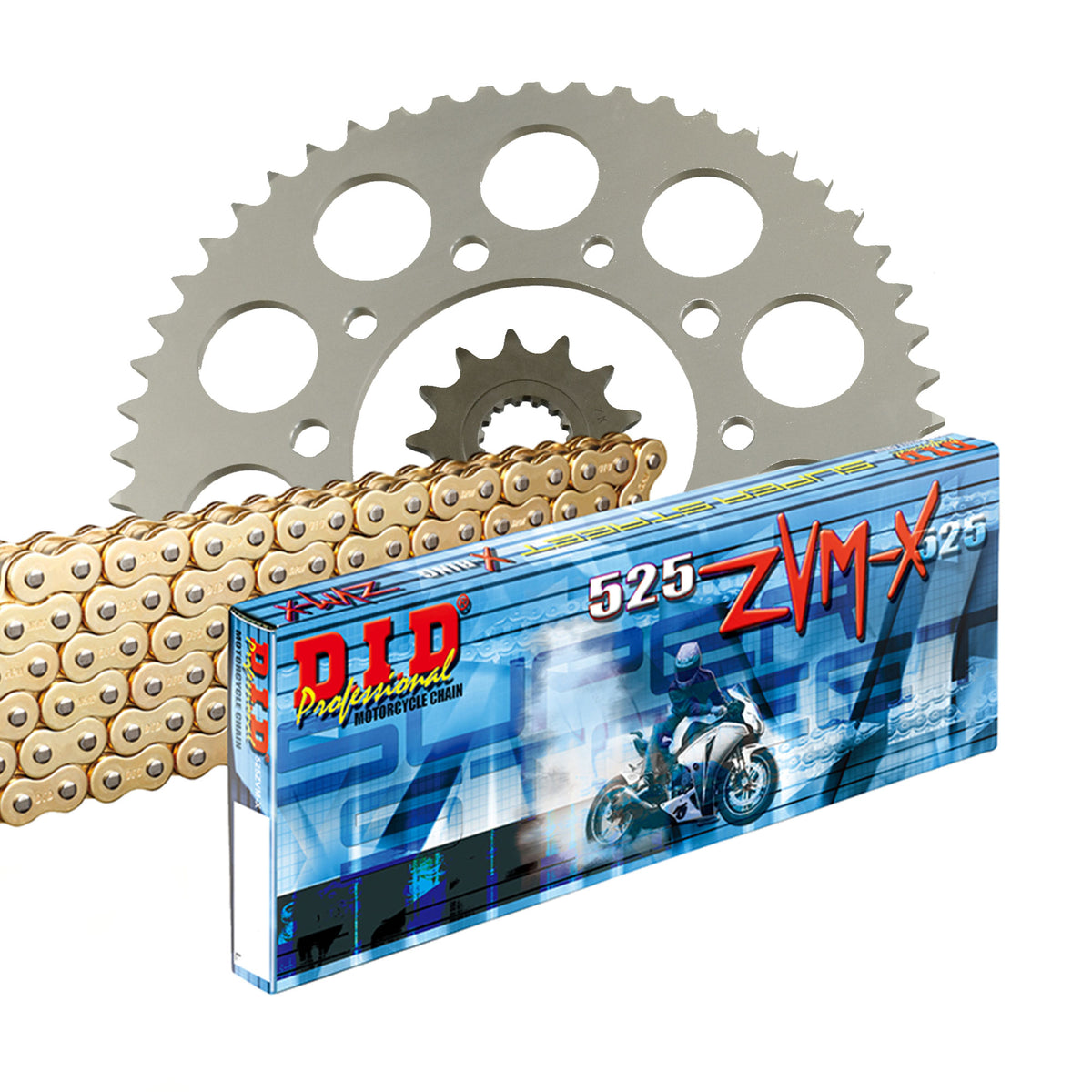

Components of the chain kit Moto Morini Corsaro 1200 Avio 2008-2009

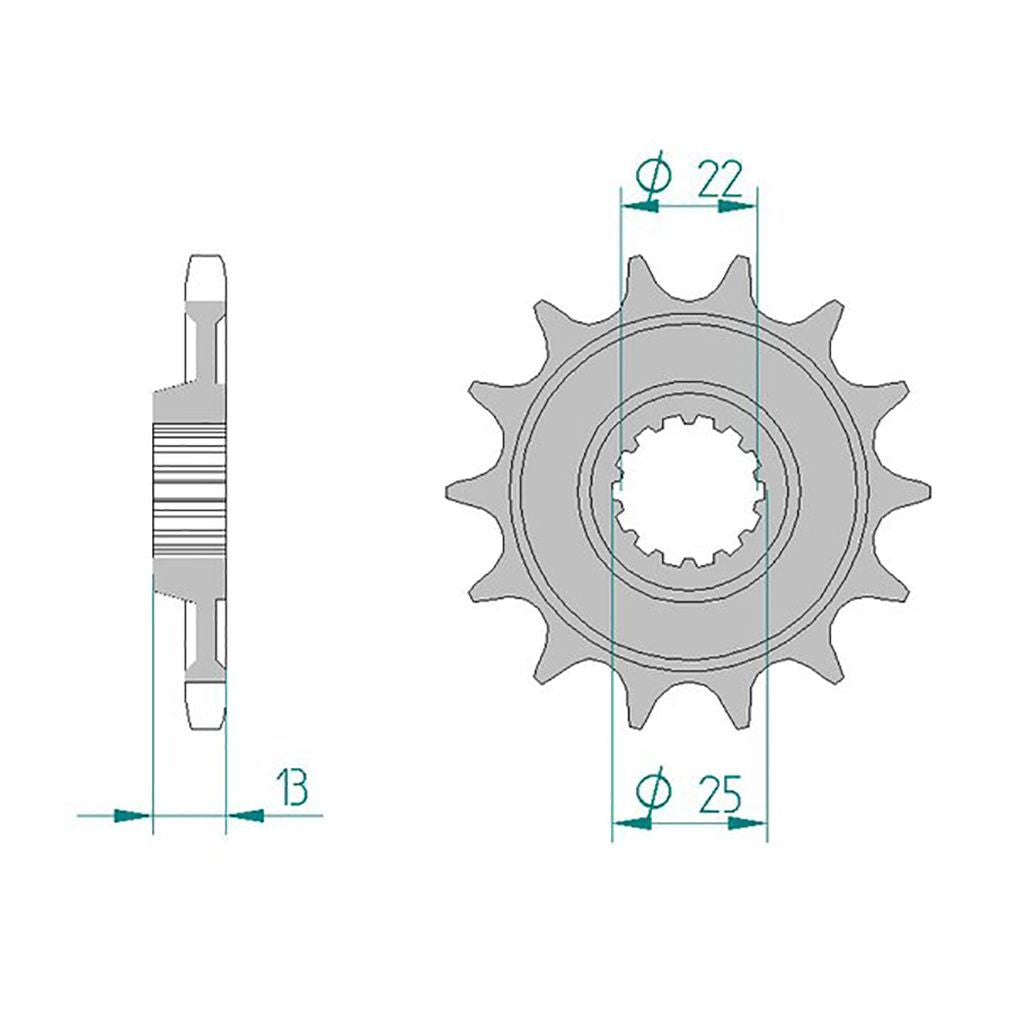

• Sprocket: AFAM sprocket #525 17 teeth - a94902.17

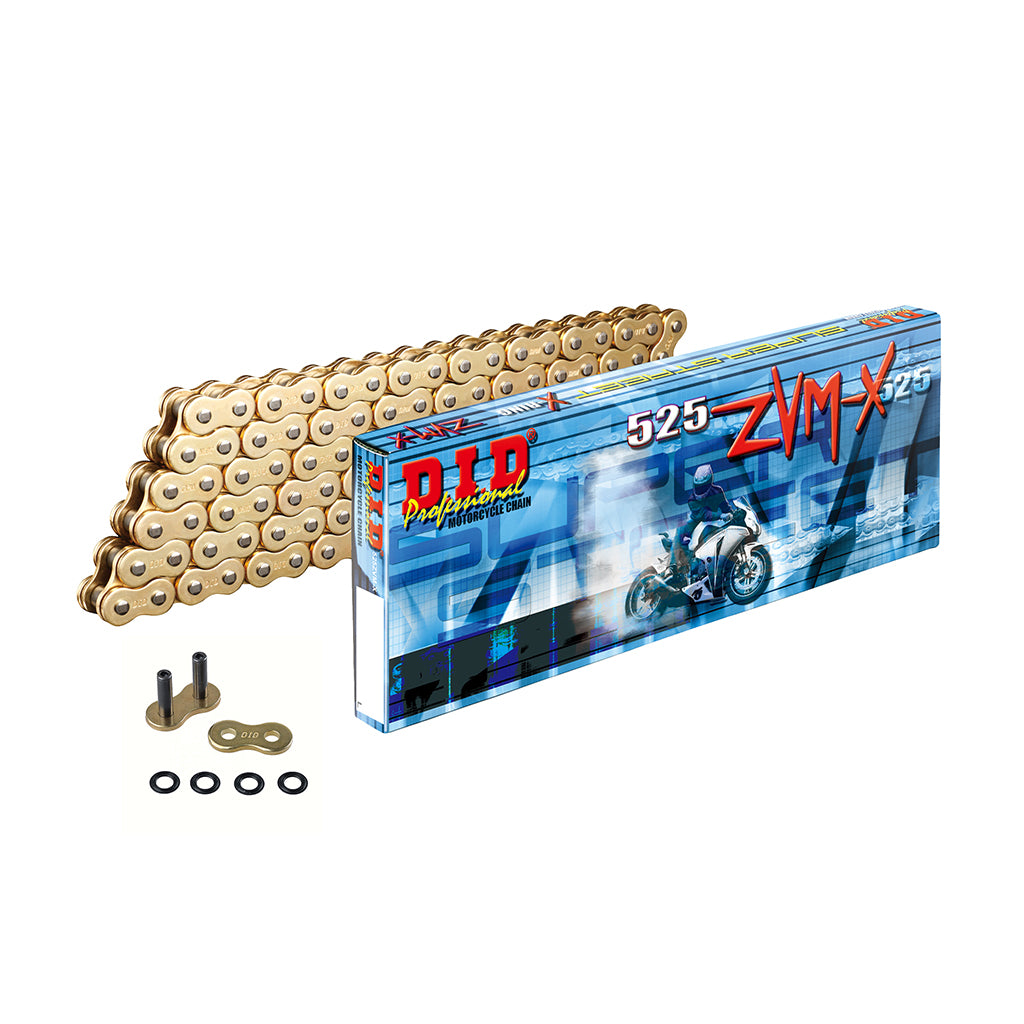

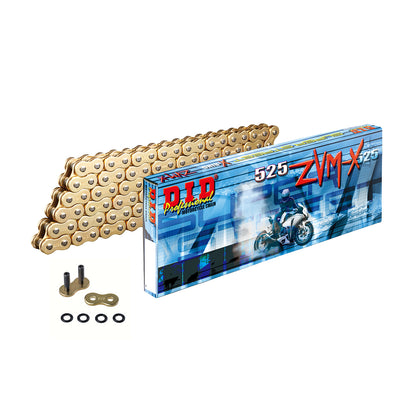

• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110

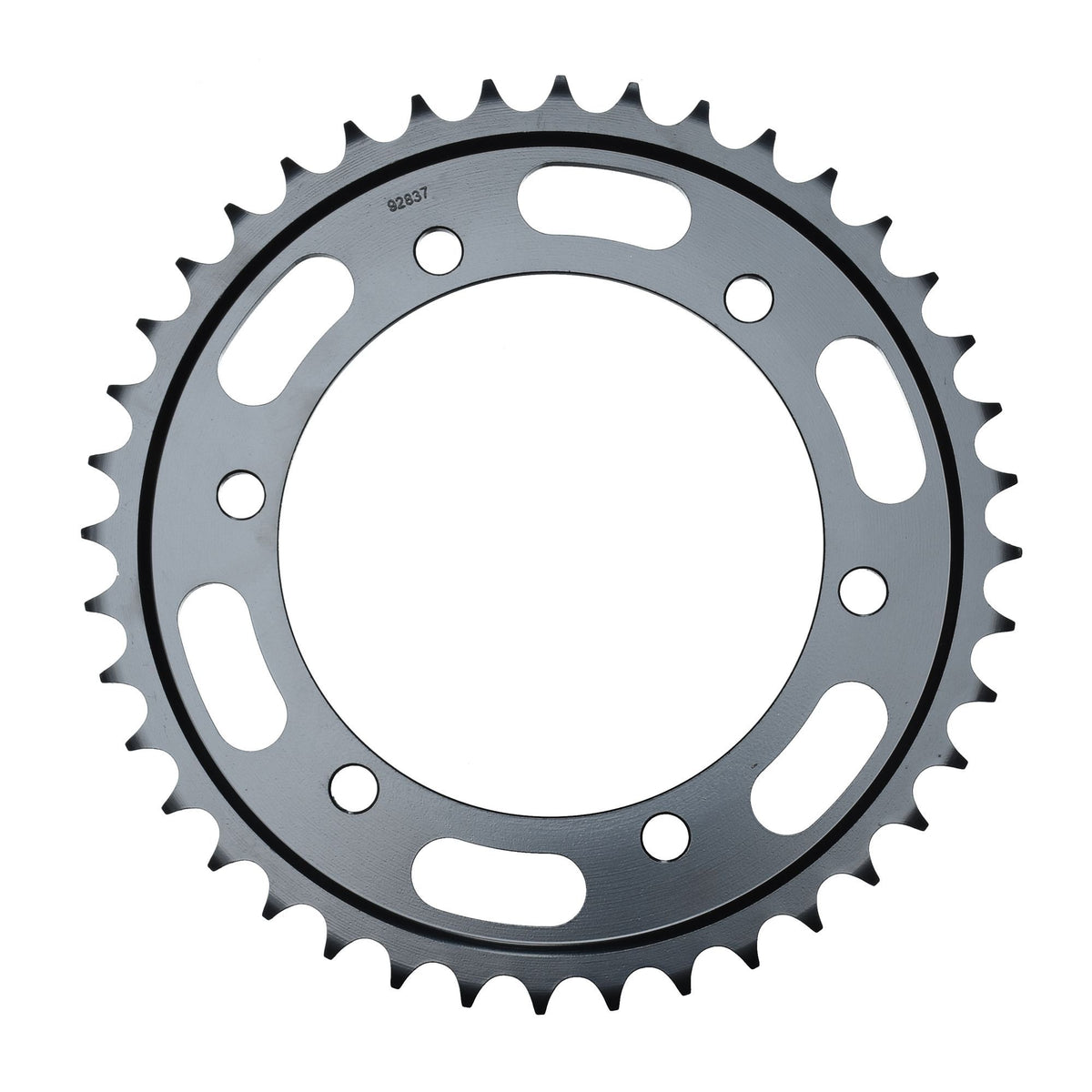

• Rear sprocket: AFAM rear sprocket STEEL #525 40 teeth - a92837.40
• Gear ratio sprocket-chain-rear sprocket: 17-110-40

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1300 ccm

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered item is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-44714

Suitable for

Moto Morini over 1001 ccm Corsaro 1200 Avio 2008
Moto Morini over 1001 ccm Corsaro 1200 Avio 2009
