DID chain kit for Moto Morini Corsaro 1200 Veloce 08-09 525 ZVMX chain kit

DID chain kit for Moto Morini Corsaro 1200 Veloce 08-09 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

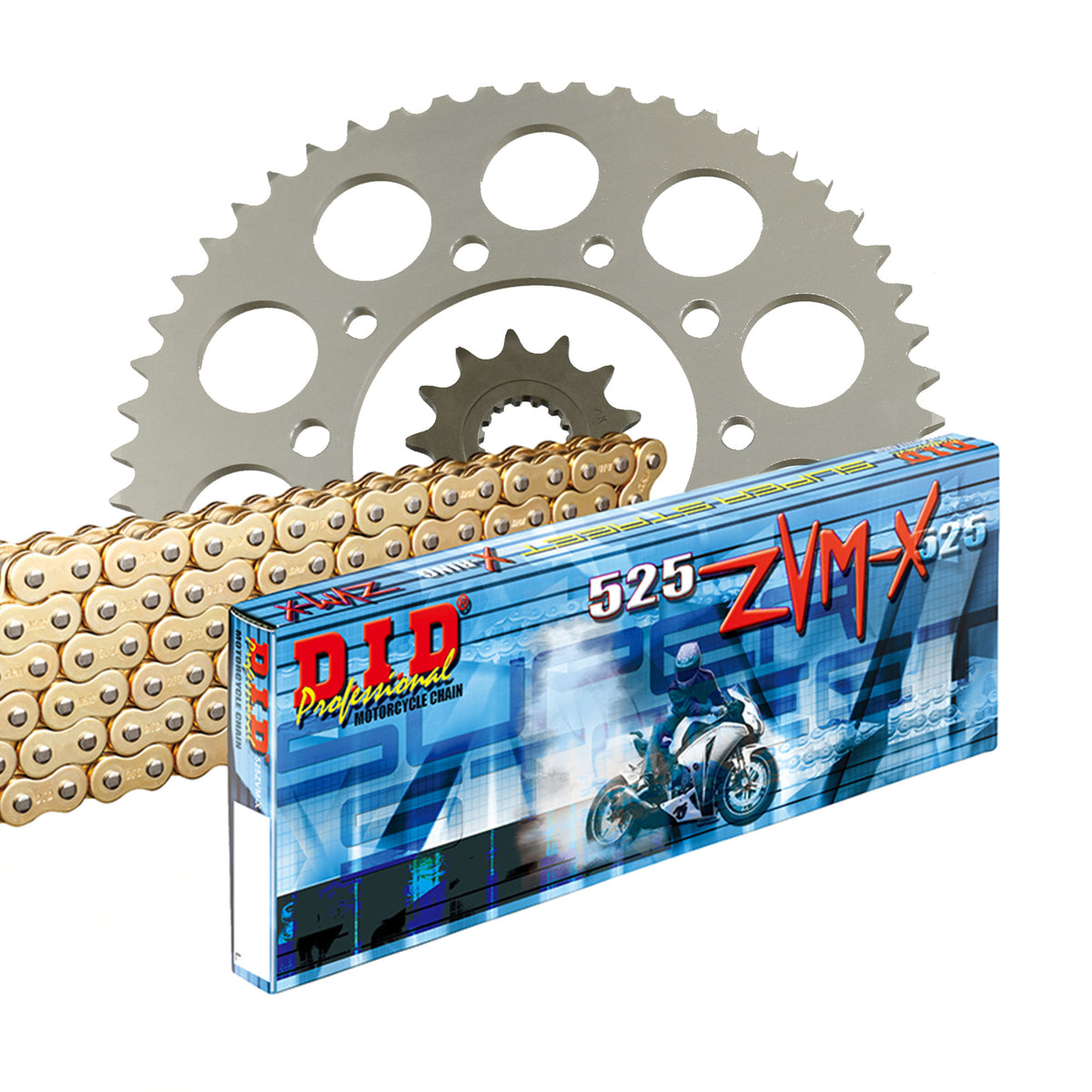

Components of the chain kit Moto Morini Corsaro 1200 Veloce 2008-2009

• Front sprocket: AFAM front sprocket #525 17 teeth - a94902.17

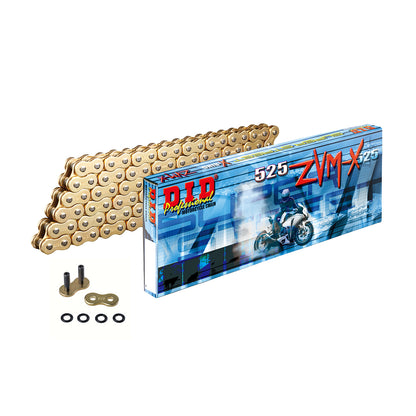

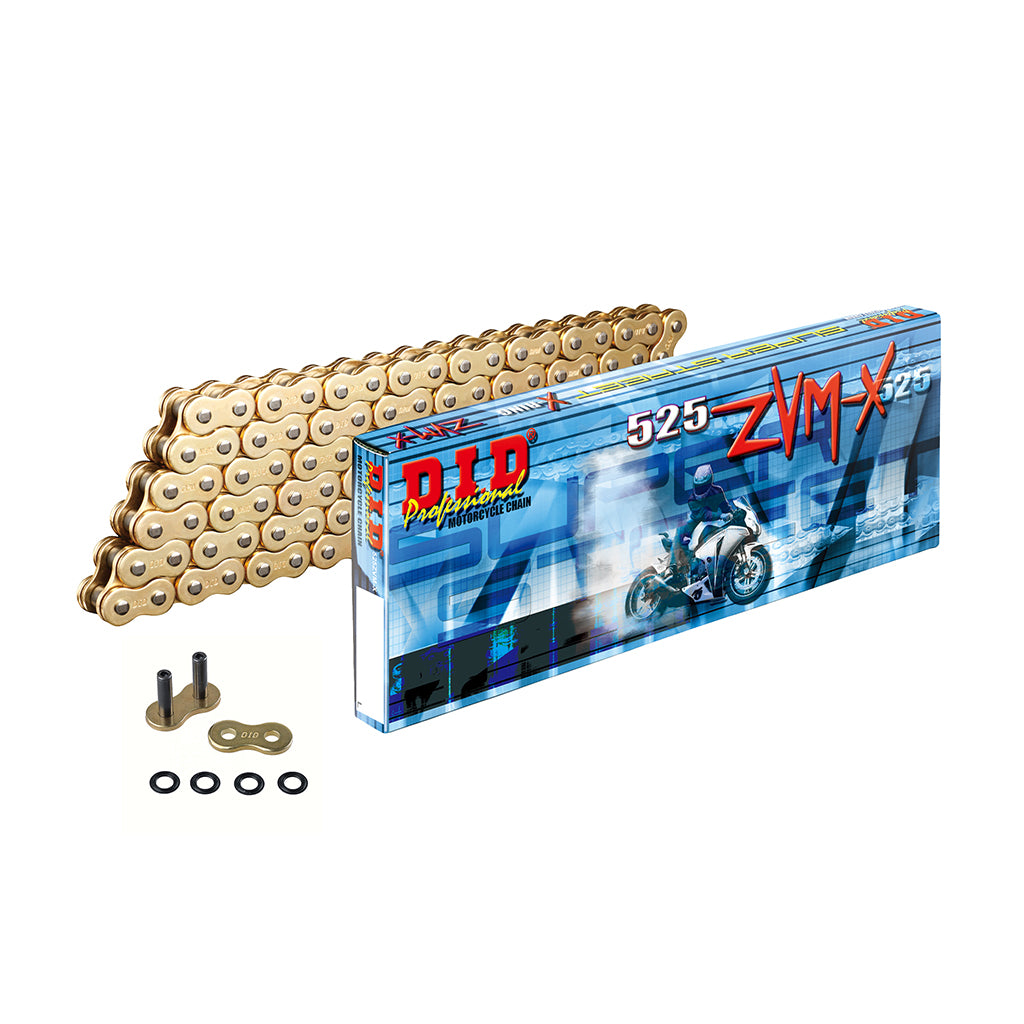

• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110

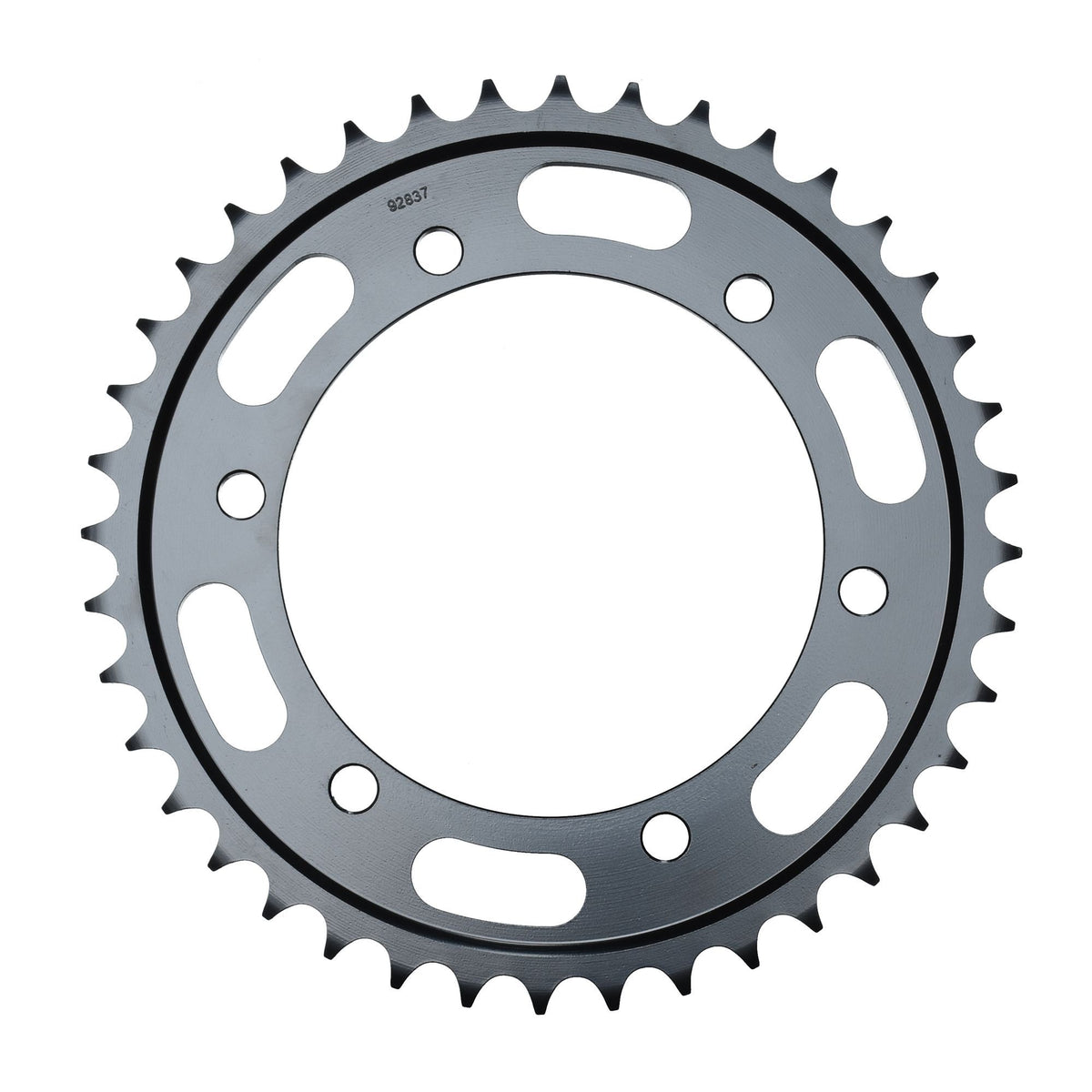

• Rear sprocket: AFAM rear sprocket STEEL #525 40 teeth - a92837.40
• Transmission ratio front sprocket-chain-rear sprocket: 17-110-40

DID 525 ZVM-X

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-50157

Suitable for

Moto Morini over 1001 cc Corsaro 1200 Veloce 2008
Moto Morini over 1001 cc Corsaro 1200 Veloce 2009
