DID chain kit for Motorhispania Duna 125 Supermoto 09-10 428 HD chain kit

DID chain kit for Motorhispania Duna 125 Supermoto 09-10 428 HD chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Motorhispania Duna 125 Supermoto 2009-2010

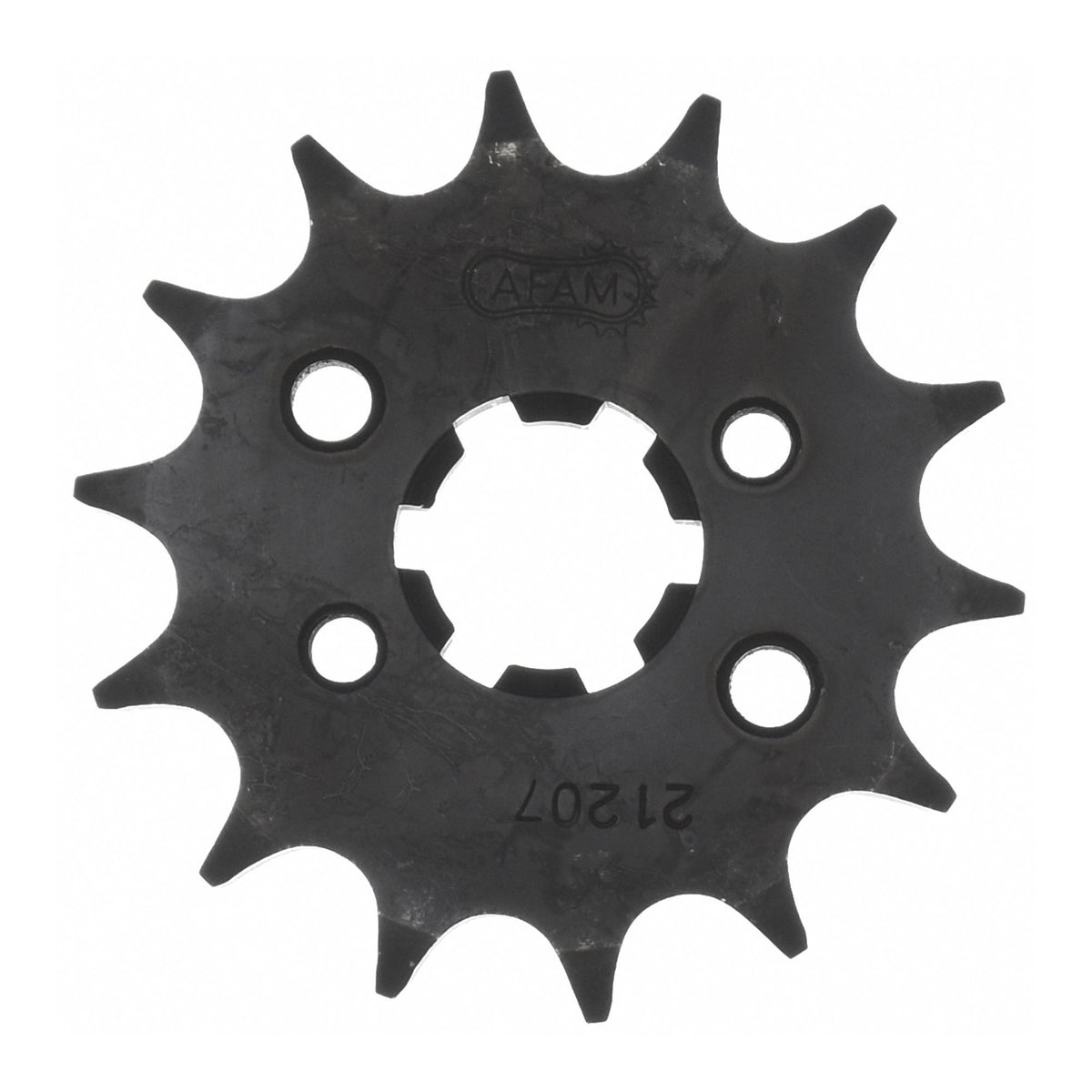

• Front sprocket: AFAM front sprocket #428 14 teeth - a21207.14
• Chain: DID chain 428 HD 128 with clip link - d6242801128

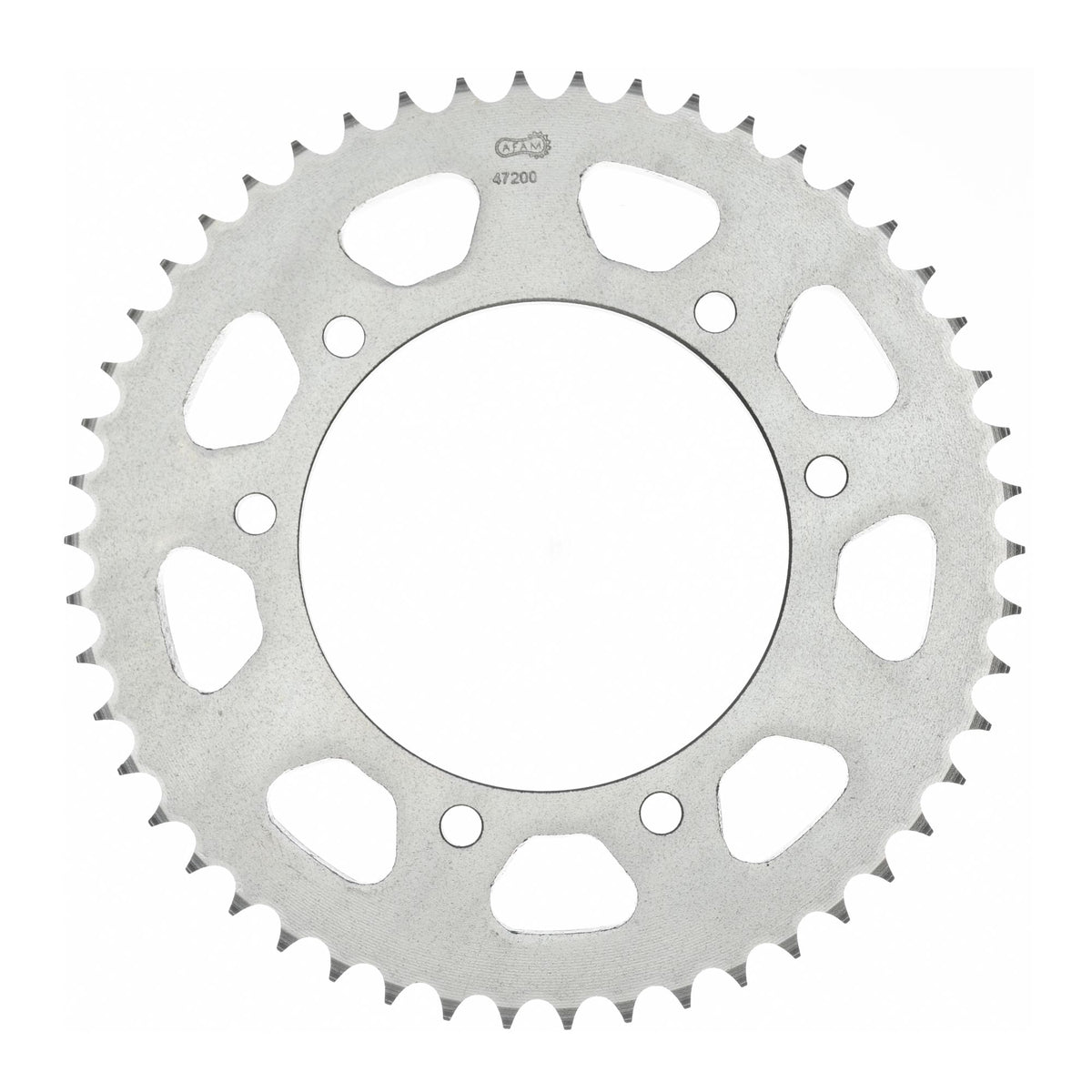

• Rear sprocket: AFAM rear sprocket STEEL #428 51 teeth - a47200.51
• Gear ratio front sprocket-chain-rear sprocket: 14-128-51

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-44717

Suitable for

Motorhispania 101 - 125 ccm Duna 125 Supermoto 2009
Motorhispania 101 - 125 ccm Duna 125 Supermoto 2010
