DID chain kit for Motorhispania Furia 50 96-98 420 D chain kit

DID chain kit for Motorhispania Furia 50 96-98 420 D chain kit

Chain kit or chain set for assigned model according to item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

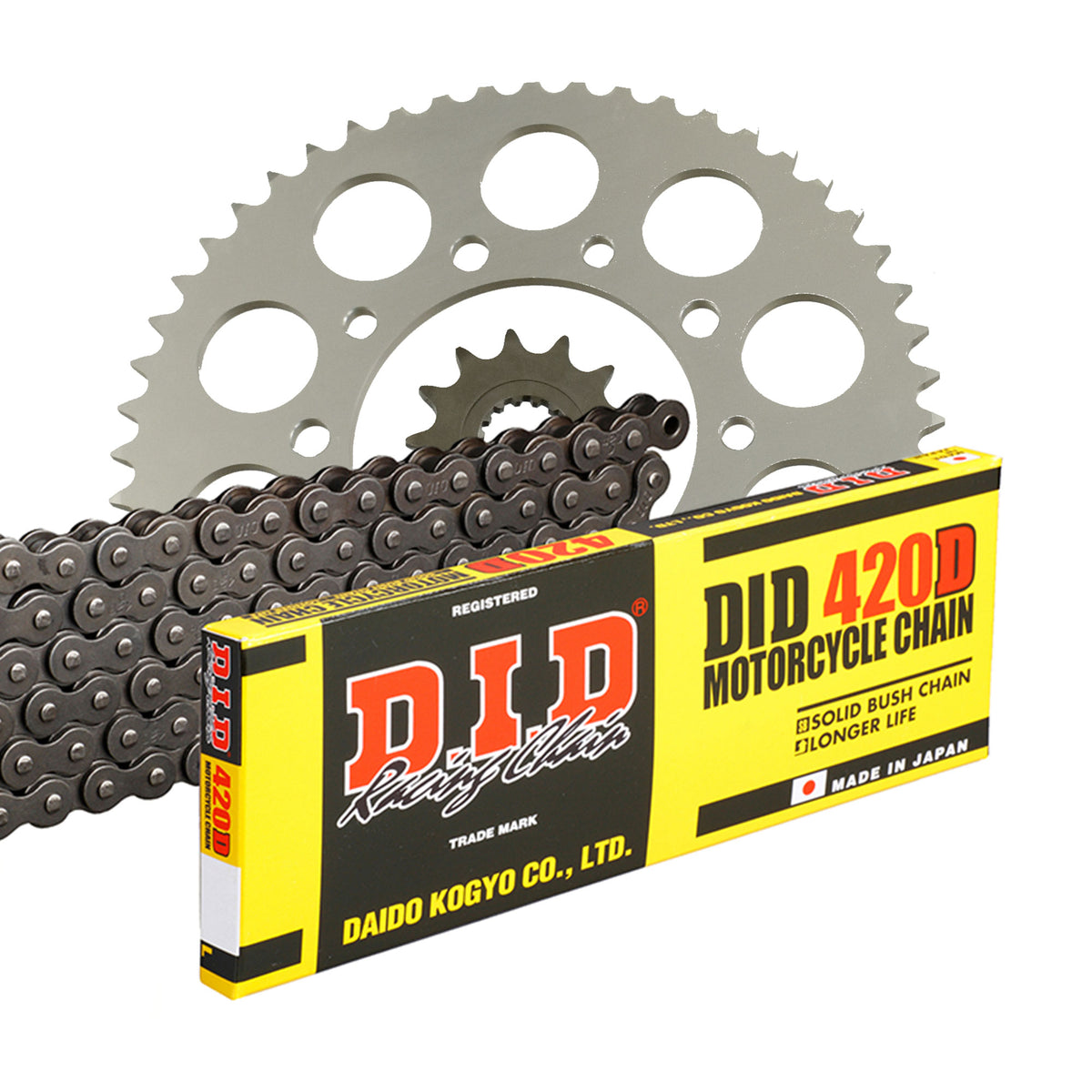

Components of the Motorhispania Furia 50 1996-1998 chain kit

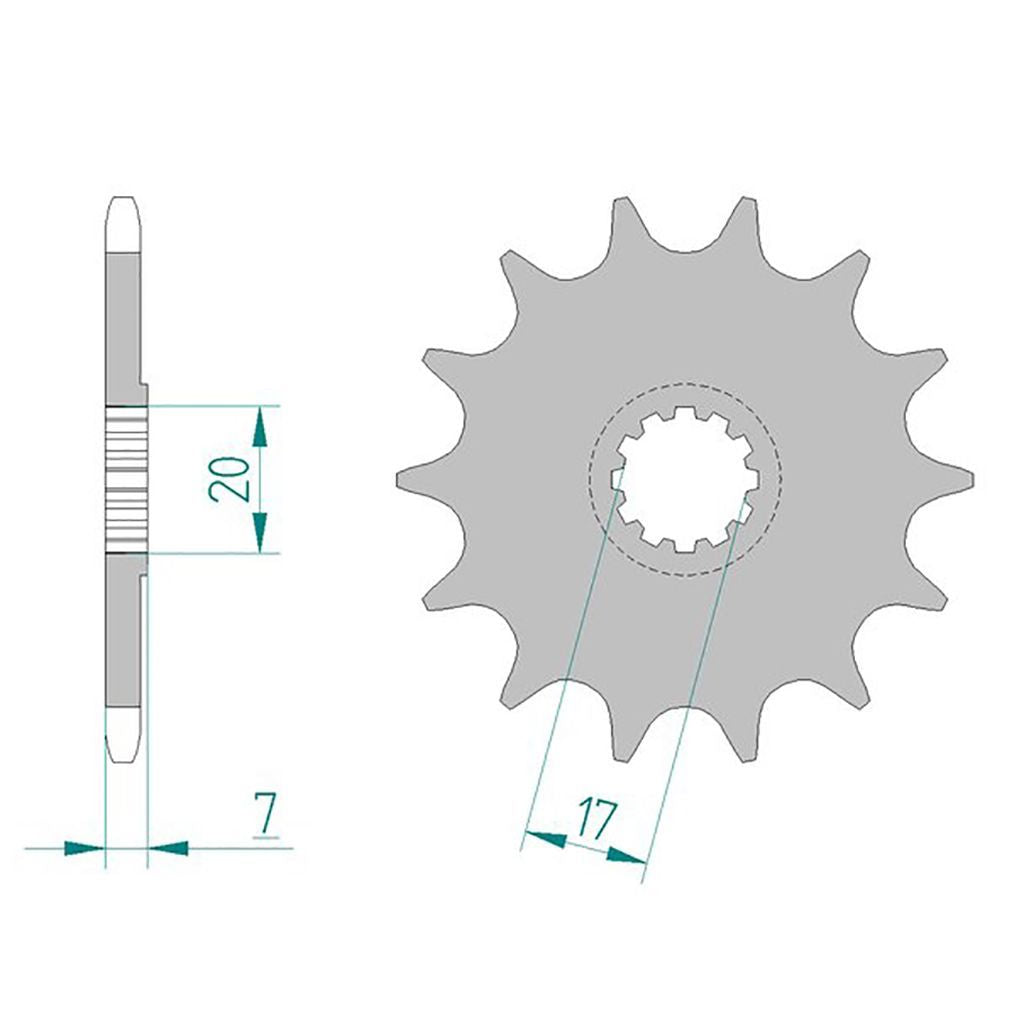

• Front sprocket: AFAM front sprocket #420 12 teeth - a94109.12

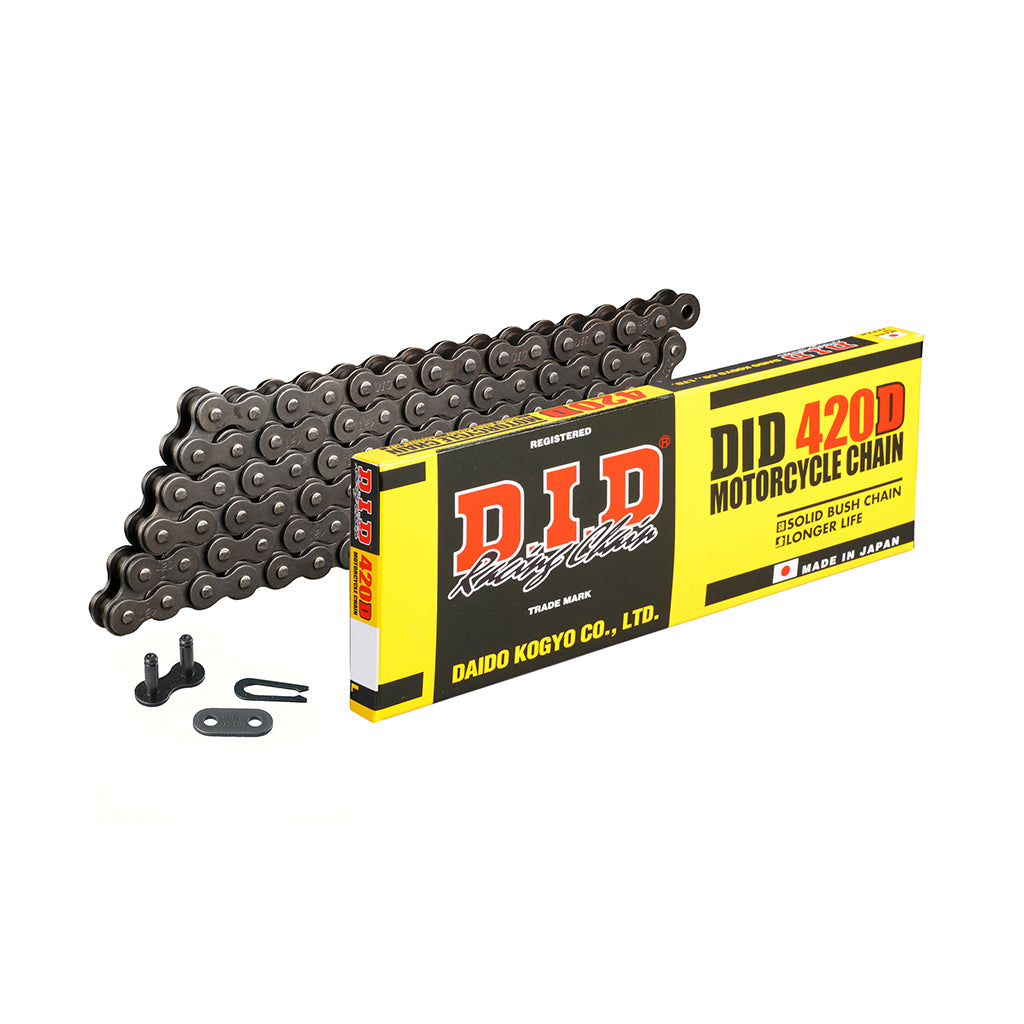

• Chain: DID chain 420 D 126 with clip link - d6242000126

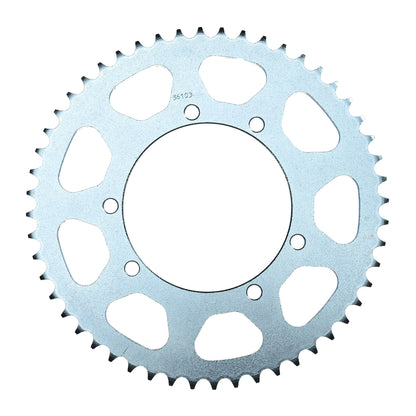

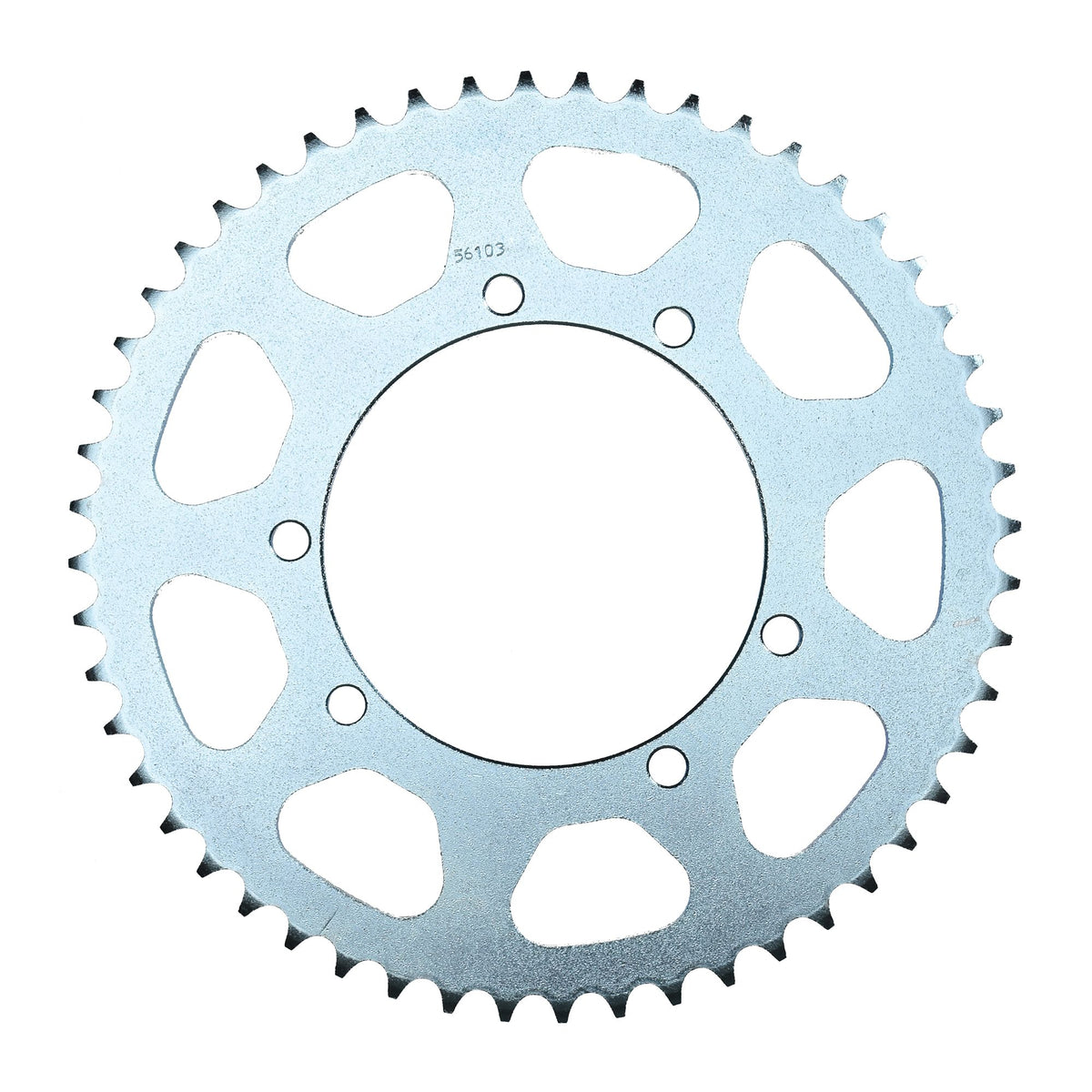

• Rear sprocket: AFAM rear sprocket STEEL #420 52 teeth - a56103.52
• Gear ratio front sprocket-chain-rear sprocket: 12-126-52

DID 420 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical specifications:
Pitch: 420
Pin length: 14.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 17.70 kN
Weight per 100 links: 0.74 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-39709

Suitable for

Motorhispania 0 - 100 cc Furia 50 1996
Motorhispania 0 - 100 cc Furia 50 1997
Motorhispania 0 - 100 cc Furia 50 1998
