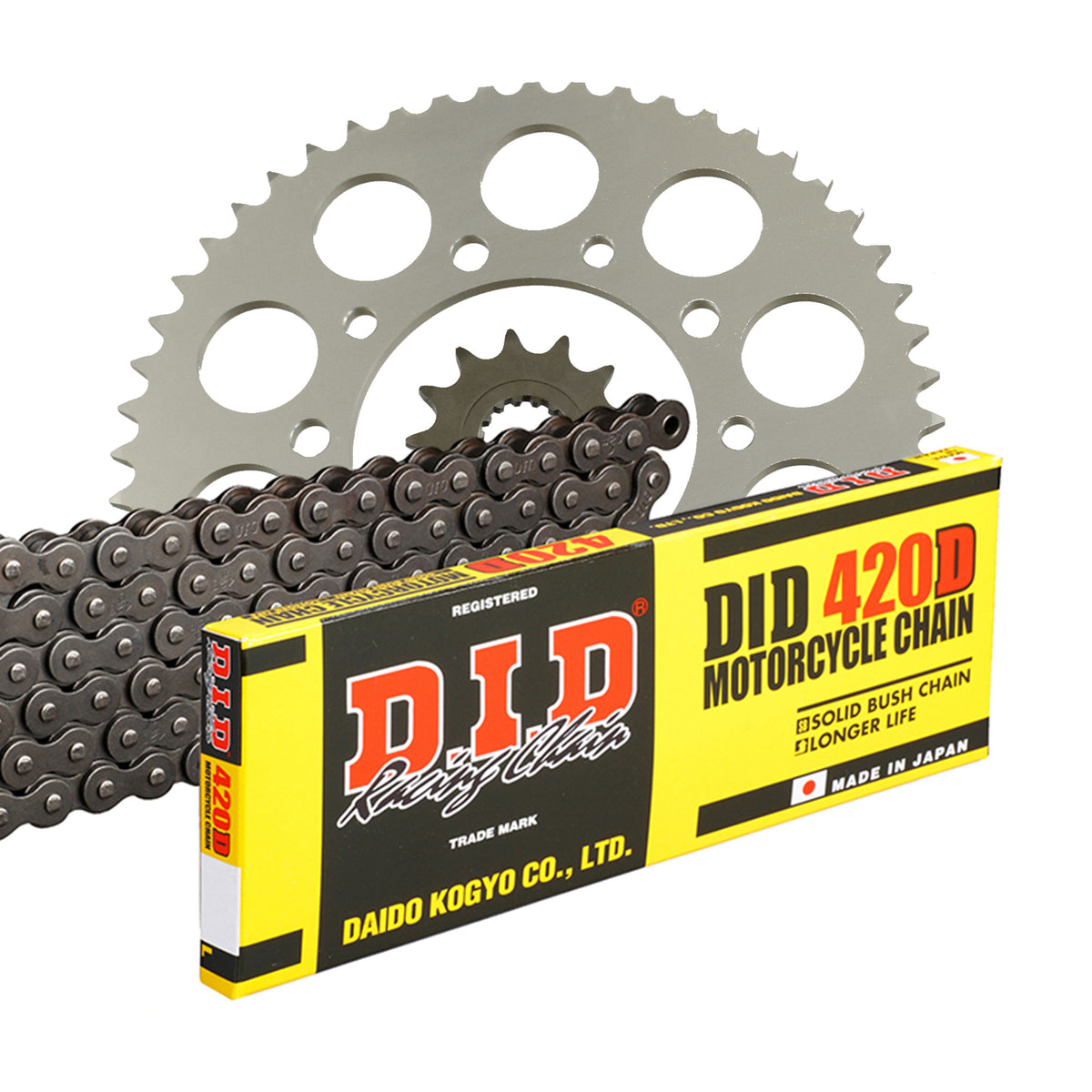

DID chain set for Motorhispania Furia 50 Max Supermoto 06-10 420 D chain kit

DID chain kit for Motorhispania Furia 50 Max Supermoto 06-10 420 D chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Motorhispania Furia 50 Max Supermoto 2006-2010

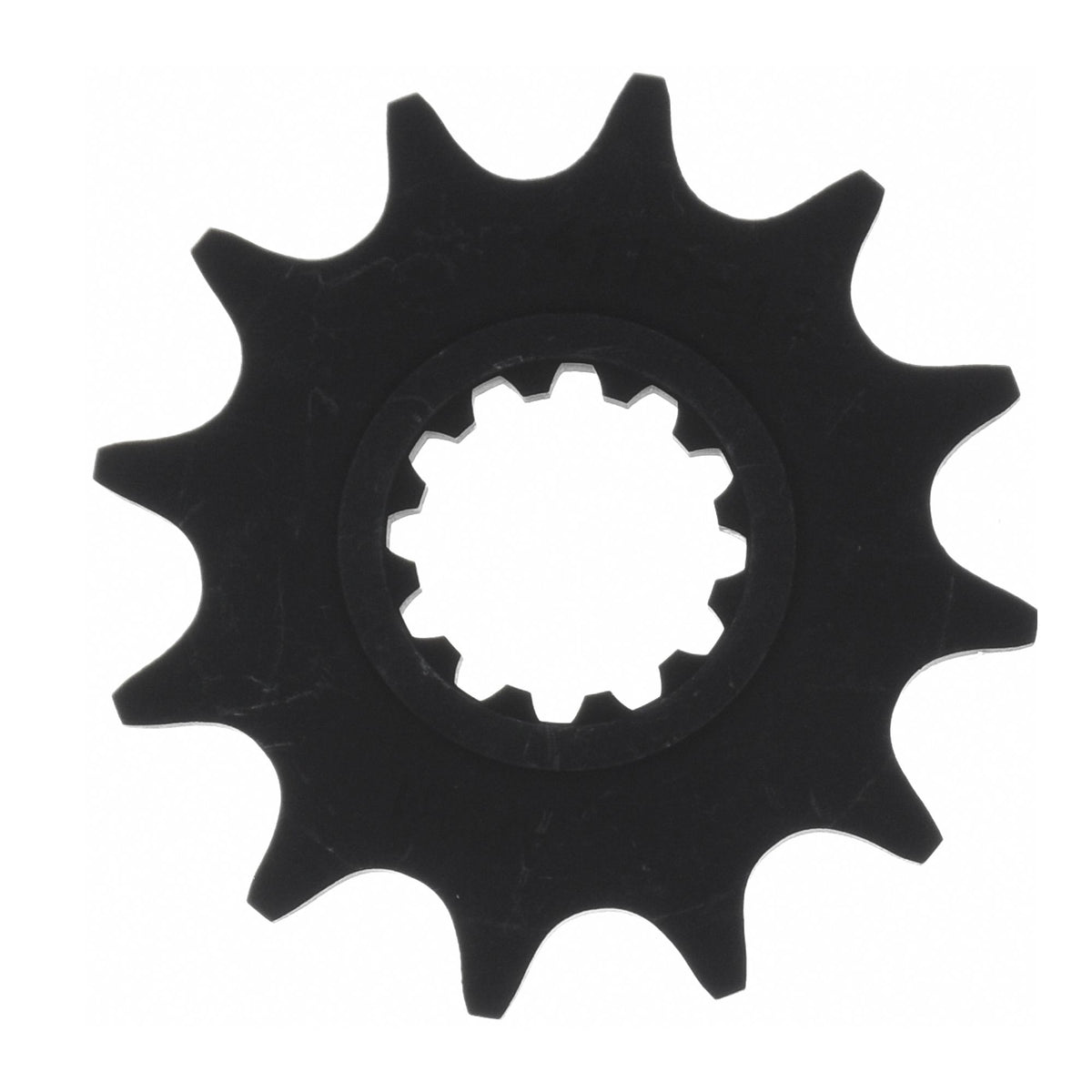

• Front sprocket: AFAM front sprocket #420 11 teeth - a94119.11

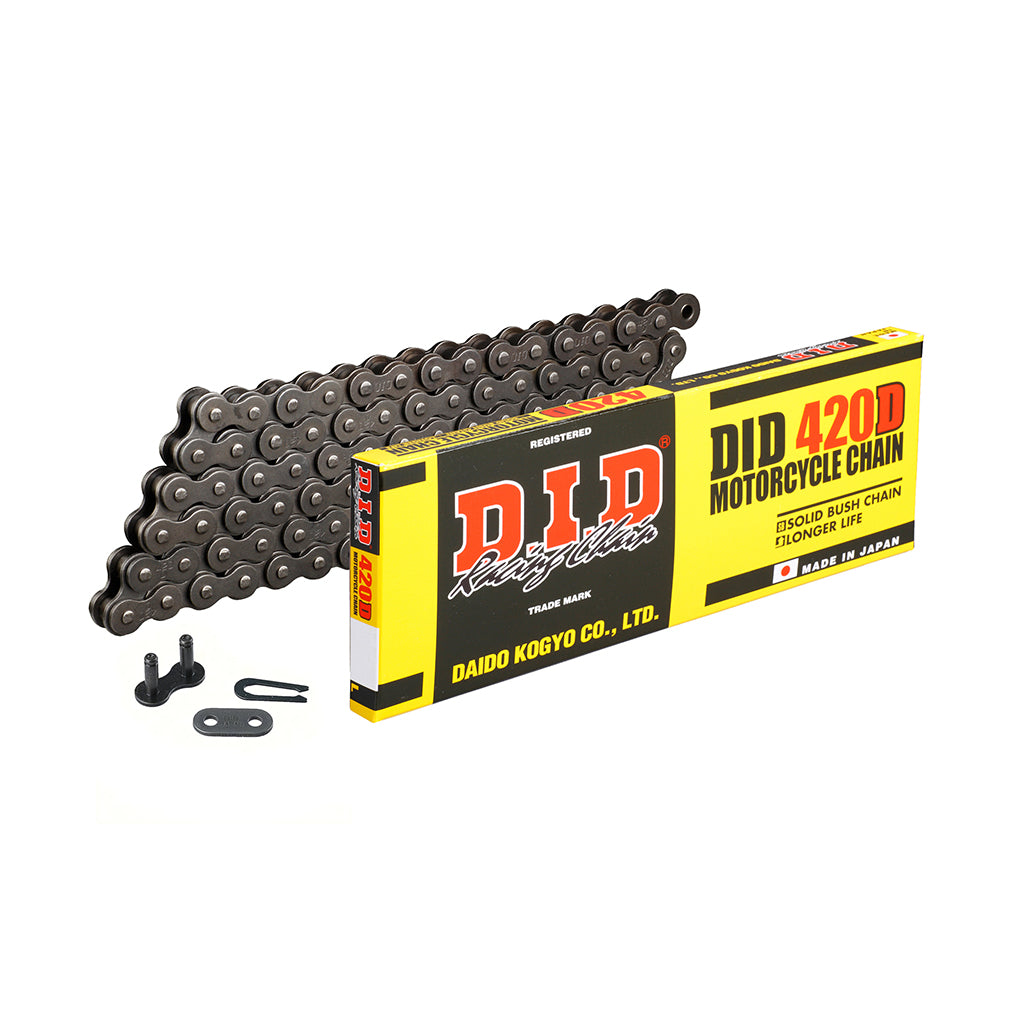

• Chain: DID chain 420 D 126 with clip master link - d6242000126

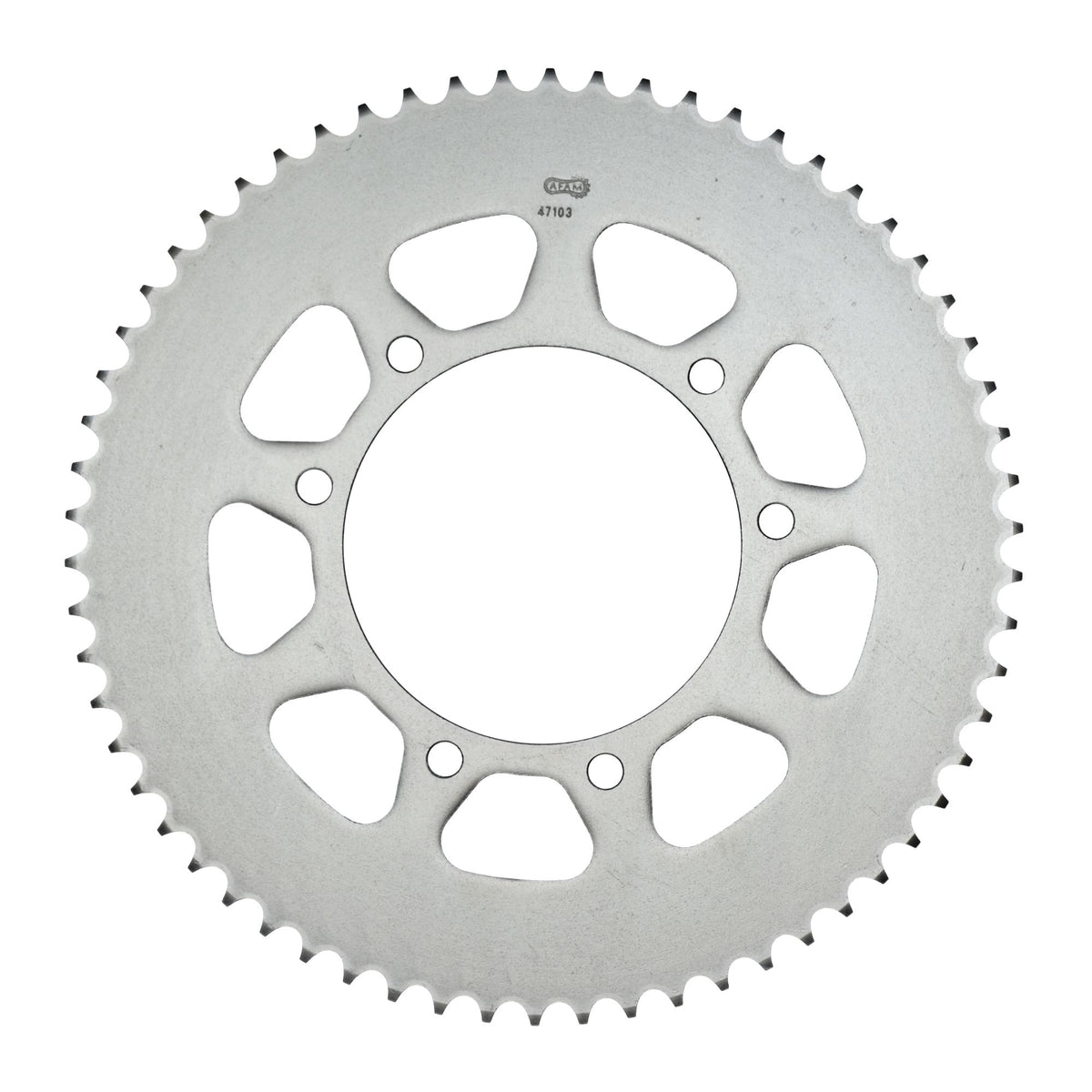

• Rear sprocket: AFAM rear sprocket STEEL #420 52 teeth - a47103.52
• Gear ratio front sprocket-chain-rear sprocket: 11-126-52

DID 420 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical specifications:
Pitch: 420
Pin length: 14.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 17.70 kN
Weight per 100 links: 0.74 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-30388

Suitable for

Motorhispania 0 - 100 ccm Furia 50 Max Supermoto 2006
Motorhispania 0 - 100 ccm Furia 50 Max Supermoto 2007
Motorhispania 0 - 100 ccm Furia 50 Max Supermoto 2008
Motorhispania 0 - 100 ccm Furia 50 Max Supermoto 2009
Motorhispania 0 - 100 ccm Furia 50 Max Supermoto 2010
