DID chain kit for MV Agusta Brutale 1078 RR 09-10 525 ZVM-X2 chain kit

DID chain kit for MV Agusta Brutale 1078 RR 09-10 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit MV Agusta Brutale 1078 RR F4 2009-2010

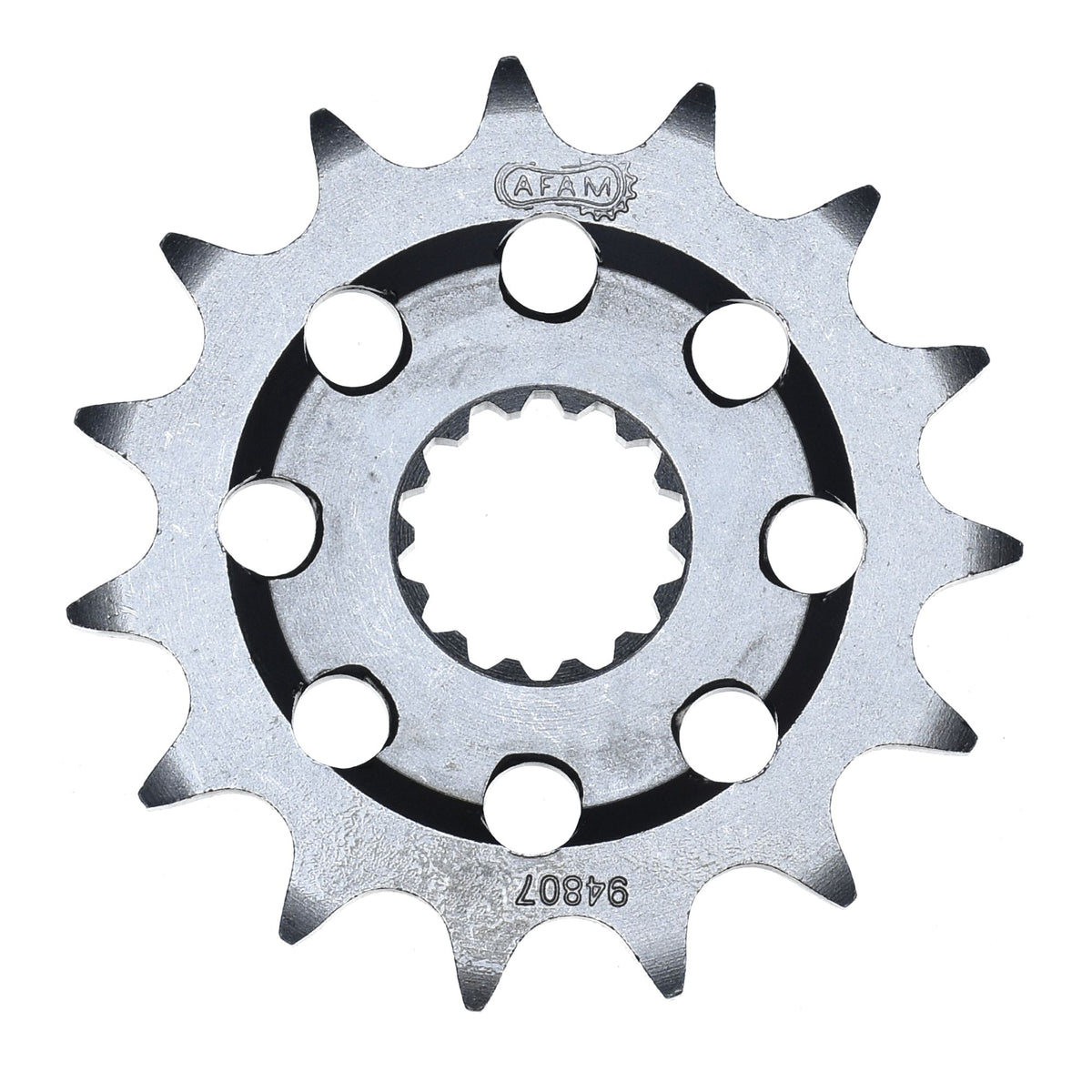

• Front sprocket: AFAM front sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15
• Chain: DID chain 525 ZVM-X2 G&G 110 with rivet link - d525zvmx2.gg.110

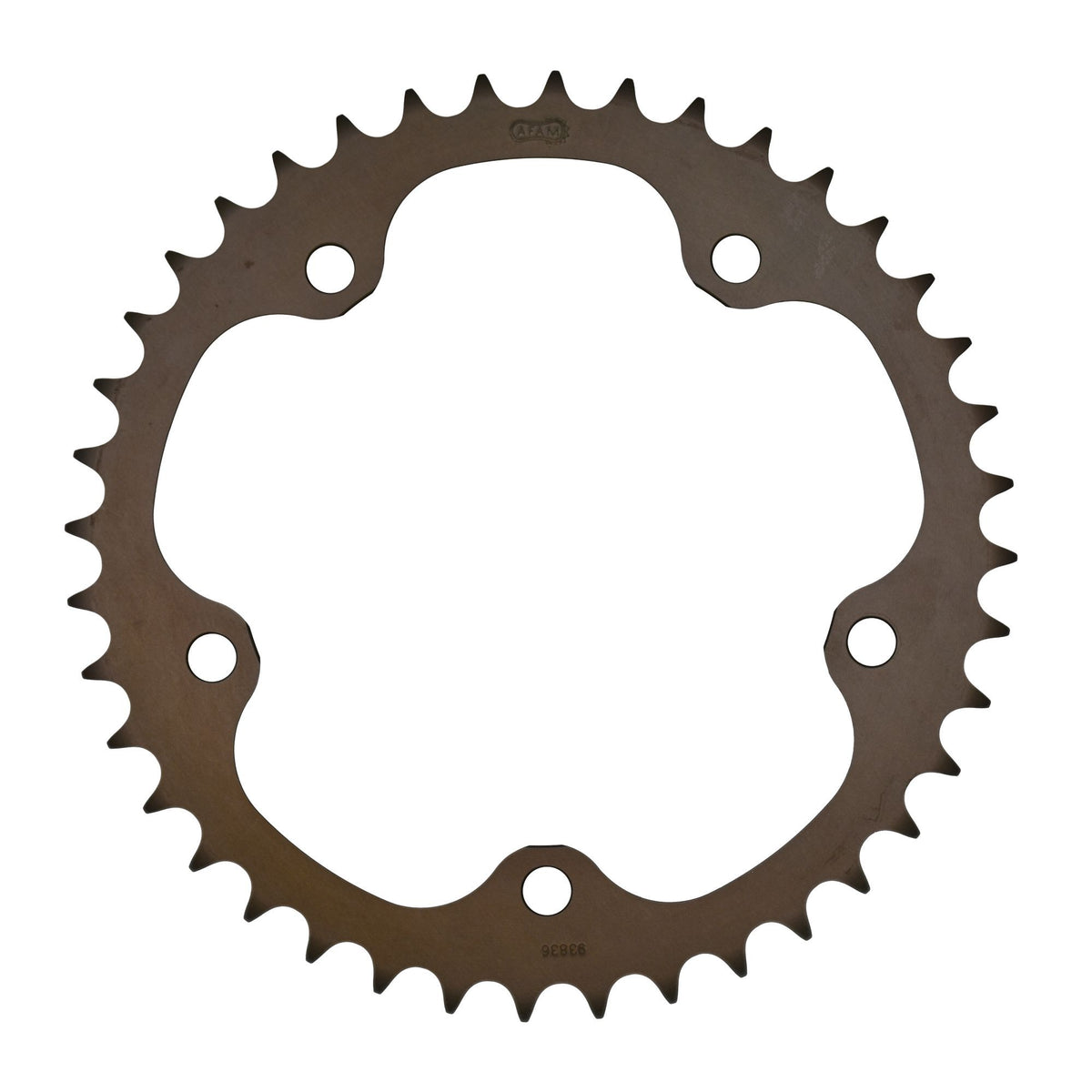

• Rear sprocket: AFAM rear sprocket ALU #525 for MV 41 teeth - a93836.41
• Gear ratio front sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X2

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-63856

Suitable for

MV Agusta over 1001 cc Brutale 1078 RR F4 2009
MV Agusta over 1001 cc Brutale 1078 RR F4 2010
