DID chain kit for MV Agusta Brutale 1090 R 12-13 525 ZVM-X2 chain kit

DID chain kit for MV Agusta Brutale 1090 R 12-13 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to illustrate compatibility!

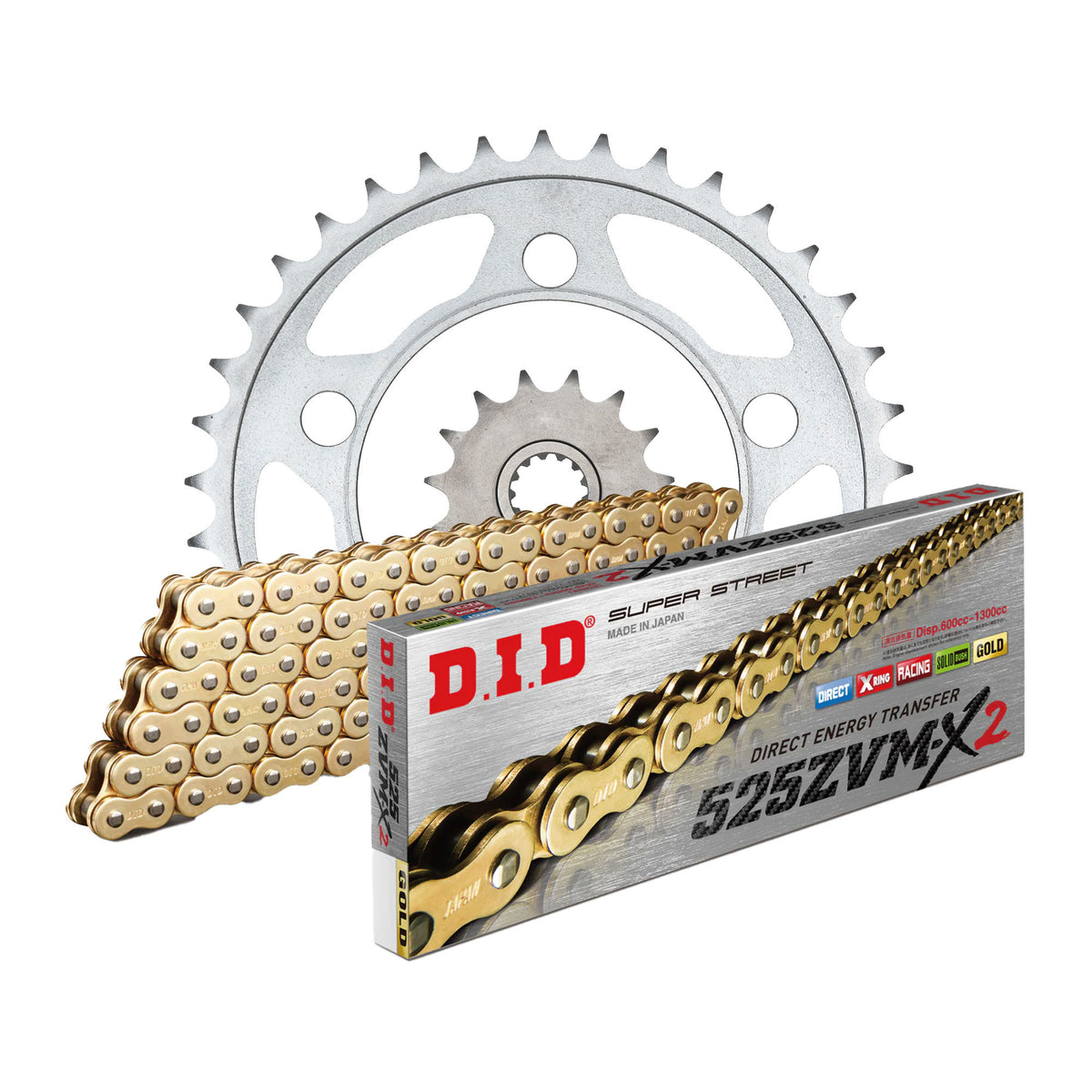

Components of the chain kit MV Agusta Brutale 1090 R B5 2012-2013

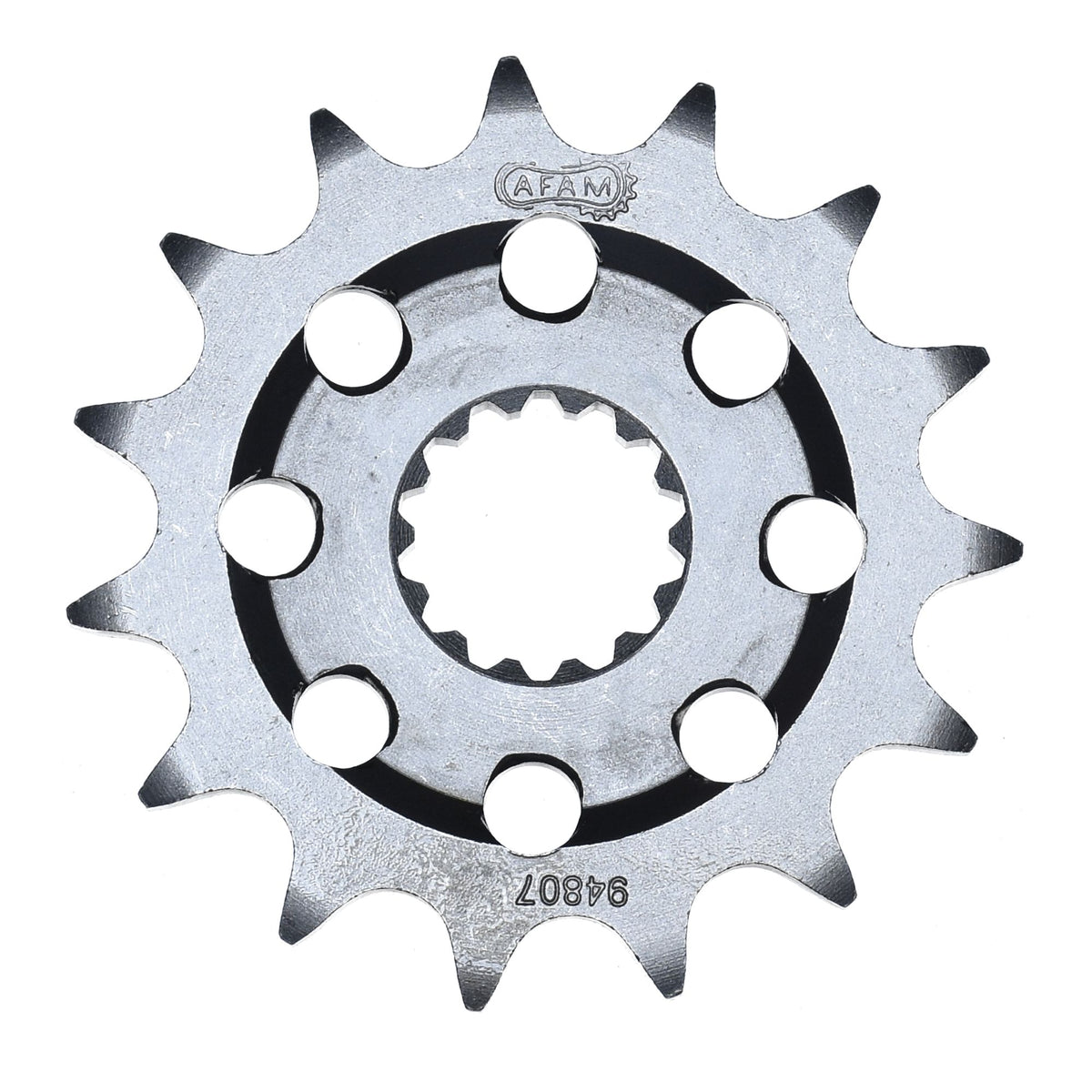

• Sprocket: AFAM sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15

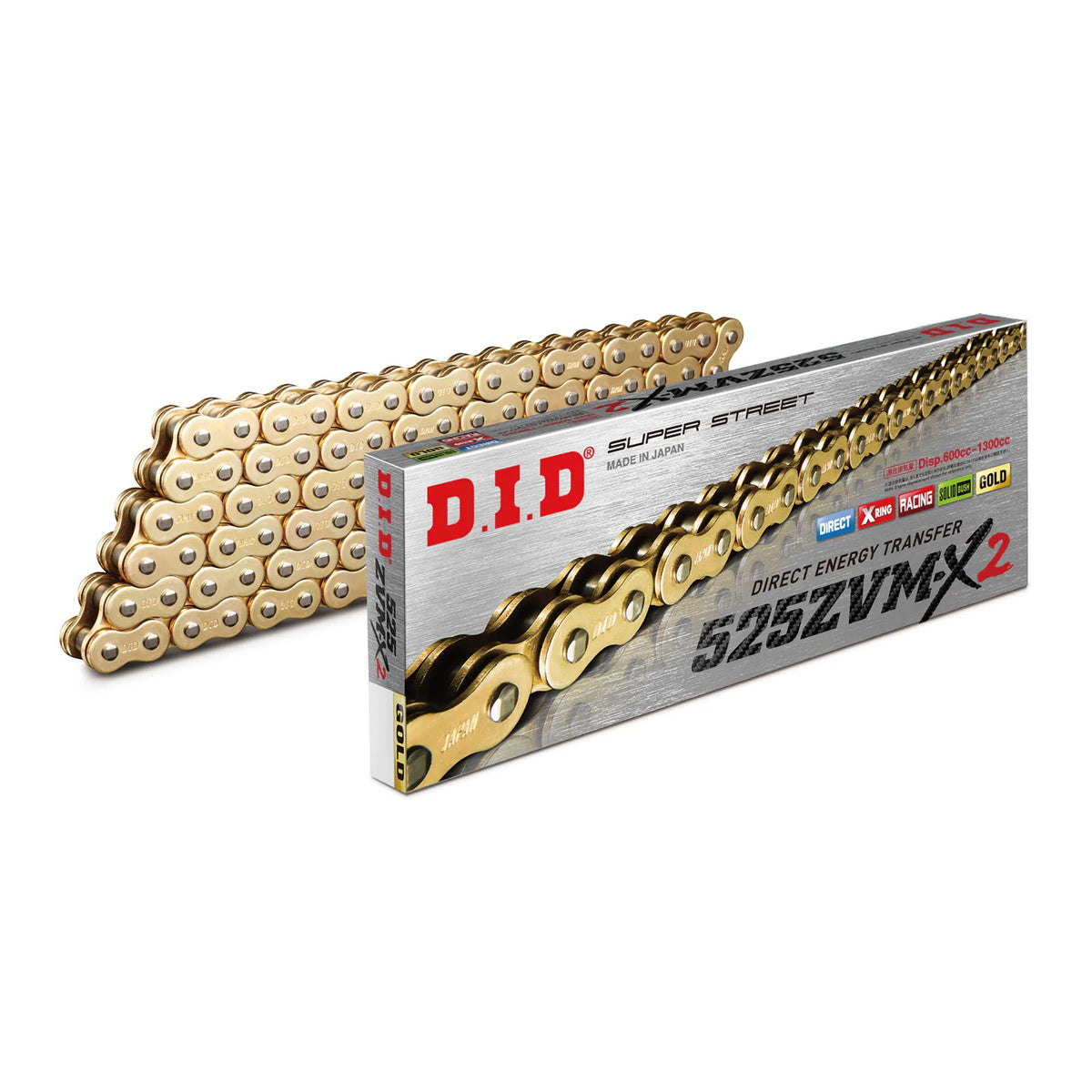

• Chain: DID chain 525 ZVM-X2 G&G 110 with rivet connecting link - d525zvmx2.gg.110

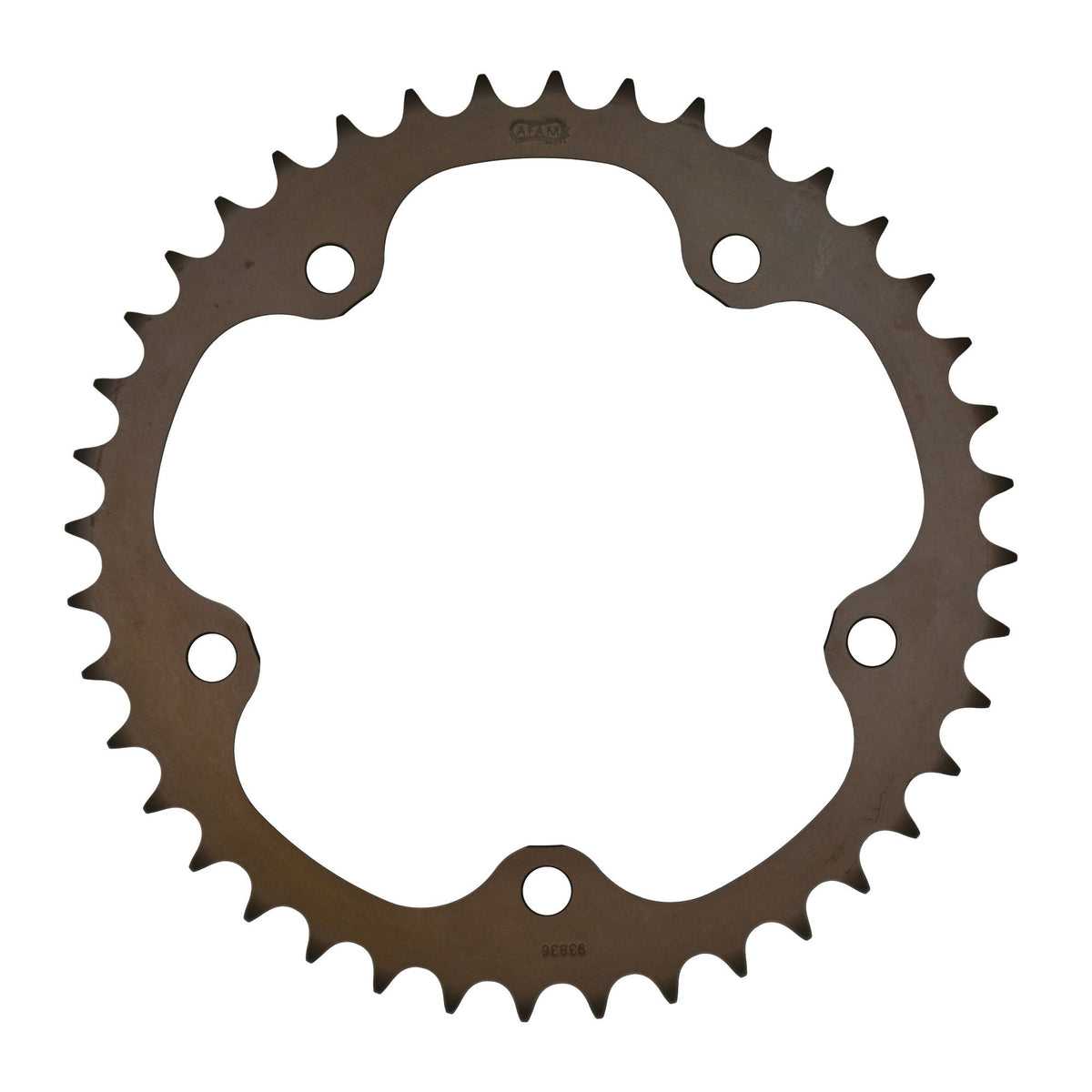

• Rear sprocket: AFAM rear sprocket ALU #525 for MV 41 teeth - a93836.41
• Gear ratio sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-63864

Suitable for

MV Agusta over 1001 cc Brutale 1090 R B5 2012
MV Agusta over 1001 cc Brutale 1090 R B5 2013
