DID chain kit for MV Agusta Brutale 1090 R ABS 14-15 525 ZVM-X2 chain kit

DID Chain Kit for MV Agusta Brutale 1090 R ABS 14-15 525 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

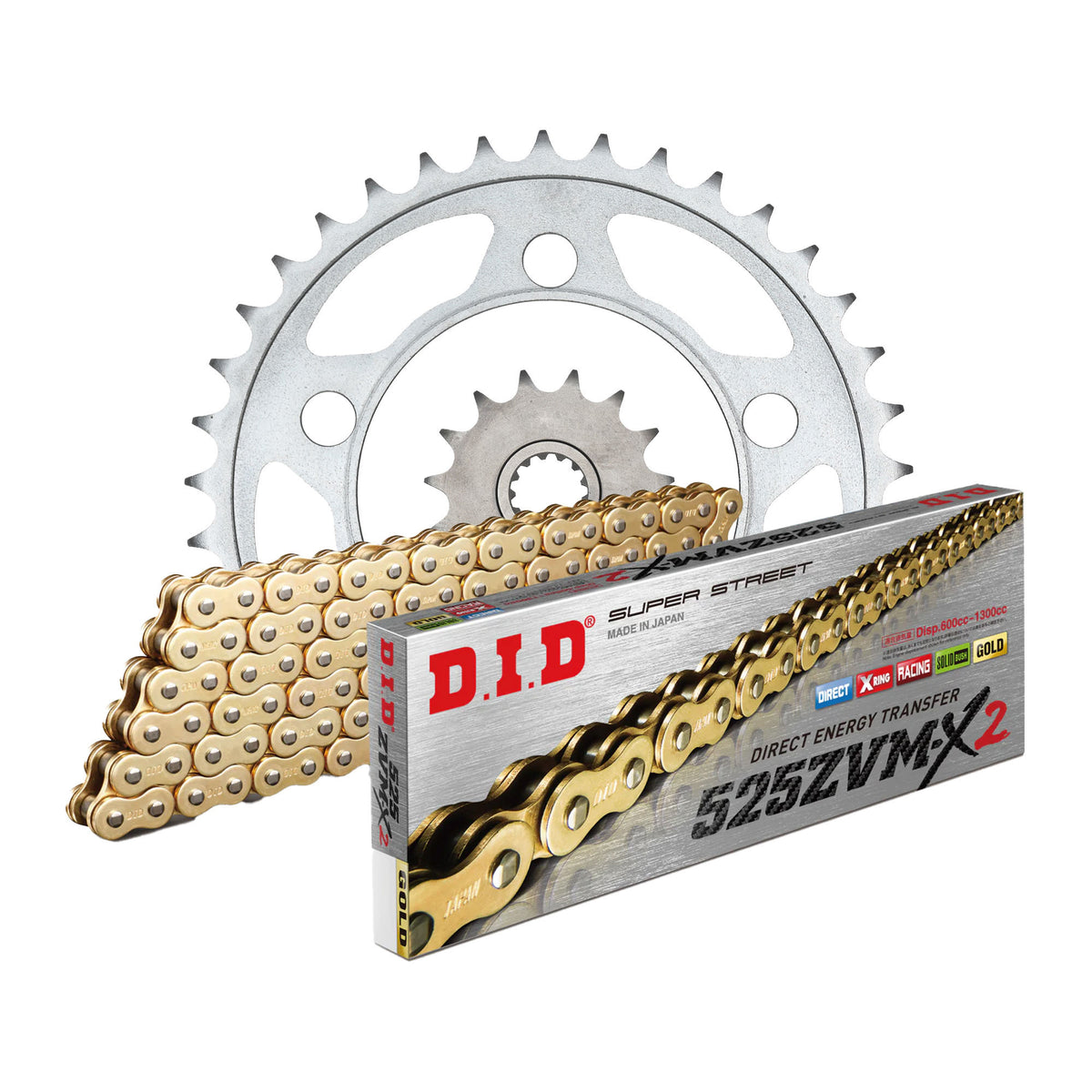

Components of the chain kit MV Agusta Brutale 1090 R ABS B5 2014-2015

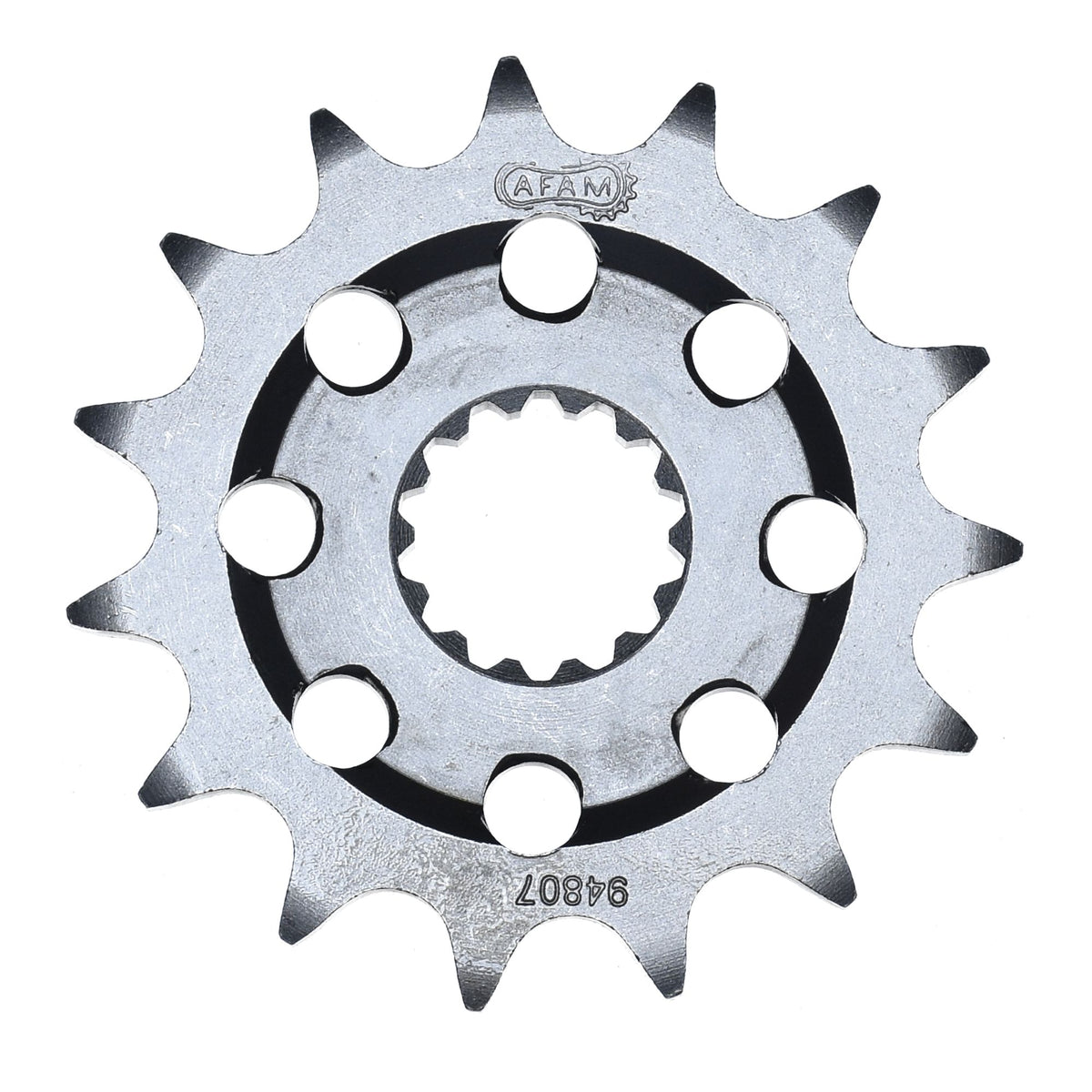

• Front sprocket: AFAM front sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15

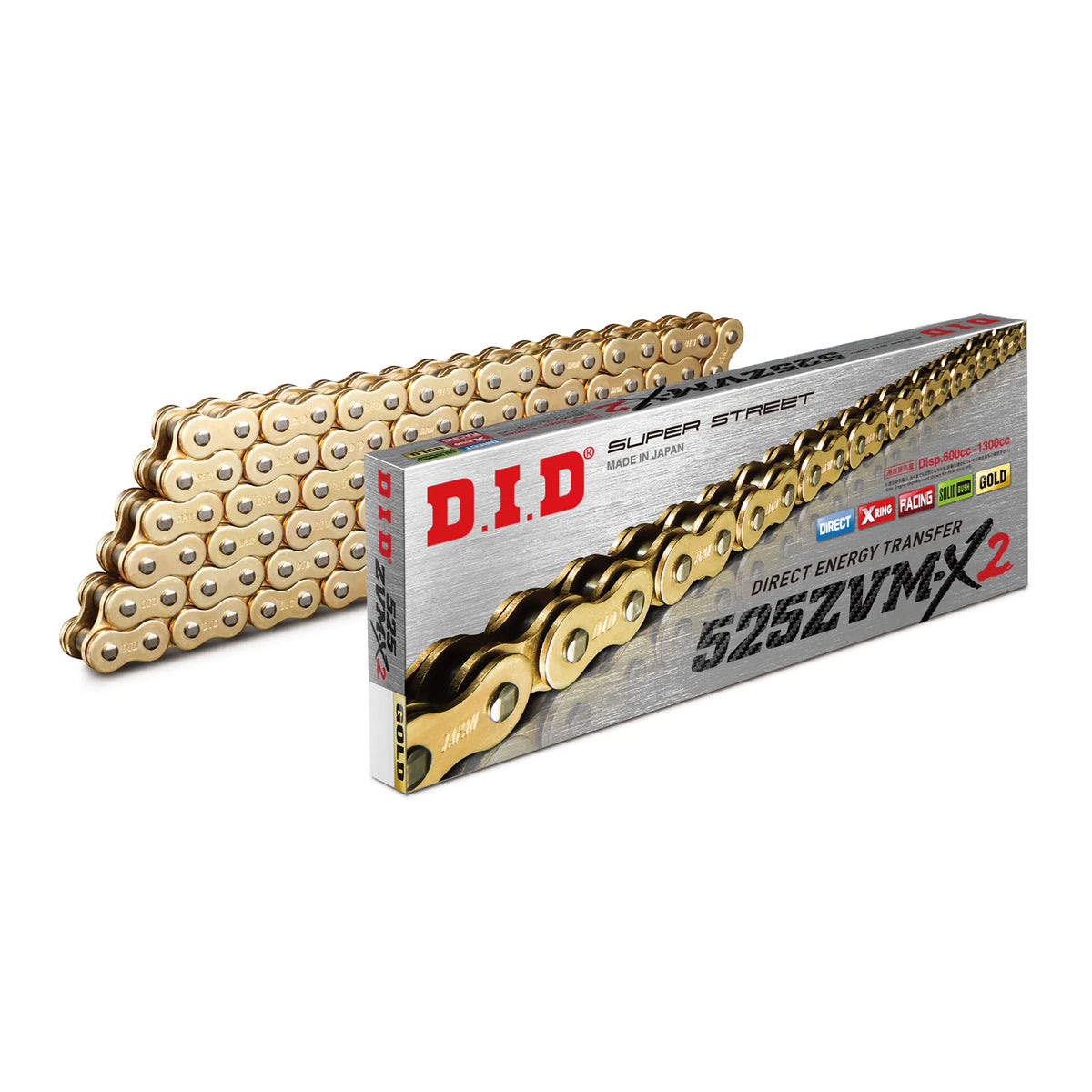

• Chain: DID chain 525 ZVM-X2 G&G 110 w. rivet link - d525zvmx2.gg.110

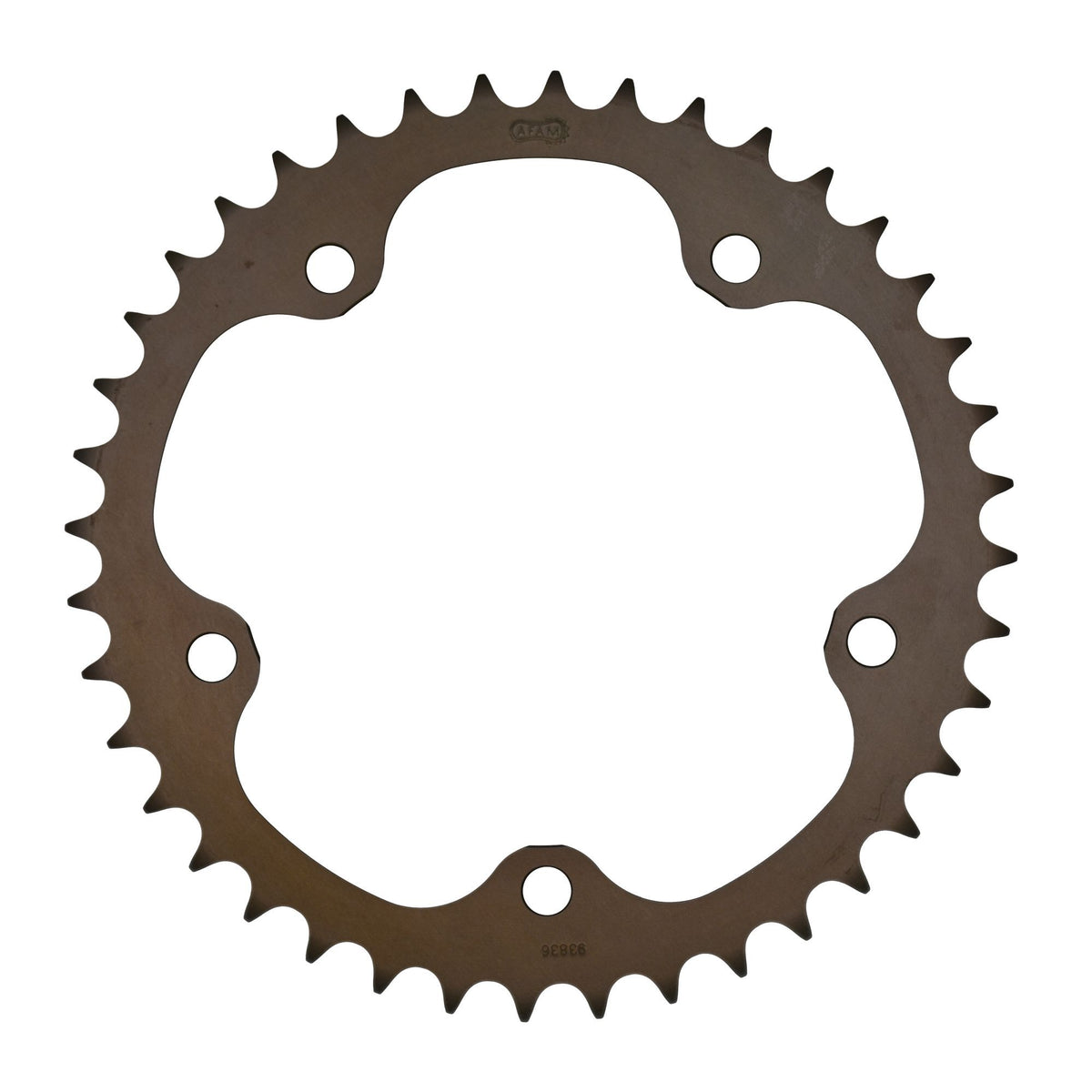

• Rear sprocket: AFAM rear sprocket ALU #525 for MV 41 teeth - a93836.41
• Transmission ratio front sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-63866

Suitable for

MV Agusta over 1001 cc Brutale 1090 R ABS B5 2014
MV Agusta over 1001 cc Brutale 1090 R ABS B5 2015
