DID chain kit for MV Agusta Brutale 800 ABS 2016 525 ZVM-X2 chain kit

DID Chain Kit for MV Agusta Brutale 800 ABS 2016 525 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding rivet link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit MV Agusta Brutale 800 ABS B1 2016-2016

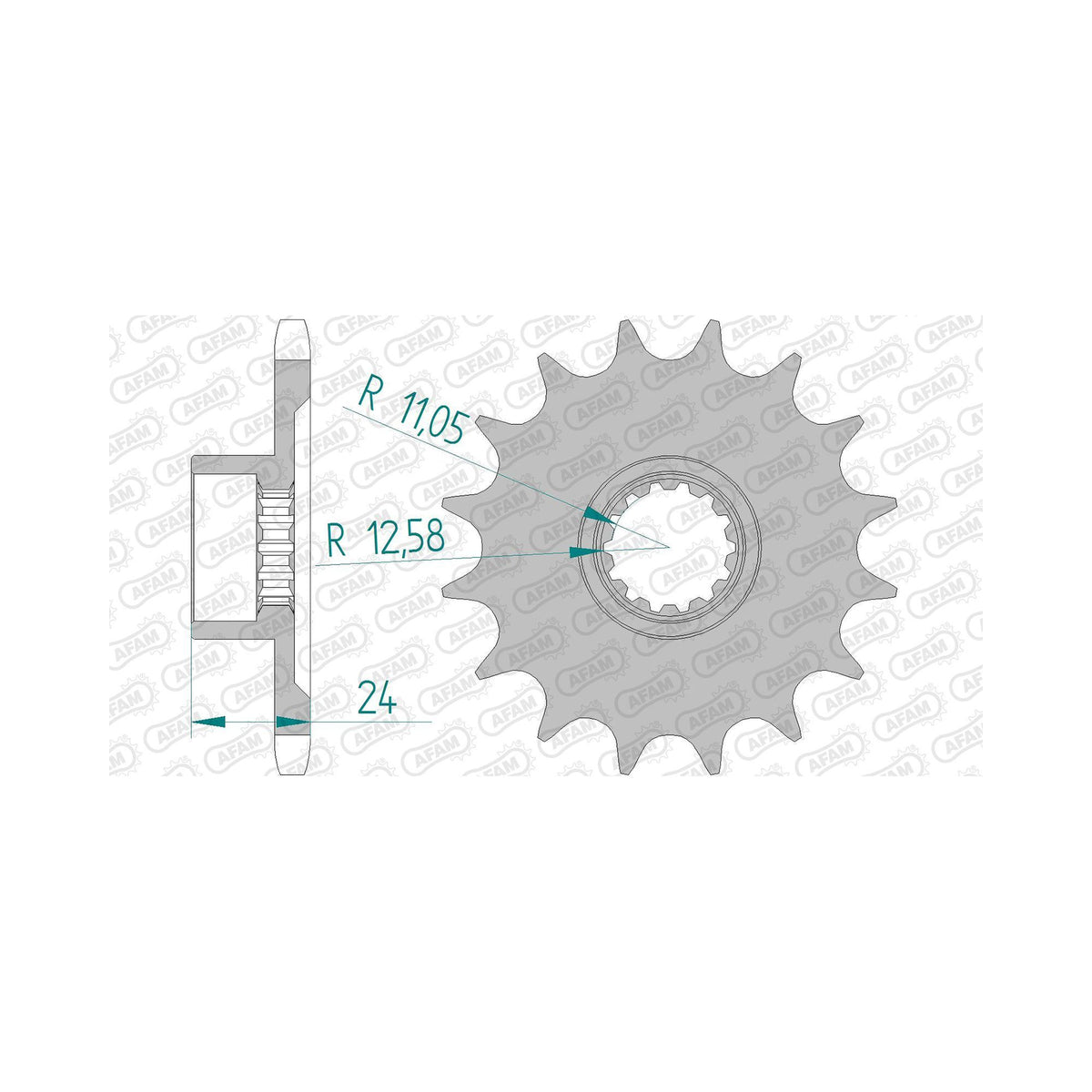

• Front sprocket: AFAM sprocket #525 16 teeth - a94605.16
• Chain: DID chain 525 ZVM-X2 G&G 114 with rivet link - d525zvmx2.gg.114

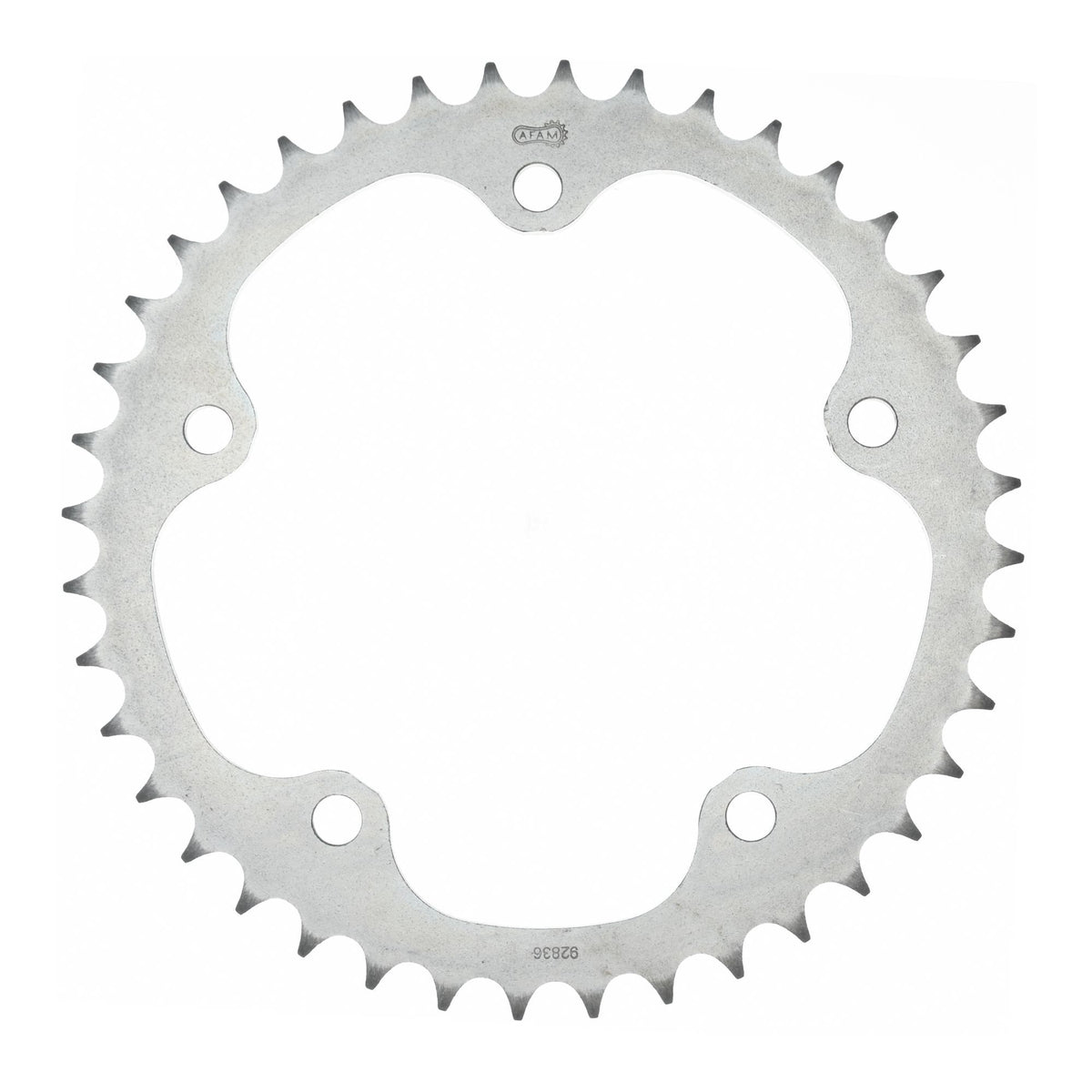

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a92836.41
• Gear ratio sprocket-chain-rear sprocket: 16-114-41

DID 525 ZVM-X2

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-63885

Suitable for

MV Agusta 751 - 1000 cc Brutale 800 ABS B1 2016
