DID chain kit for MV Agusta Brutale 910 R 06-09 525 ZVMX chain kit

DID chain kit for MV Agusta Brutale 910 R 06-09 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the MV Agusta Brutale 910 R F4 2006-2009 chain kit

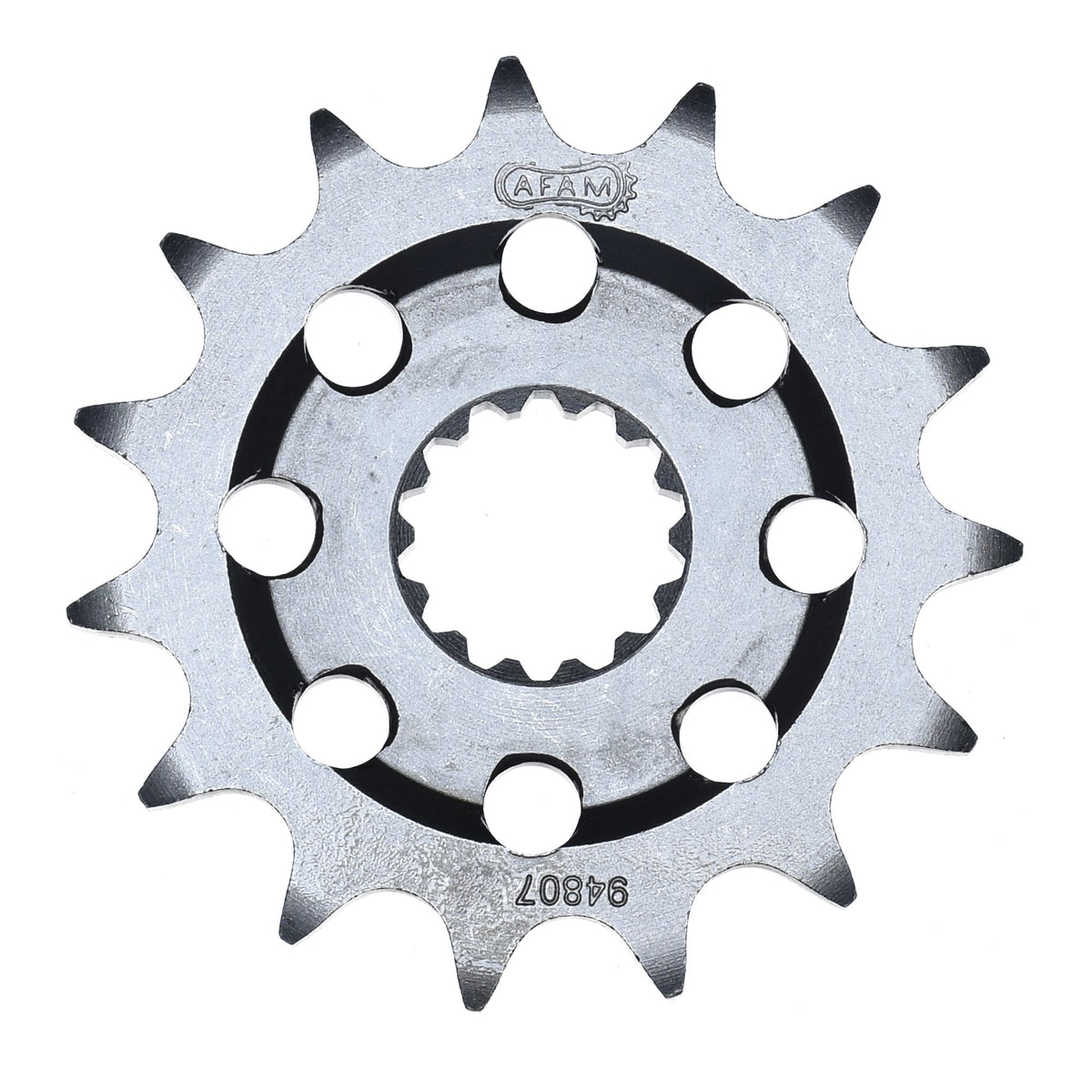

• Front sprocket: AFAM sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15
• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110
• Rear sprocket: AFAM rear sprocket ALU #525 for MV 43 teeth - a93836.43
• Transmission ratio sprocket-chain-rear sprocket: 15-110-43

DID 525 ZVM-X

Extra reinforced chain, versatile application area
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear life index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-43036

Suitable for

MV Agusta 751 - 1000 cc Brutale 910 R F4 2006
MV Agusta 751 - 1000 cc Brutale 910 R F4 2007
MV Agusta 751 - 1000 cc Brutale 910 R F4 2008
MV Agusta 751 - 1000 cc Brutale 910 R F4 2009
