DID chain kit for MV Agusta F3 675 12-14 525 ZVM-X2 chain kit

DID chain set for MV Agusta F3 675 12-14 525 ZVM-X2 chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to illustrate compatibility!

Components of the chain kit MV Agusta F3 675 F3 2012-2014

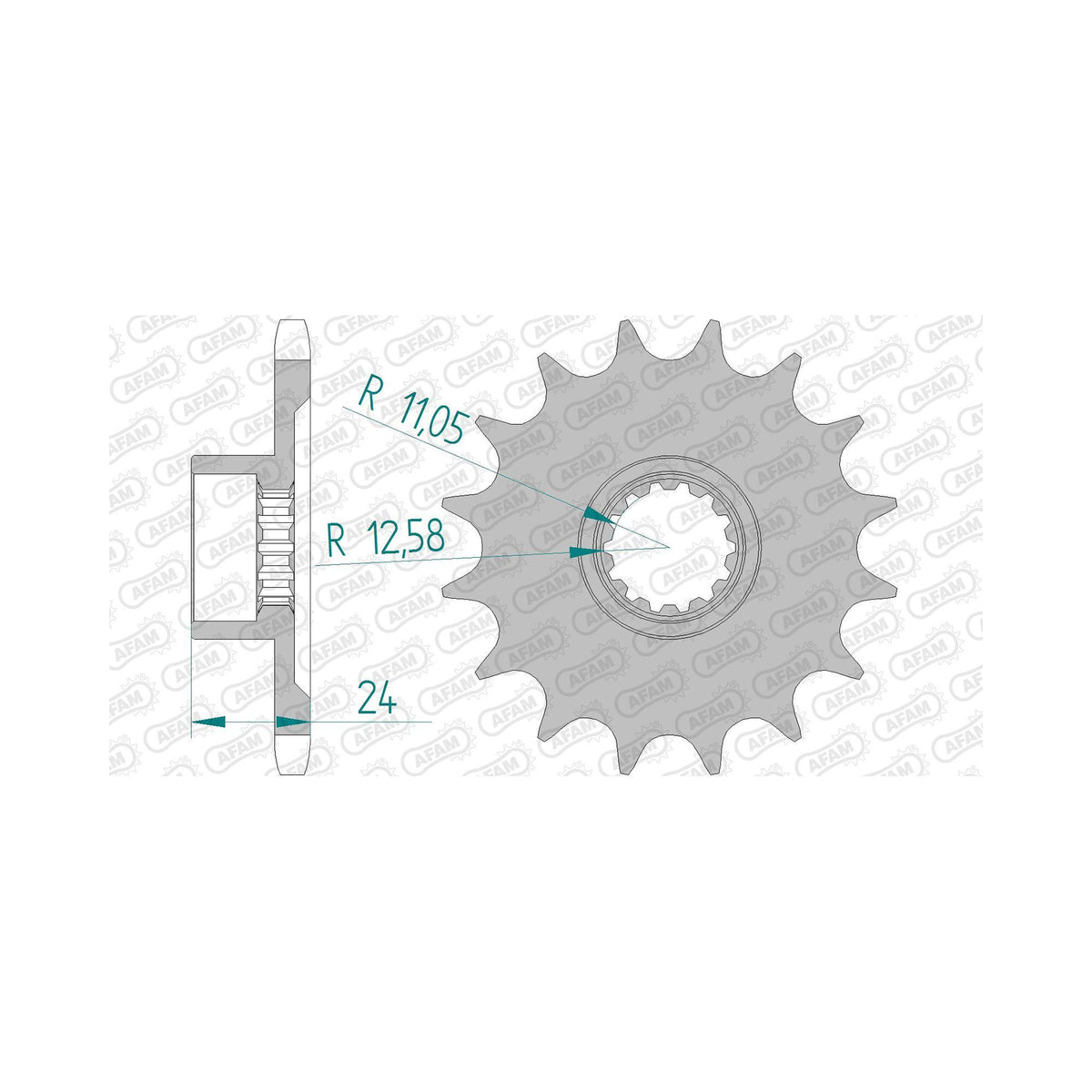

• Sprocket: AFAM sprocket #525 16 teeth - a94605.16
• Chain: DID chain 525 ZVM-X2 G&G 114 w. rivet link - d525zvmx2.gg.114

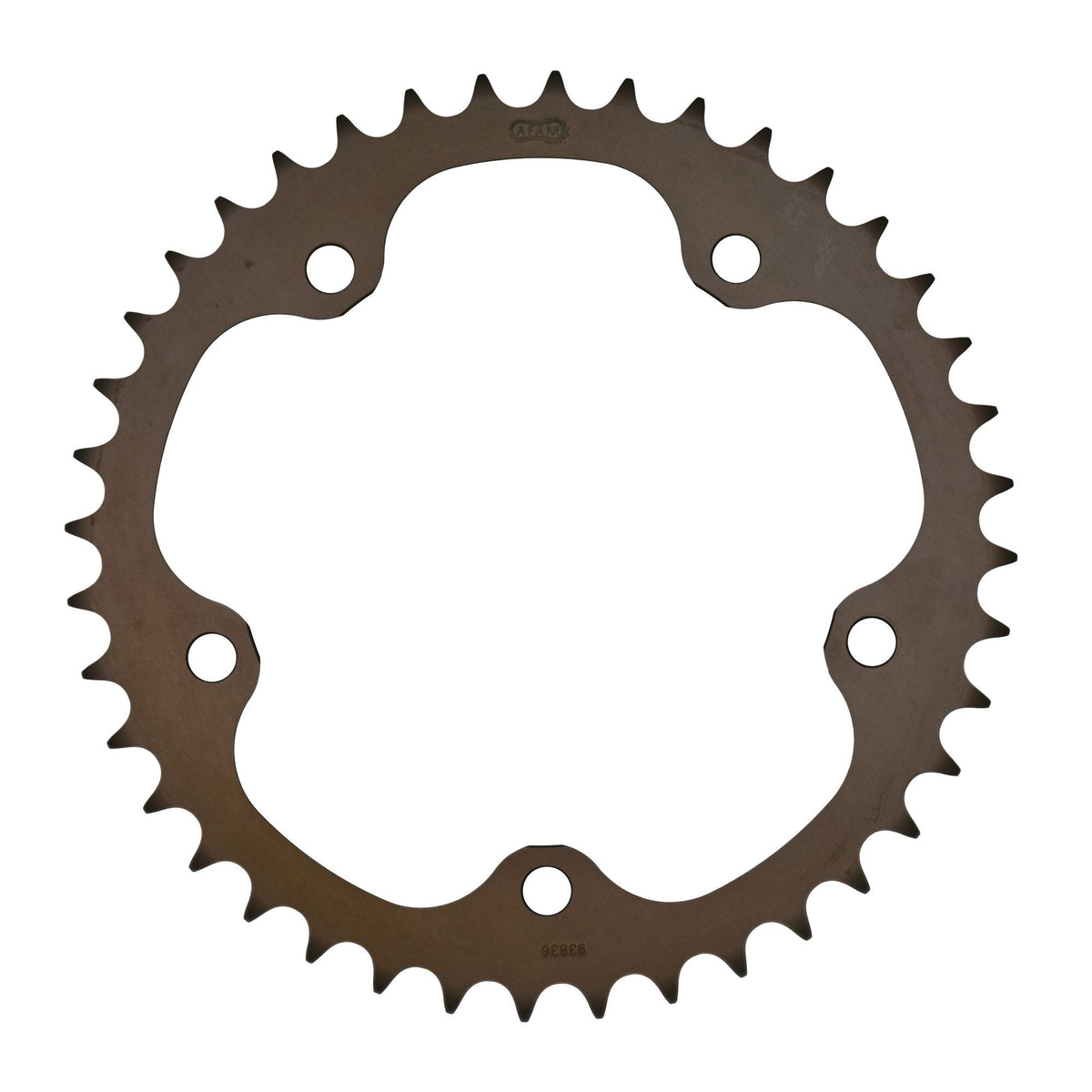

• Chain wheel: AFAM chain wheel ALU #525 for MV 43 teeth - a93836.43
• Gear ratio sprocket-chain-chain wheel: 16-114-43

DID 525 ZVM-X2

Extra reinforced chain, versatile range of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-63872

Fits

MV Agusta 501 - 750 cc F3 675 F3 2012
MV Agusta 501 - 750 cc F3 675 F3 2013
MV Agusta 501 - 750 cc F3 675 F3 2014
