DID chain kit for MV Agusta F3 675 RC ABS 16-19 525 ZVM-X2 chain kit

DID chain kit for MV Agusta F3 675 RC ABS 16-19 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit MV Agusta F3 675 RC ABS 2016-2019

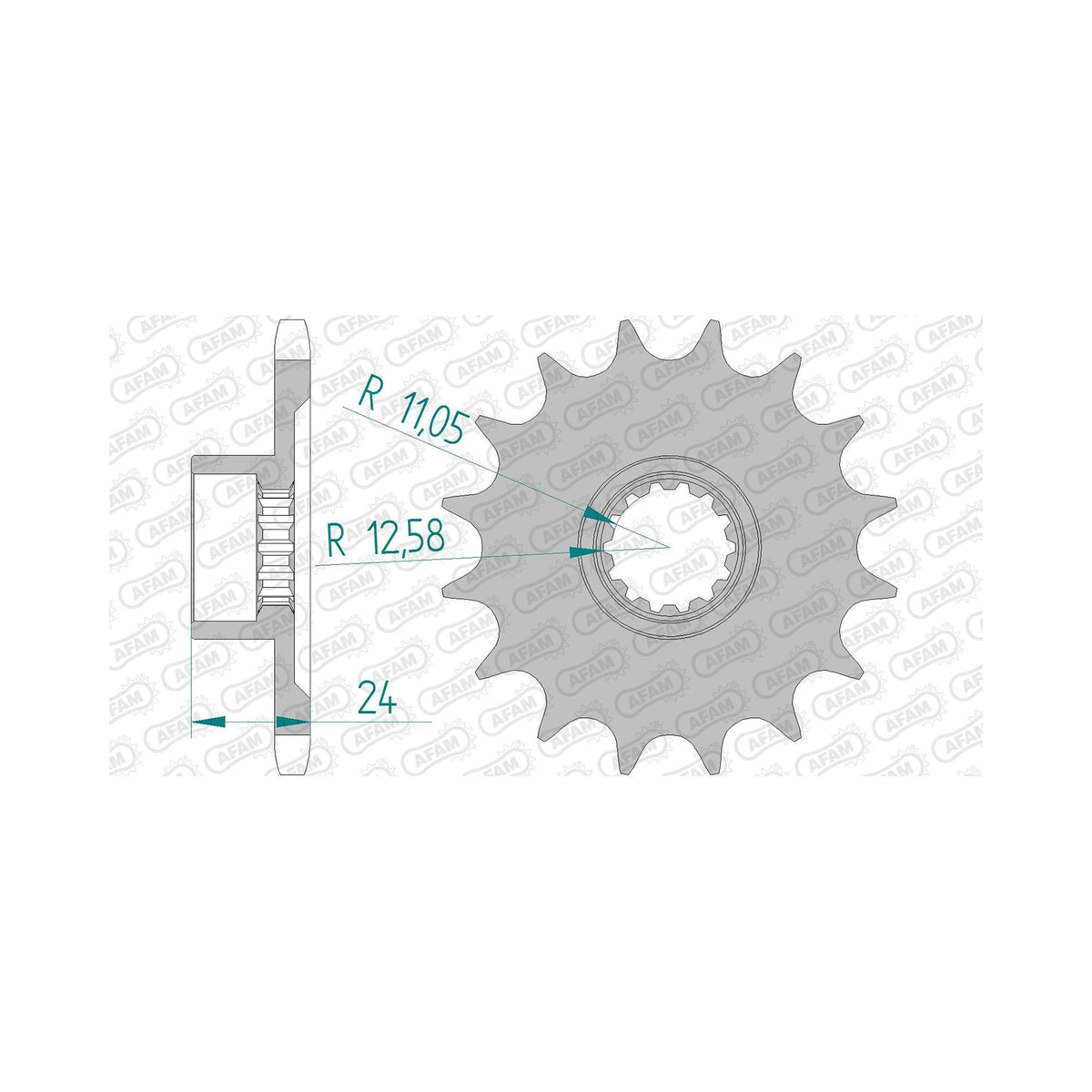

• Front sprocket: AFAM sprocket #525 16 teeth - a94605.16
• Chain: DID chain 525 ZVM-X2 G&G 114 with rivet link - d525zvmx2.gg.114

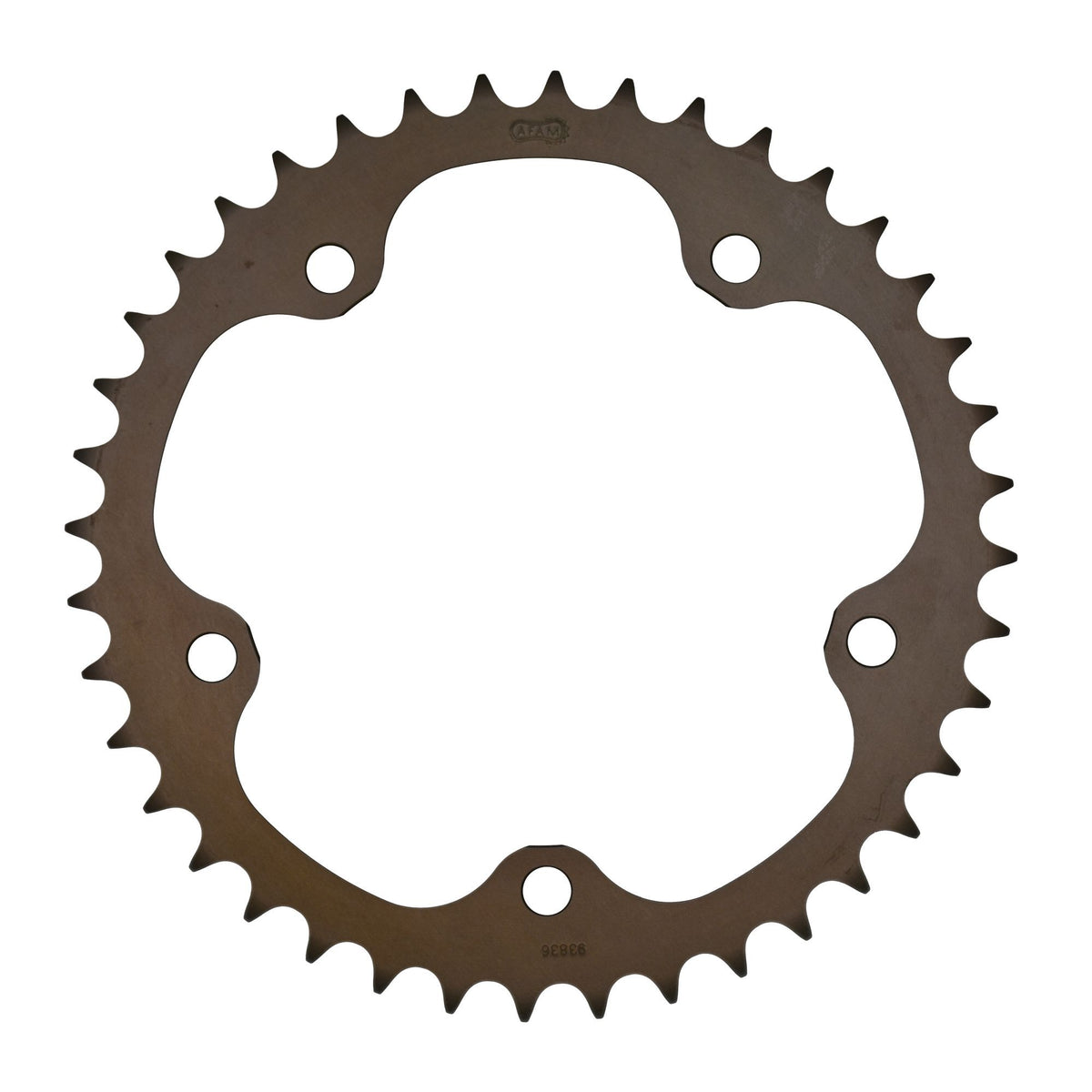

• Rear sprocket: AFAM sprocket ALU #525 for MV 43 teeth - a93836.43
• Gear ratio sprocket-chain-rear sprocket: 16-114-43

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-63878

Fits for

MV Agusta 501 - 750 cc F3 675 RC ABS 2016
MV Agusta 501 - 750 cc F3 675 RC ABS 2017
MV Agusta 501 - 750 cc F3 675 RC ABS 2018
MV Agusta 501 - 750 cc F3 675 RC ABS 2019
