DID chain kit for MV Agusta F3 800 RC ABS 16-18 525 VX3 chain kit

DID Chain kit for MV Agusta F3 800 RC ABS 16-18 525 VX3 Chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

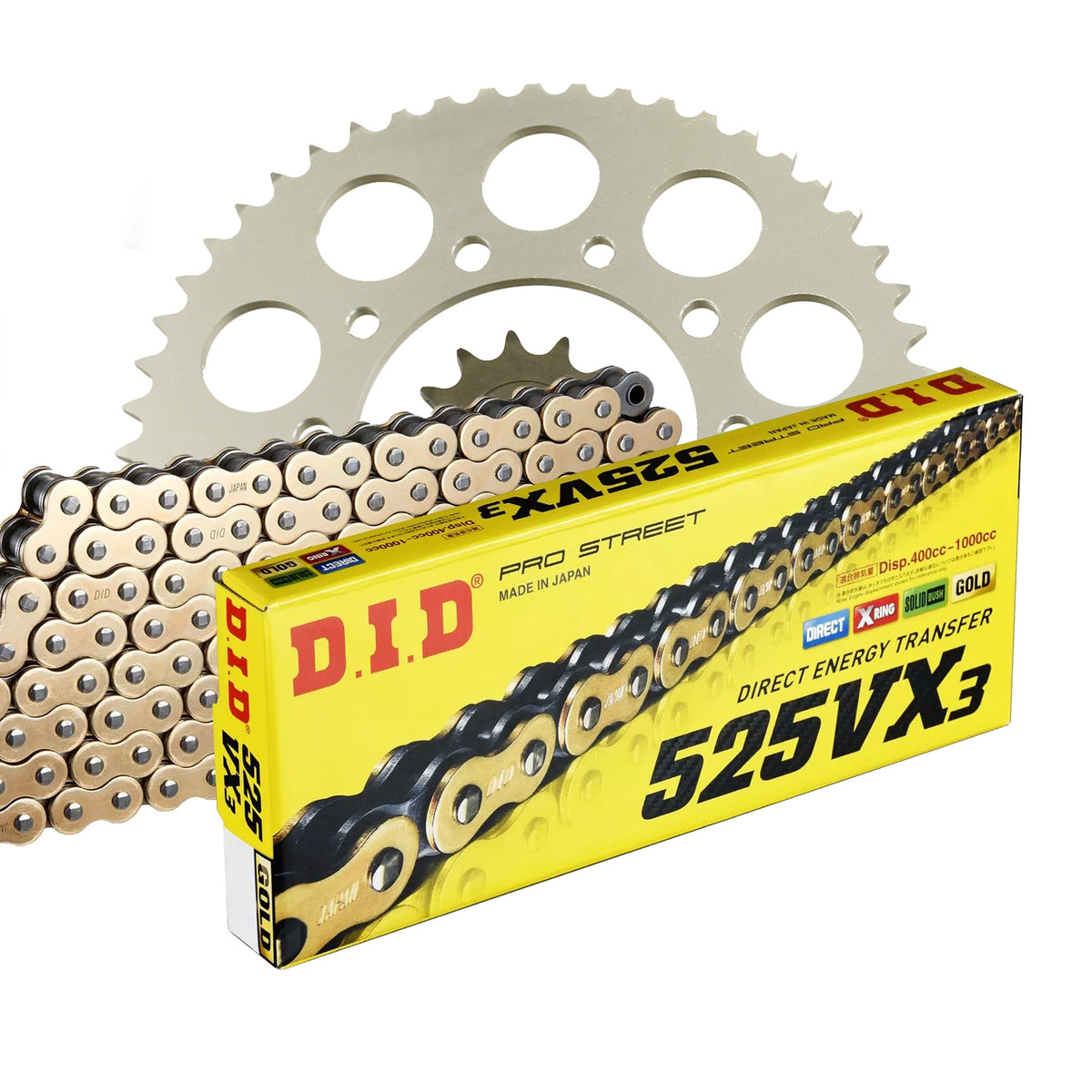

Components of the chain kit MV Agusta F3 800 RC ABS 2016-2018

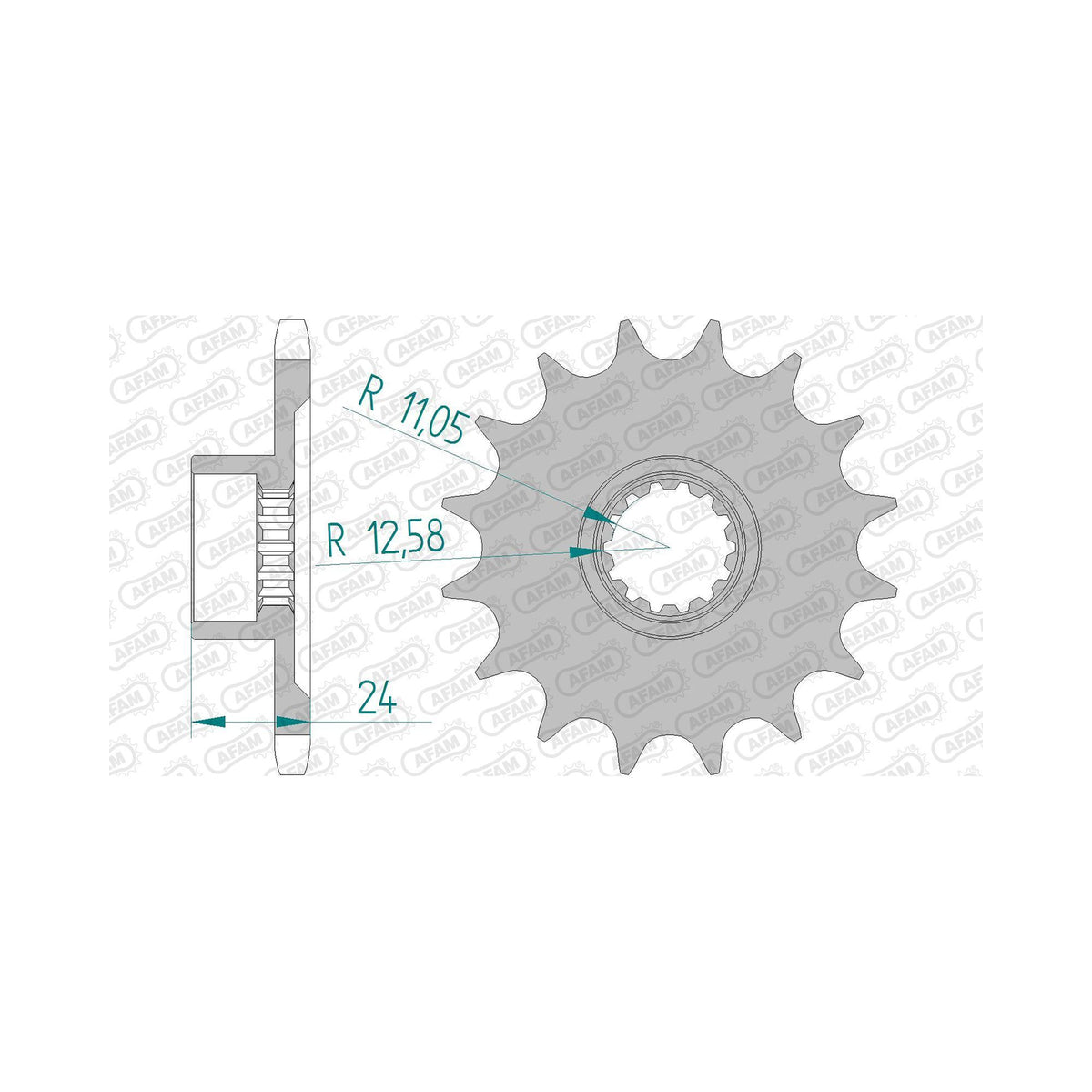

• Front sprocket: AFAM front sprocket #525 17 teeth - a94605.17

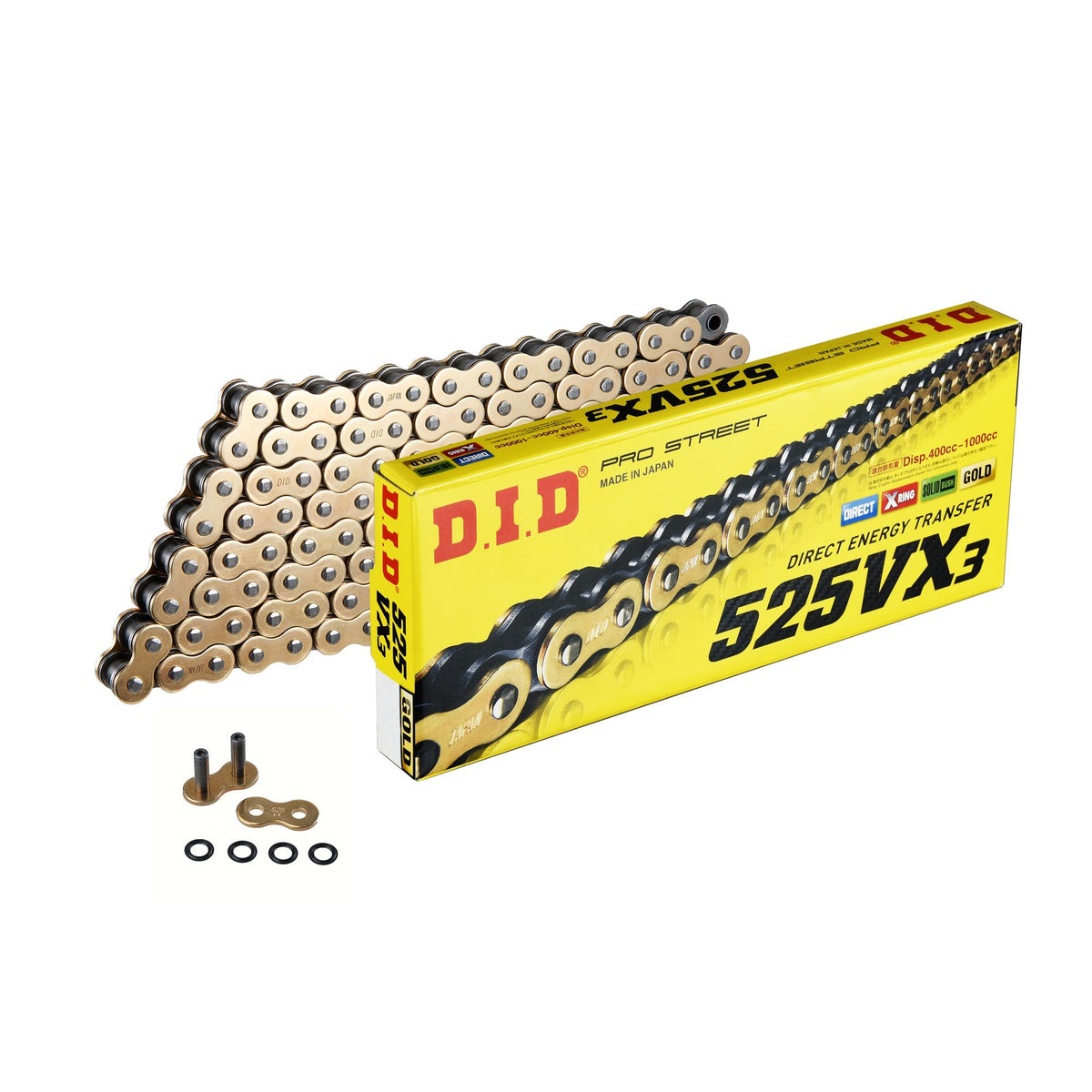

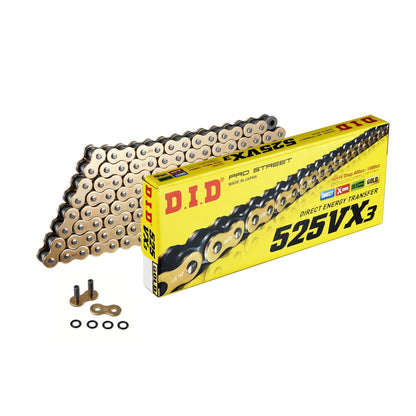

• Chain: DID chain 525 VX3 G&B 114 with rivet link - d525vx3.g-114

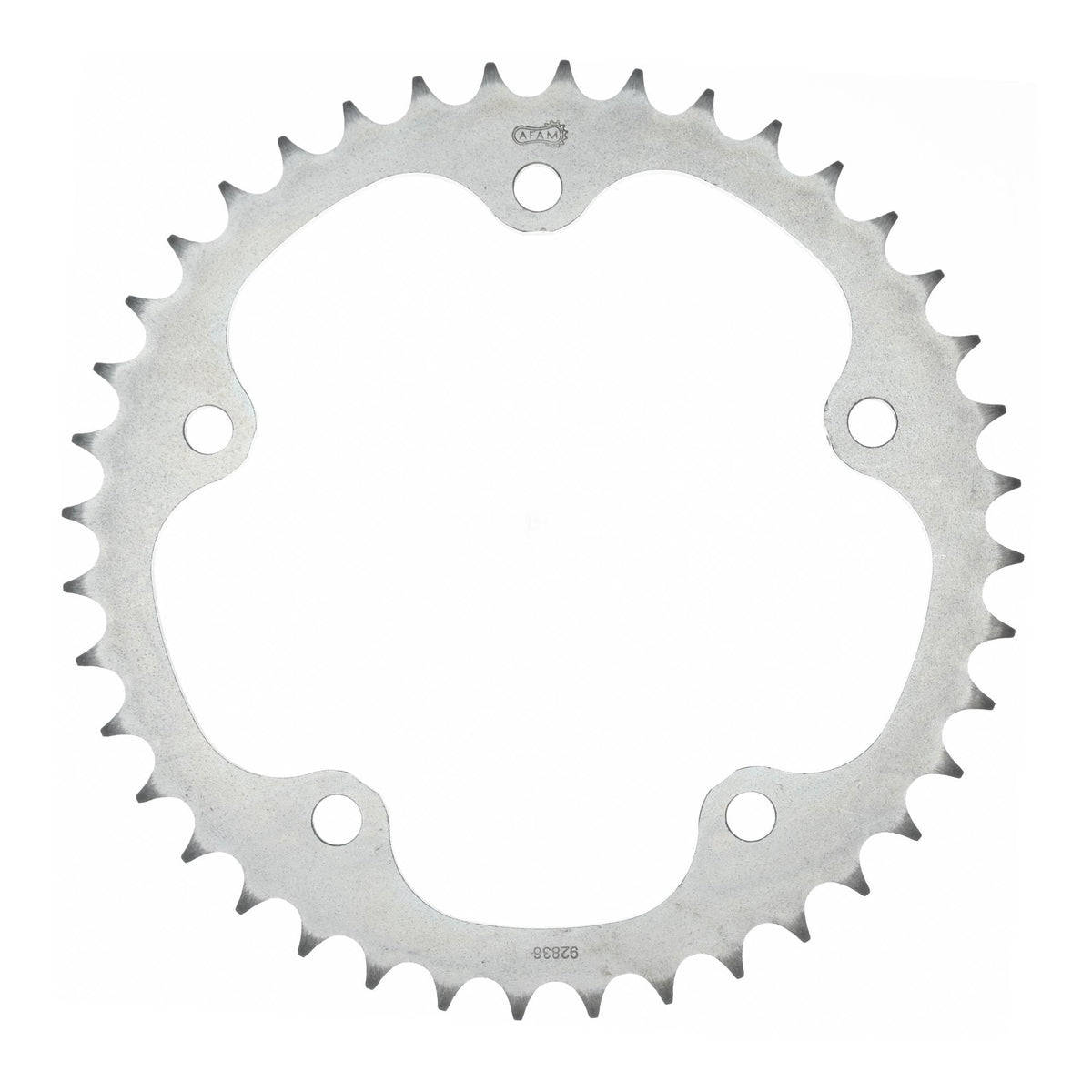

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a92836.41
• Gear ratio front sprocket-chain-rear sprocket: 17-114-41

DID 525 VX3

Successor to the proven 525 VX
X-Ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-39921

Suitable for

MV Agusta 751 - 1000 cc F3 800 RC ABS 2016
MV Agusta 751 - 1000 cc F3 800 RC ABS 2017
MV Agusta 751 - 1000 cc F3 800 RC ABS 2018
