DID chain kit for MV Agusta F4 1000 ABS 14-15 525 ZVM-X2 chain kit

DID chain kit for MV Agusta F4 1000 ABS 14-15 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the MV Agusta F4 1000 ABS 2014-2015 chain kit

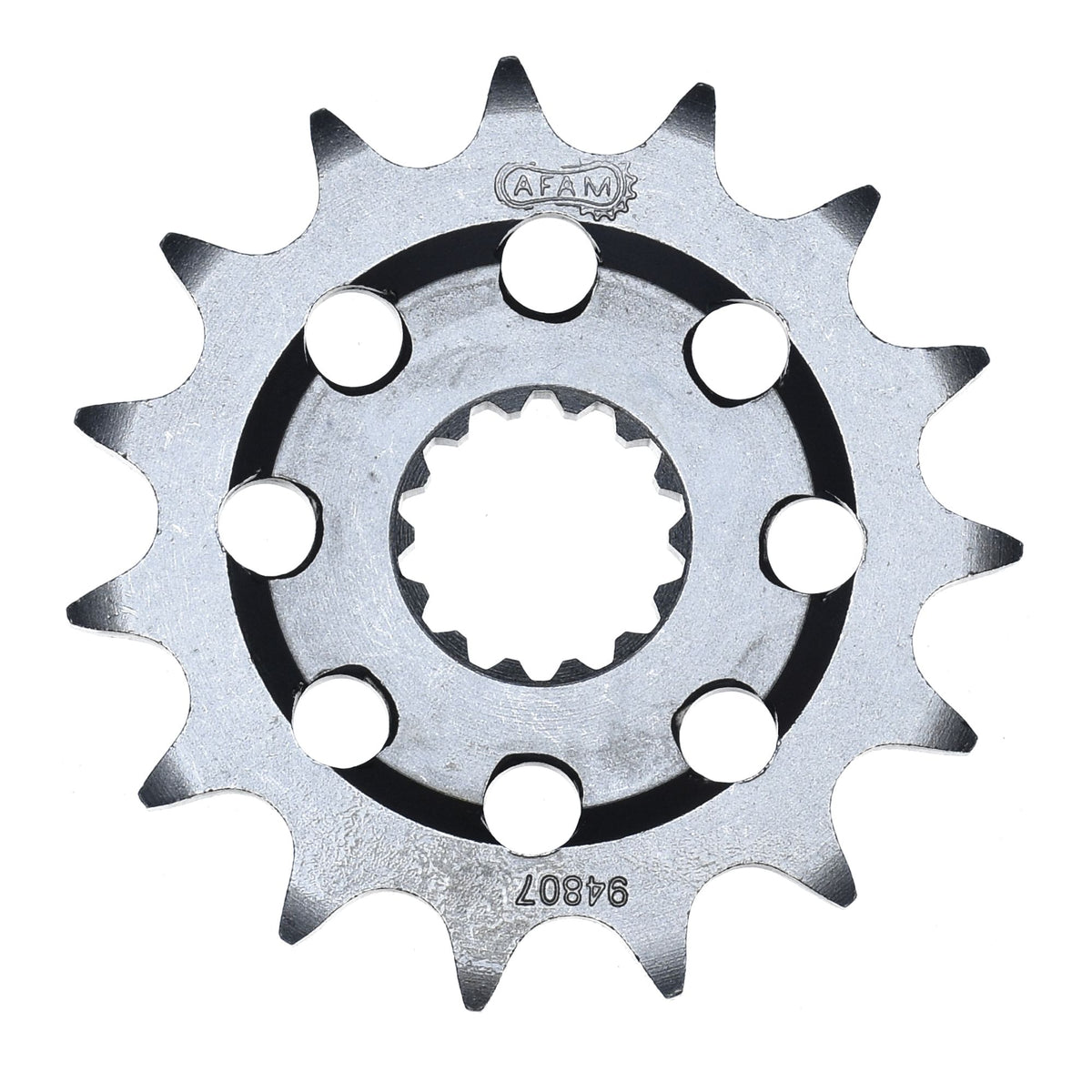

• Front sprocket: AFAM sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15
• Chain: DID chain 525 ZVM-X2 G&G 110 w/ rivet link - d525zvmx2.gg.110

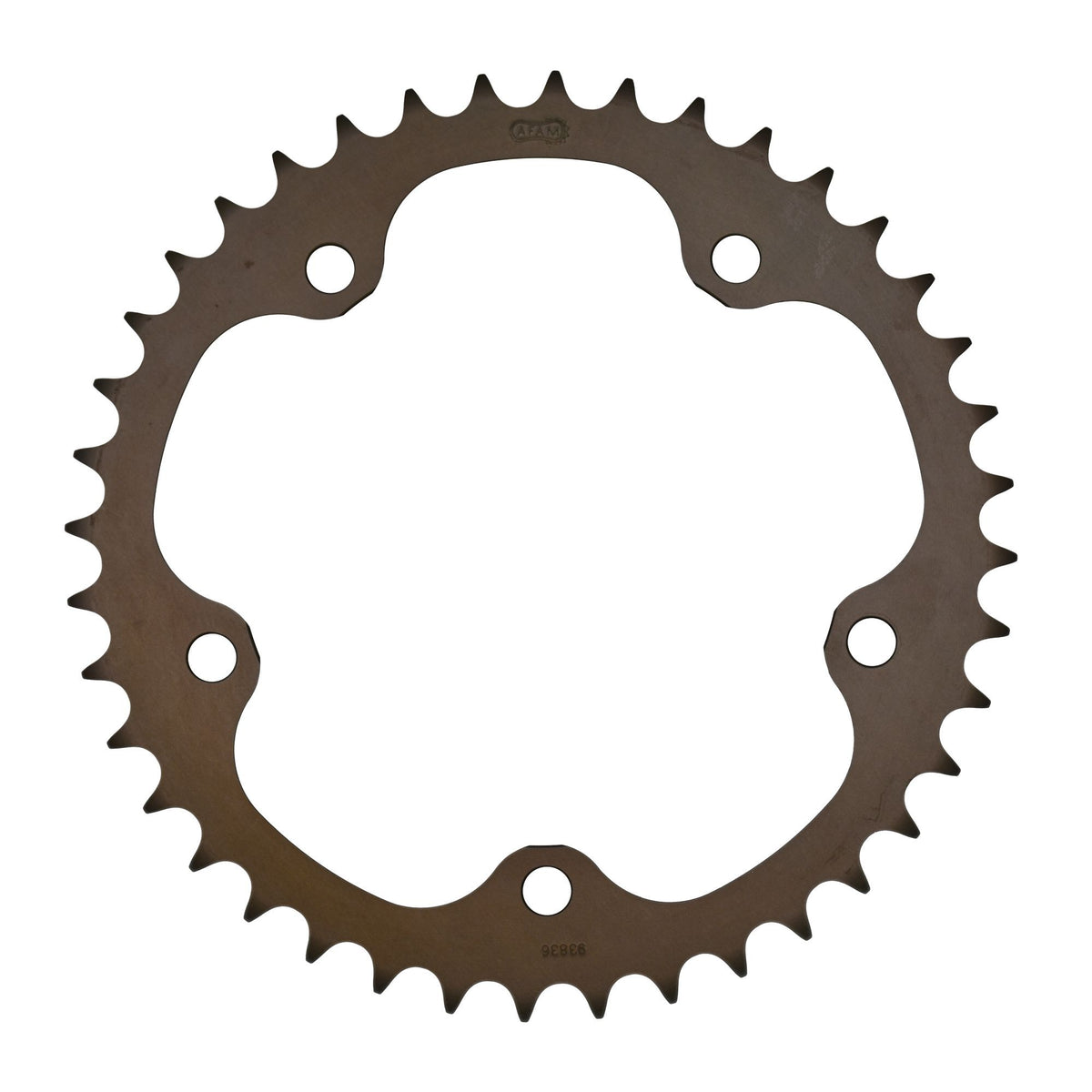

• Rear sprocket: AFAM sprocket ALU #525 for MV 41 teeth - a93836.41
• Gear ratio front sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X2

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-63836

Suitable for

MV Agusta 751 - 1000 cc F4 1000 ABS 2014
MV Agusta 751 - 1000 cc F4 1000 ABS 2015
