DID chain kit for MV Agusta F4 1000 R ABS 14-15 525 ZVMX chain kit

DID chain kit for MV Agusta F4 1000 R ABS 14-15 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

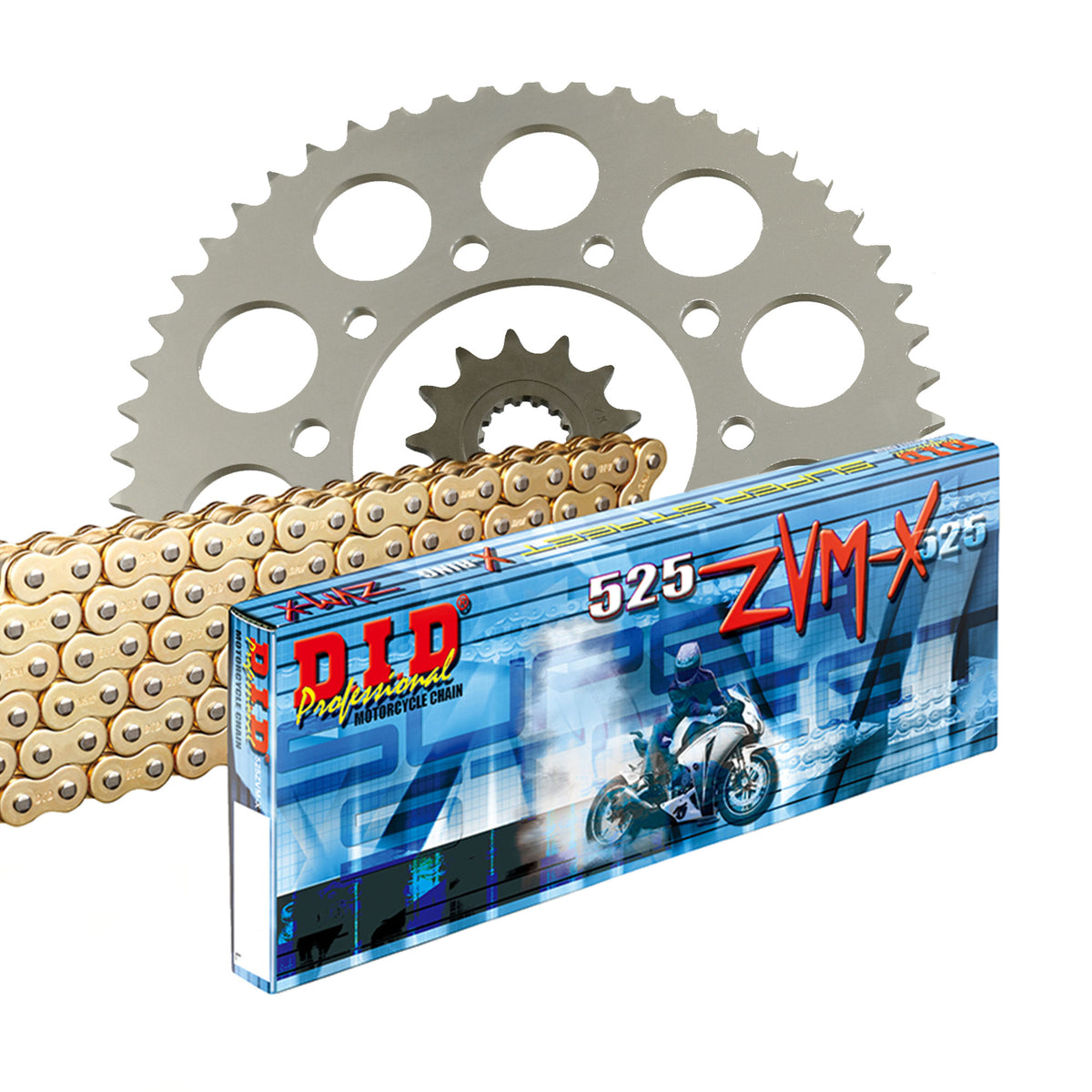

Components of the chain kit MV Agusta F4 1000 R ABS 2014-2015

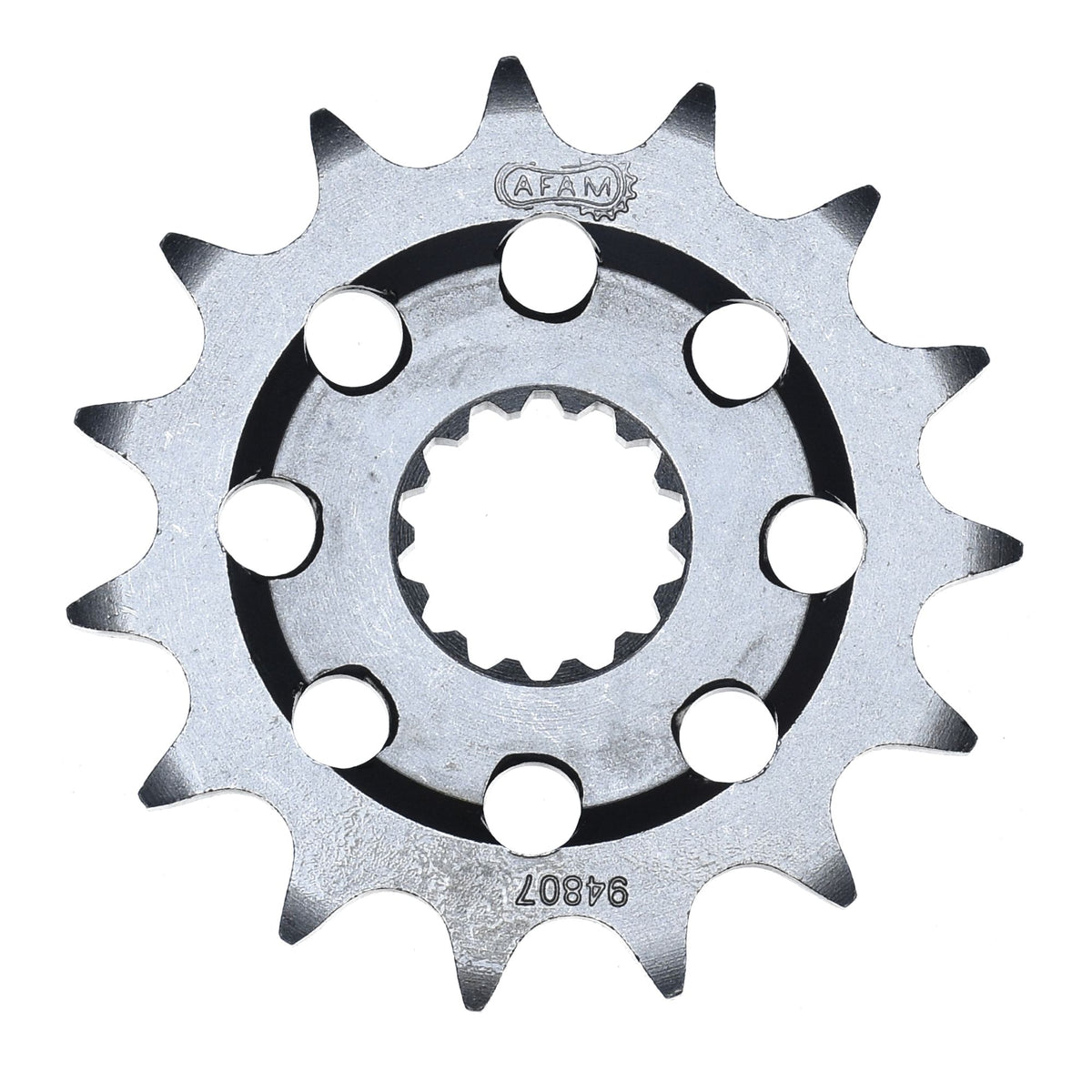

• Front sprocket: AFAM front sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15

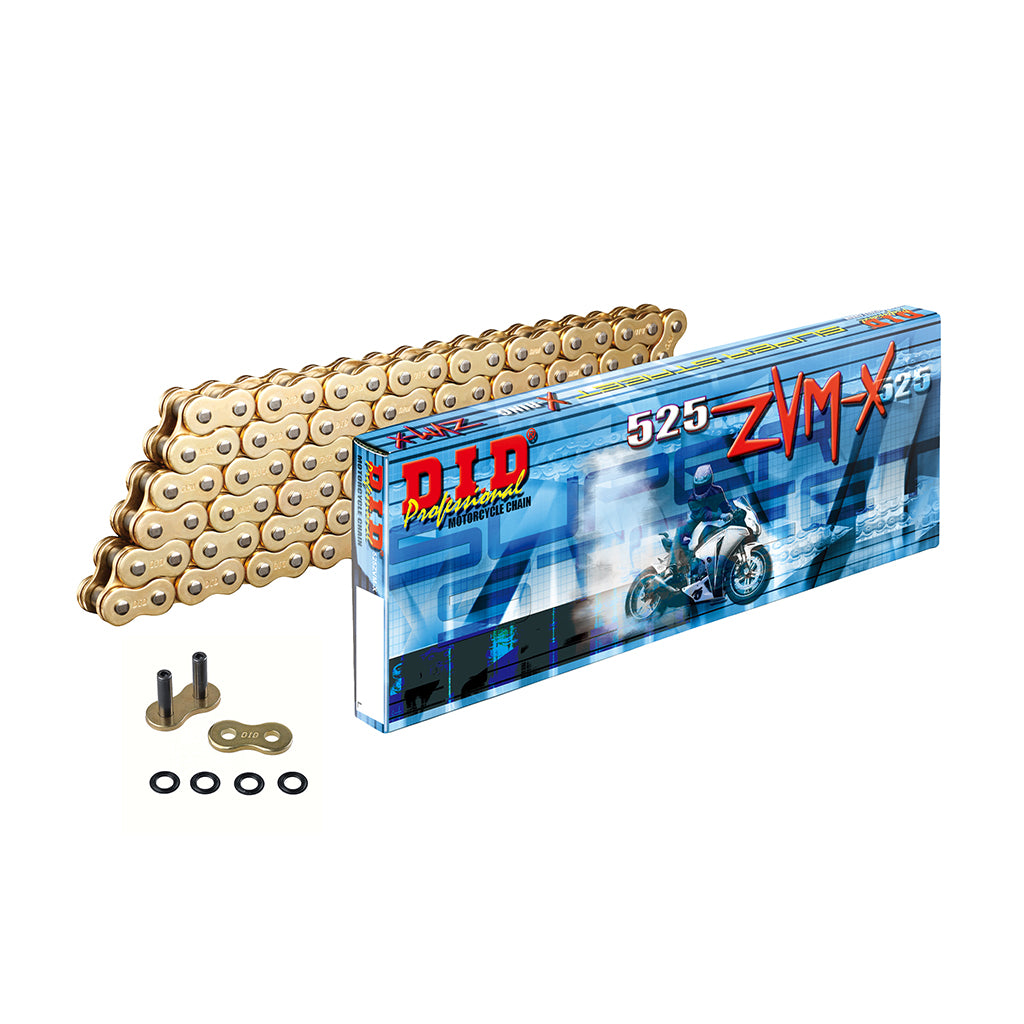

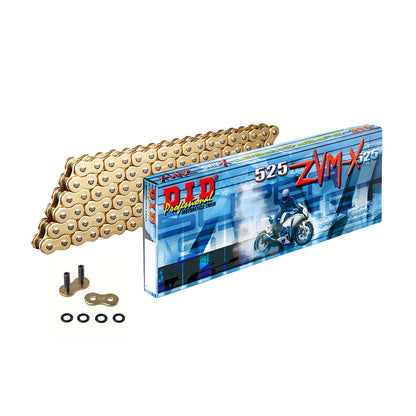

• Chain: DID chain 525 ZVM-X G&G 110 with rivet link - d6252529110

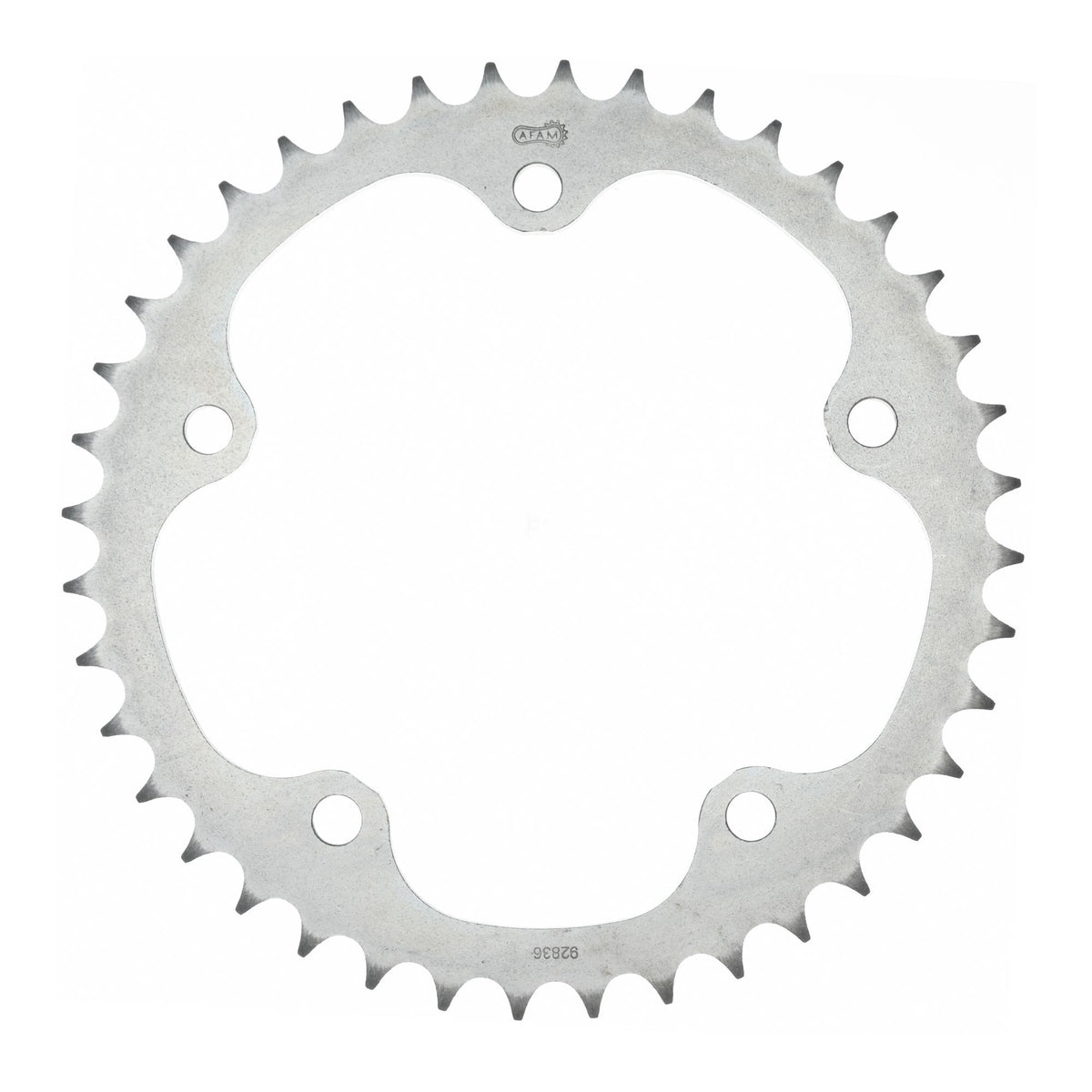

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a92836.41
• Gear ratio front sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-30400

Suitable for

MV Agusta 751 - 1000 cc F4 1000 R ABS 2014
MV Agusta 751 - 1000 cc F4 1000 R ABS 2015
