DID chain kit for MV Agusta F4 1000 RR ABS 16-18 525 ZVM-X2 chain kit

DID chain kit for MV Agusta F4 1000 RR ABS 16-18 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for MV Agusta F4 1000 RR ABS 2016-2018

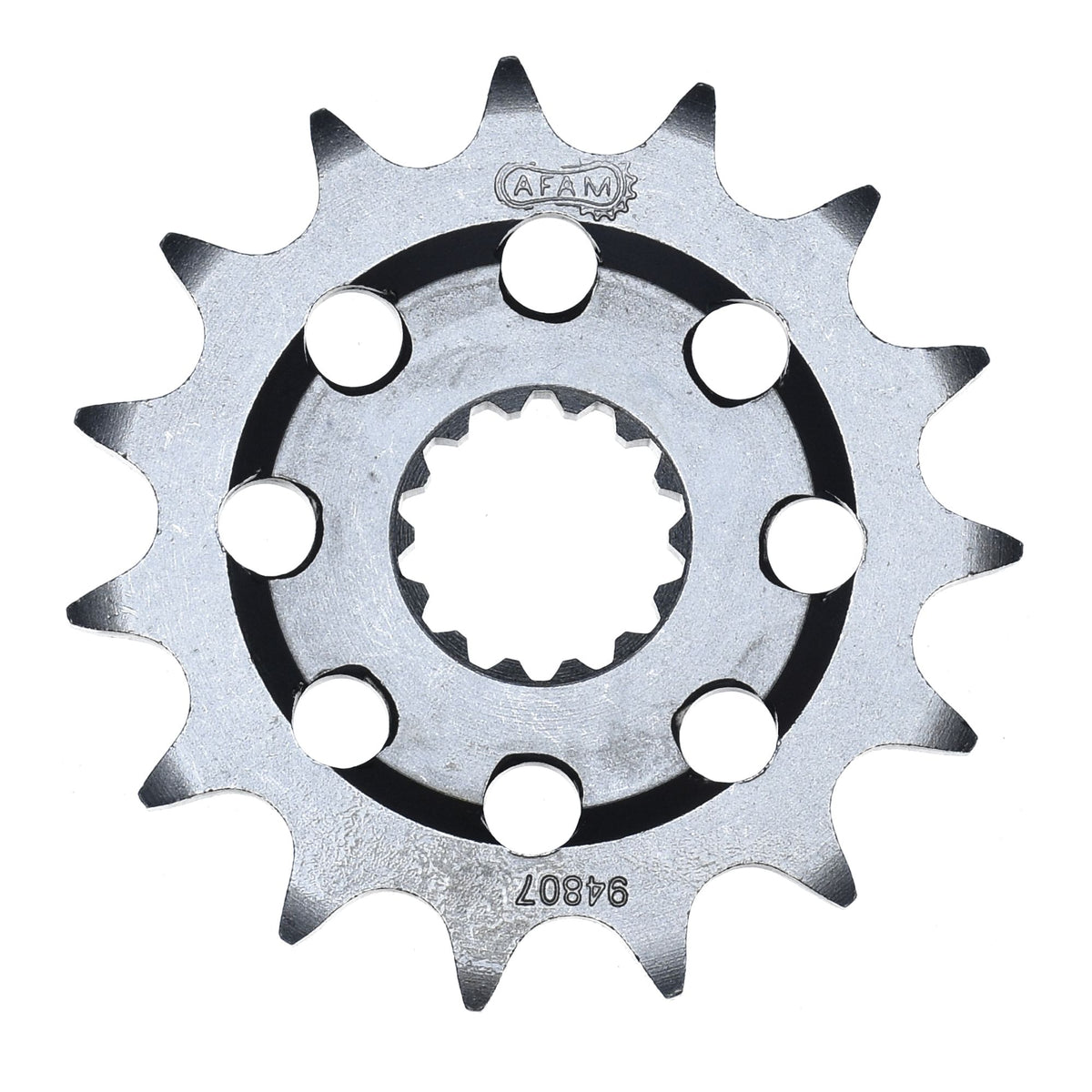

• Front sprocket: AFAM sprocket #525 Sport for MV 910-1090 15 teeth - a94807.15
• Chain: DID chain 525 ZVM-X2 G&G 110 with rivet link - d525zvmx2.gg.110

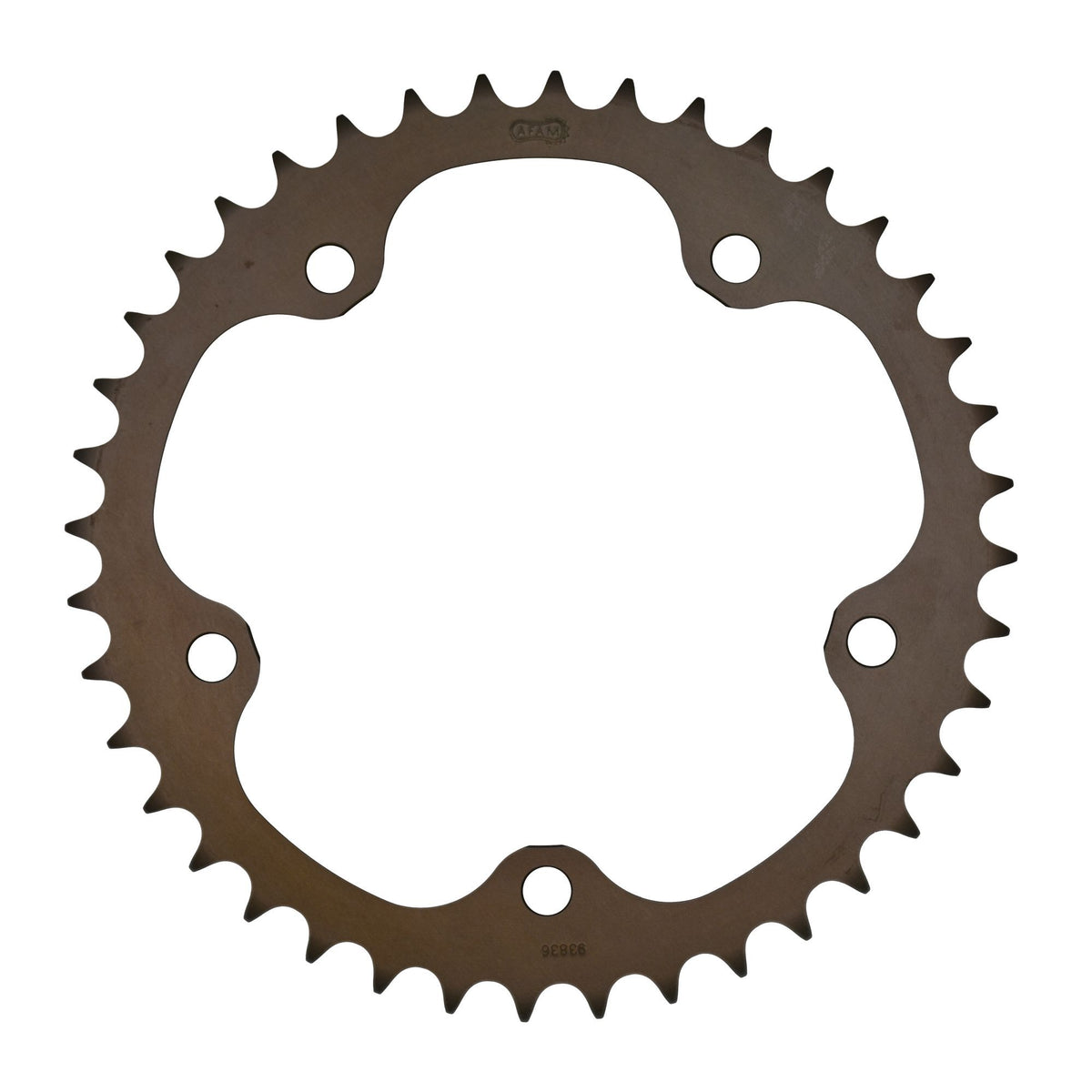

• Rear sprocket: AFAM sprocket ALU #525 for MV 41 teeth - a93836.41
• Gear ratio sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-63854

Fits

MV Agusta 751 - 1000 cc F4 1000 RR ABS 2016
MV Agusta 751 - 1000 cc F4 1000 RR ABS 2017
MV Agusta 751 - 1000 cc F4 1000 RR ABS 2018
