DID chain kit for MV Agusta F4 750 S 1+1 04-05 520 ZVMX chain kit

DID chain kit for MV Agusta F4 750 S 1+1 04-05 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the MV Agusta F4 750 S 1+1 F4 2004-2005 chain kit

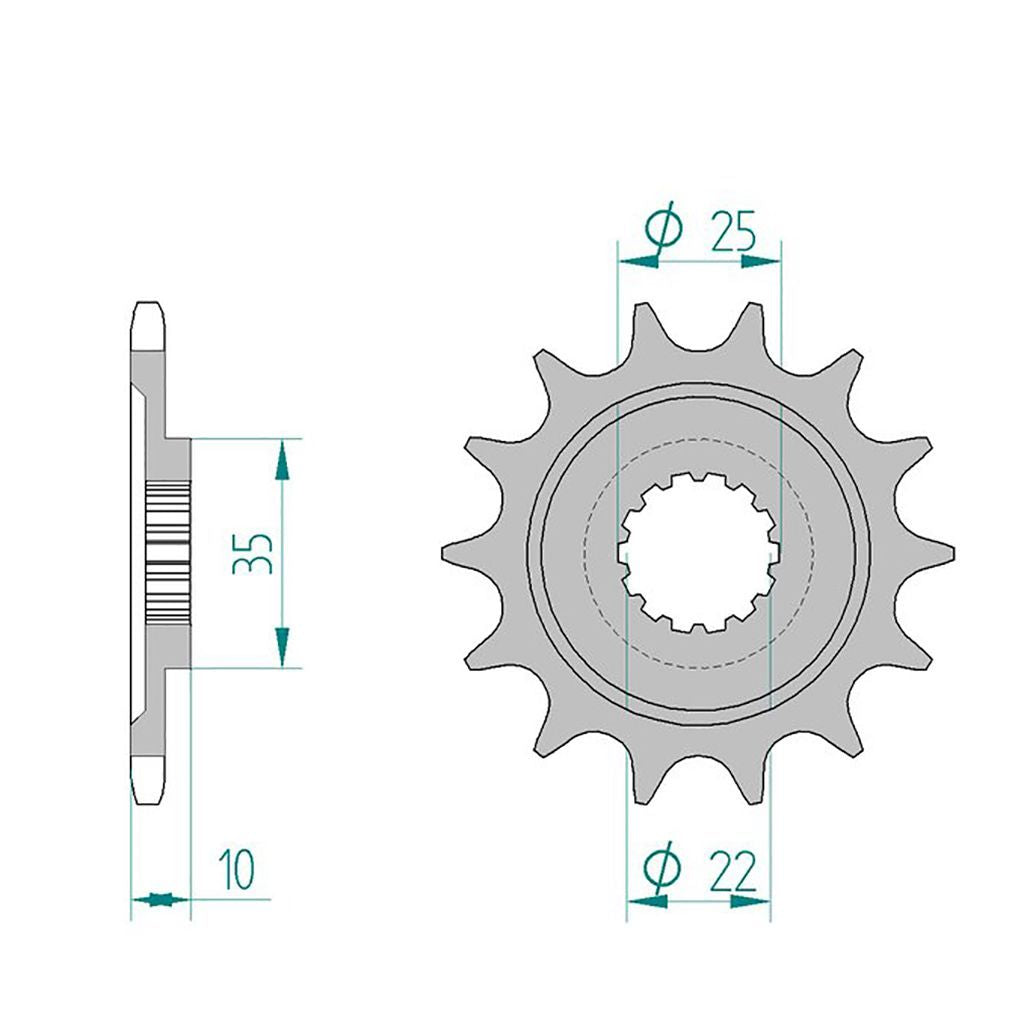

• Front sprocket: AFAM front sprocket #520 15 teeth - a94604.15
• Chain: DID chain 520 ZVM-X G&G 108 w. rivet link - d6252029108

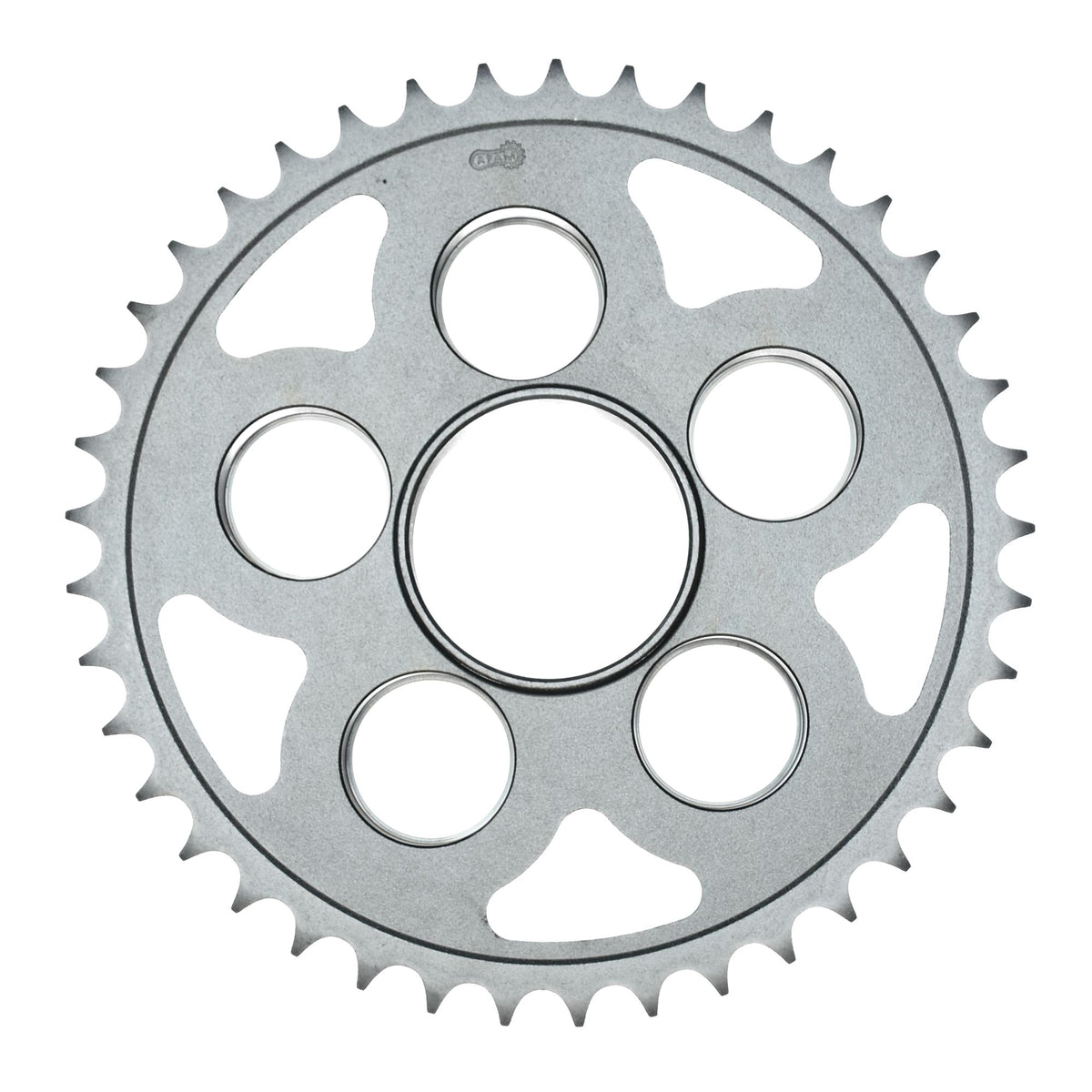

• Rear sprocket: AFAM rear sprocket STEEL #520 f. MV 41 teeth - a92667.41
• Gear ratio front sprocket-chain-rear sprocket: 15-108-41

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-42540

Fits

MV Agusta 501 - 750 cc F4 750 S 1+1 F4 2004
MV Agusta 501 - 750 cc F4 750 S 1+1 F4 2005
