DID chain kit for MV Agusta F4 750 SPR 03-04 520 ZVMX chain kit

DID Chain kit for MV Agusta F4 750 SPR 03-04 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit MV Agusta F4 750 SPR F4 2003-2004

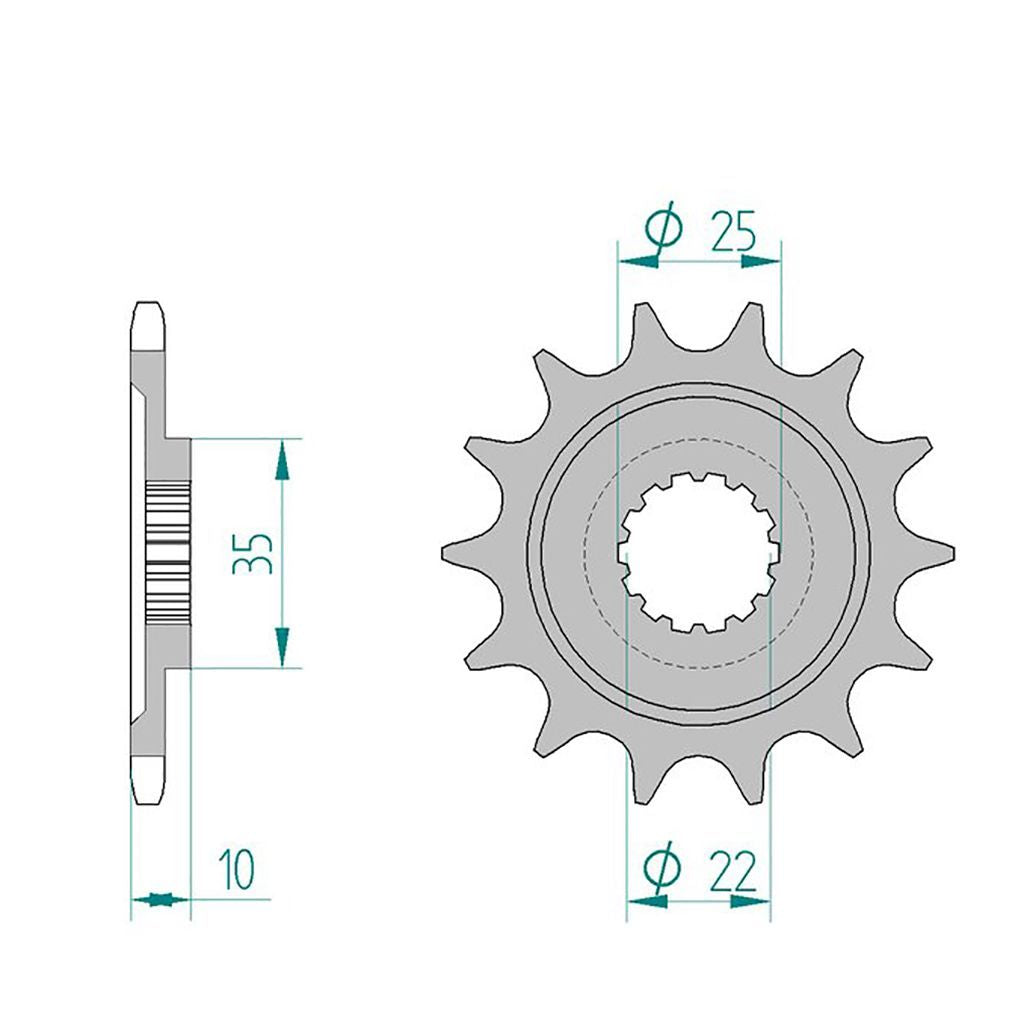

• Front sprocket: AFAM front sprocket #520 15 teeth - a94604.15
• Chain: DID chain 520 ZVM-X G&G 108 with rivet link - d6252029108

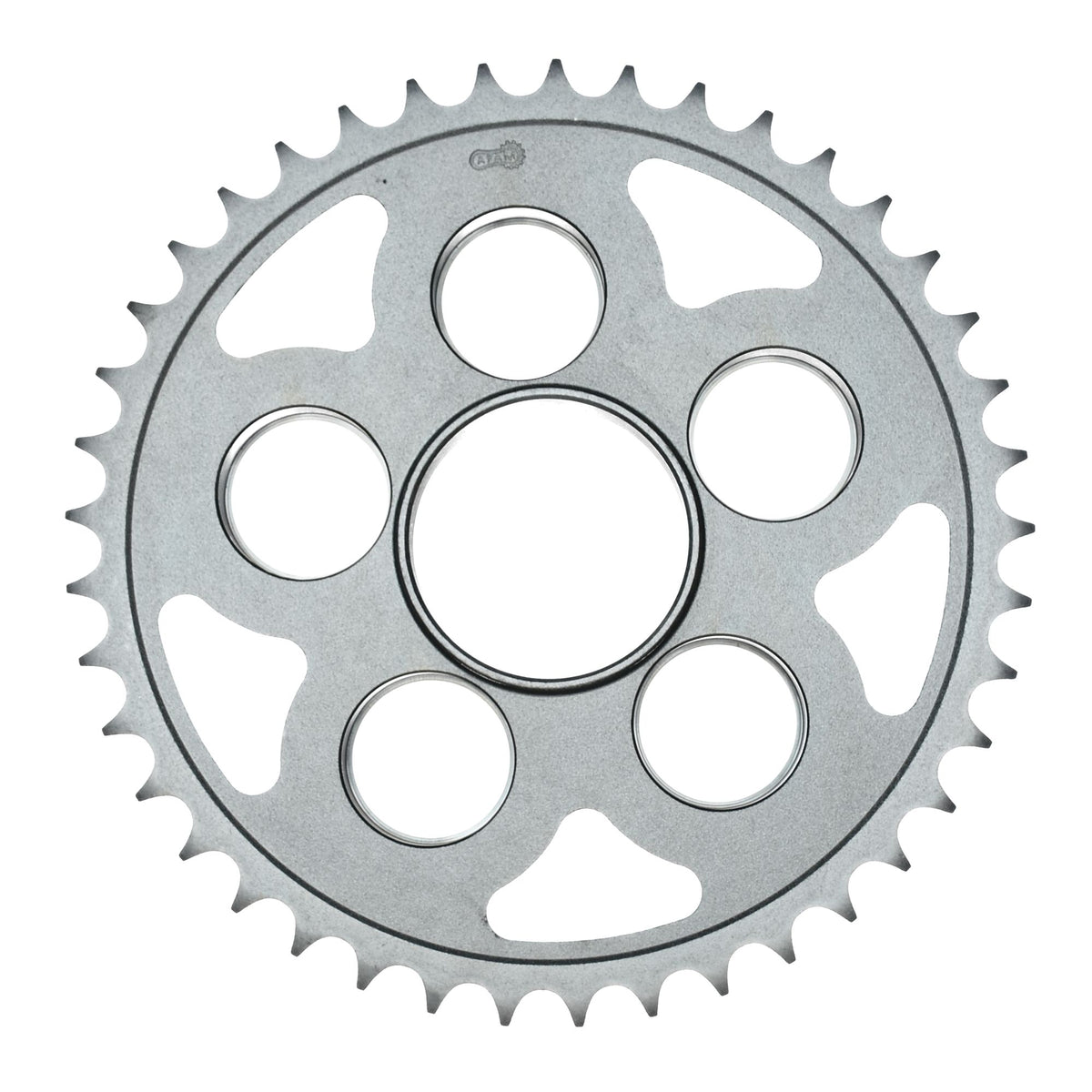

• Rear sprocket: AFAM rear sprocket STEEL #520 for MV 41 teeth - a92667.41
• Gear ratio front sprocket-chain-rear sprocket: 15-108-41

DID 520 ZVM-X

Extra reinforced chain, versatile range of applications
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-39774

Suitable for

MV Agusta 501 - 750 cc F4 750 SPR F4 2003
MV Agusta 501 - 750 cc F4 750 SPR F4 2004
