DID chain kit for MV Agusta Rivale 800 ABS 14-16 525 ZVM-X2 chain kit

DID Chain Kit for MV Agusta Rivale 800 ABS 14-16 525 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit MV Agusta Rivale 800 ABS S3 2014-2016

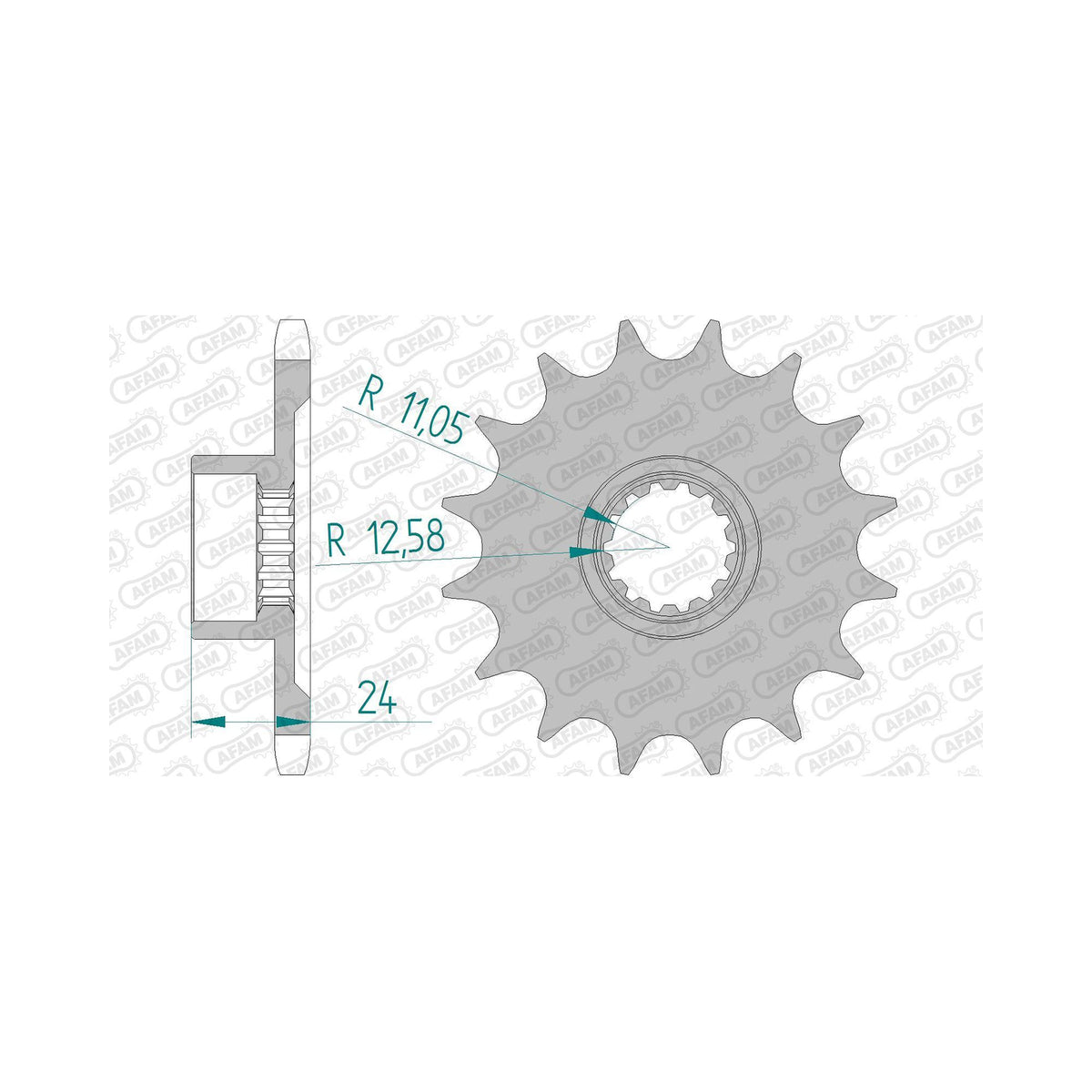

• Front sprocket: AFAM sprocket #525 16 teeth - a94605.16
• Chain: DID chain 525 ZVM-X2 G&G 114 w. rivet link - d525zvmx2.gg.114

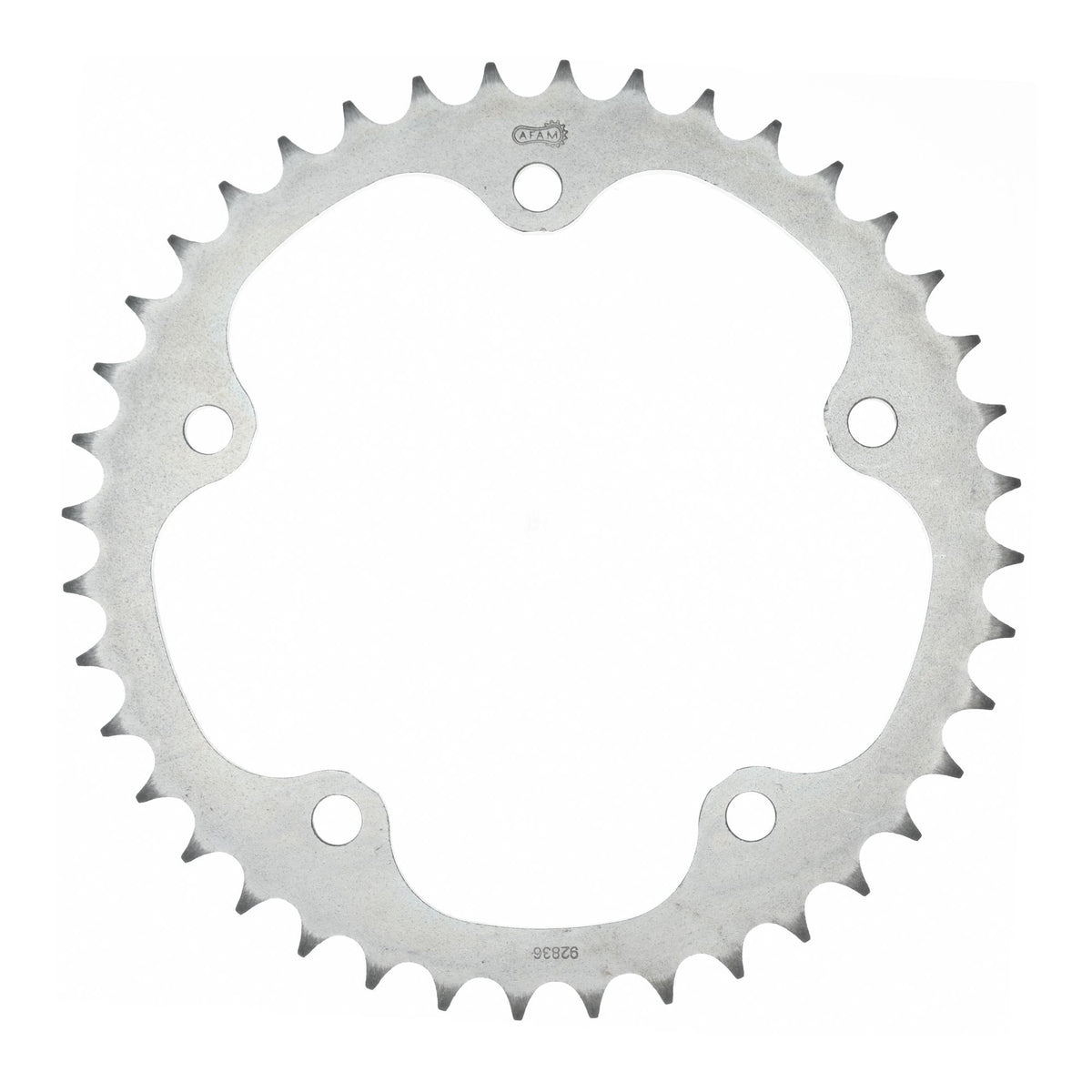

• Rear sprocket: AFAM steel sprocket #525 41 teeth - a92836.41
• Transmission ratio front sprocket-chain-rear sprocket: 16-114-41

DID 525 ZVM-X2

Extra reinforced chain, versatile area of application
X-Ring chain
Color: Gold/Gold
Application by engine displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-63935

Fits

MV Agusta 751 - 1000 cc Rivale 800 ABS S3 2014
MV Agusta 751 - 1000 cc Rivale 800 ABS S3 2015
MV Agusta 751 - 1000 cc Rivale 800 ABS S3 2016
