DID chain kit for MV Agusta Turismo Veloce Lusso 800 ABS 17-20 525 ZVM-X2 chain kit

DID Chain Kit for MV Agusta Turismo Veloce Lusso 800 ABS 17-20 525 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit MV Agusta Turismo Veloce Lusso 800 ABS 2017-2020

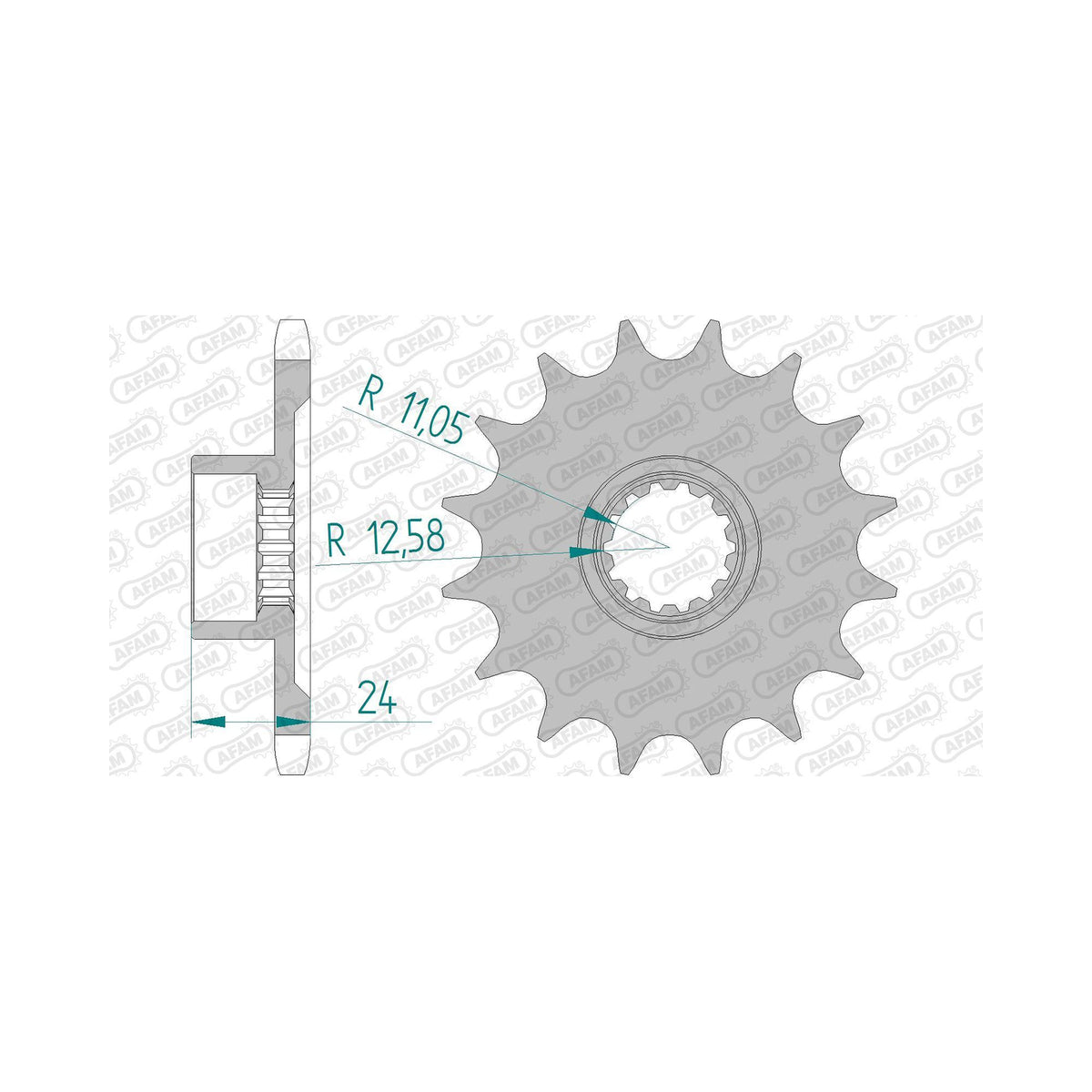

• Front sprocket: AFAM sprocket #525 16 teeth - a94605.16
• Chain: DID chain 525 ZVM-X2 G&G 116 with rivet link - d525zvmx2.gg.116

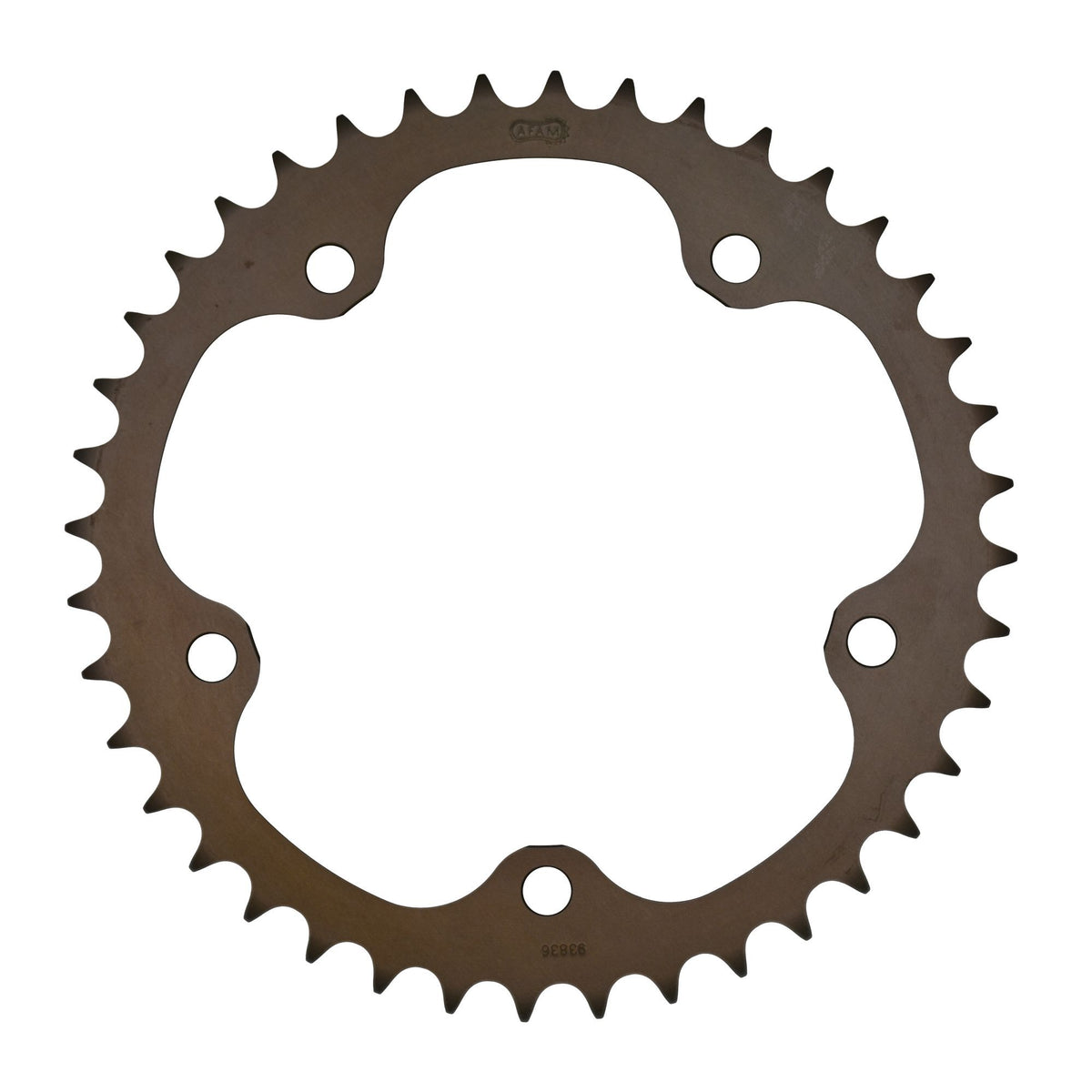

• Rear sprocket: AFAM rear sprocket ALU #525 for MV 41 teeth - a93836.41
• Gear ratio sprocket-chain-rear sprocket: 16-116-41

DID 525 ZVM-X2

Extra reinforced chain, versatile range of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-63952

Fits

MV Agusta 751 - 1000 cc Turismo Veloce Lusso 800 ABS 2017
MV Agusta 751 - 1000 cc Turismo Veloce Lusso 800 ABS 2018
MV Agusta 751 - 1000 cc Turismo Veloce Lusso 800 ABS 2019
MV Agusta 751 - 1000 cc Turismo Veloce Lusso 800 ABS 2020
