DID chain kit for MV Agusta Turismo Veloce Lusso 800 ABS 19-20 525 ZVM-X2 chain kit

DID chain kit for MV Agusta Turismo Veloce Lusso 800 ABS 19-20 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit MV Agusta Turismo Veloce Lusso 800 ABS SCS 2019-2020

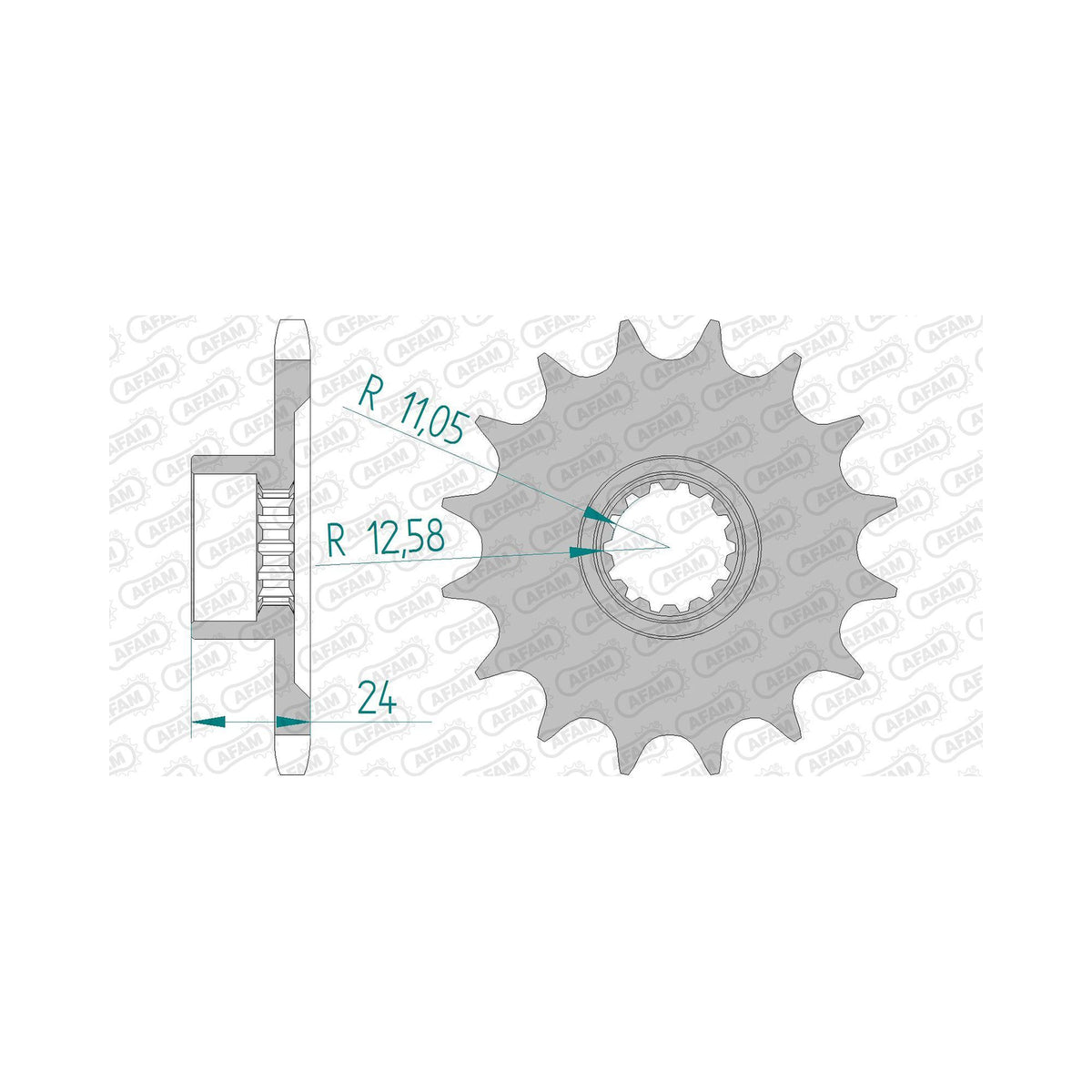

• Sprocket: AFAM sprocket #525 16 teeth - a94605.16
• Chain: DID chain 525 ZVM-X2 G&G 116 with rivet link - d525zvmx2.gg.116

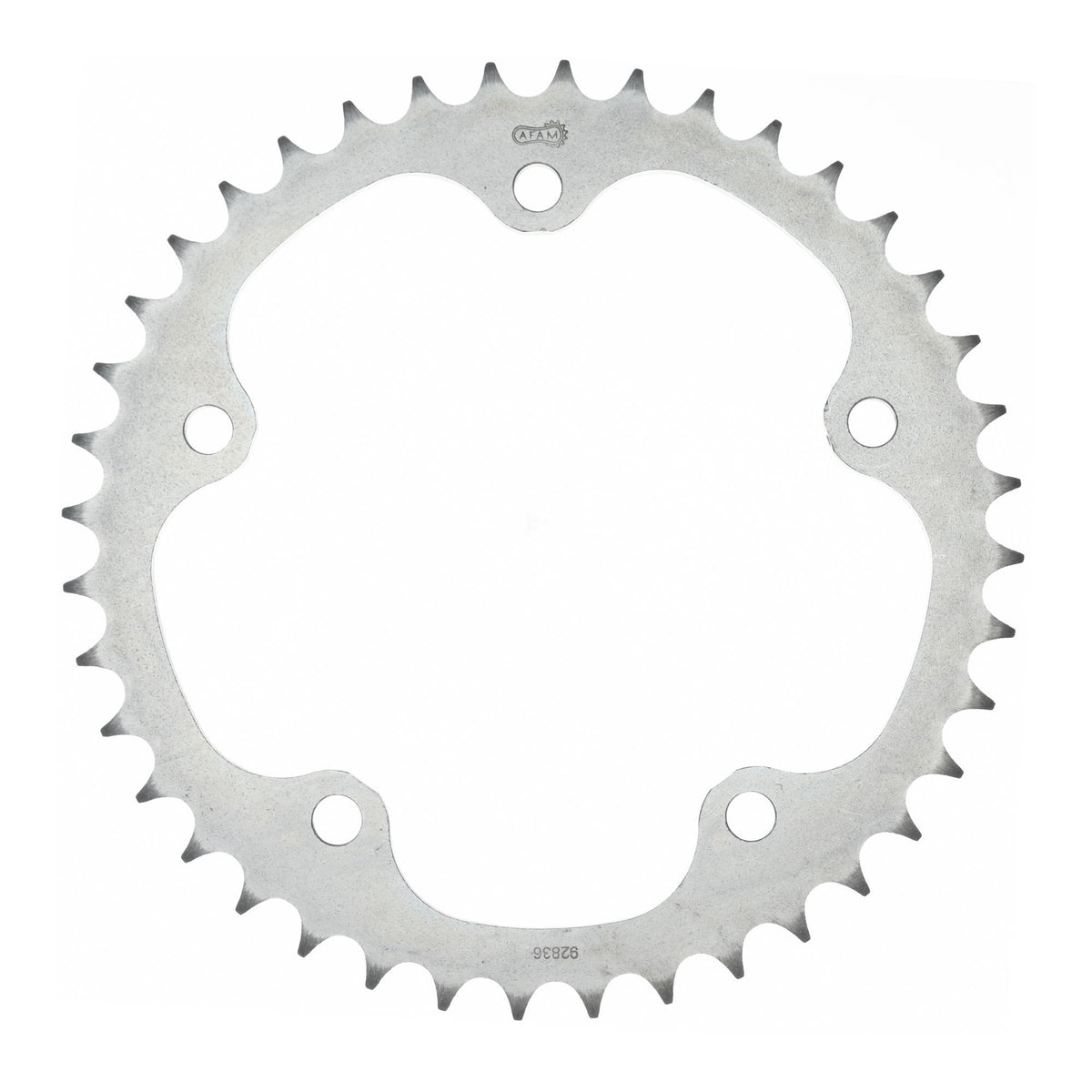

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a92836.41
• Transmission ratio sprocket-chain-rear sprocket: 16-116-41

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by engine displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-63955

Suitable for

MV Agusta 751 - 1000 cc Turismo Veloce Lusso 800 ABS SCS 2019
MV Agusta 751 - 1000 cc Turismo Veloce Lusso 800 ABS SCS 2020
