DID chain kit for MZ Baghira 660 Street Moto 00-06 520 ZVMX chain kit

DID chain kit for MZ Baghira 660 Street Moto 00-06 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

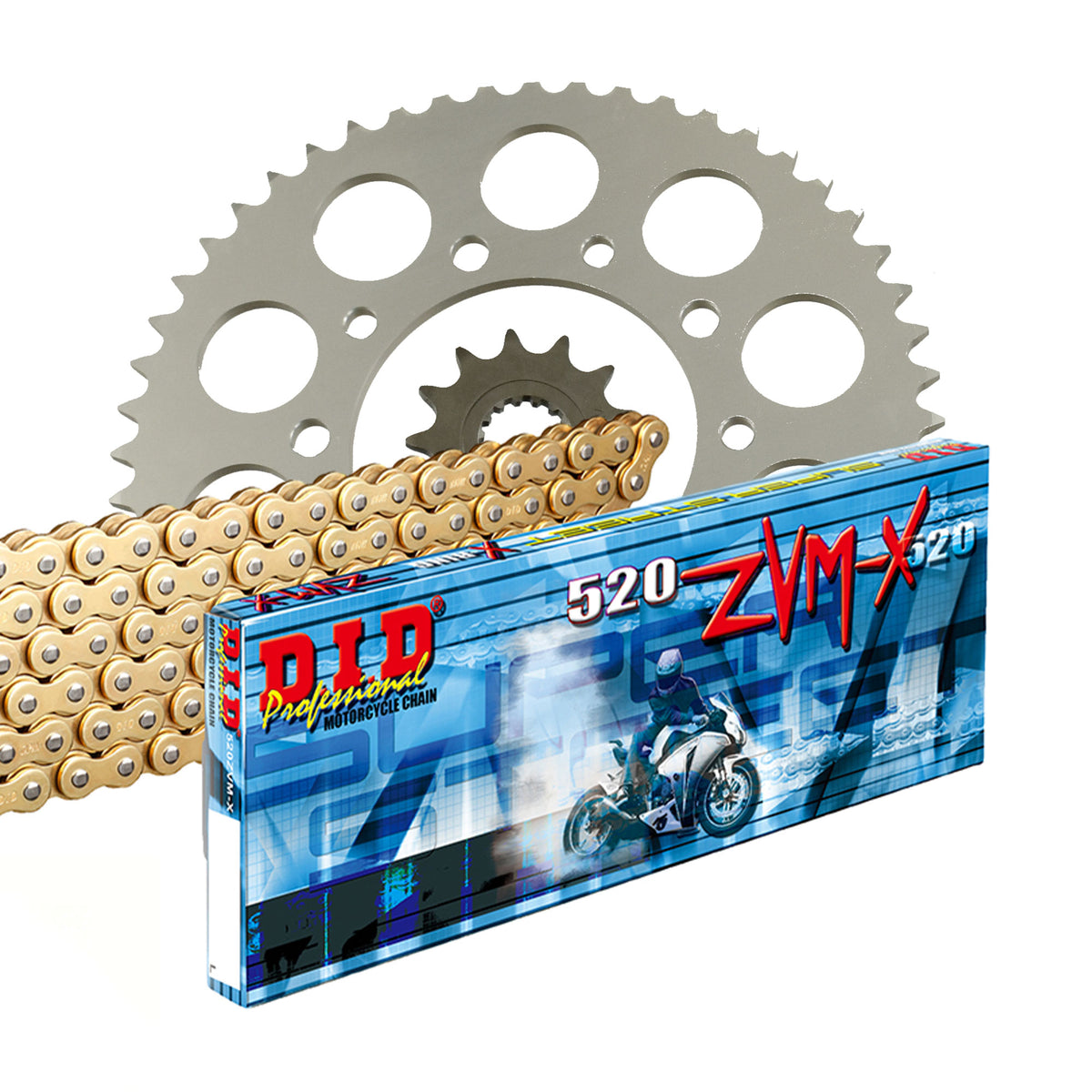

Components of the chain kit MZ Baghira 660 Street Moto 2000-2006

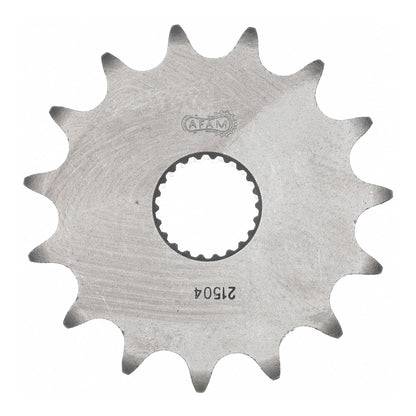

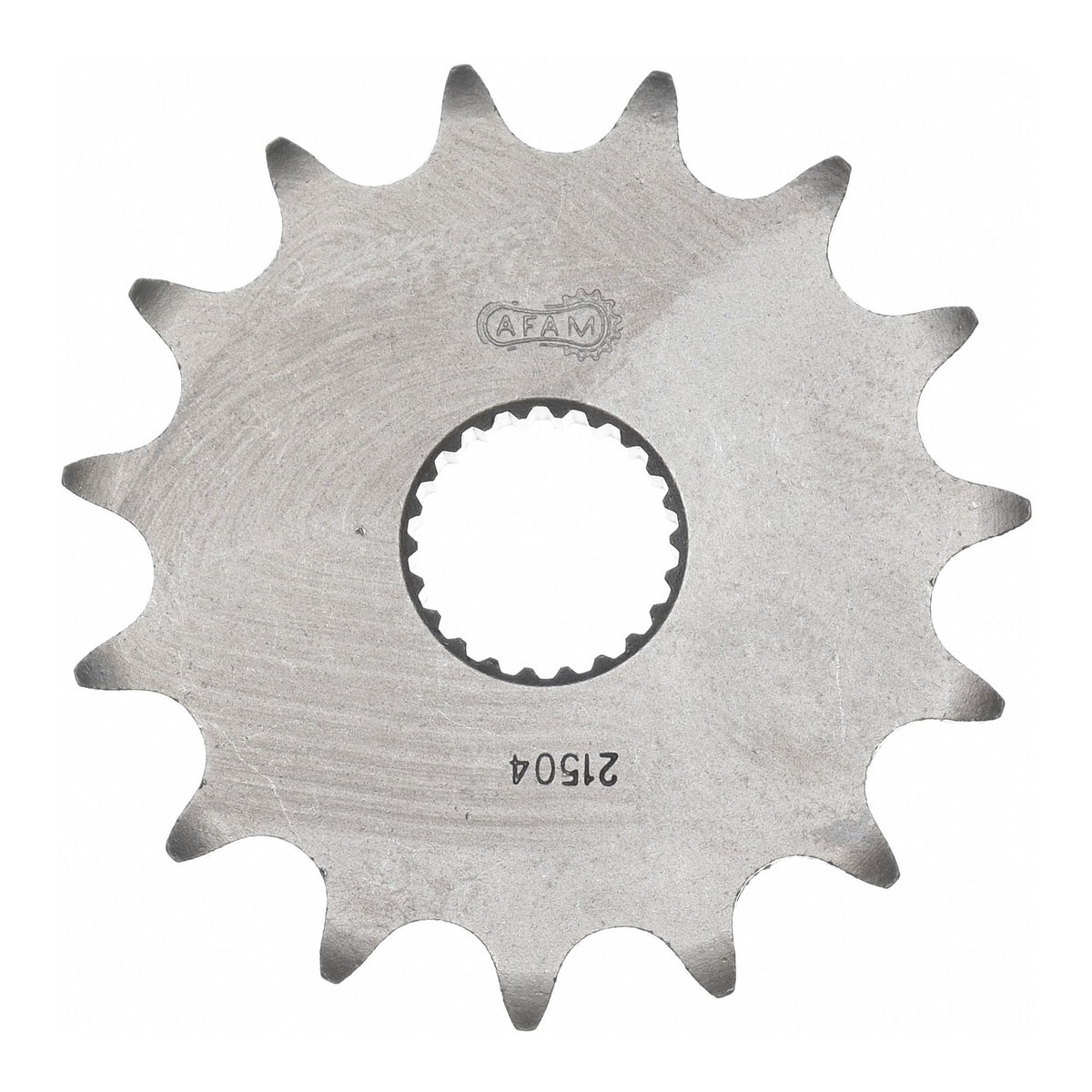

• Sprocket: AFAM sprocket #520 15 teeth - a21504.15

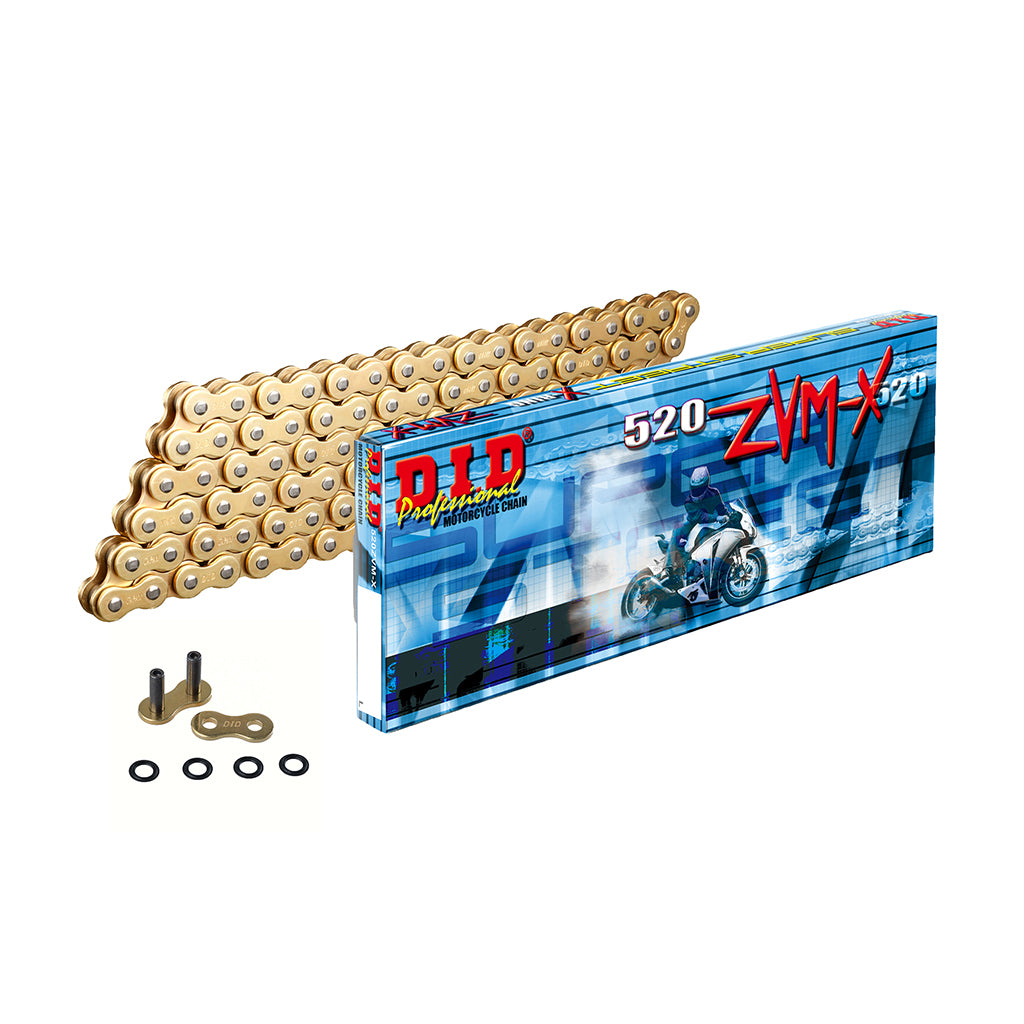

• Chain: DID chain 520 ZVM-X G&G 114 w. rivet link - d6252029114

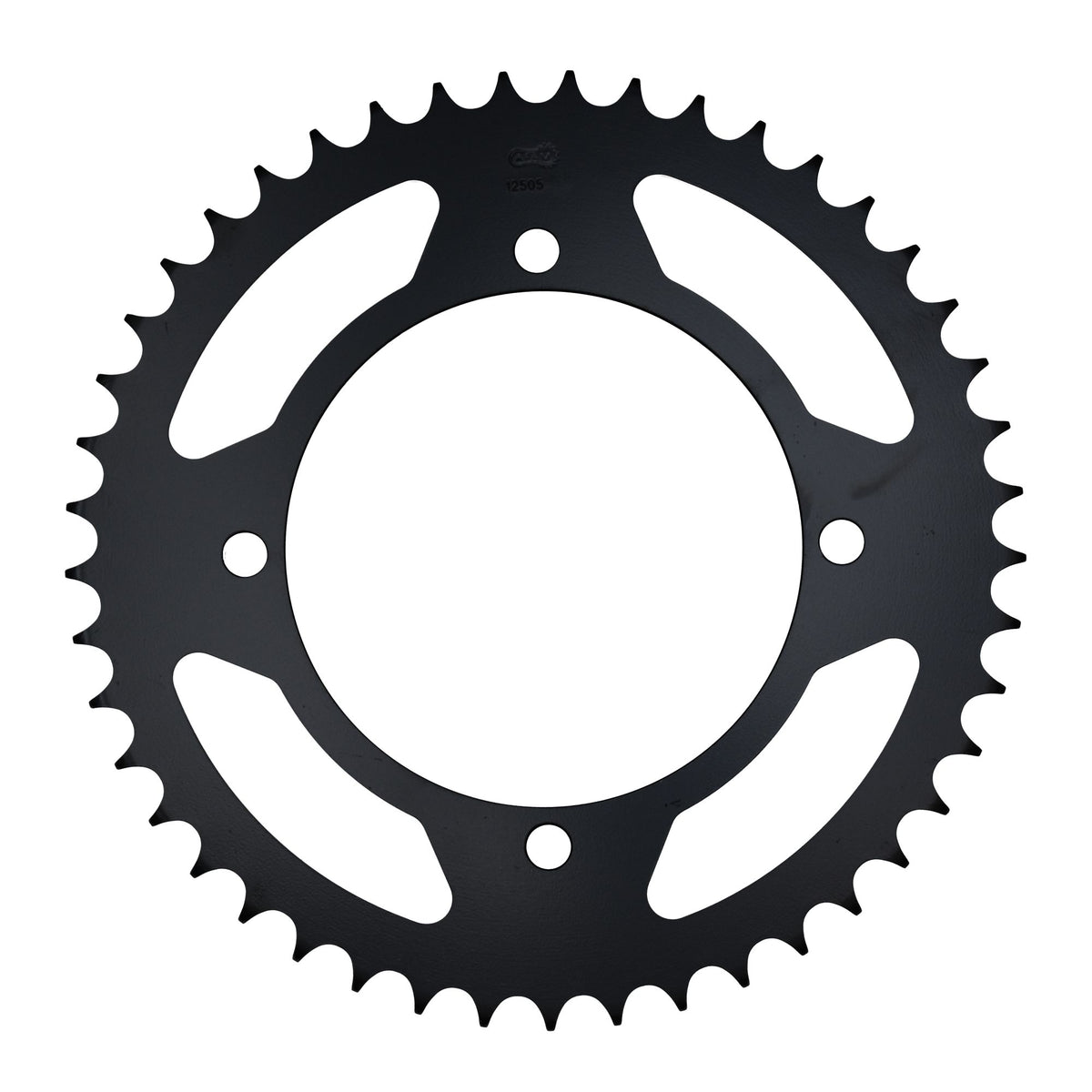

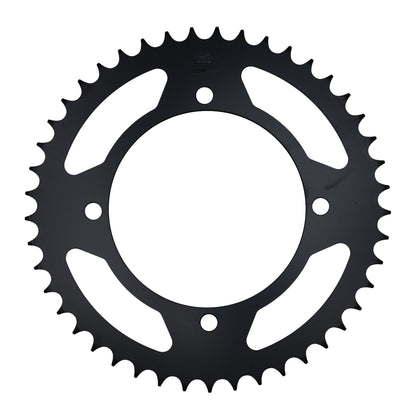

• Rear sprocket: Esjot rear sprocket STEEL #520 43 teeth - a12505.43
• Gear ratio sprocket-chain-rear sprocket: 15-114-43

DID 520 ZVM-X

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-40037

Suitable for

MZ 501 - 750 cc Baghira 660 Street Moto 2000
MZ 501 - 750 cc Baghira 660 Street Moto 2001
MZ 501 - 750 cc Baghira 660 Street Moto 2002
MZ 501 - 750 cc Baghira 660 Street Moto 2003
MZ 501 - 750 cc Baghira 660 Street Moto 2004
MZ 501 - 750 cc Baghira 660 Street Moto 2005
MZ 501 - 750 cc Baghira 660 Street Moto 2006
