DID chain set for Polaris Outlaw 525 S 08-09 520 ZVMX chain kit

DID chain kit for Polaris Outlaw 525 S 08-09 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

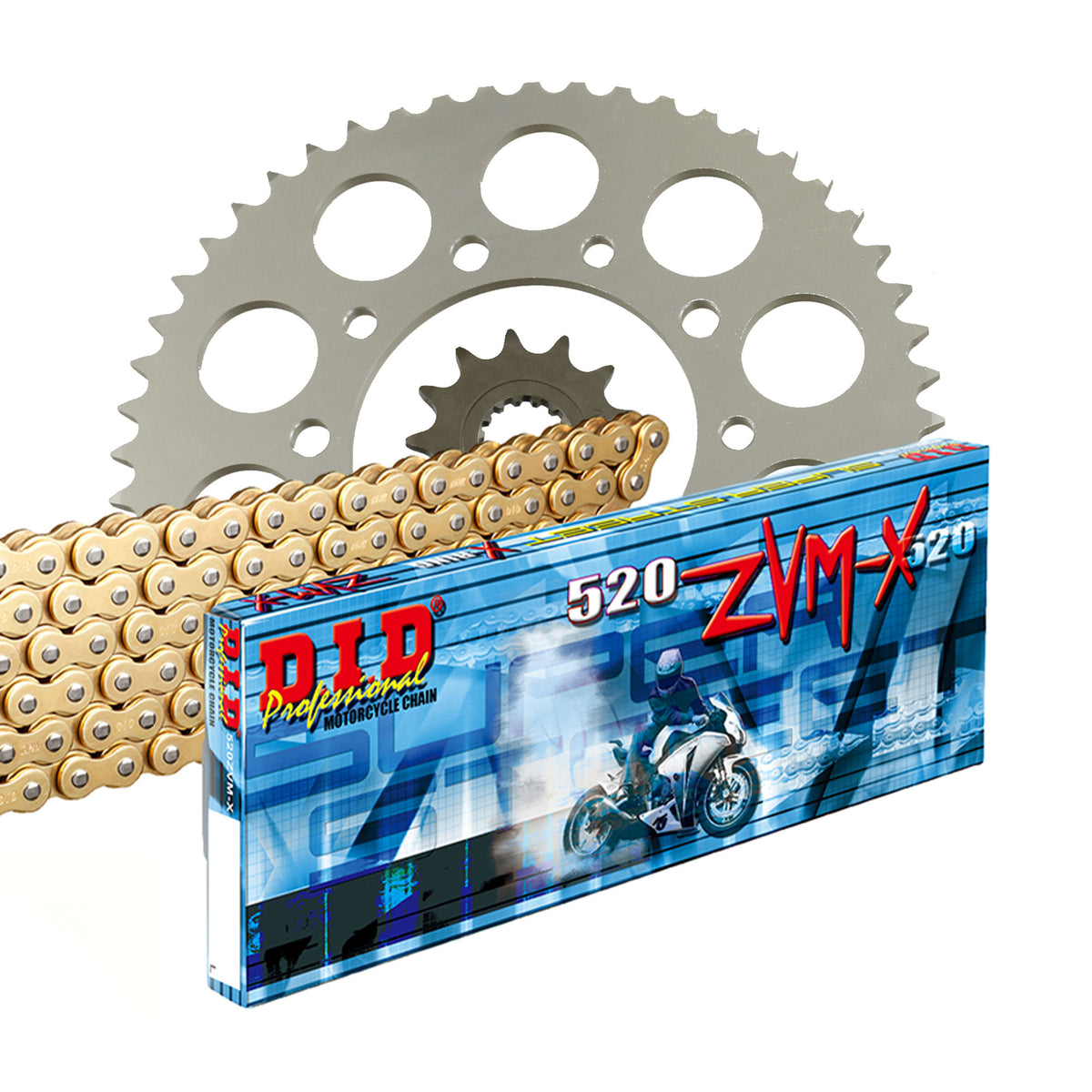

Components of the Polaris Outlaw 525 S 2008-2009 chain kit

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ZVM-X G&G 98 with rivet link - d6252029098

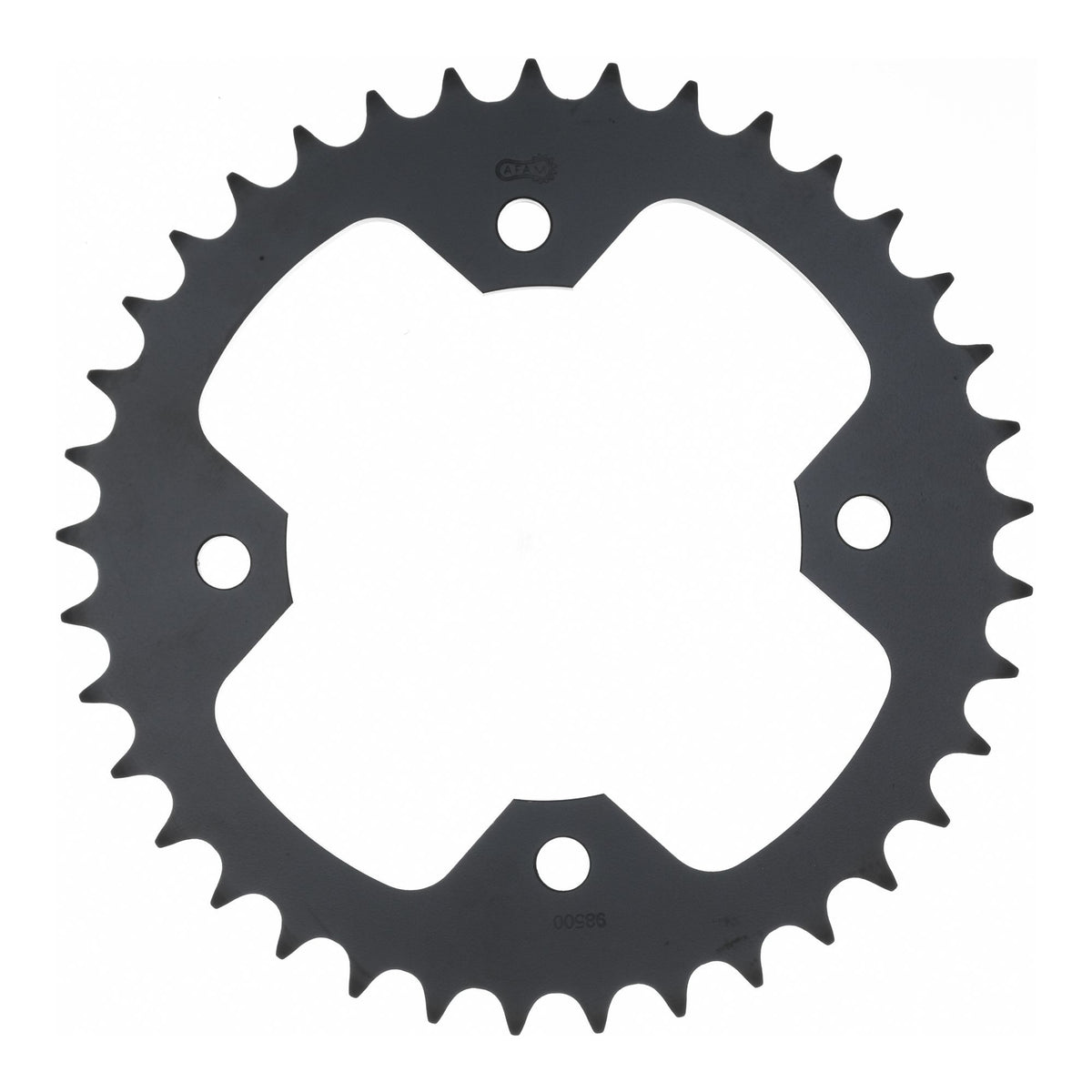

• Rear sprocket: AFAM STEEL rear sprocket #520 38 teeth - a98500.38
• Sprocket-chain-rear sprocket gear ratio: 14-98-38

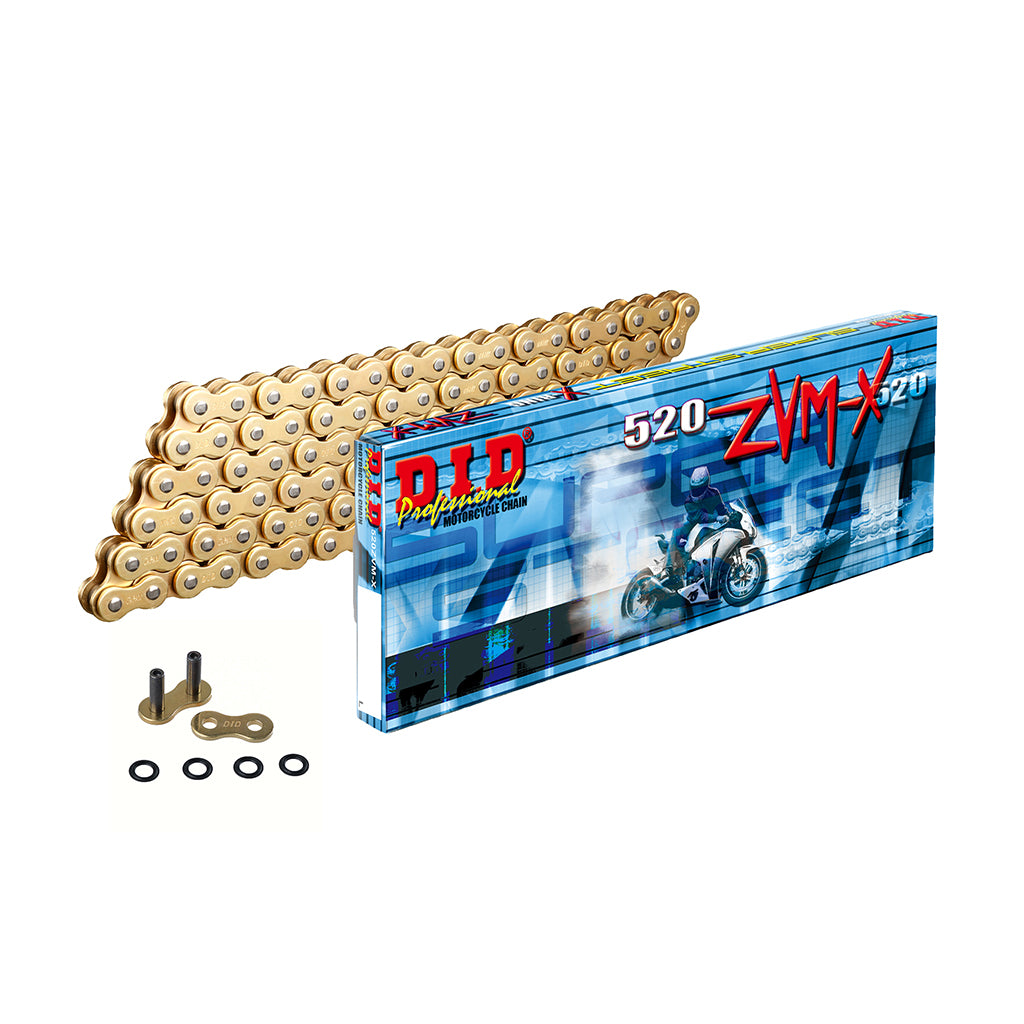

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-45161

Suitable for

Polaris 501 - 750 cc Outlaw 525 S 2008
Polaris 501 - 750 cc Outlaw 525 S 2009
