DID chain kit for Sachs / SFM-Bikes XTC 125 Racing 4T 02-07 428 HD chain kit

DID Chain Kit for Sachs / SFM-Bikes XTC 125 Racing 4T 02-07 428 HD Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Sachs / SFM-Bikes XTC 125 Racing 4T 2002-2007

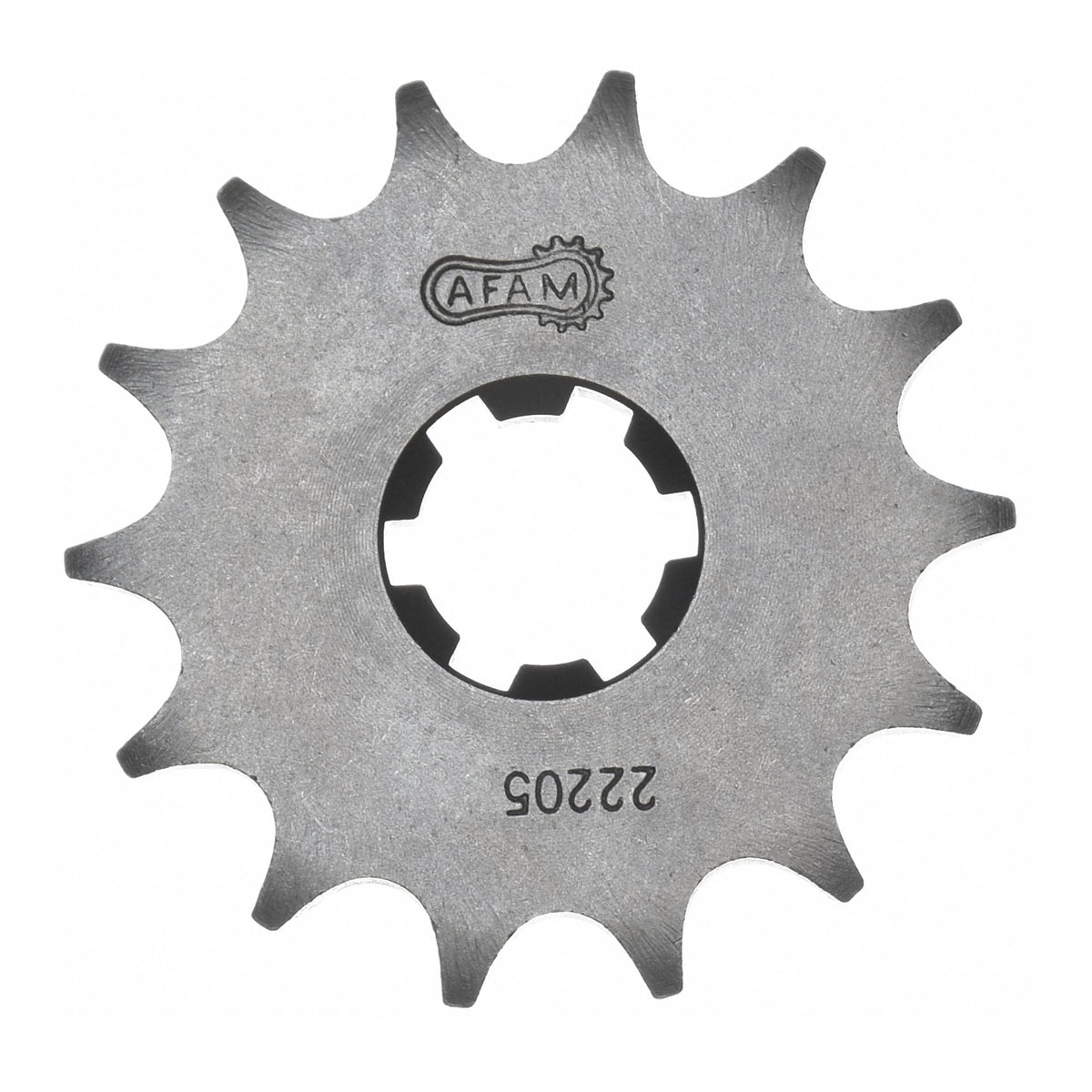

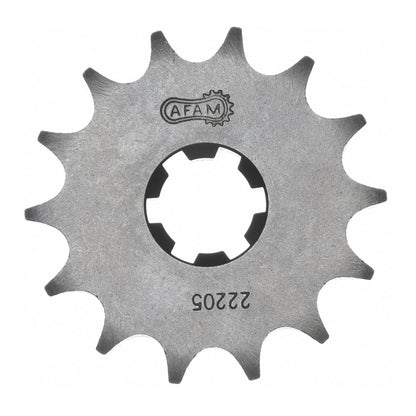

• Front sprocket: Esjot front sprocket 22205-16 #428 16 teeth - a22205.16
• Chain: DID chain 428 HD 144 with clip link - d6242801144

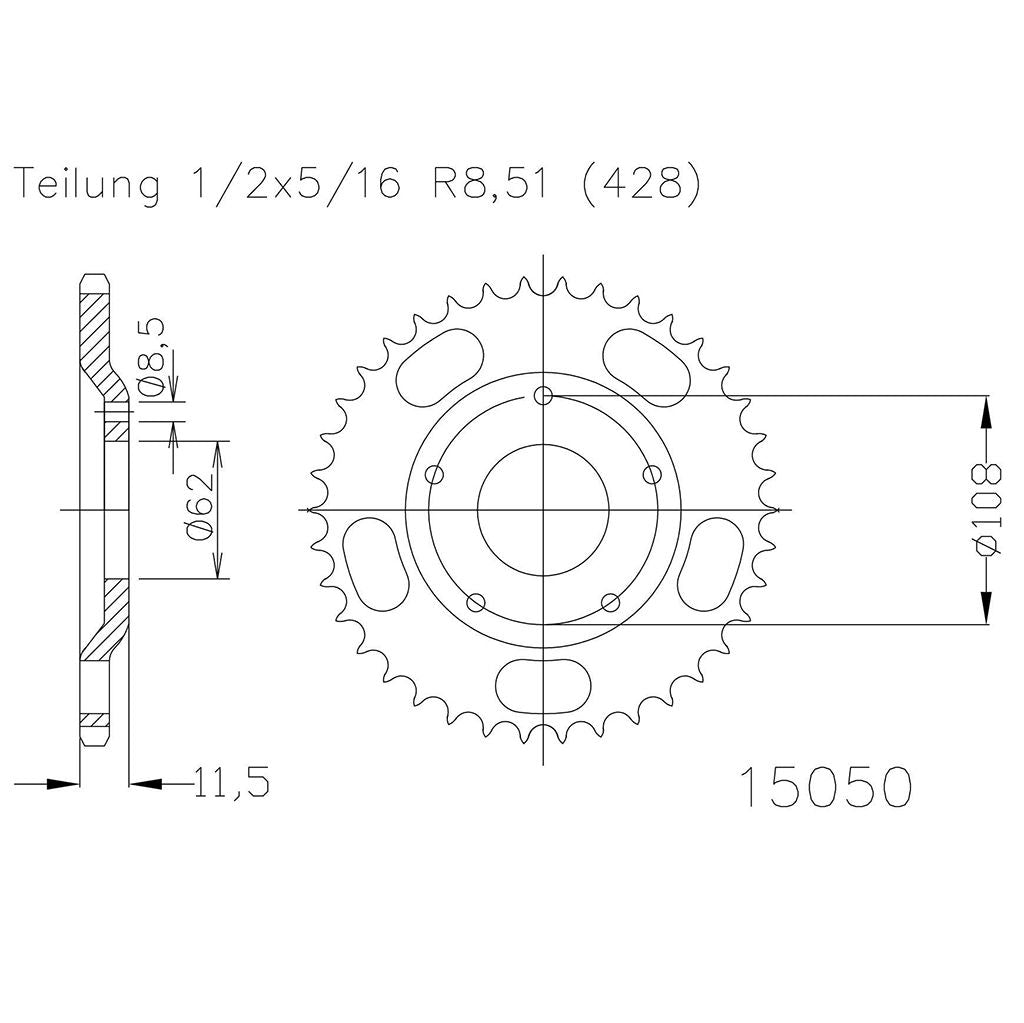

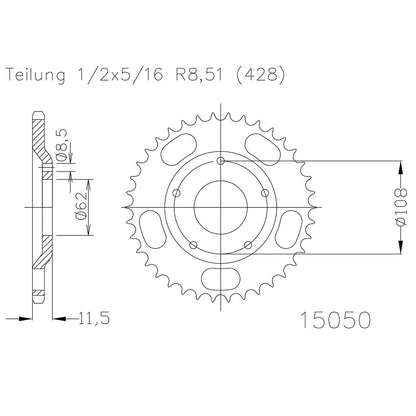

• Rear sprocket: Esjot rear sprocket STEEL #428 55 teeth - e5015050.55
• Gear ratio front sprocket-chain-rear sprocket: 16-144-55

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-15907

Fits

Sachs / SFM-Bikes sfm bikes XTC 125 Racing 4T 2002
Sachs / SFM-Bikes sfm bikes XTC 125 Racing 4T 2003
Sachs / SFM-Bikes sfm bikes XTC 125 Racing 4T 2004
Sachs / SFM-Bikes sfm bikes XTC 125 Racing 4T 2005
Sachs / SFM-Bikes sfm bikes XTC 125 Racing 4T 2006
Sachs / SFM-Bikes sfm bikes XTC 125 Racing 4T 2007
