DID chain kit for Sachs / SFM-Bikes ZZ 125 Supermoto 4T 10-13 428 D chain kit

DID chain kit for Sachs / SFM-Bikes ZZ 125 Supermoto 4T 10-13 428 D chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Sachs / SFM-Bikes ZZ 125 Supermoto 4T QM125GY-2B 2010-2013

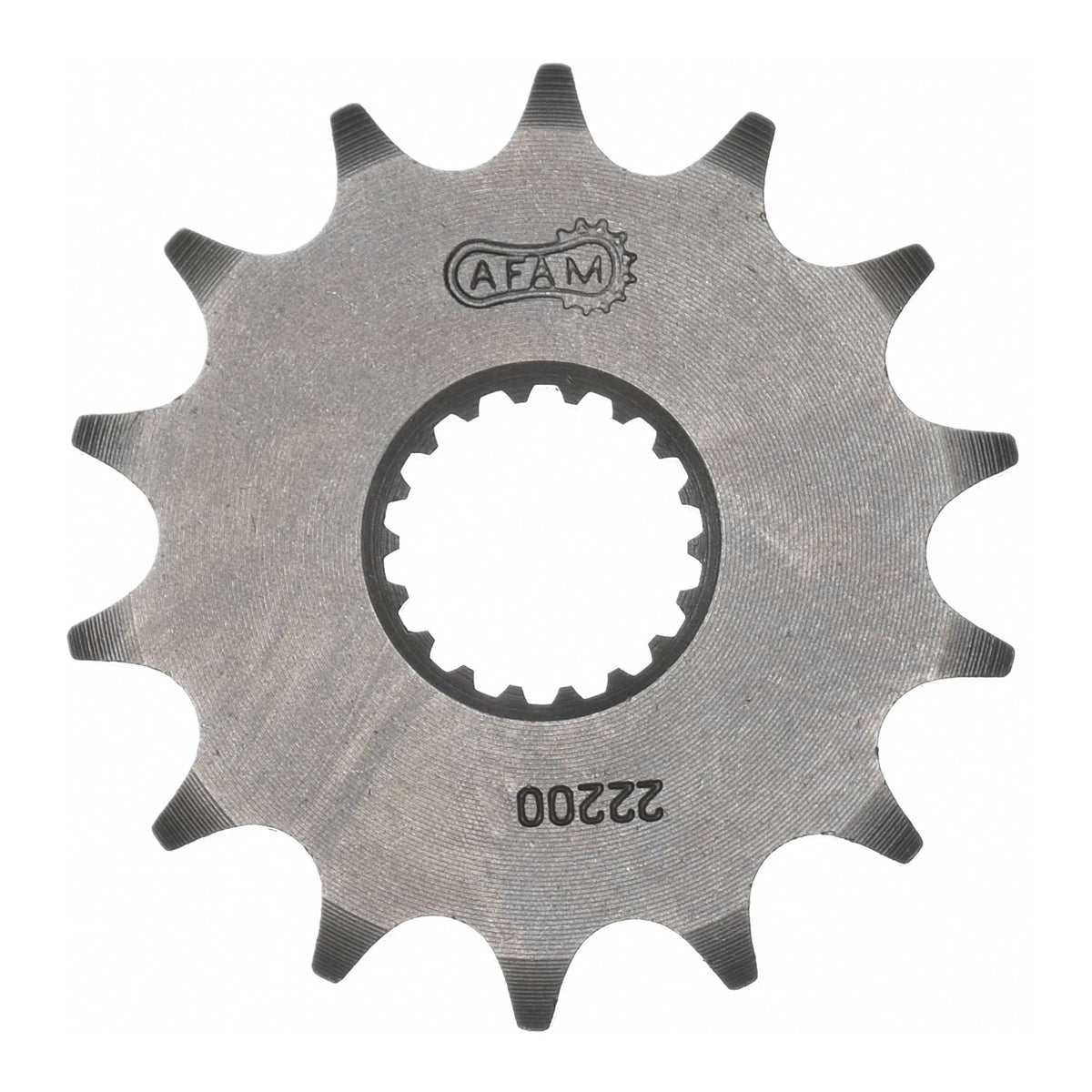

• Front sprocket: AFAM sprocket #428 15 teeth - a22200.15
• Chain: DID chain 428 D 136 with clip link - d6242800136

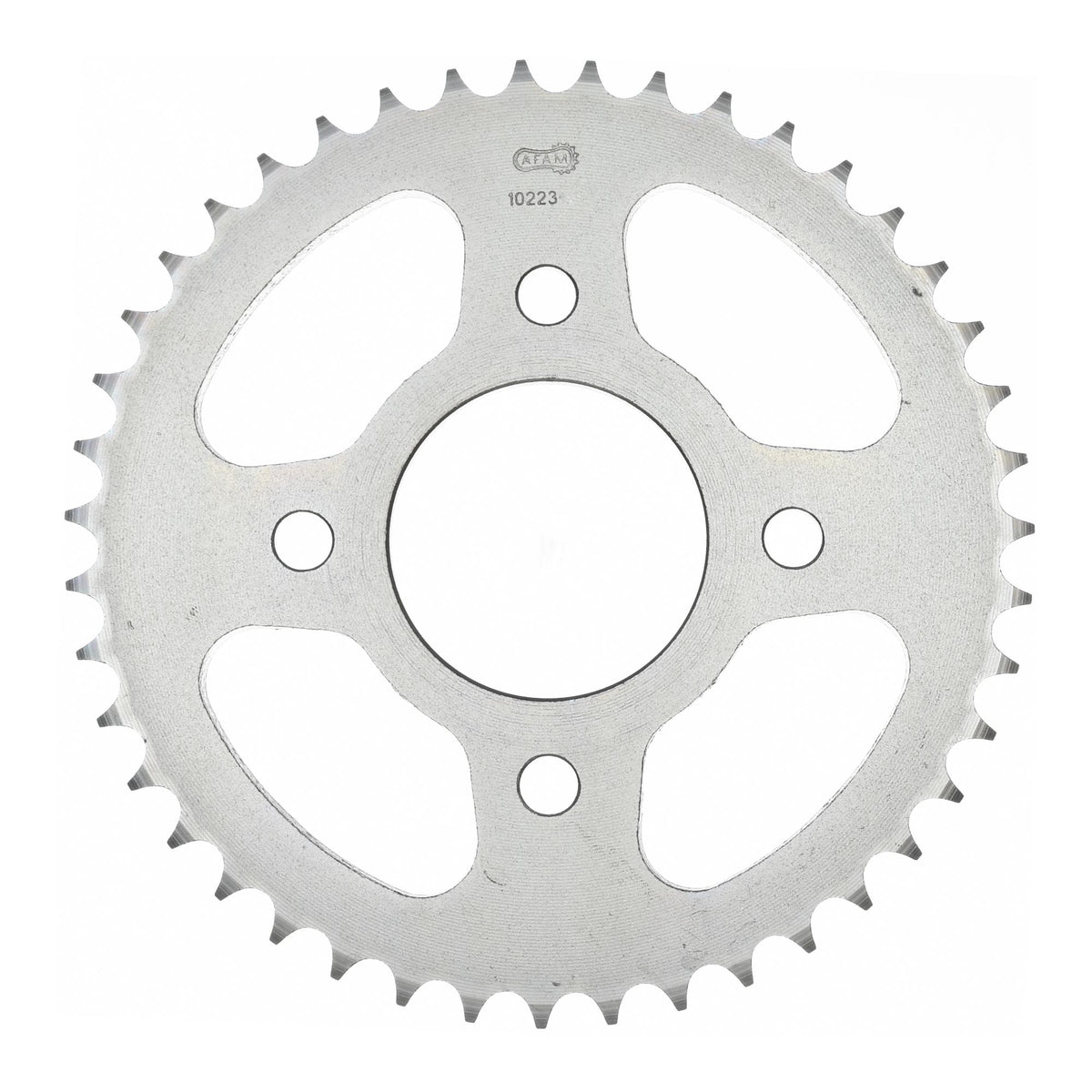

• Rear sprocket: Esjot rear sprocket STEEL #428 51 teeth - a10223.51
• Gear ratio sprocket-chain-rear sprocket: 15-136-51

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-43414

Suitable for

Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 4T QM125GY-2B 2010
Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 4T QM125GY-2B 2011
Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 4T QM125GY-2B 2012
Sachs / SFM-Bikes sfm bikes ZZ 125 Supermoto 4T QM125GY-2B 2013
