DID chain set for Suzuki DL 1000 V-Strom XT ABS 17-19 525 VX3 chain kit

DID Chain Set for Suzuki DL 1000 V-Strom XT ABS 17-19 525 VX3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki DL 1000 V-Strom XT ABS DD12 2017-2019

• Front sprocket: AFAM front sprocket #525 17 teeth - a28401.17
• Chain: DID chain 525 VX3 G&B 116 with rivet link - d525vx3.g-116

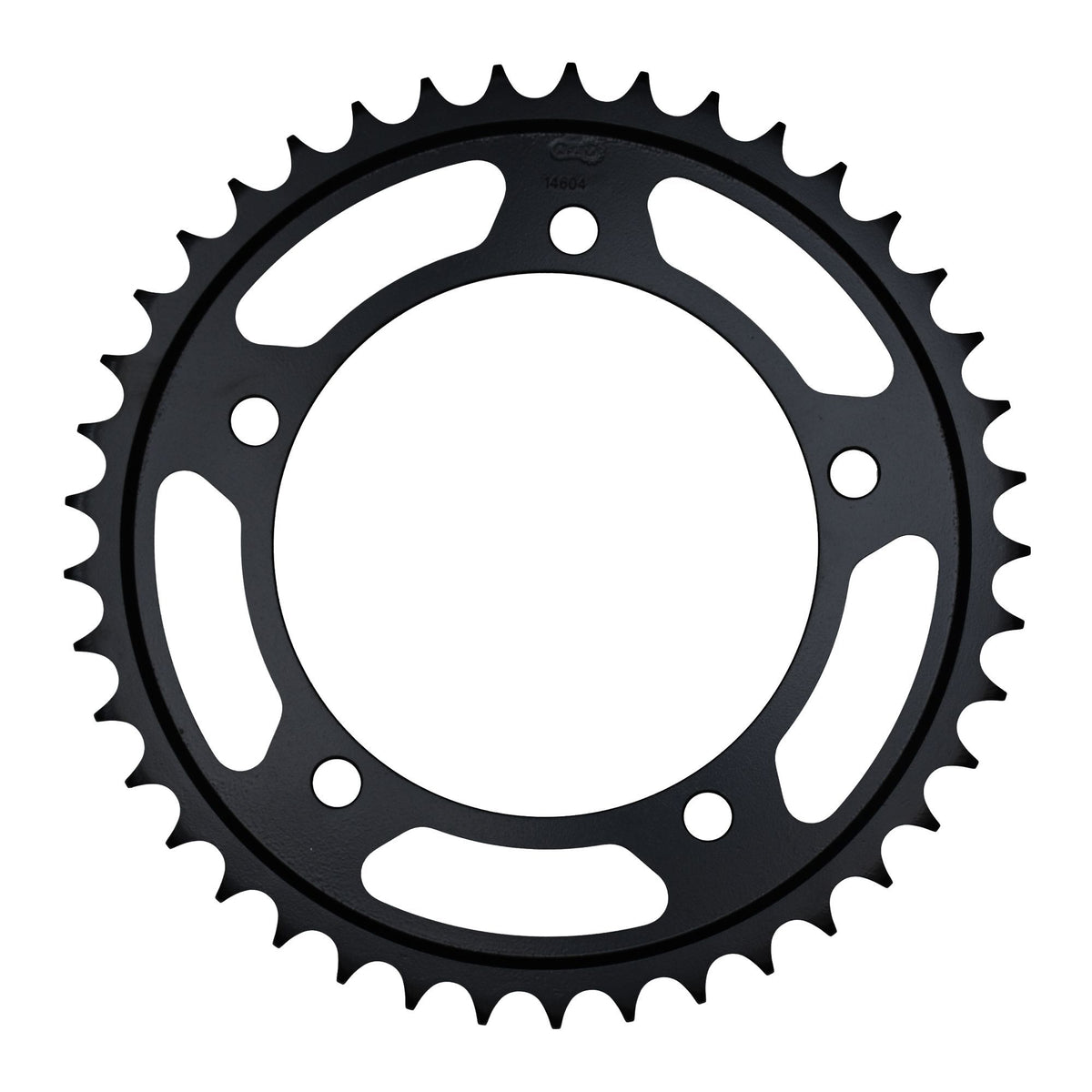

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a14604.41
• Gear ratio front sprocket-chain-rear sprocket: 17-116-41

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-36577

Fits for

Suzuki 751 - 1000 cc DL 1000 V-Strom XT ABS DD12 2017
Suzuki 751 - 1000 cc DL 1000 V-Strom XT ABS DD12 2018
Suzuki 751 - 1000 cc DL 1000 V-Strom XT ABS DD12 2019
