DID chain set for Suzuki DR 125 SM 09-12 428 HD chain kit

DID Chain Kit for Suzuki DR 125 SM 09-12 428 HD Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Suzuki DR 125 SM CS111 2009-2012

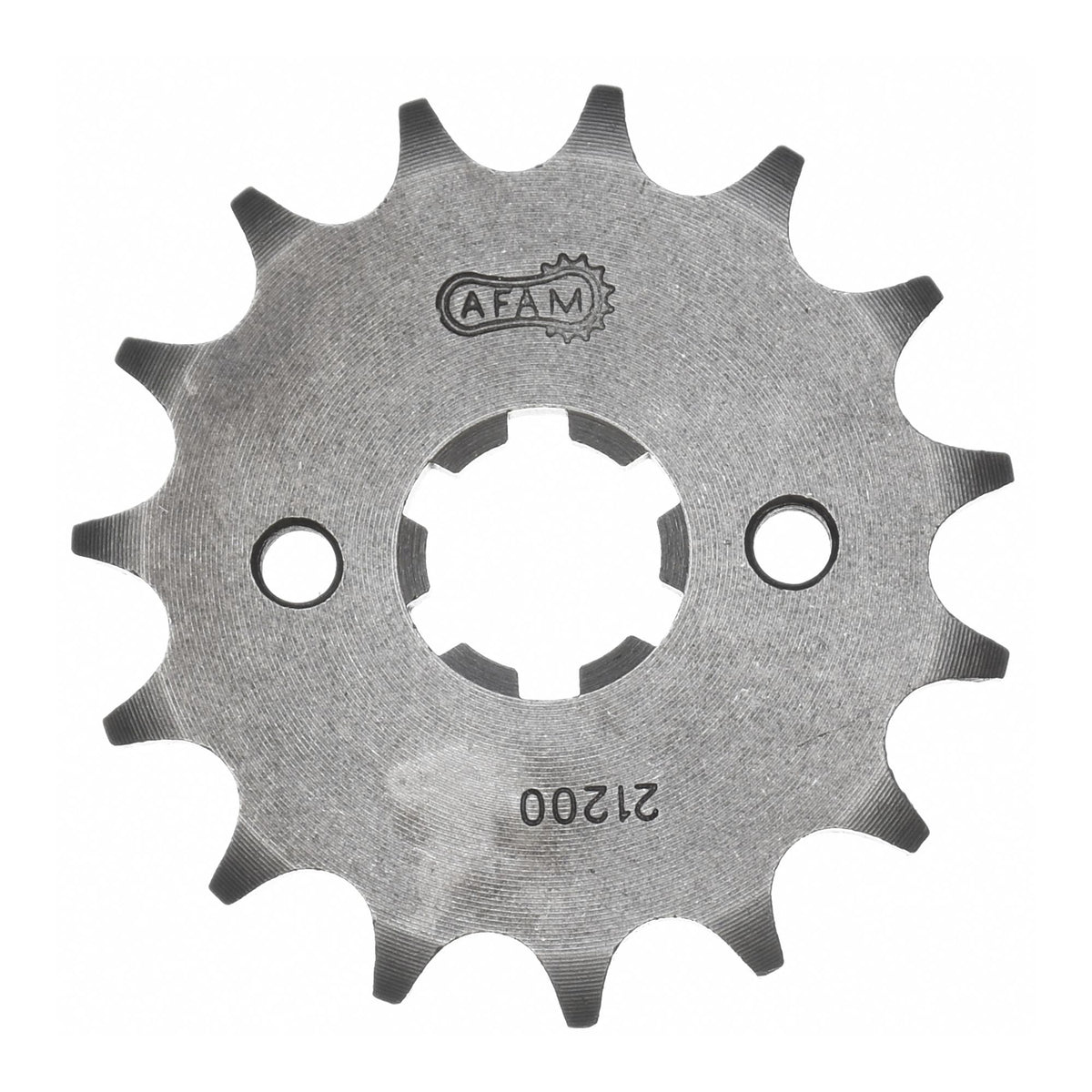

• Front sprocket: AFAM front sprocket #428 16 teeth - a21200.16

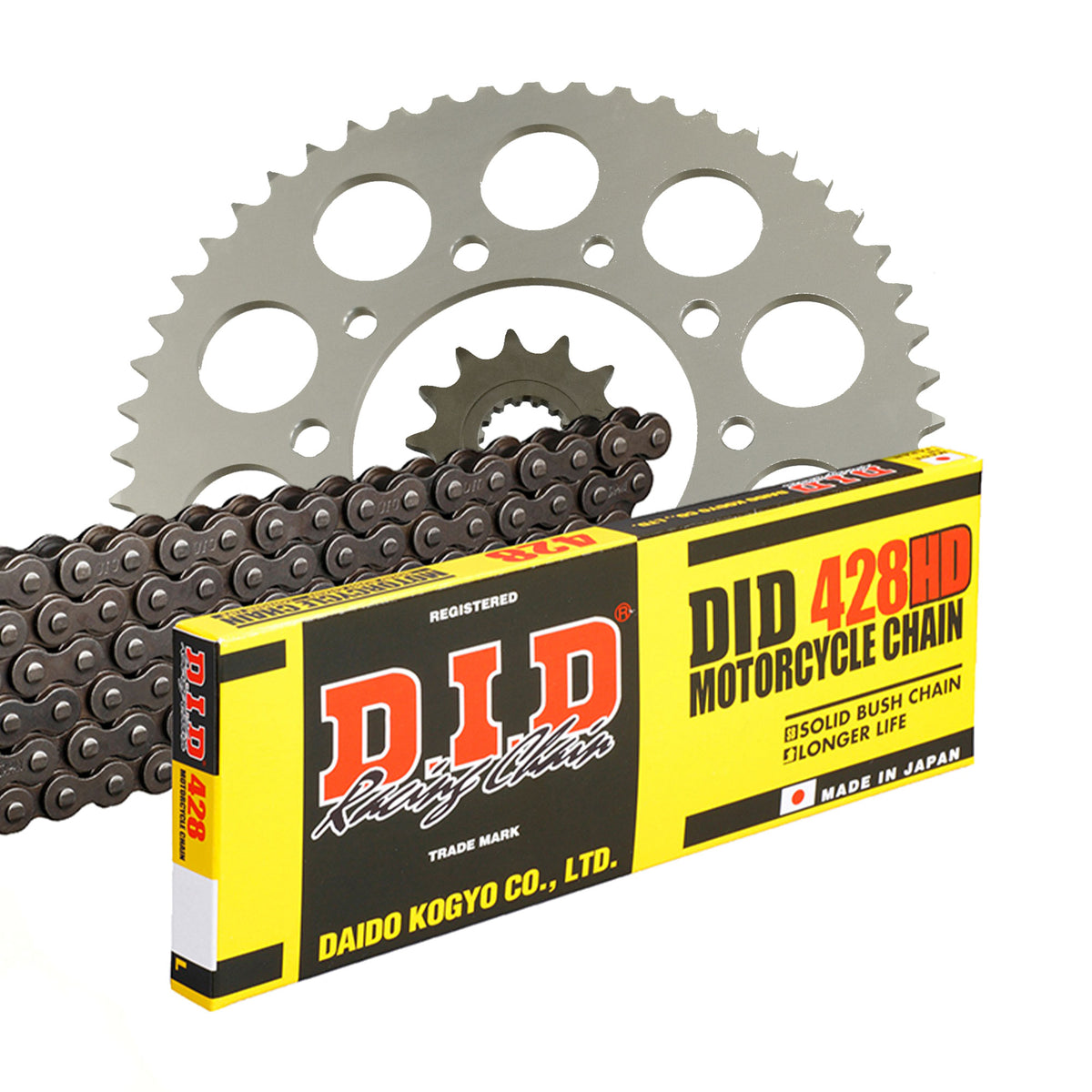

• Chain: DID chain 428 HD 130 with clip link - d6242801130
• Rear sprocket: AFAM rear sprocket STEEL #428 50 teeth - a14207.50
• Transmission ratio front sprocket-chain-rear sprocket: 16-130-50

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered goods are accessory/replacement parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-16147

Fits

Suzuki 101 - 125 ccm DR 125 SM CS111 2009
Suzuki 101 - 125 ccm DR 125 SM CS111 2010
Suzuki 101 - 125 ccm DR 125 SM CS111 2011
Suzuki 101 - 125 ccm DR 125 SM CS111 2012
