DID chain set for Suzuki DR 600 S 85-89 520 ZVMX chain kit

DID chain kit for Suzuki DR 600 S 85-89 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Suzuki DR 600 S SN41AD 1985-1989

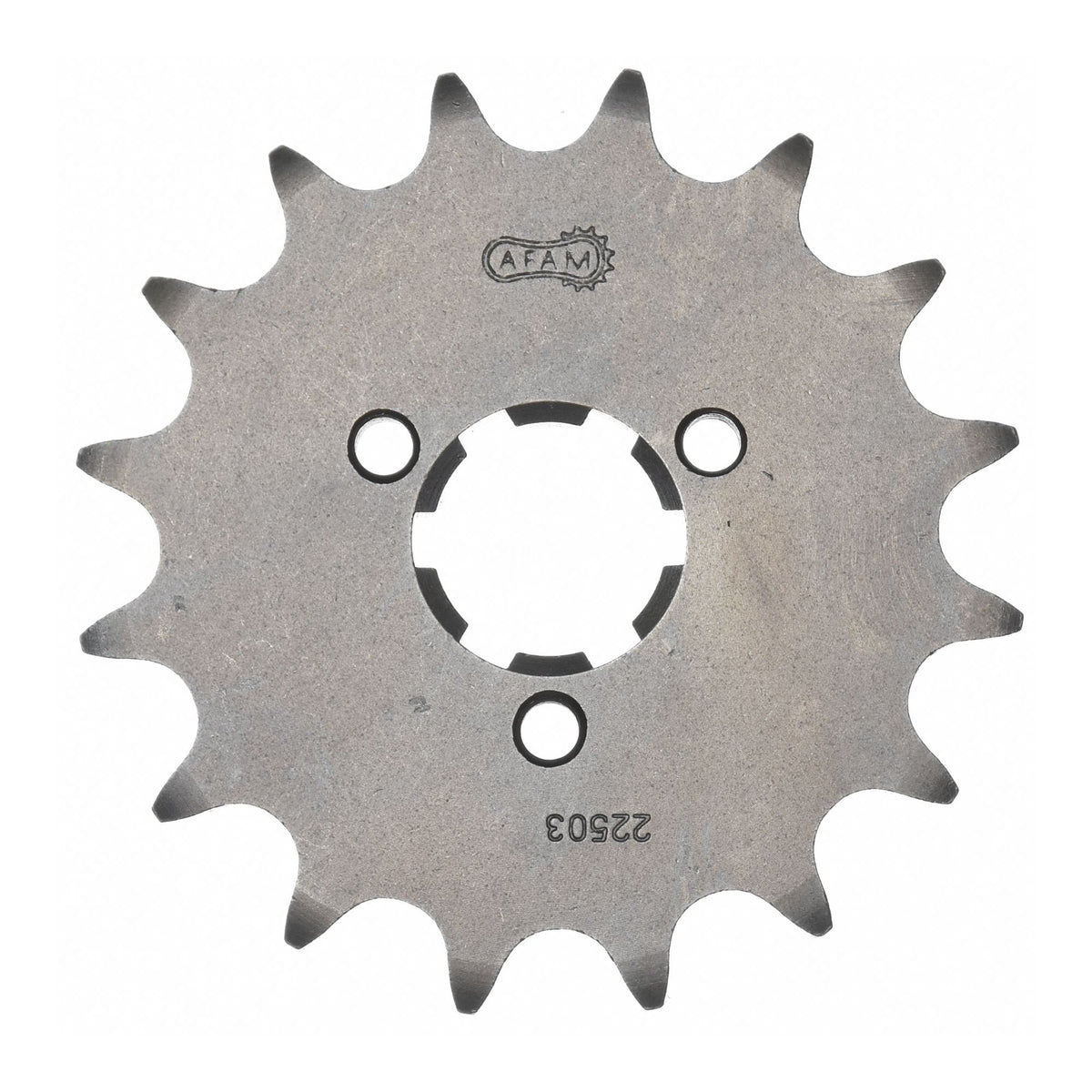

• Sprocket: AFAM sprocket #520 16 teeth - a22503.16
• Chain: DID chain 520 ZVM-X G&G 108 w. rivet link - d6252029108

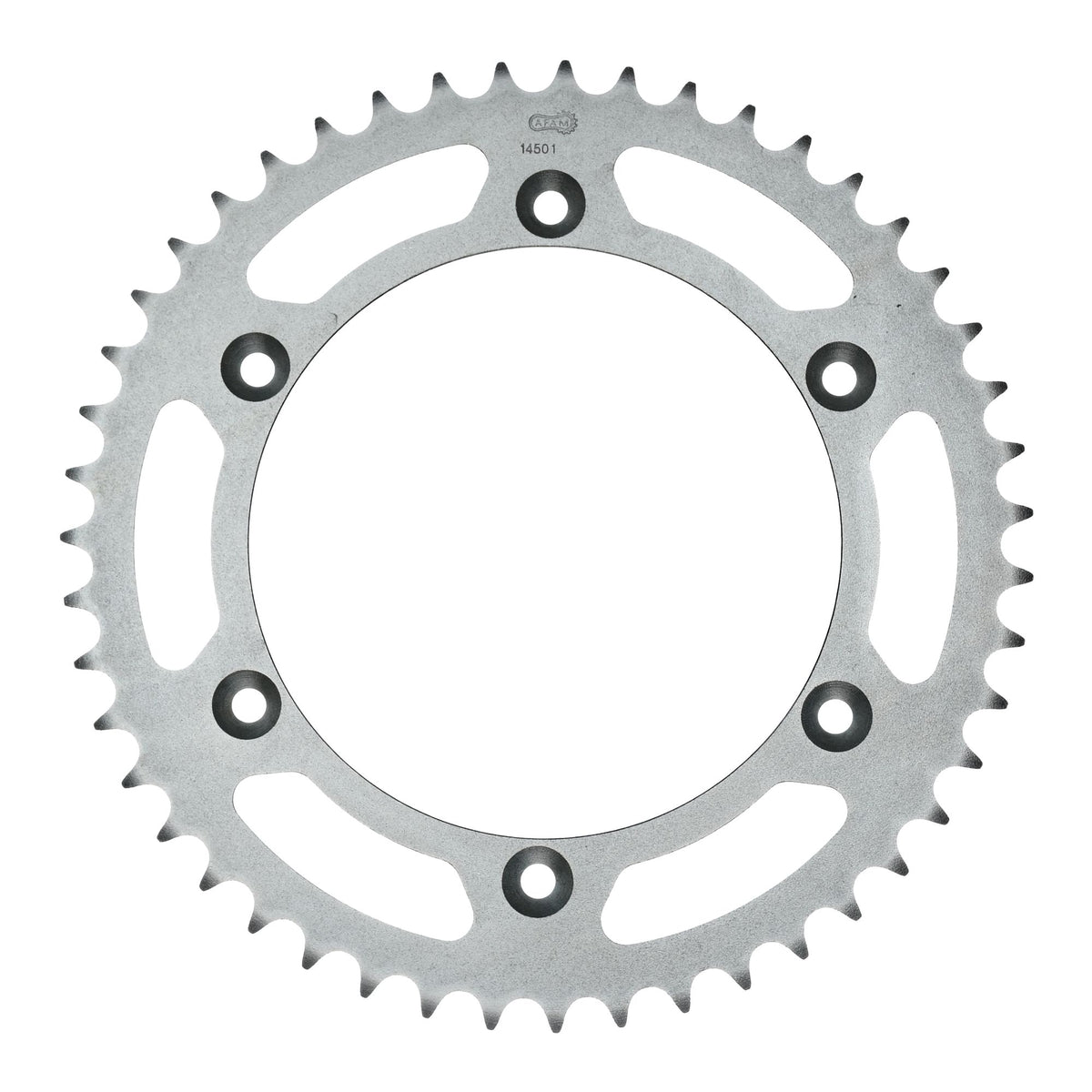

• Chain wheel: AFAM chain wheel STEEL #520 42 teeth - a14501.42
• Transmission ratio sprocket-chain-chain wheel: 16-108-42

DID 520 ZVM-X

Extra reinforced chain, versatile application area
X-ring chain
Color: Gold/Gold
Application by engine displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-37973

Suitable for

Suzuki 501 - 750 cc DR 600 S SN41AD 1985
Suzuki 501 - 750 cc DR 600 S SN41AD 1986
Suzuki 501 - 750 cc DR 600 S SN41AD 1987
Suzuki 501 - 750 cc DR 600 S SN41AD 1988
Suzuki 501 - 750 cc DR 600 S SN41AD 1989
