DID chain kit for Suzuki DR 650 SE 96-00 525 ZVMX chain kit

DID chain kit for Suzuki DR 650 SE 96-00 525 ZVMX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

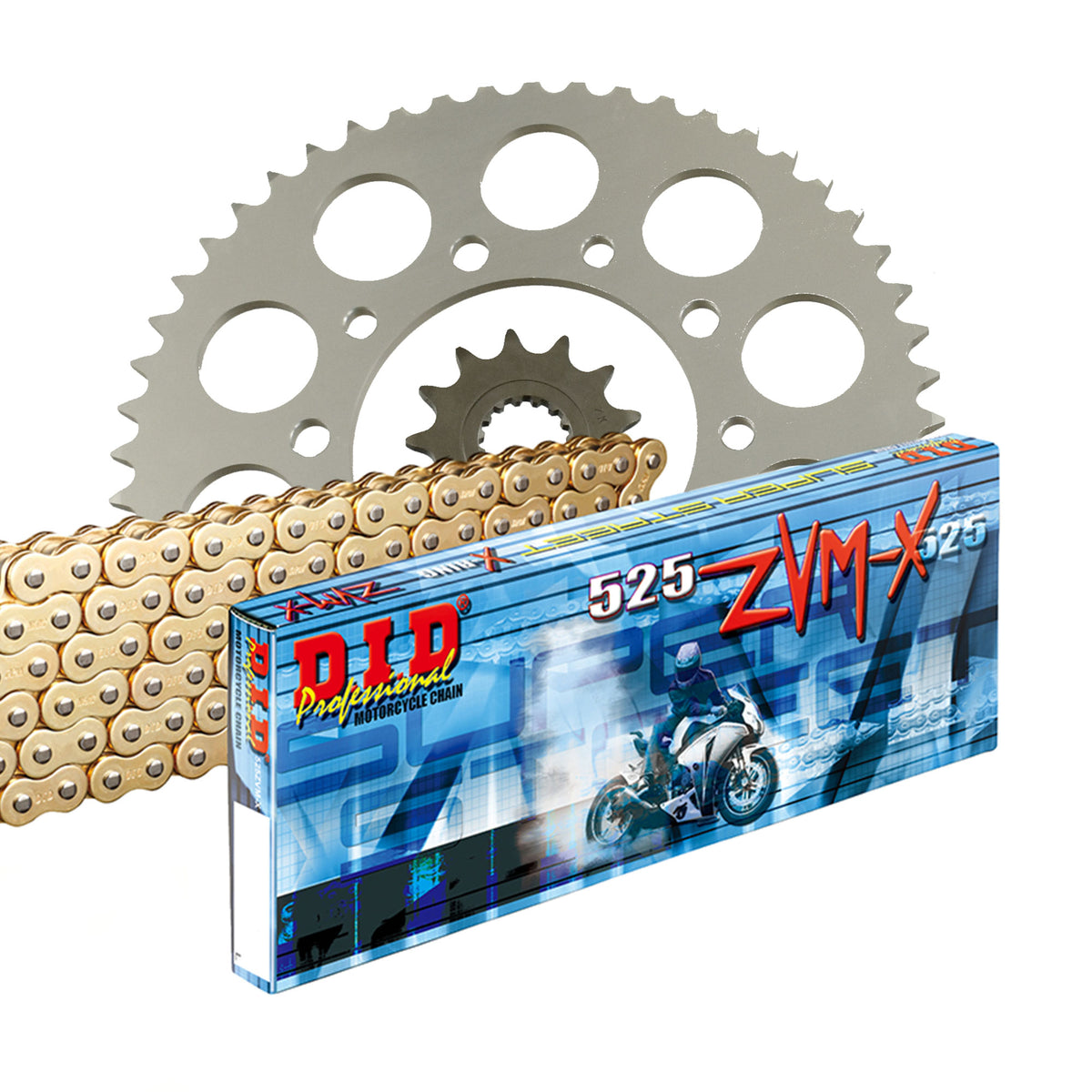

Components of the chain kit Suzuki DR 650 SE SP46B 1996-2000

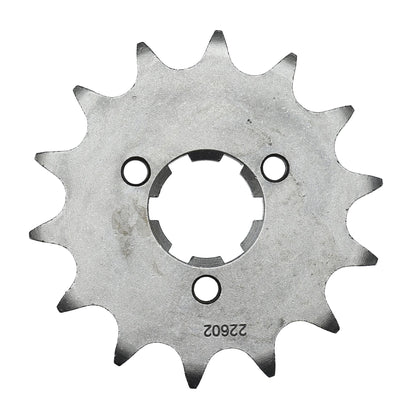

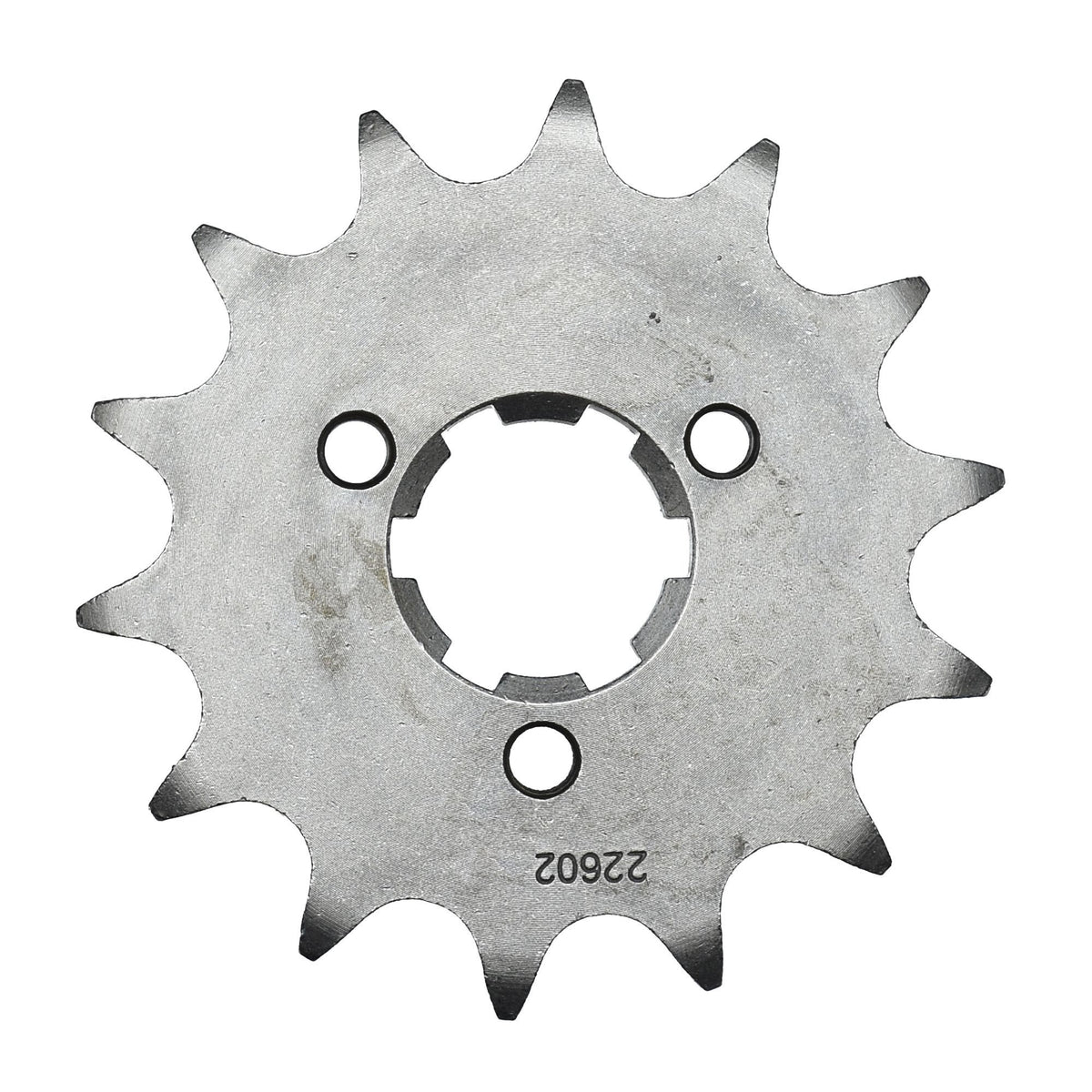

• Front sprocket: AFAM sprocket #525 15 teeth - a22602.15

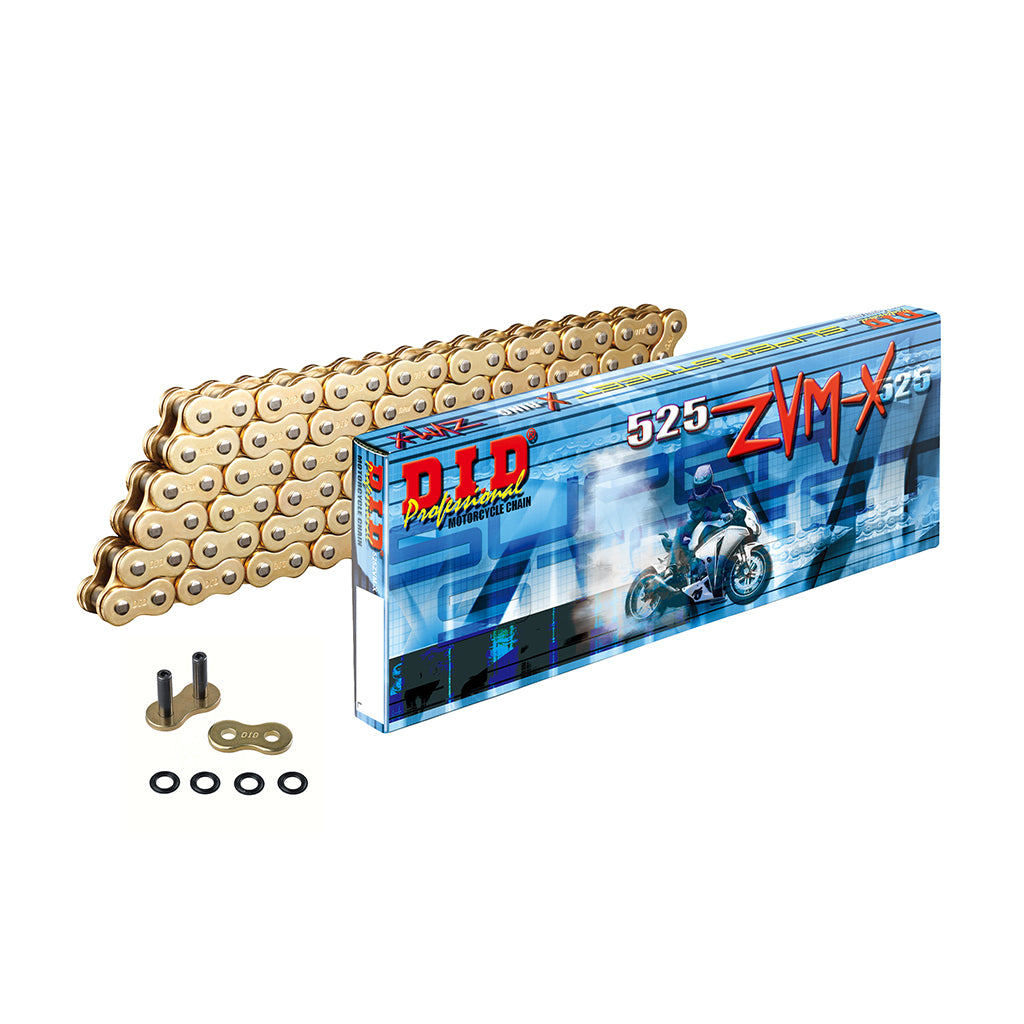

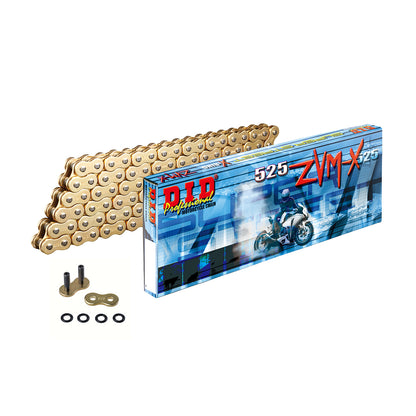

• Chain: DID chain 525 ZVM-X G&G 110 w. rivet link - d6252529110

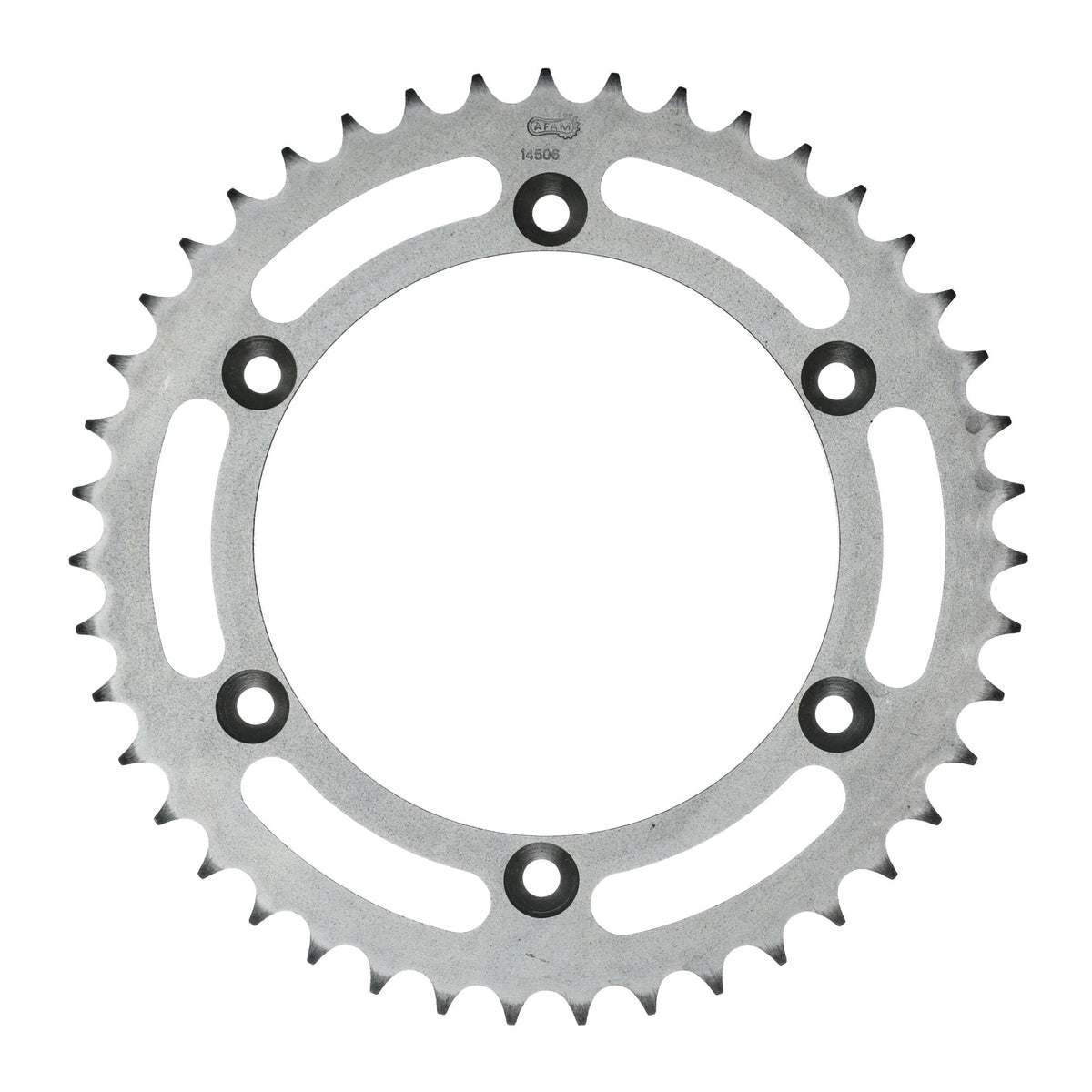

• Rear sprocket: AFAM rear sprocket STEEL #525 41 teeth - a14506.41
• Gear ratio sprocket-chain-rear sprocket: 15-110-41

DID 525 ZVM-X

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 46.30 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-15898

Suitable for

Suzuki 501 - 750 cc DR 650 SE SP46B 1996
Suzuki 501 - 750 cc DR 650 SE SP46B 1997
Suzuki 501 - 750 cc DR 650 SE SP46B 1998
Suzuki 501 - 750 cc DR 650 SE SP46B 1999
Suzuki 501 - 750 cc DR 650 SE SP46B 2000
