DID chain kit for Suzuki DR 800 S Big 91-93 520 ZVMX chain kit

DID chain set for Suzuki DR 800 S Big 91-93 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Suzuki DR 800 S Big SR43B 1991-1993

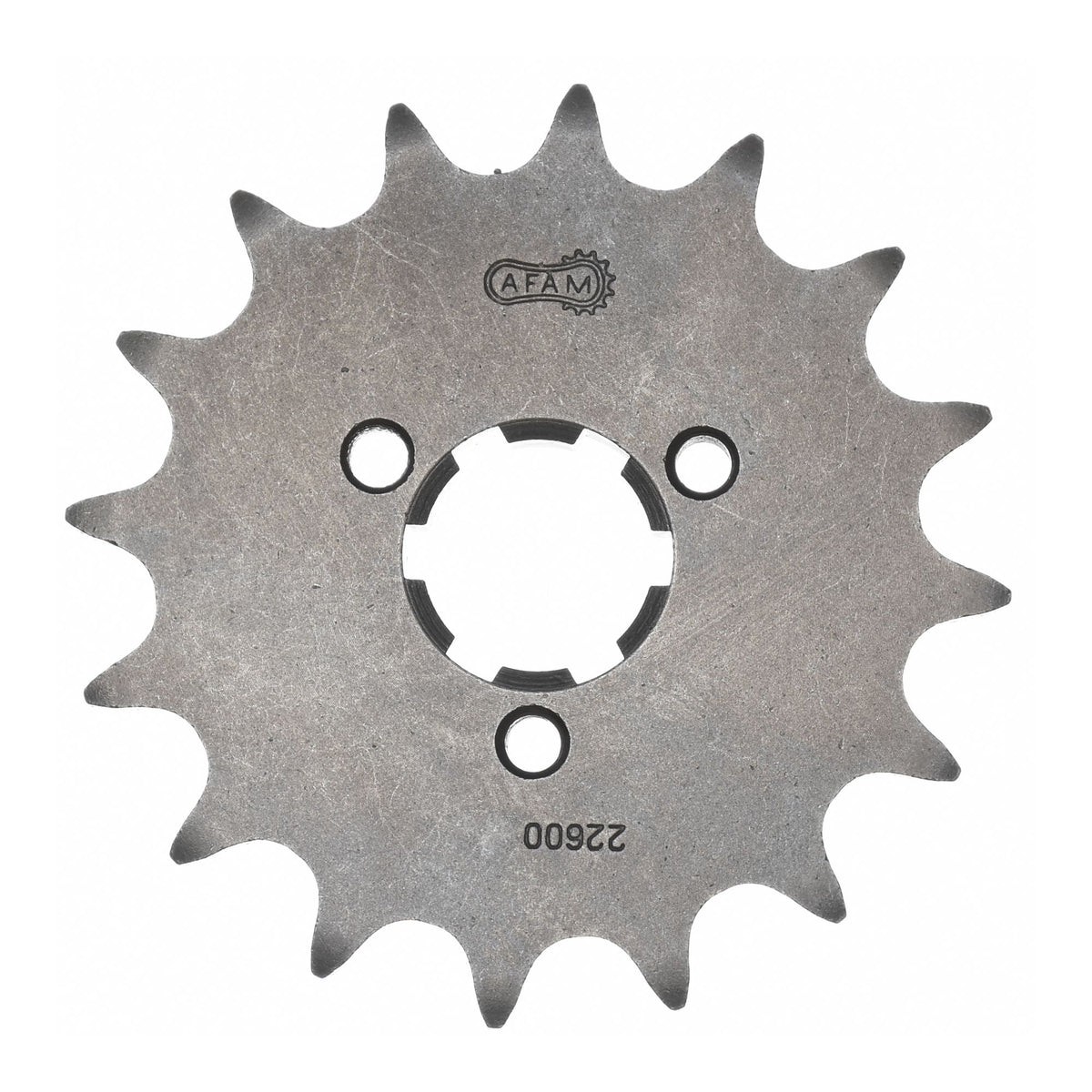

• Sprocket: AFAM sprocket #520 15 teeth - a22600.15
• Chain: DID chain 520 ZVM-X G&G 116 w. rivet link - d6252029116

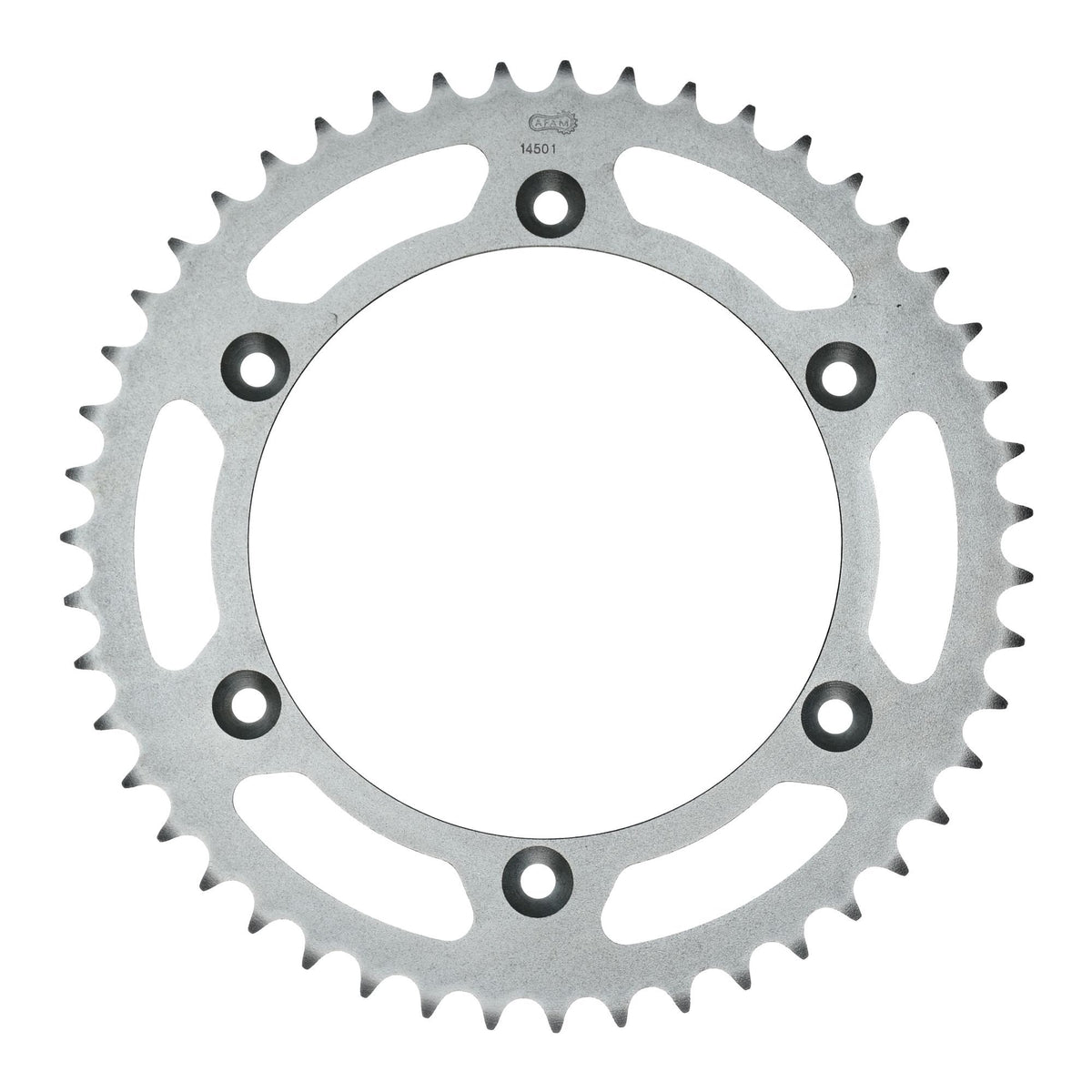

• Rear sprocket: AFAM rear sprocket STEEL #520 47 teeth - a14501.47
• Gear ratio sprocket-chain-rear sprocket: 15-116-47

DID 520 ZVM-X

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-38529

Suitable for

Suzuki 751 - 1000 cc DR 800 S Big SR43B 1991
Suzuki 751 - 1000 cc DR 800 S Big SR43B 1992
Suzuki 751 - 1000 cc DR 800 S Big SR43B 1993
