DID chain kit for Suzuki DR-Z 125 L 04-06 428 VX chain kit

DID chain set for Suzuki DR-Z 125 L 04-06 428 VX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

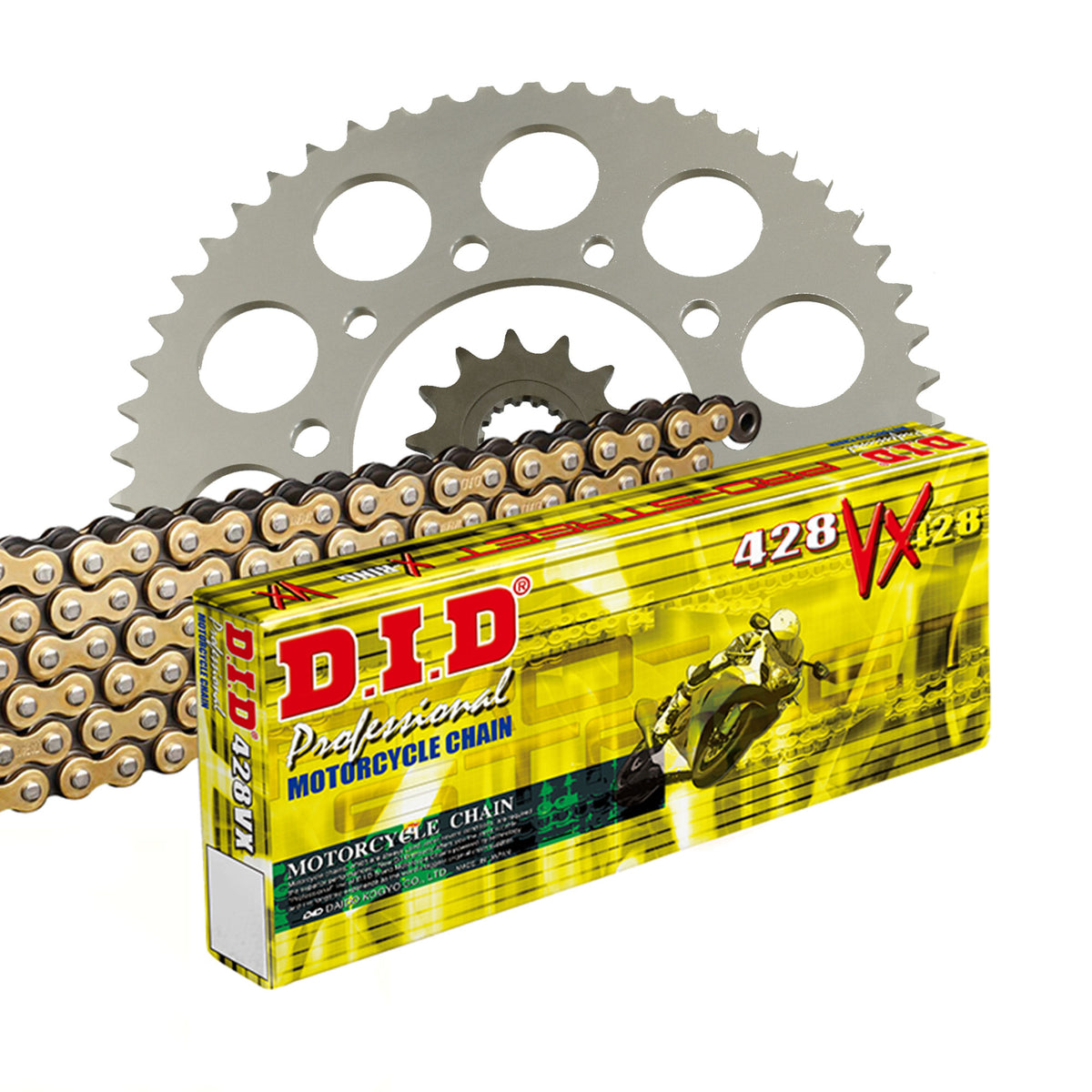

Components of the chain kit Suzuki DR-Z 125 L JS1 2004-2006

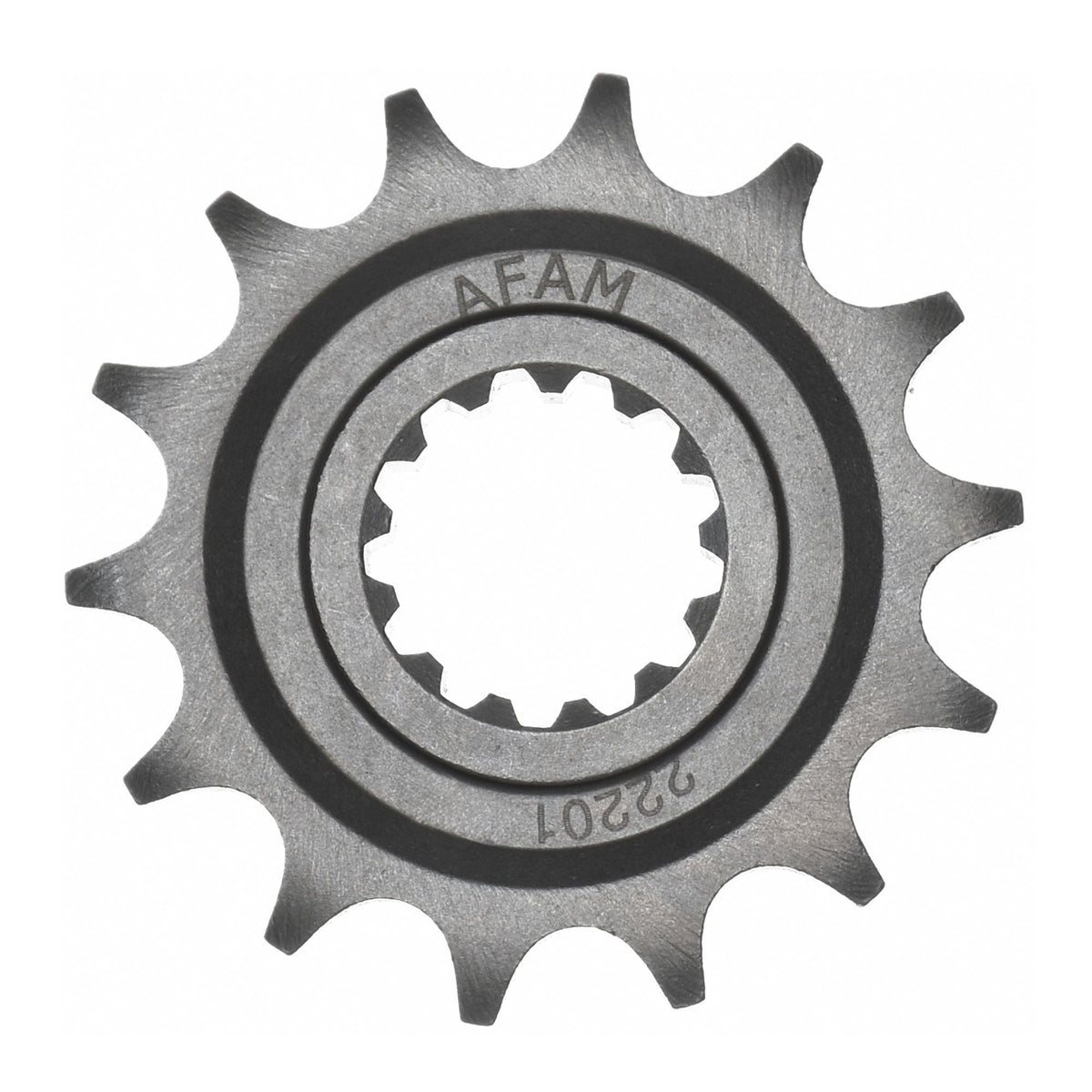

• Front sprocket: AFAM front sprocket #428 14 teeth - a22201.14

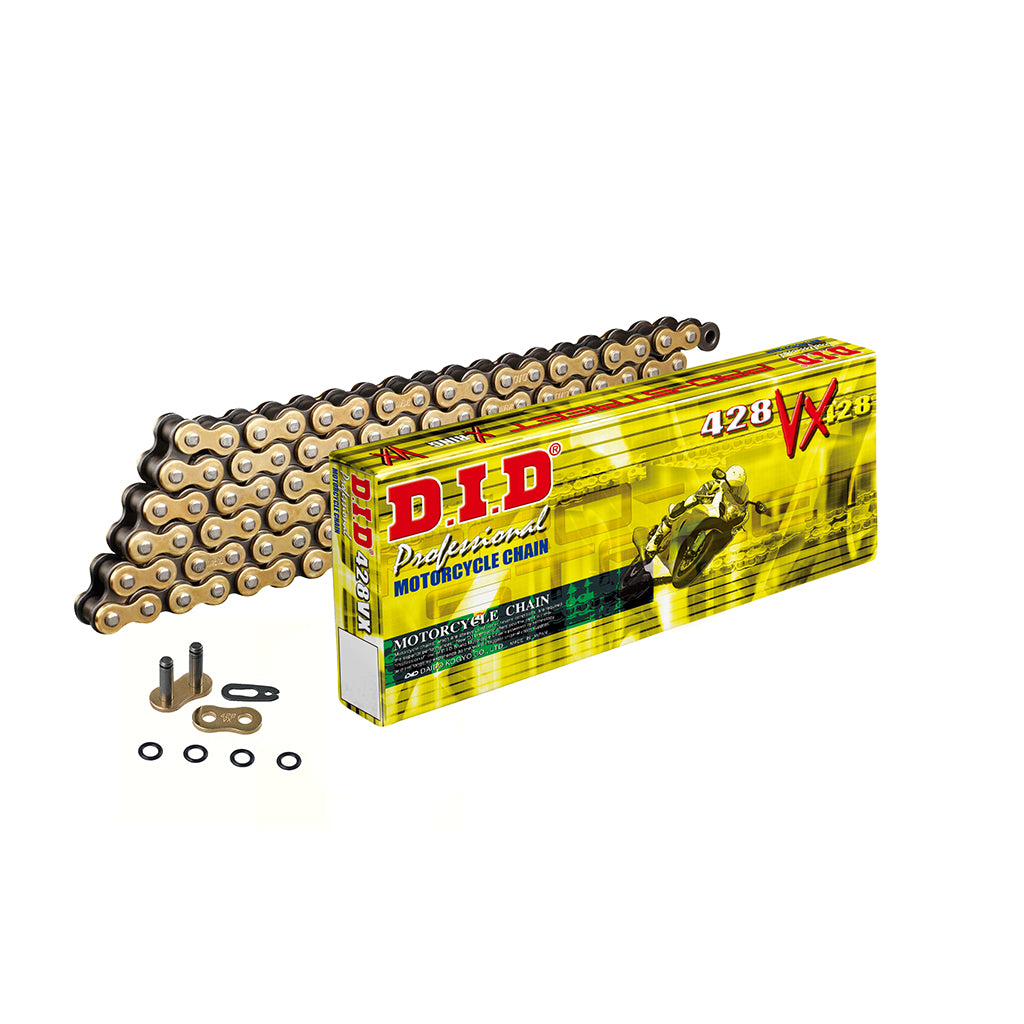

• Chain: DID chain 428 VX G&B 134 with clip master link - d6242825134

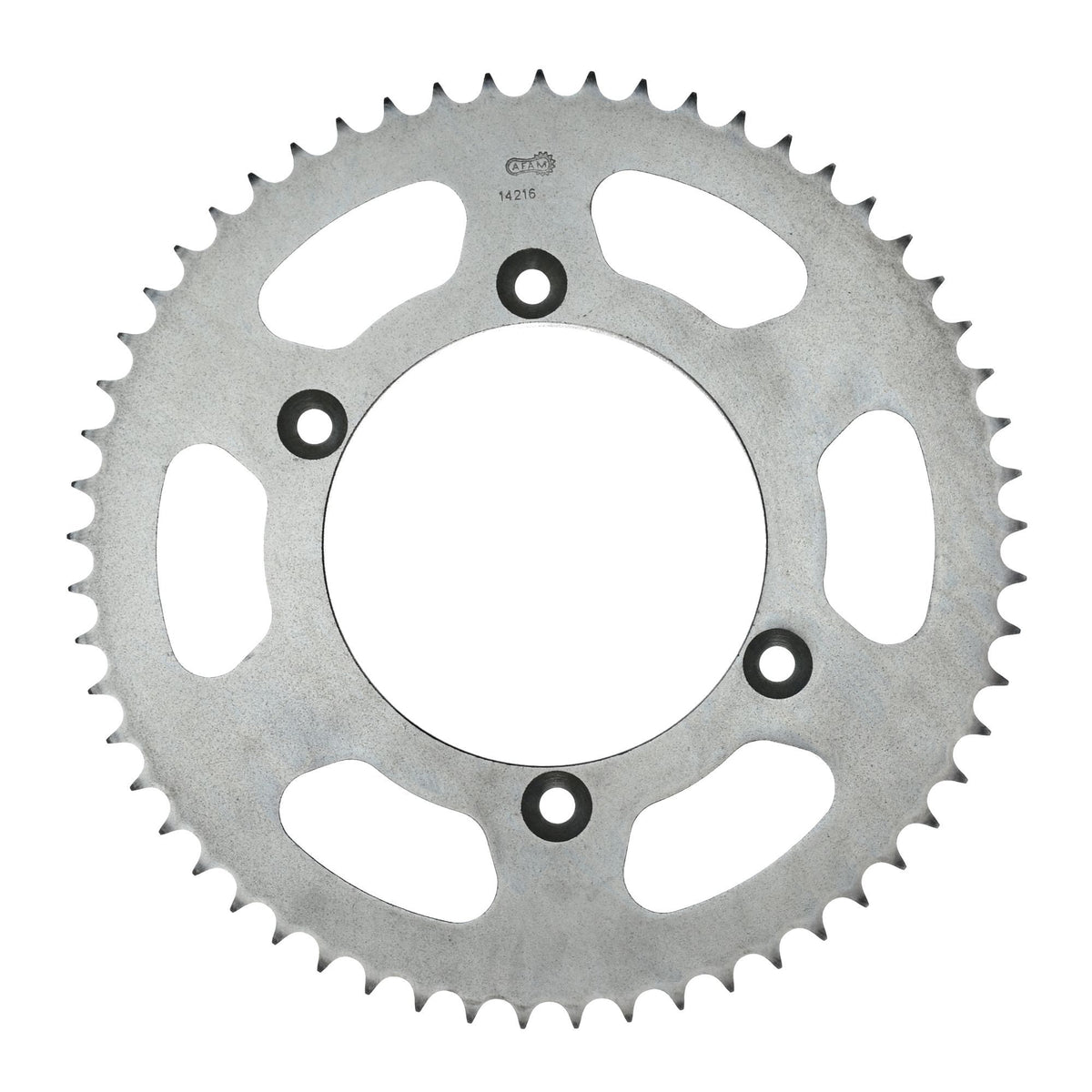

• Rear sprocket: AFAM steel rear sprocket #428 57 teeth - a14216.57
• Gear ratio front sprocket-chain-rear sprocket: 14-134-57

DID 428 VX

Very good quality in the 428 range
X-ring chain
Color: Gold/Black

Technical specifications:
Pitch: 428
Pin length: 20.65 mm
Roller Ø: 8.6 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 2700
Tensile strength: 33.00 kN
Weight per 100 links: 1.21 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-16152

Fits

Suzuki 101 - 125 cc DR-Z 125 L JS1 2004
Suzuki 101 - 125 cc DR-Z 125 L JS1 2005
Suzuki 101 - 125 cc DR-Z 125 L JS1 2006
