DID chain set for Suzuki DR-Z 400 S 00-08 520 VX3 chain kit

DID chain set for Suzuki DR-Z 400 S 00-08 520 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki DR-Z 400 S WVBC 2000-2008 chain kit

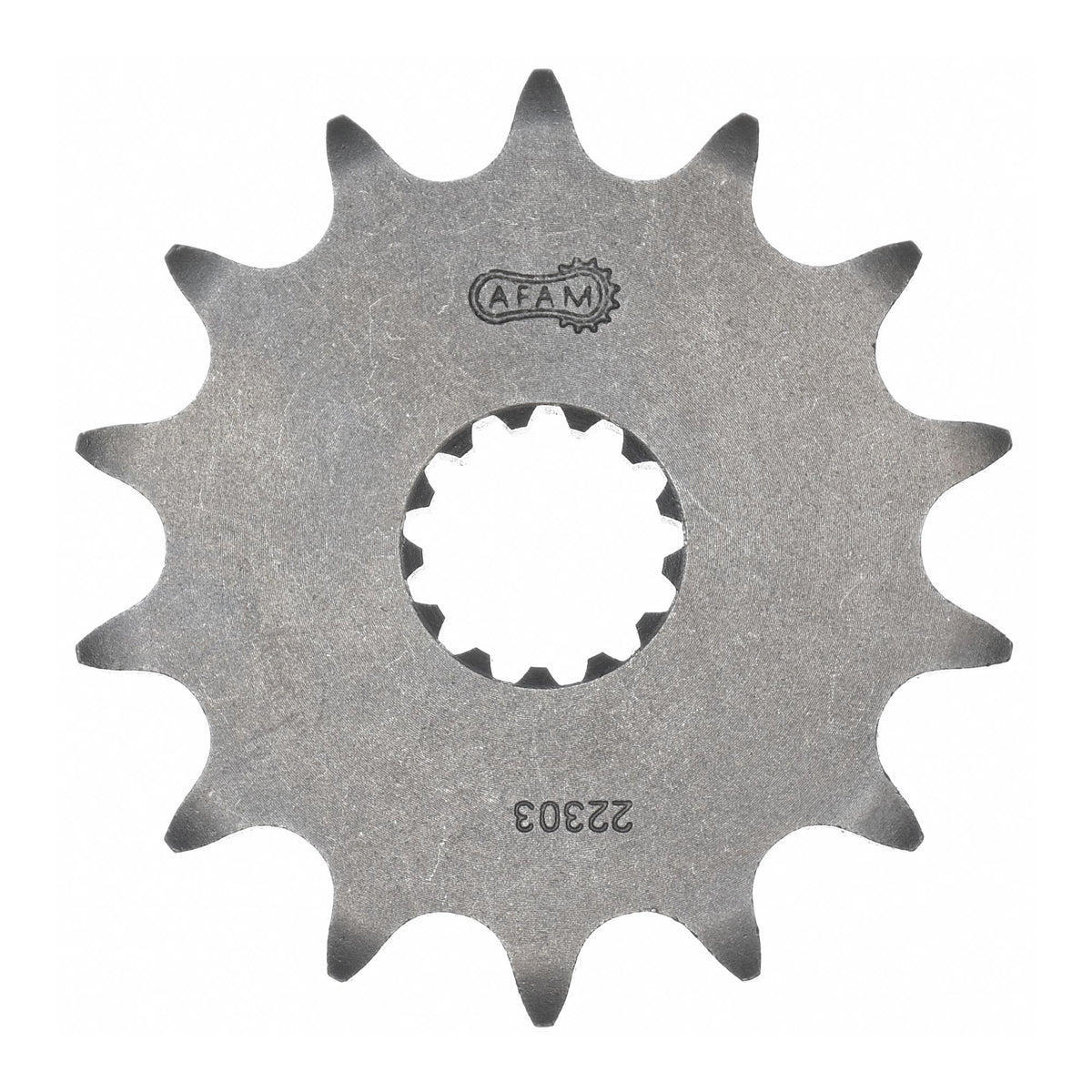

• Front sprocket: AFAM sprocket #520 15 teeth - a22303.15
• Chain: DID chain 520 VX3 G&B 112 with rivet link - d520vx3-112

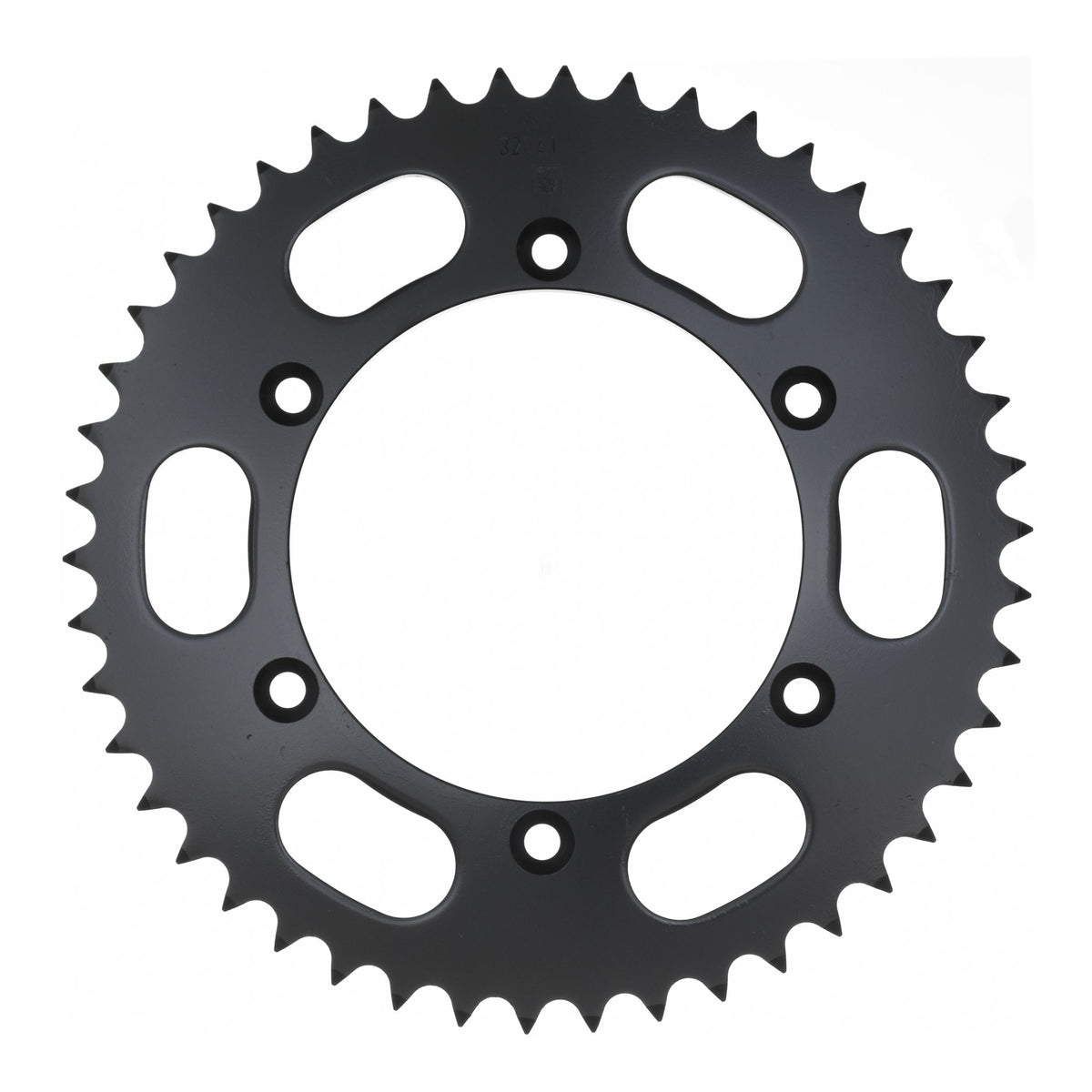

• Rear sprocket: AFAM rear sprocket STEEL #520 44 teeth - a14203.44
• Gear ratio sprocket-chain-rear sprocket: 15-112-44

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear life index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-37554

Suitable for

Suzuki 251 - 500 cc DR-Z 400 S WVBC 2000
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2001
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2002
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2003
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2004
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2005
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2006
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2007
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2008
