DID chain kit for Suzuki DR-Z 400 S 00-08 520 ZVMX chain kit

DID chain set for Suzuki DR-Z 400 S 00-08 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Suzuki DR-Z 400 S WVBC 2000-2008 chain kit

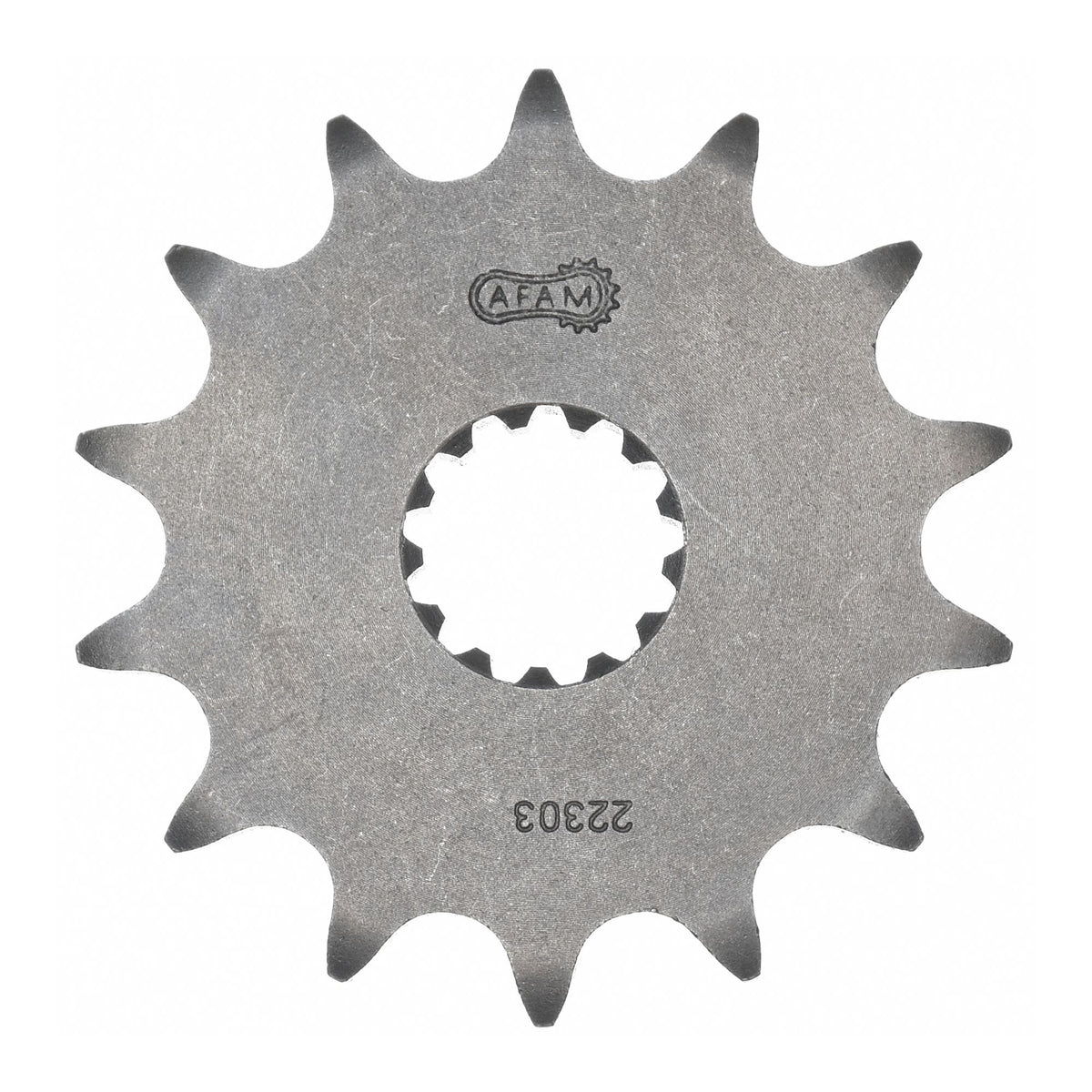

• Front sprocket: AFAM front sprocket #520 15 teeth - a22303.15
• Chain: DID chain 520 ZVM-X G&G 112 with rivet link - d6252029112

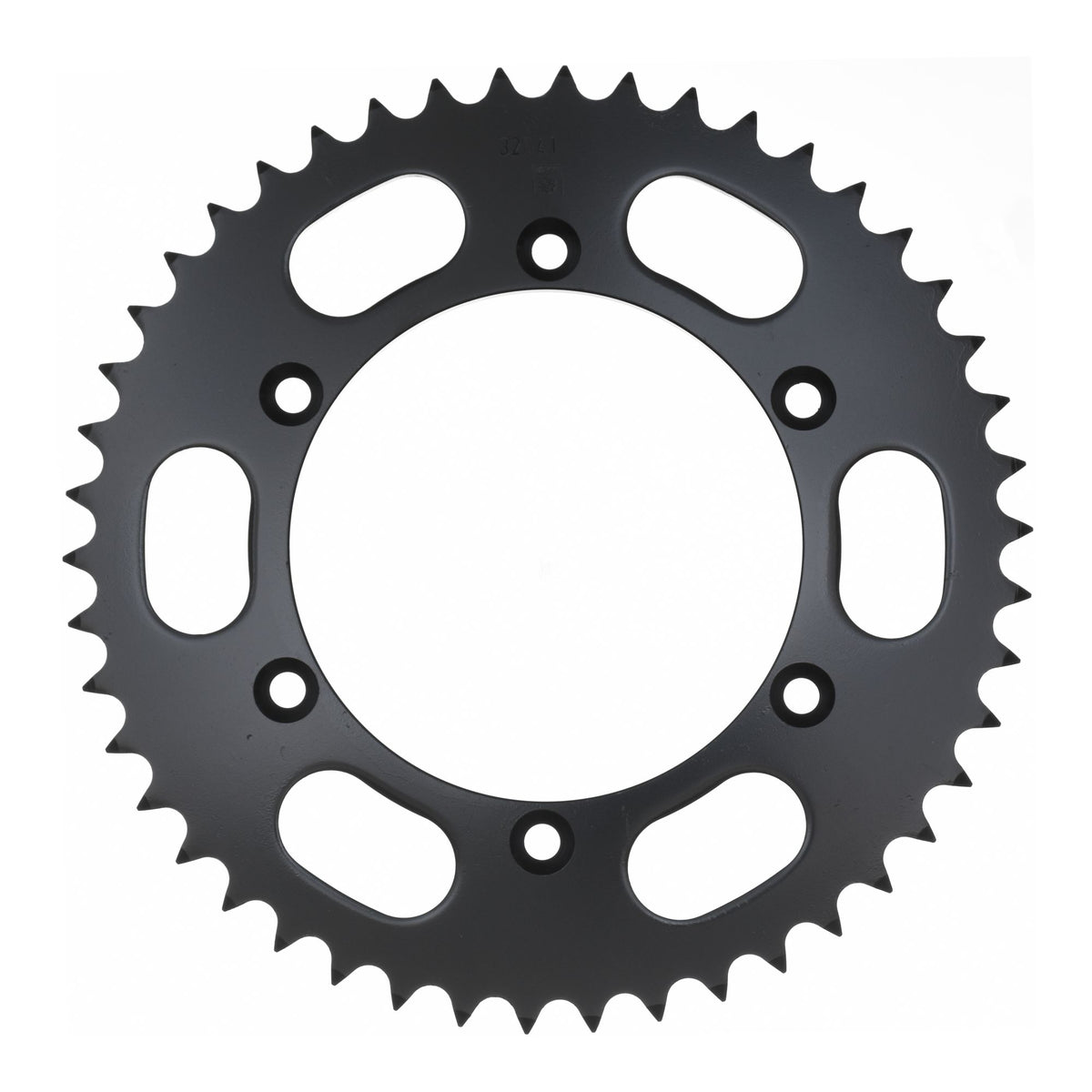

• Rear sprocket: AFAM rear sprocket STEEL #520 44 teeth - a14203.44
• Gear ratio front sprocket-chain-rear sprocket: 15-112-44

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-37556

Suitable for

Suzuki 251 - 500 cc DR-Z 400 S WVBC 2000
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2001
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2002
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2003
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2004
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2005
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2006
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2007
Suzuki 251 - 500 cc DR-Z 400 S WVBC 2008
