DID chain kit for Suzuki GN 400 TD (spoke wheel) 80-82 520 ZVMX chain kit

DID chain kit for Suzuki GN 400 TD (spoked wheel) 80-82 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GN 400 TD (spoked wheel) GN400 1980-1982

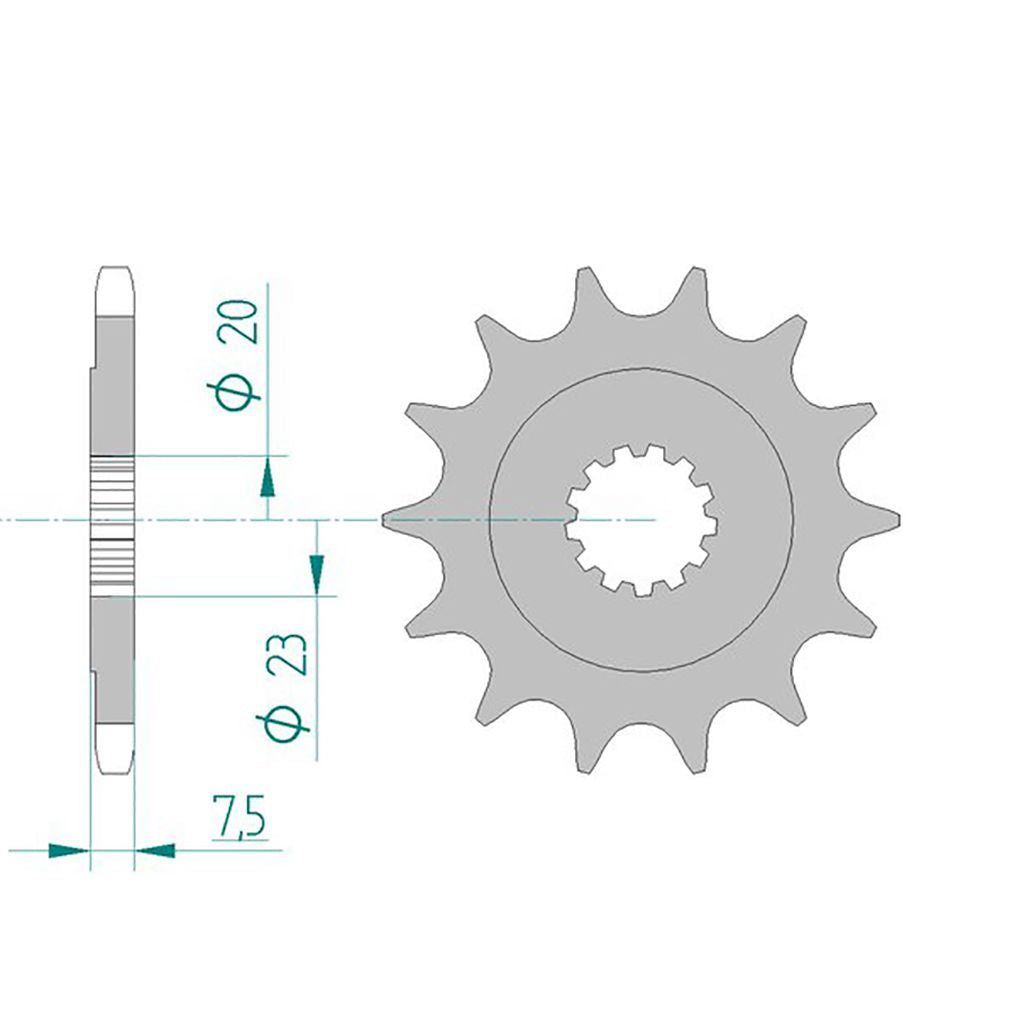

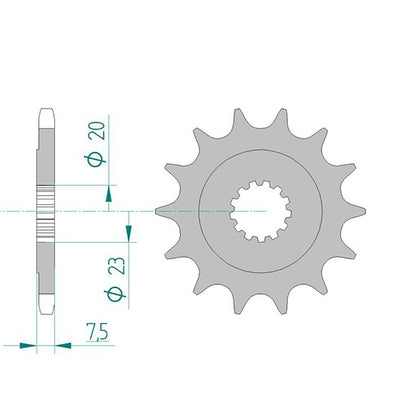

• Front sprocket: AFAM front sprocket #520 16 teeth - a22401.16
• Chain: DID chain 520 ZVM-X G&G 98 with rivet link - d6252029098

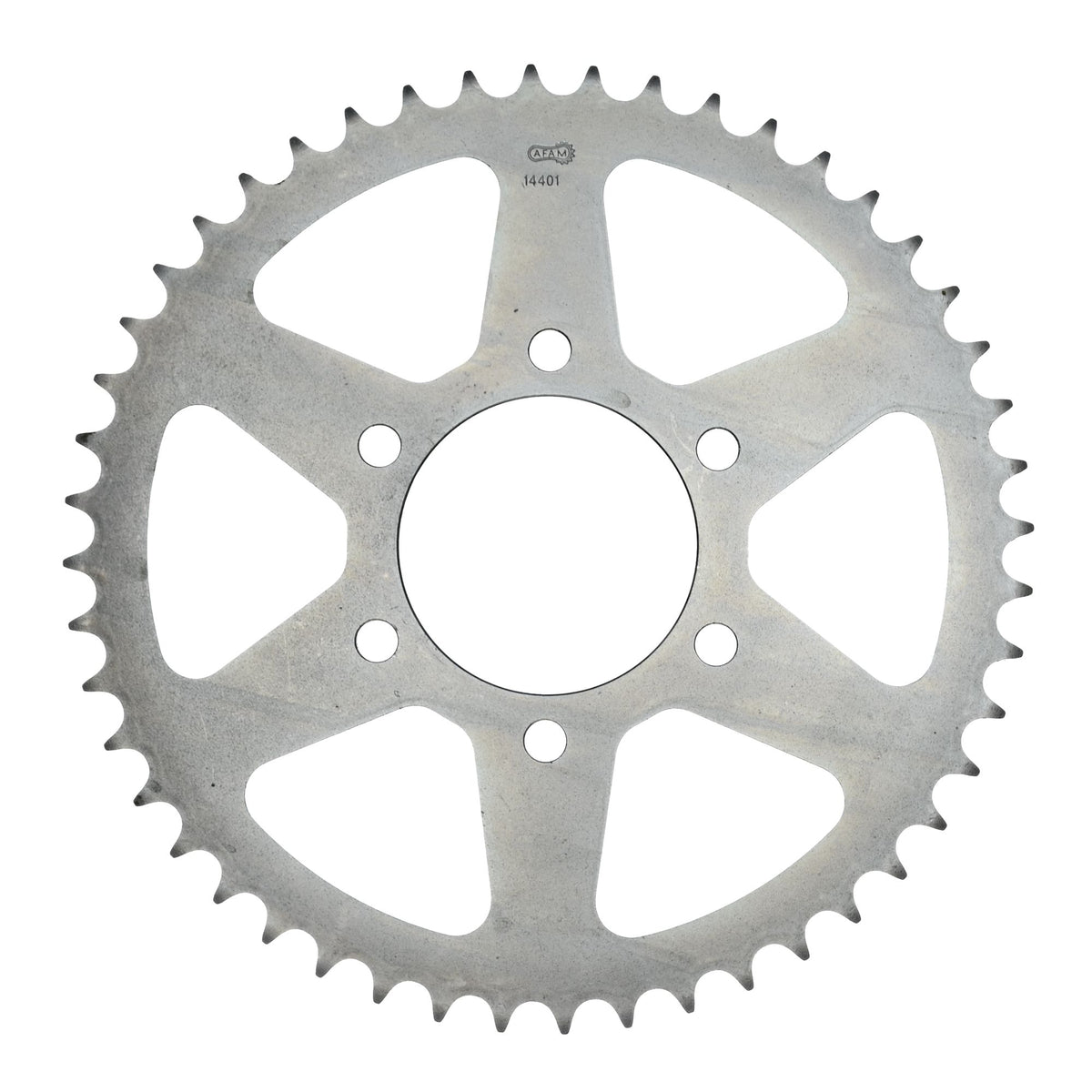

• Rear sprocket: AFAM rear sprocket STEEL #520 37 teeth - a14401.37
• Gear ratio front sprocket-chain-rear sprocket: 16-98-37

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-18253

Fits for

Suzuki 251 - 500 cc GN 400 TD (spoked wheel) GN400 1980
Suzuki 251 - 500 cc GN 400 TD (spoked wheel) GN400 1981
Suzuki 251 - 500 cc GN 400 TD (spoked wheel) GN400 1982
