DID chain kit for Suzuki GR 650 (cast wheel) 83-84 530 ZVM-X2 chain kit

DID Chain Kit for Suzuki GR 650 (cast wheel) 83-84 530 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GR 650 (cast wheel) GP51A 1983-1984

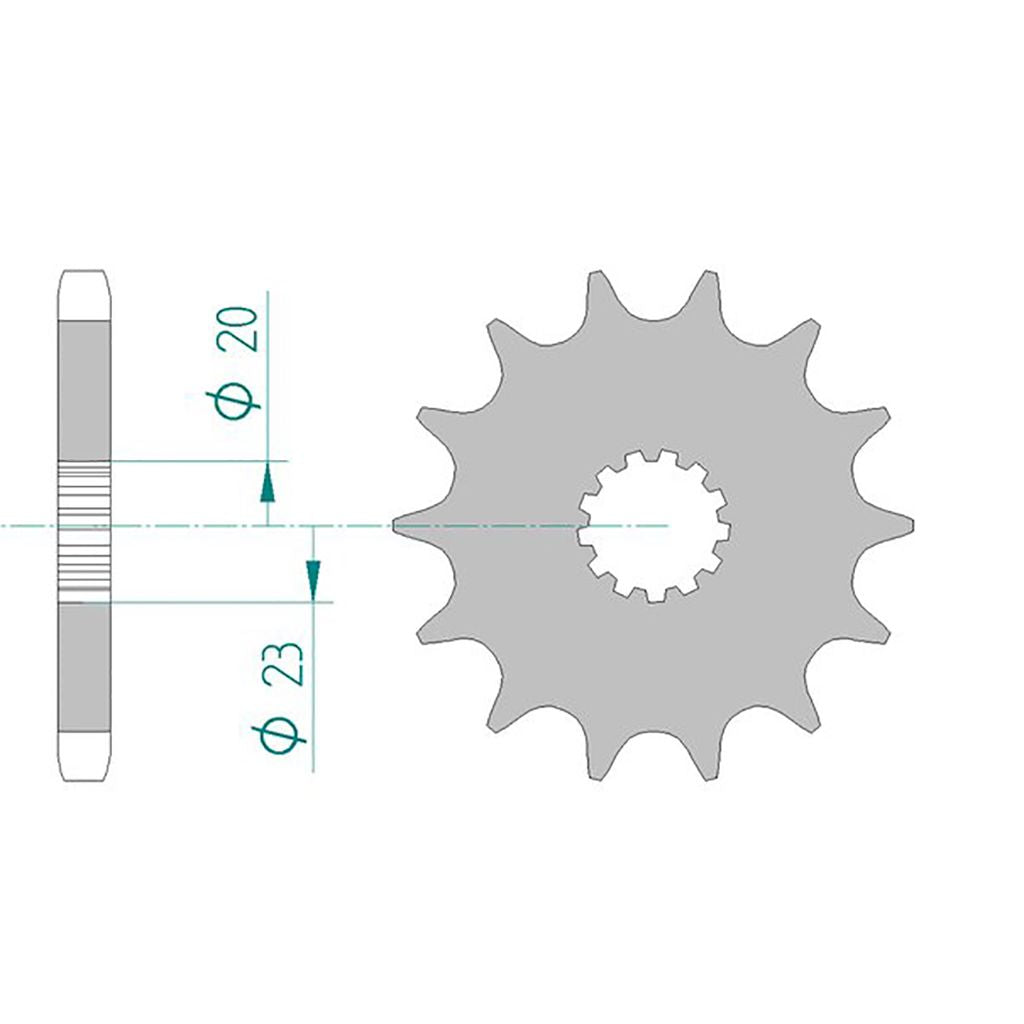

• Sprocket: AFAM sprocket #530 15 teeth - a22403.15
• Chain: DID chain 530 ZVM-X2 G&G 106 w. rivet link - d530zvmx2.gg.106
• Rear sprocket: AFAM rear sprocket STEEL #530 38 teeth - a14503.38
• Transmission ratio sprocket-chain-rear sprocket: 15-106-38

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical data:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-64370

Suitable for

Suzuki 501 - 750 cc GR 650 (cast wheel) GP51A 1983
Suzuki 501 - 750 cc GR 650 (cast wheel) GP51A 1984
