DID chain kit for Suzuki GR 650 X (spoke wheel) 83-89 530 VX3 chain kit

DID chain kit for Suzuki GR 650 X (spoke wheel) 83-89 530 VX3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to demonstrate compatibility!

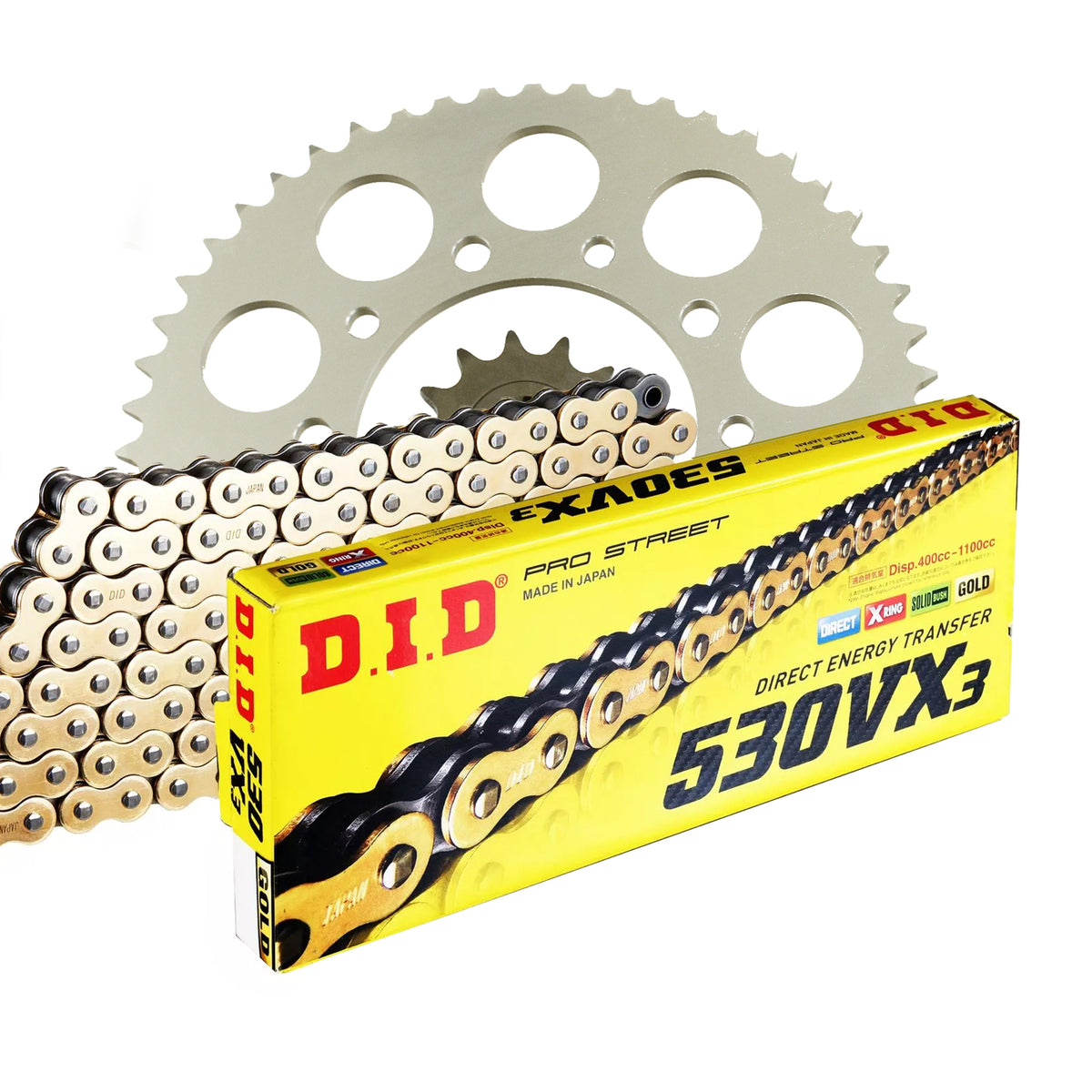

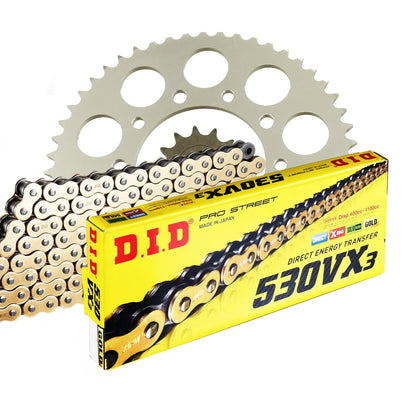

Components of the chain kit Suzuki GR 650 X (spoke wheel) GP51A 1983-1989

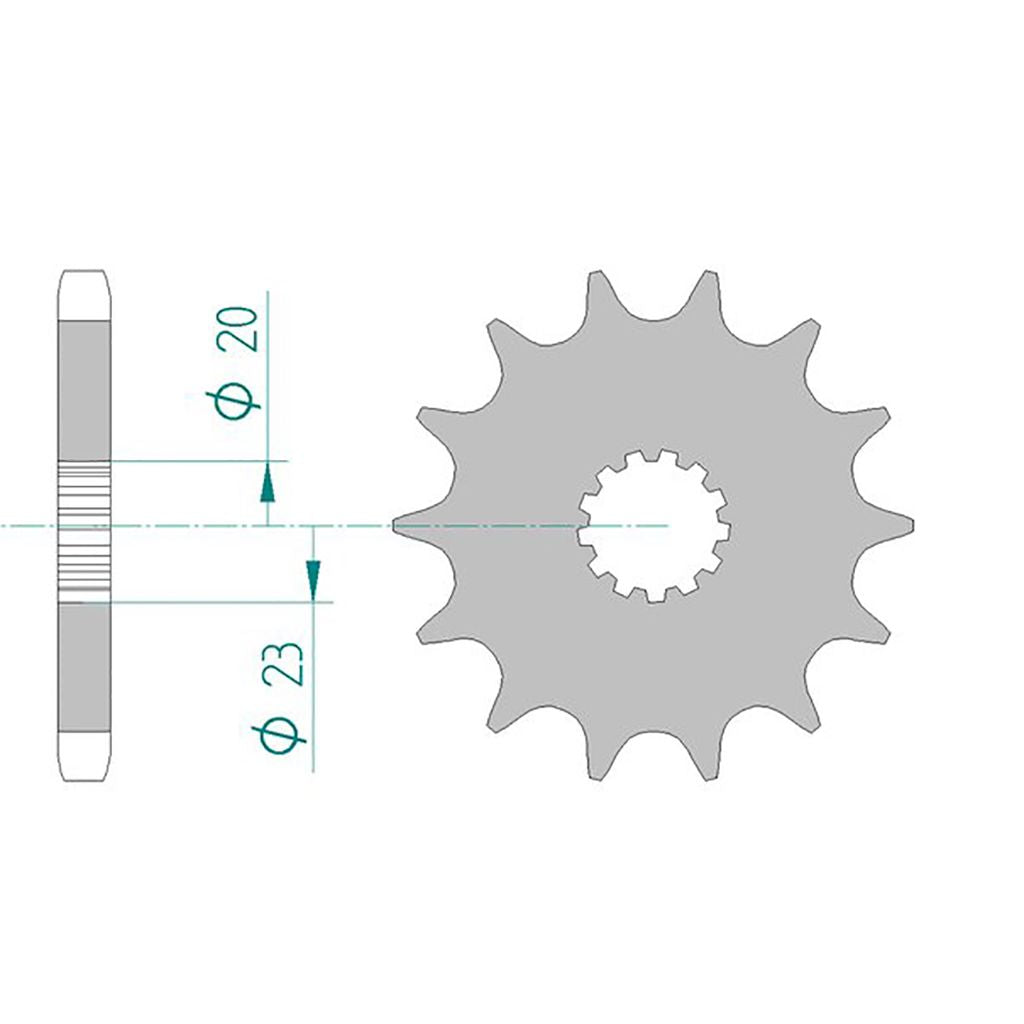

• Front sprocket: AFAM front sprocket #530 15 teeth - a22403.15

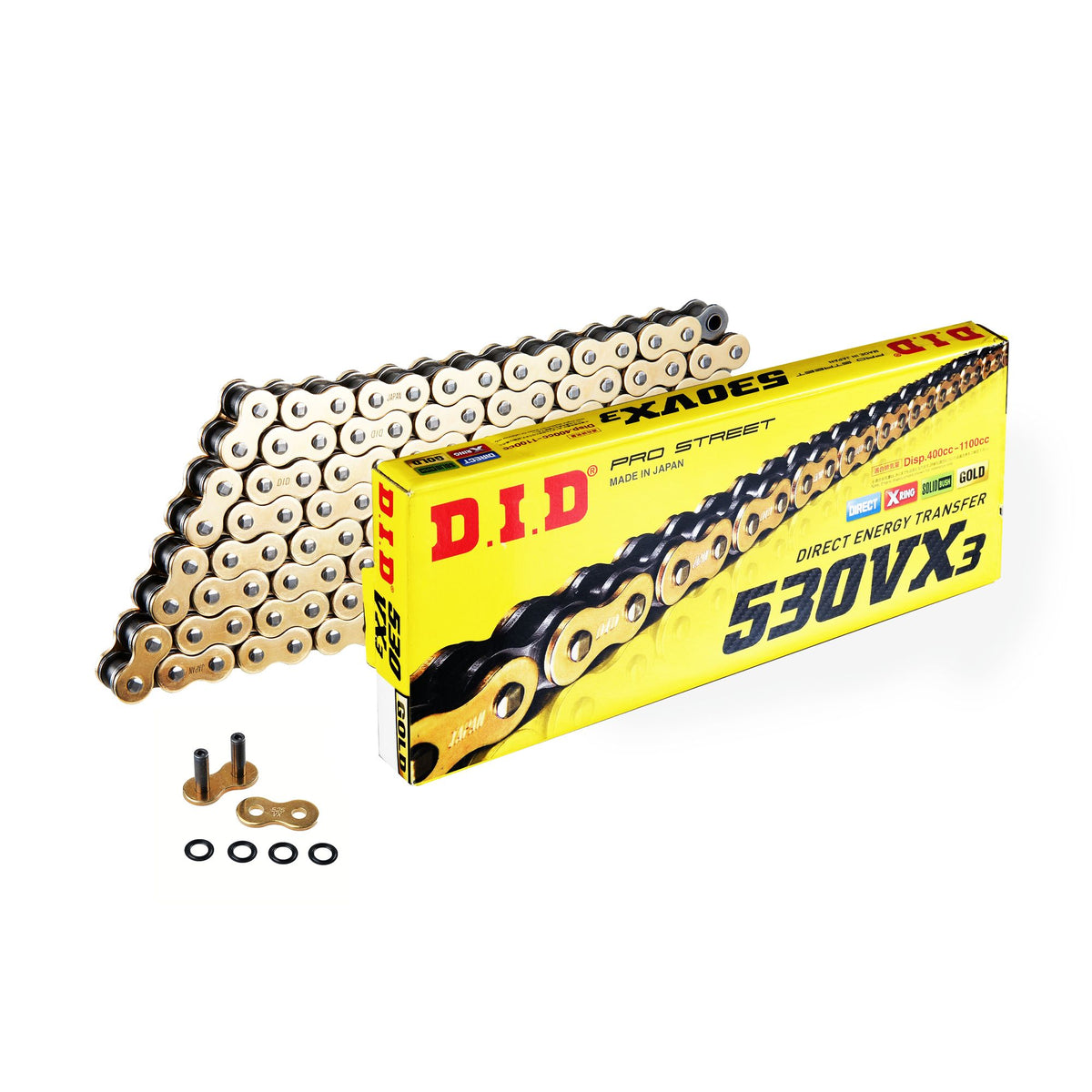

• Chain: DID chain 530 VX3 G&B 106 with rivet link - d530vx3.g-106

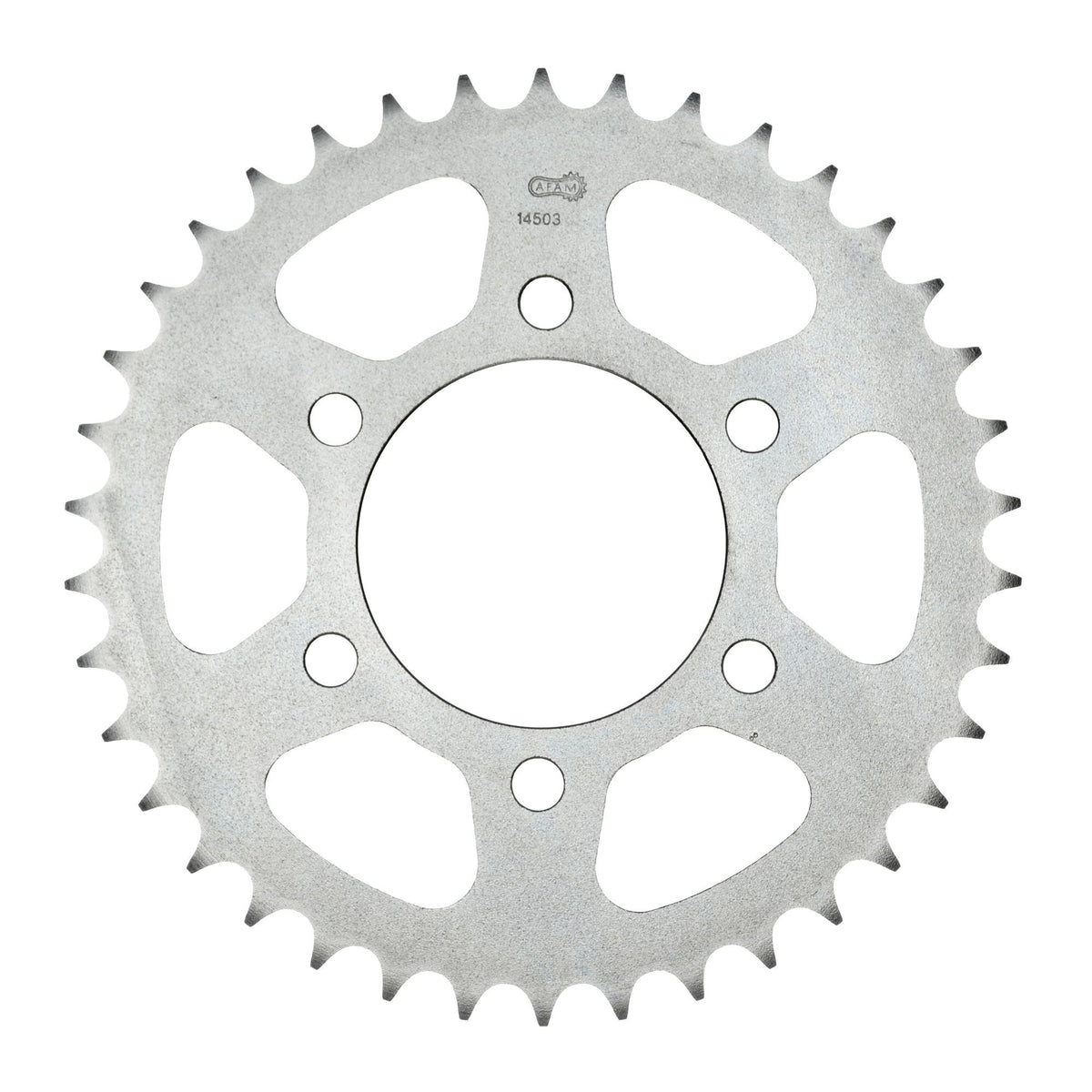

• Rear sprocket: AFAM rear sprocket STEEL #530 38 teeth - a14503.38
• Transmission ratio front sprocket-chain-rear sprocket: 15-106-38

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical specifications:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-16593

Suitable for

Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1983
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1984
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1985
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1986
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1987
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1988
Suzuki 501 - 750 cc GR 650 X (spoke wheel) GP51A 1989
