DID chain set for Suzuki GS 400 77-83 530 NZ chain kit

DID chain set for Suzuki GS 400 77-83 530 NZ chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

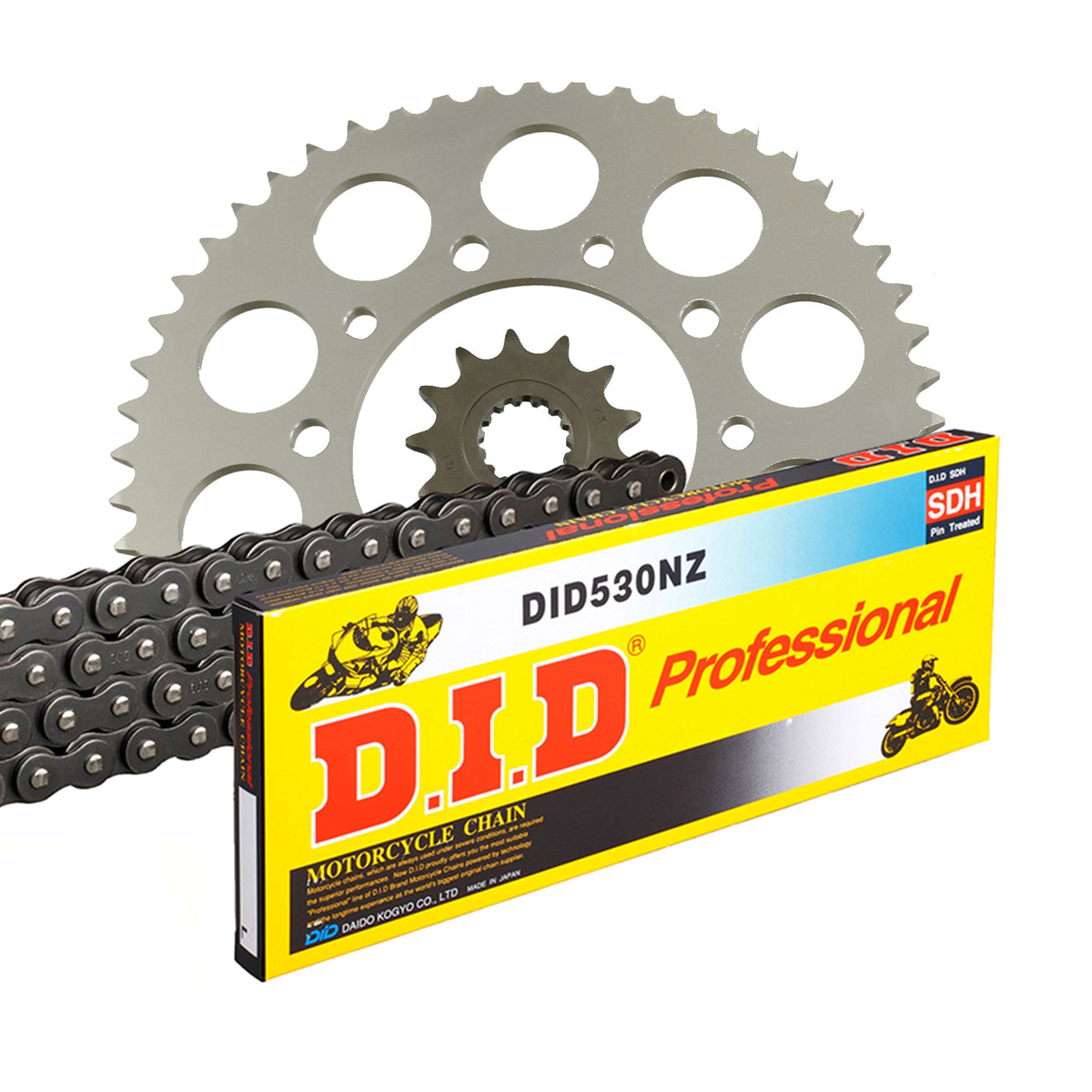

Components of the Suzuki GS 400 GS400 1977-1983 chain kit

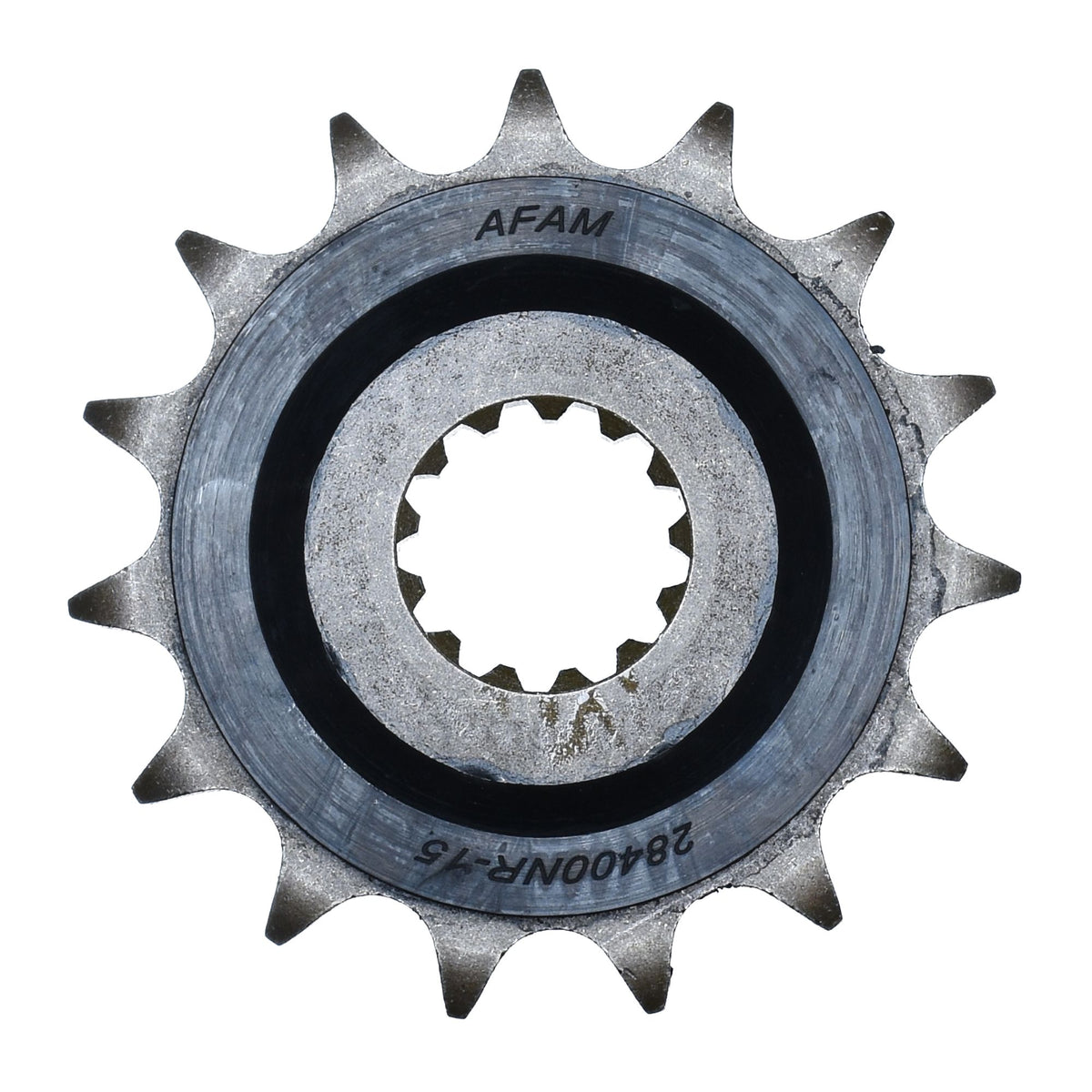

• Front sprocket: AFAM rubberized sprocket #530 16 teeth - a28400oem.16

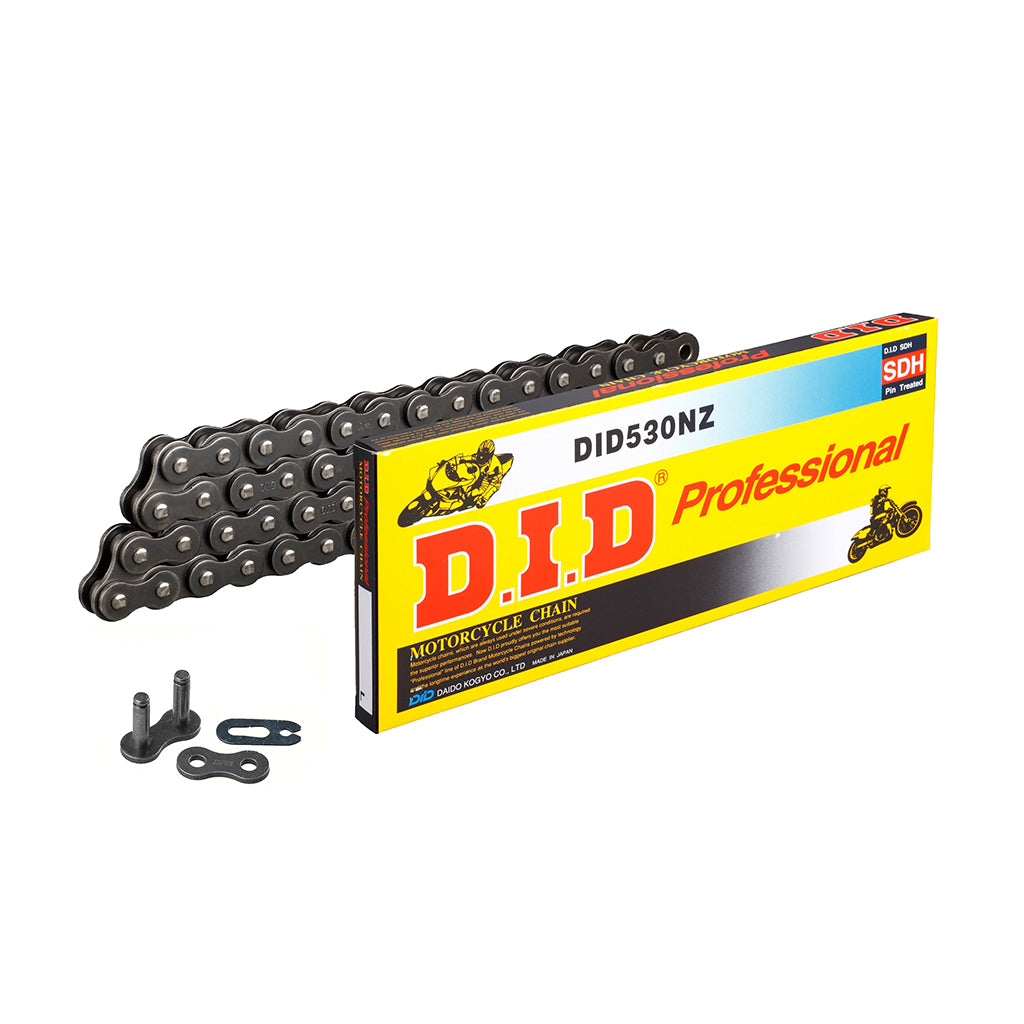

• Chain: DID chain 530 NZ 104 with clip link - d6253001104

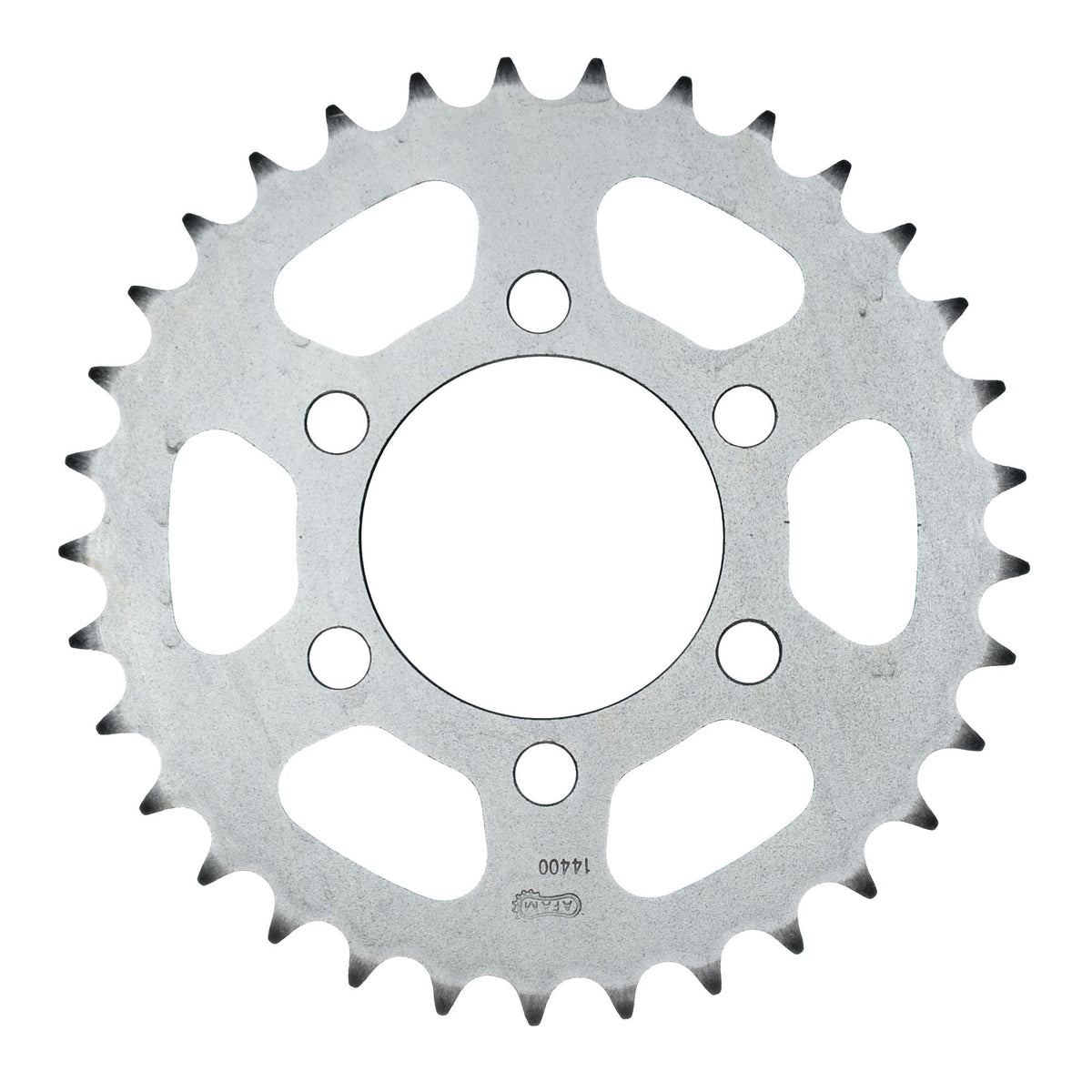

• Rear sprocket: AFAM steel rear sprocket #530 45 teeth - a14400.45
• Gear ratio sprocket-chain-rear sprocket: 16-104-45

DID 530 NZ

Extra reinforced chain, especially for vintage motorcycles and Harleys
Without O-rings
Color: Black

Technical specifications:
Pitch: 530
Pin length: 22.55 mm
Roller diameter: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.4 mm
Wear resistance index: 410
Tensile strength: 38.30 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-18254

Suitable for

Suzuki 251 - 500 cc GS 400 GS400 1977
Suzuki 251 - 500 cc GS 400 GS400 1978
Suzuki 251 - 500 cc GS 400 GS400 1979
Suzuki 251 - 500 cc GS 400 GS400 1980
Suzuki 251 - 500 cc GS 400 GS400 1981
Suzuki 251 - 500 cc GS 400 GS400 1982
Suzuki 251 - 500 cc GS 400 GS400 1983
