DID chain kit for Suzuki GS 450 S 80-81 530 NZ chain kit

DID chain kit for Suzuki GS 450 S 80-81 530 NZ chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

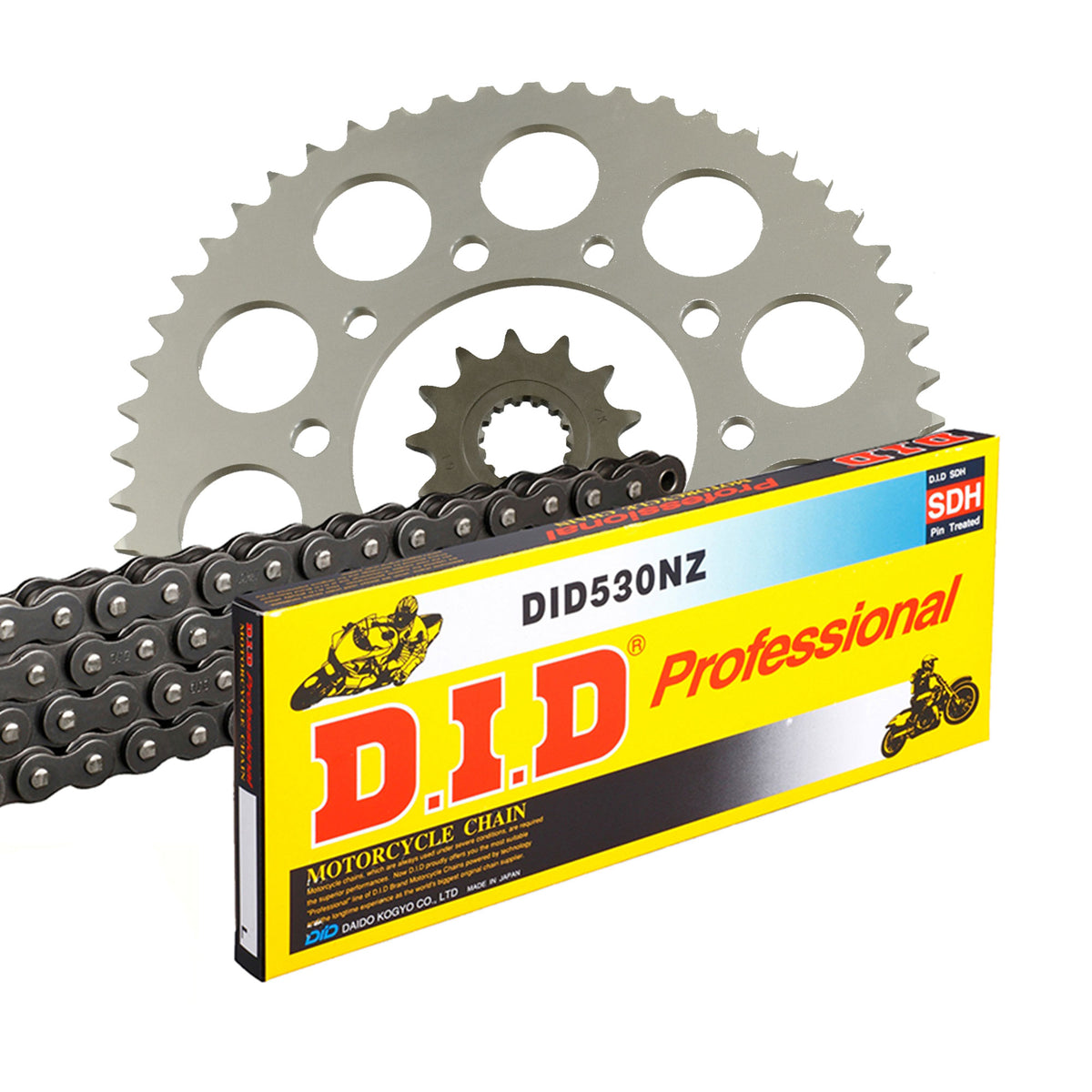

Components of the chain kit Suzuki GS 450 S GS450 1980-1981

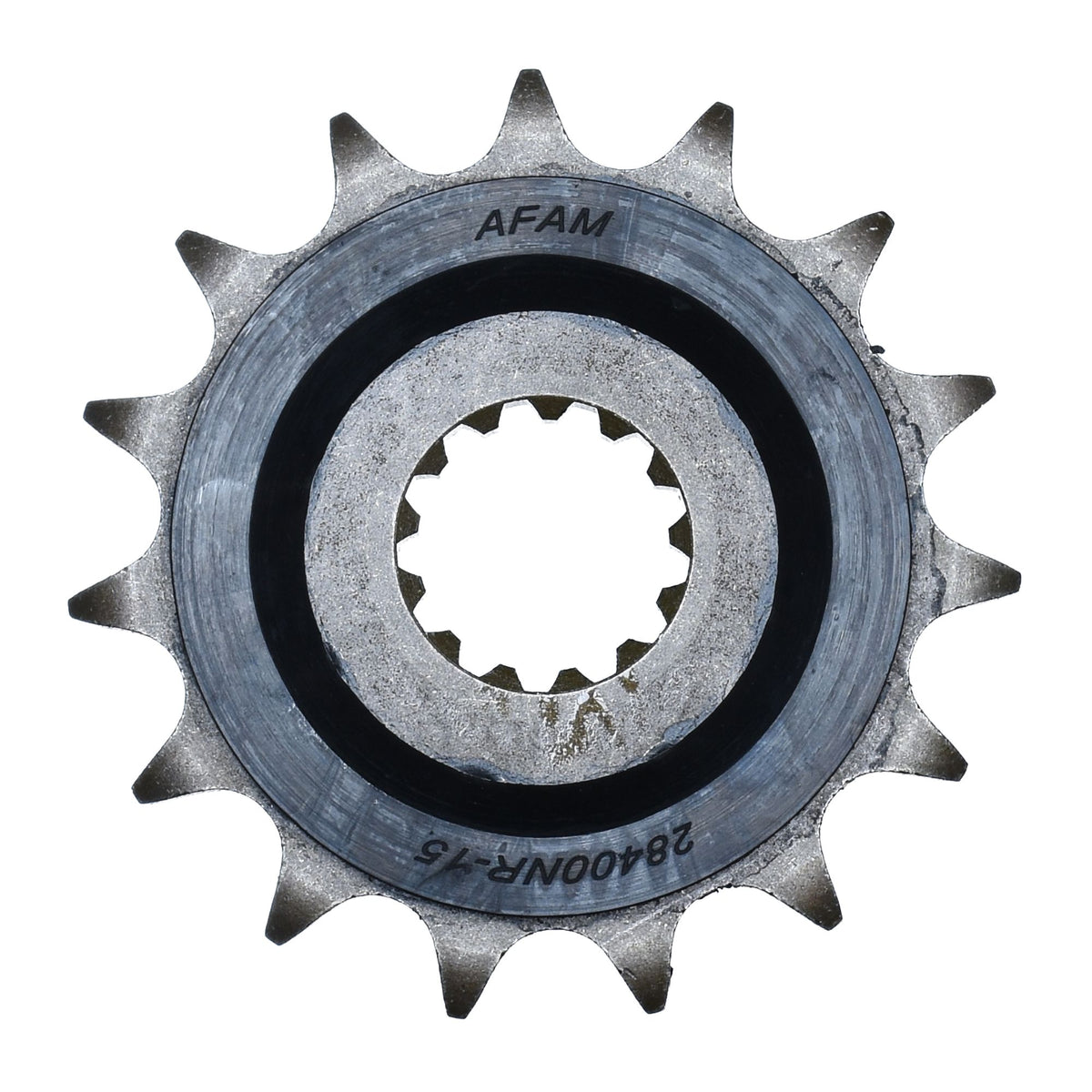

• Front sprocket: AFAM rubberized #530 silent sprocket 16 teeth - a28400oem.16

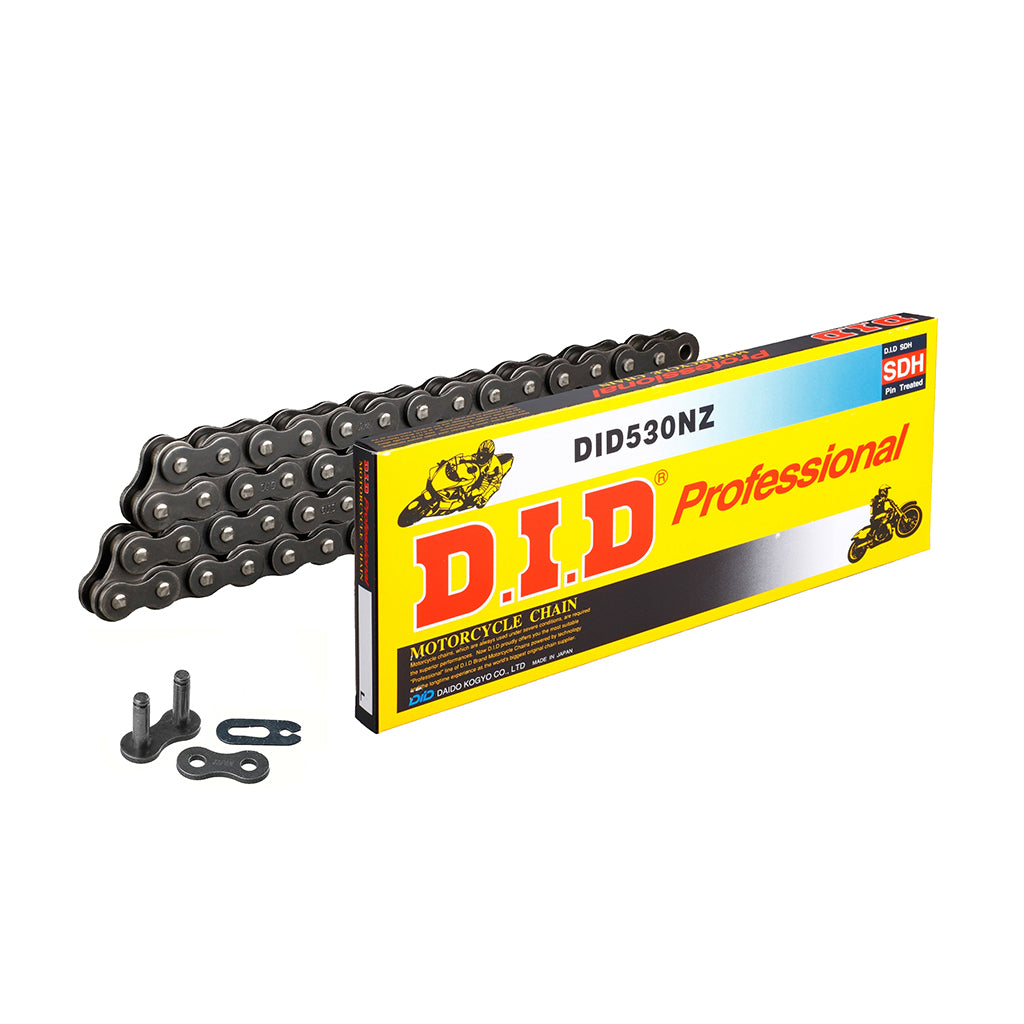

• Chain: DID chain 530 NZ 104 with clip link - d6253001104

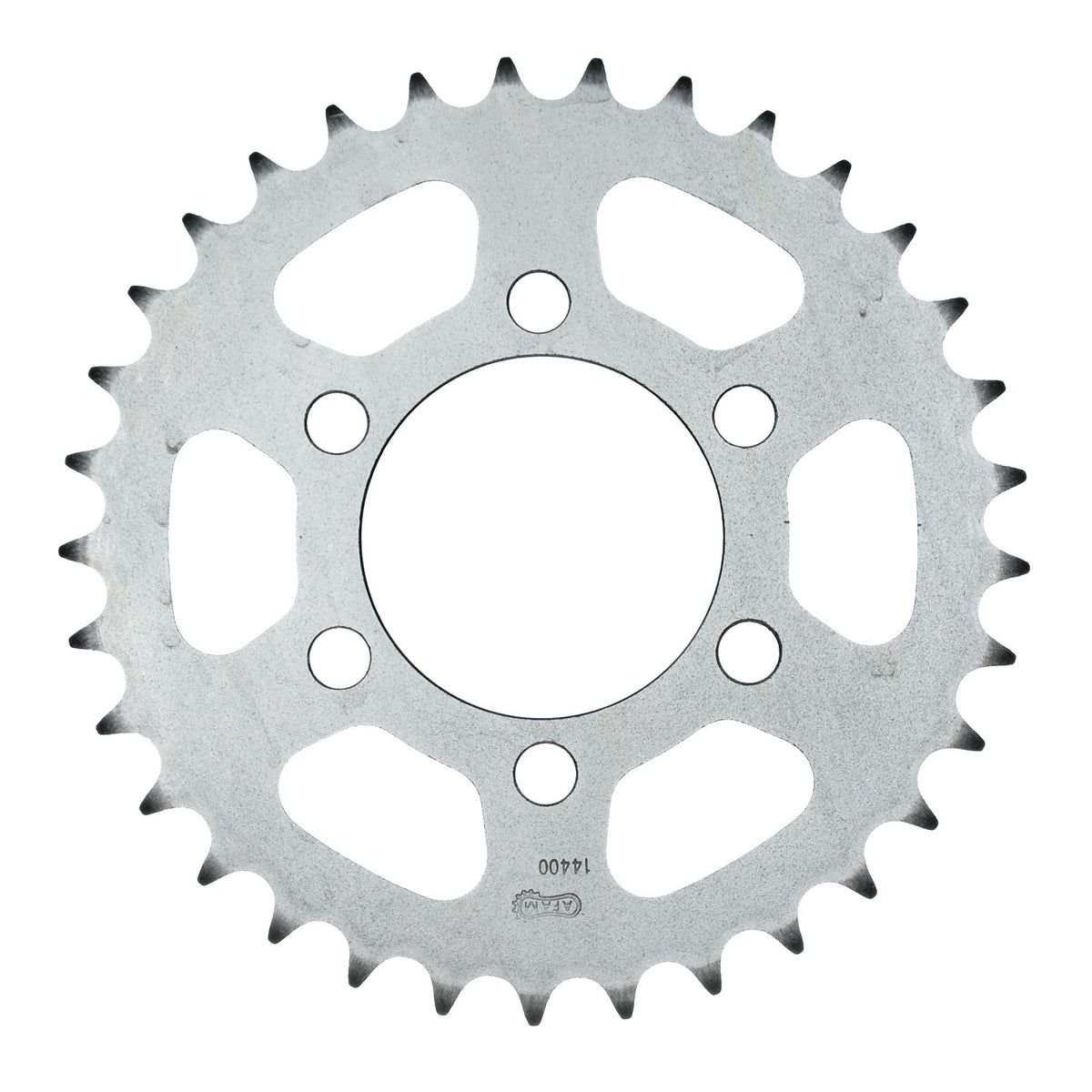

• Rear sprocket: AFAM steel rear sprocket #530 45 teeth - a14400.45
• Gear ratio sprocket-chain-rear sprocket: 16-104-45

DID 530 NZ

Extra reinforced chain, specially for vintage motorcycles and Harleys
Without O-rings
Color: Black

Technical specifications:
Pitch: 530
Pin length: 22.55 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.4 mm
Wear resistance index: 410
Tensile strength: 38.30 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-36554

Fits

Suzuki 251 - 500 cc GS 450 S GS450 1980
Suzuki 251 - 500 cc GS 450 S GS450 1981
