DID chain kit for Suzuki GS 450 S 80-81 530 VX3 chain kit

DID chain kit for Suzuki GS 450 S 80-81 530 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

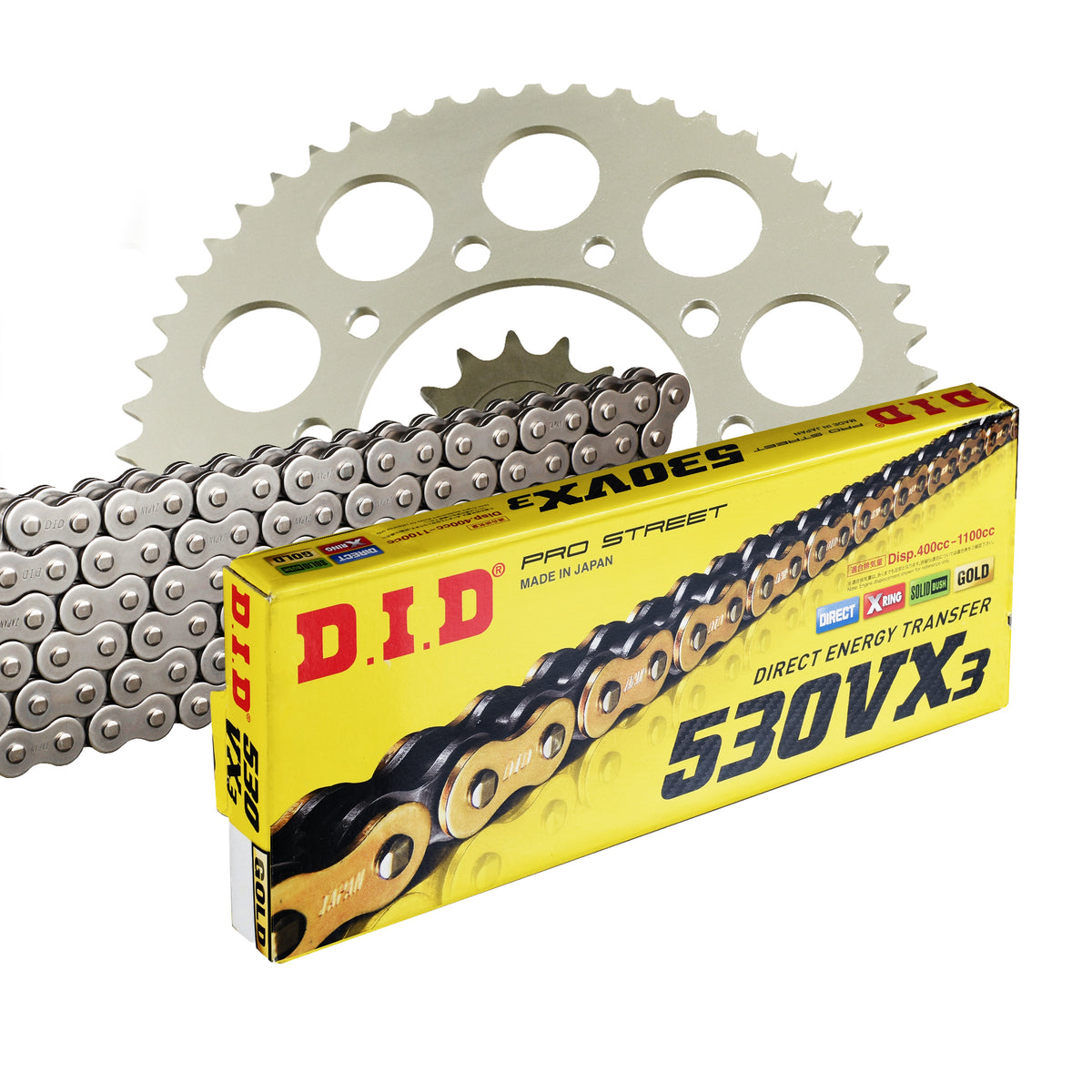

Components of the Suzuki GS 450 S GS450 1980-1981 chain kit

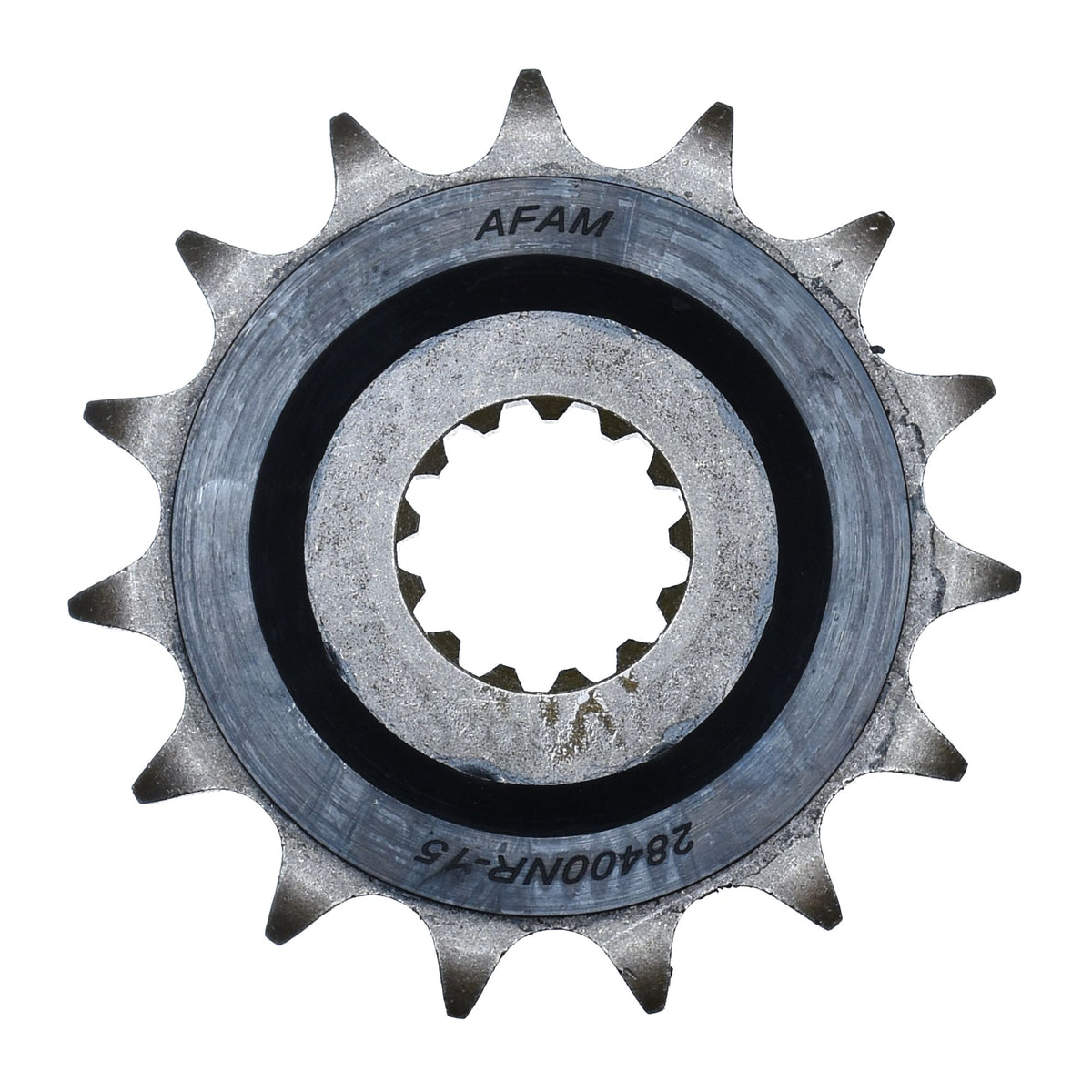

• Front sprocket: AFAM rubberized sprocket #530 silent sprocket 16 teeth - a28400oem.16

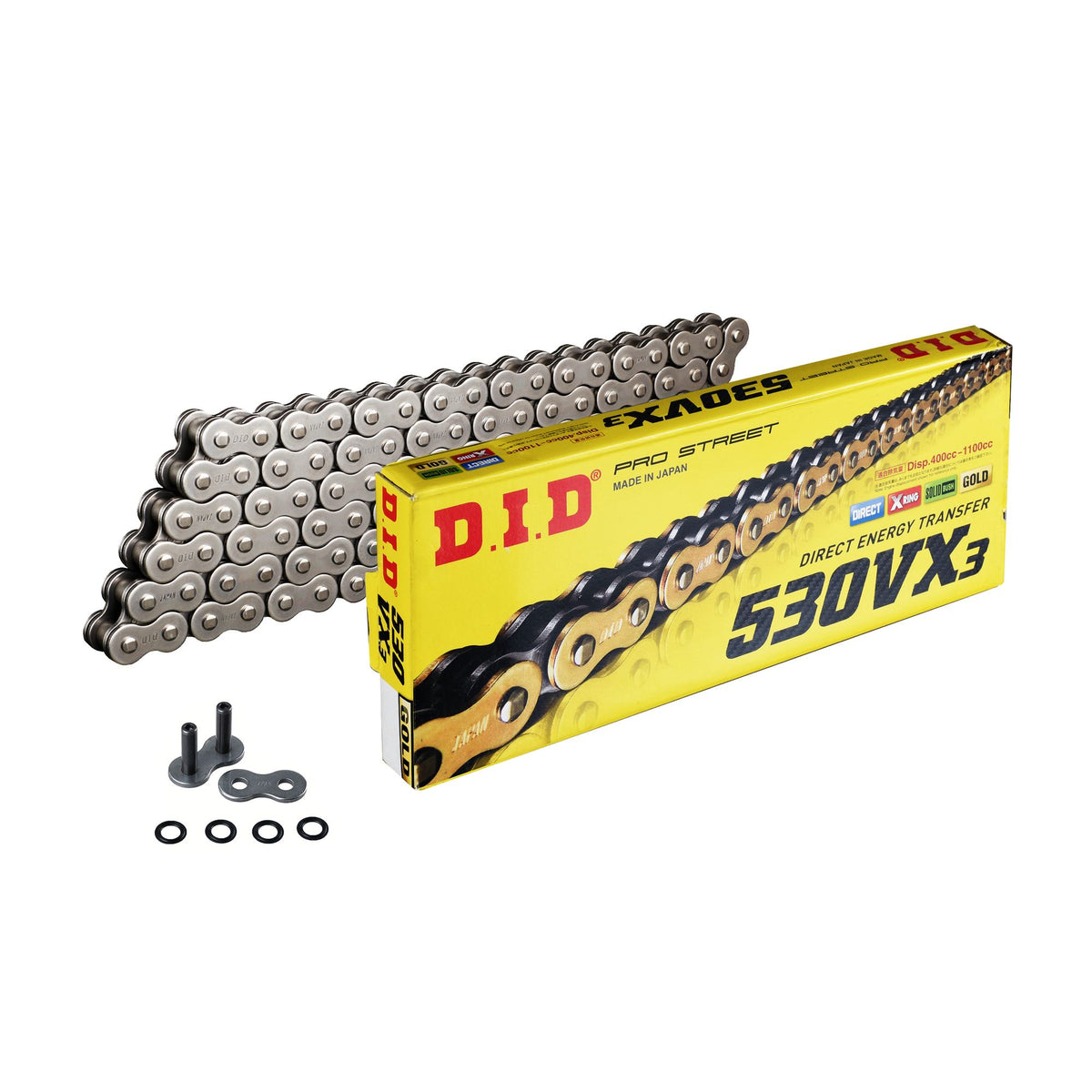

• Chain: DID chain 530 VX3 B&B 104 with rivet link - d530vx3-104

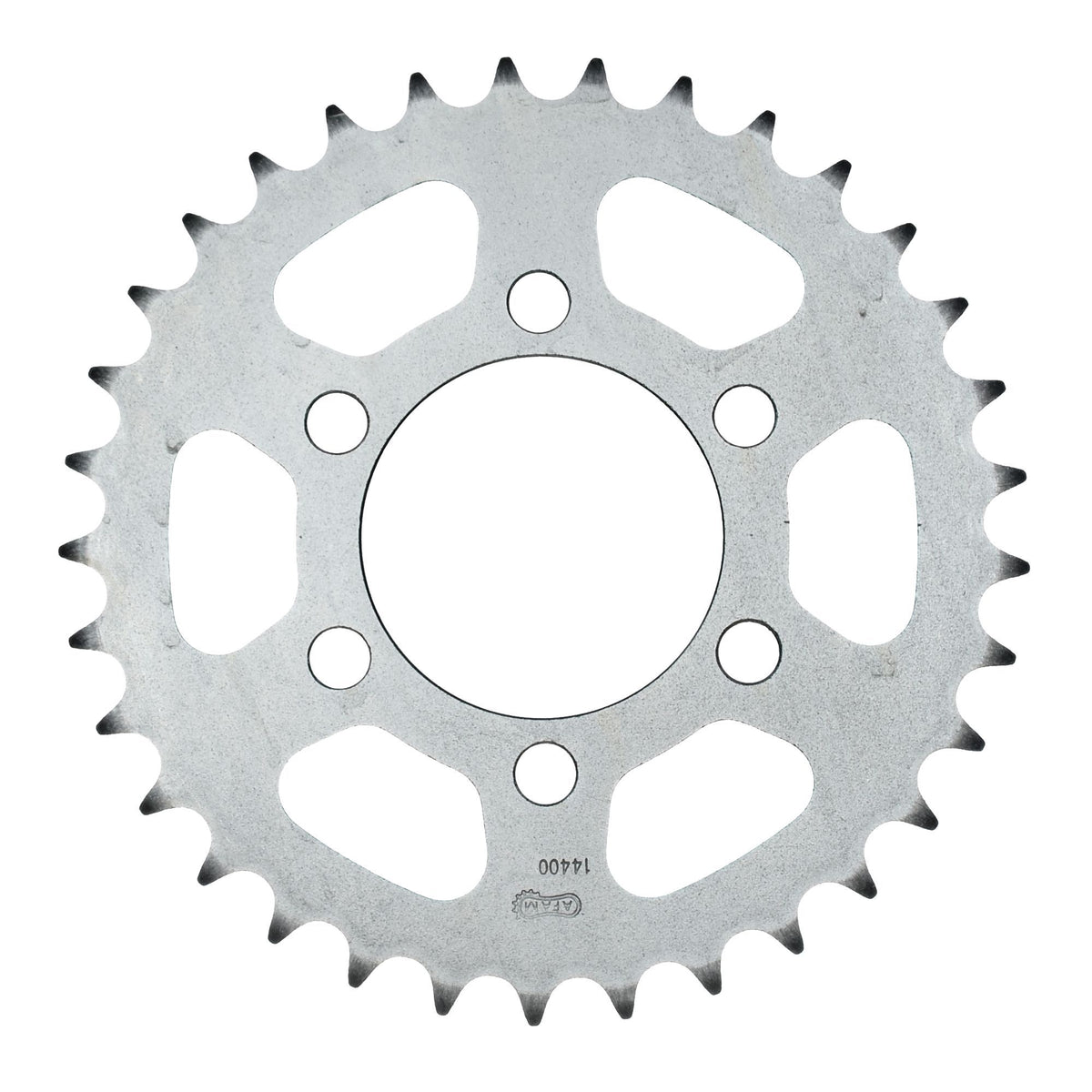

• Rear sprocket: AFAM steel sprocket #530 45 teeth - a14400.45
• Transmission ratio front sprocket-chain-rear sprocket: 16-104-45

DID 530 VX3

Successor to the proven 530 VX
X-Ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical specifications:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear life index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-18677

Suitable for

Suzuki 251 - 500 cc GS 450 S GS450 1980
Suzuki 251 - 500 cc GS 450 S GS450 1981
