DID chain kit for Suzuki GS 500 01-08 520 ZVMX chain kit

DID chain set for Suzuki GS 500 01-08 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit Suzuki GS 500 BK 2001-2008

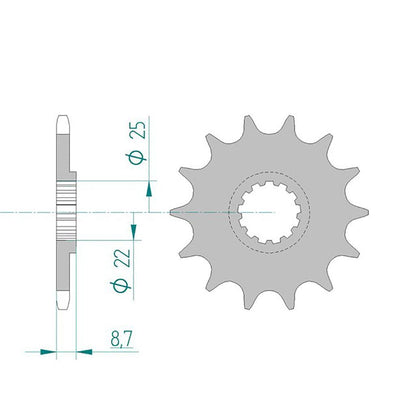

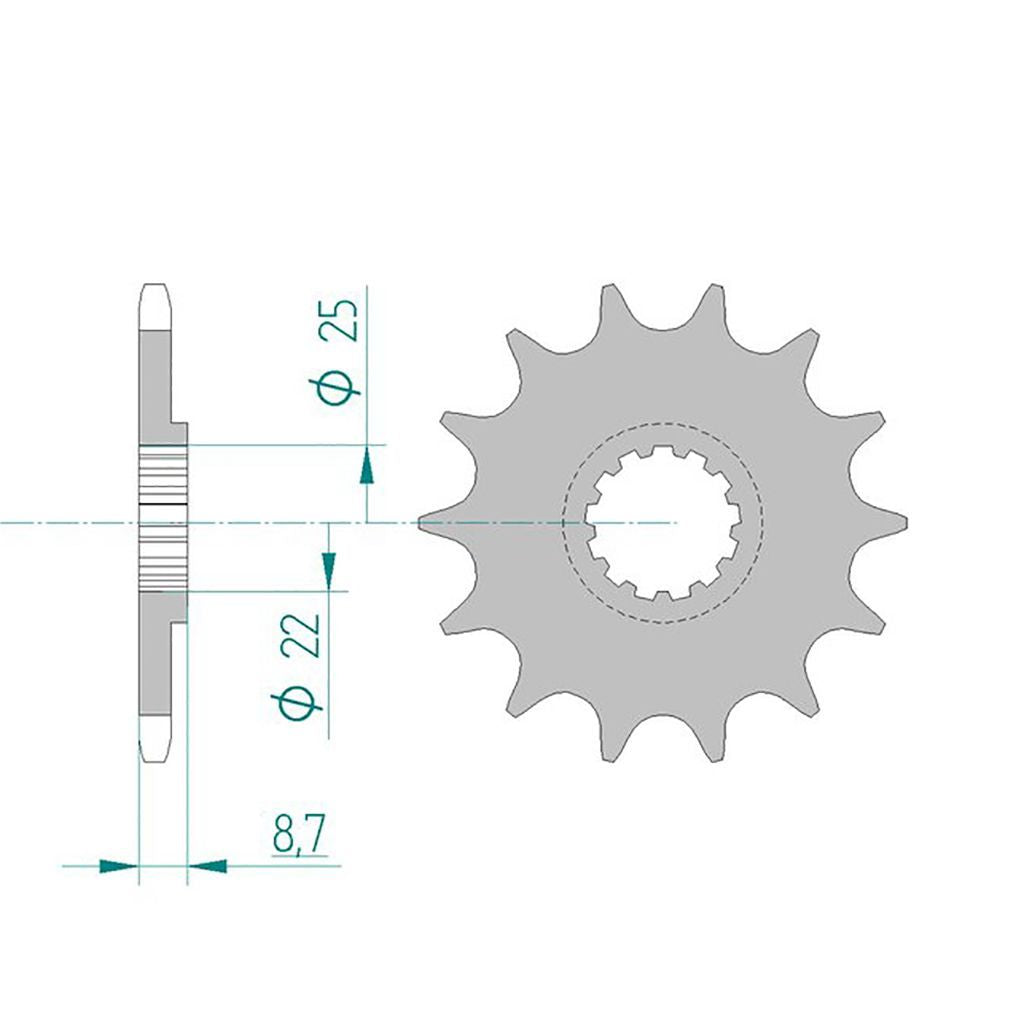

• Front sprocket: AFAM front sprocket #520 16 teeth - a22505.16
• Chain: DID chain 520 ZVM-X G&G 110 w. rivet master link - d6252029110

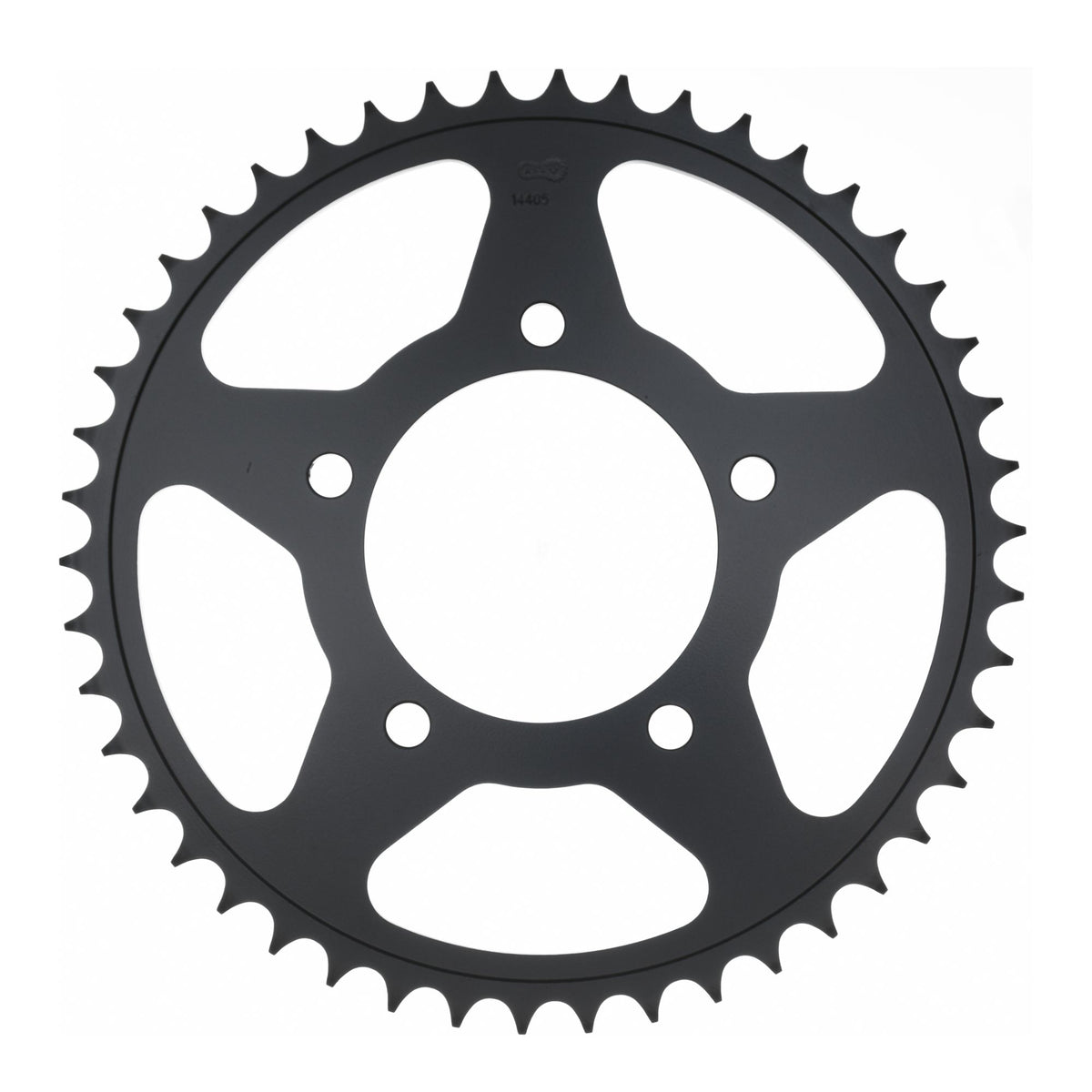

• Rear sprocket: AFAM rear sprocket STEEL #520 39 teeth - a14405.39
• Transmission ratio front sprocket-chain-rear sprocket: 16-110-39

DID 520 ZVM-X

Extra reinforced chain, versatile range of applications
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-36691

Suitable for

Suzuki 251 - 500 cc GS 500 BK 2001
Suzuki 251 - 500 cc GS 500 BK 2002
Suzuki 251 - 500 cc GS 500 BK 2003
Suzuki 251 - 500 cc GS 500 BK 2004
Suzuki 251 - 500 cc GS 500 BK 2005
Suzuki 251 - 500 cc GS 500 BK 2006
Suzuki 251 - 500 cc GS 500 BK 2007
Suzuki 251 - 500 cc GS 500 BK 2008
