DID chain set for Suzuki GS 550 D 1980 530 VX3 chain kit

DID Chain Kit for Suzuki GS 550 D 1980 530 VX3 Chain Kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

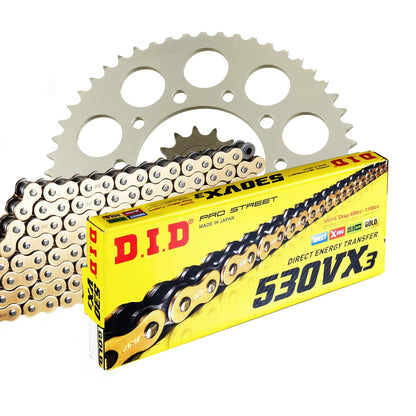

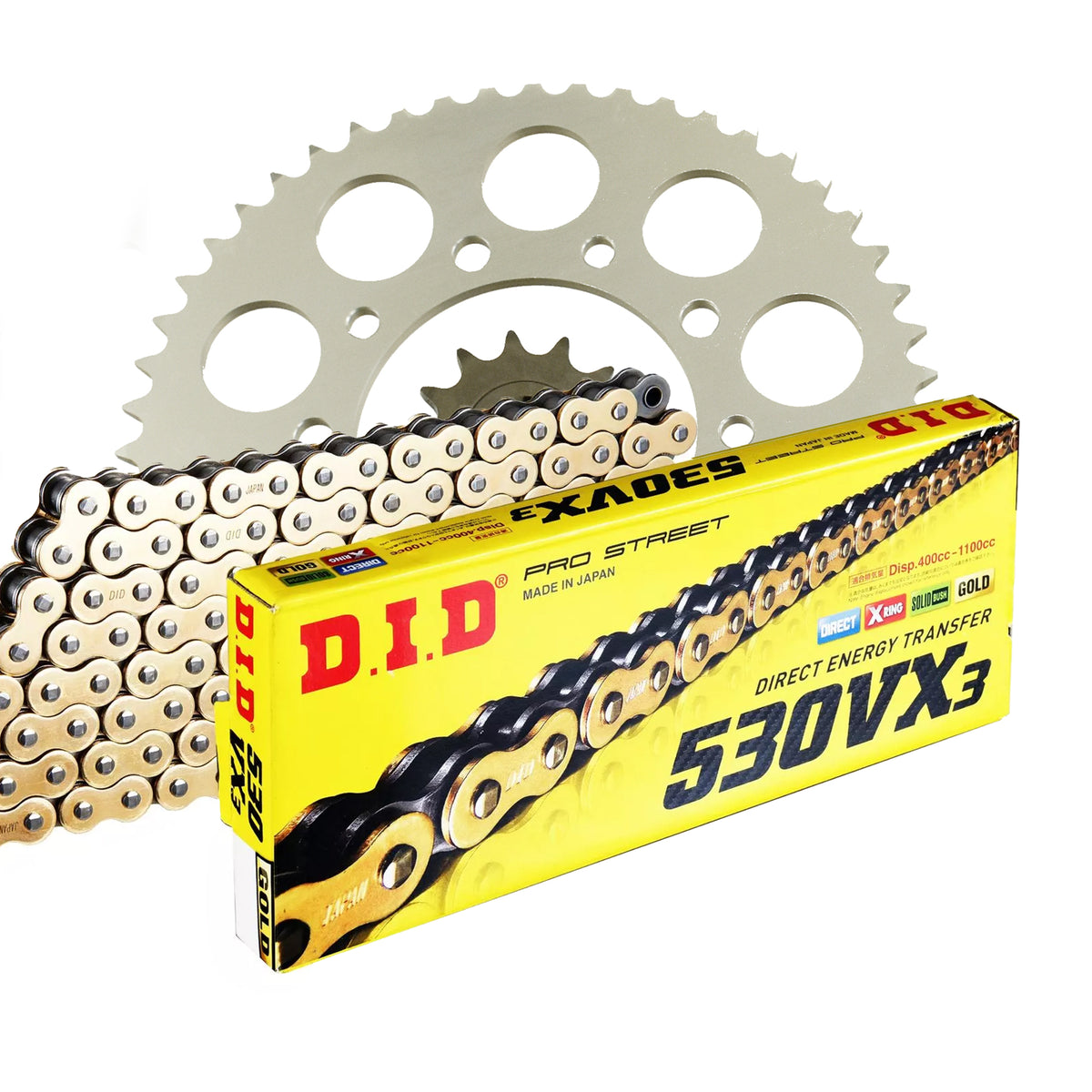

Components of the Suzuki GS 550 D GS550D 1980-1980 chain kit

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15

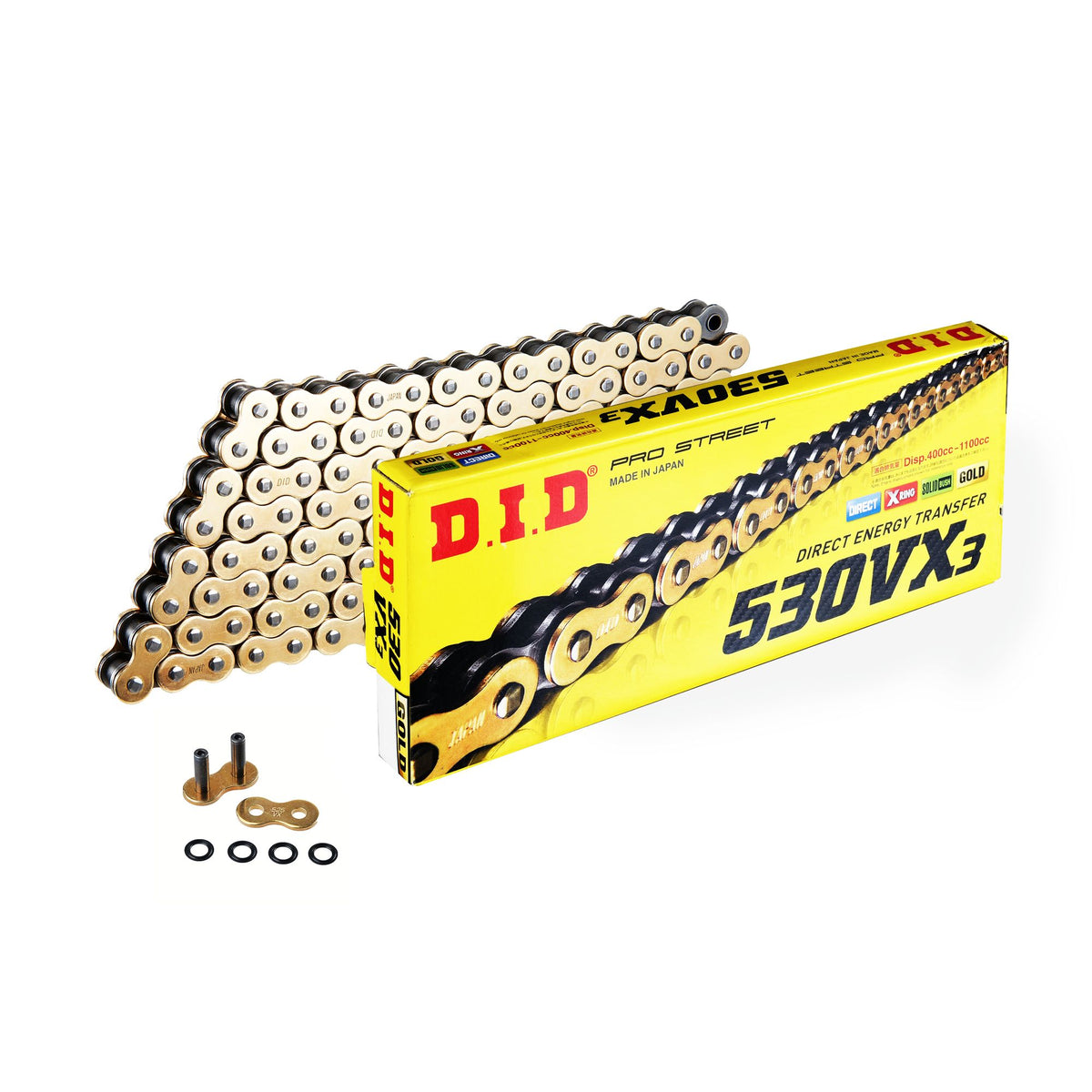

• Chain: DID chain 530 VX3 G&B 110 with rivet link - d530vx3.g-110

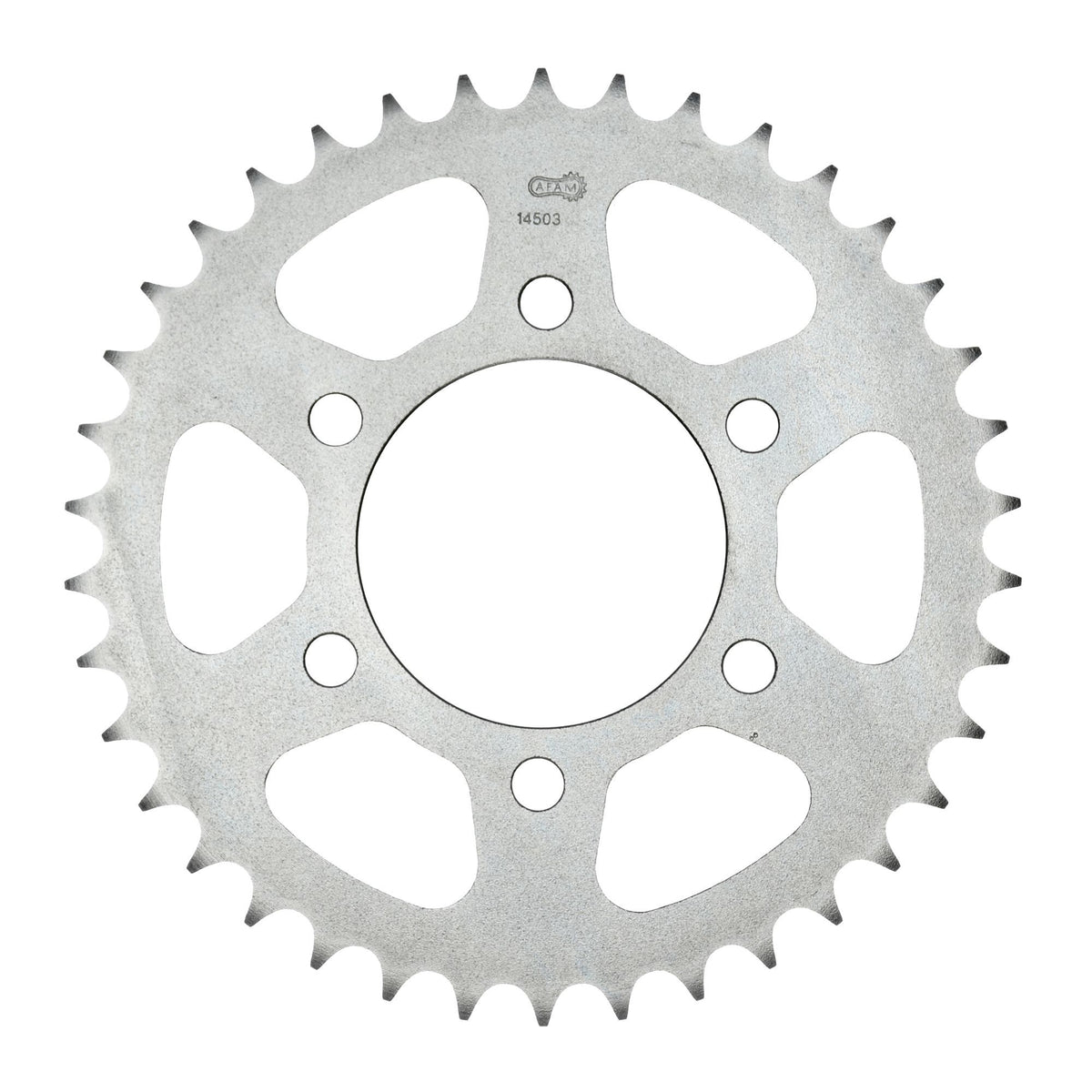

• Rear sprocket: AFAM steel rear sprocket #530 50 teeth - a14503.50
• Gear ratio sprocket-chain-rear sprocket: 15-110-50

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-16055

Suitable for

Suzuki 501 - 750 cc GS 550 D GS550D 1980
