DID chain set for Suzuki GS 550 E 1980 530 VX3 chain kit

DID chain set for Suzuki GS 550 E 1980 530 VX3 chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are only used to indicate compatibility!

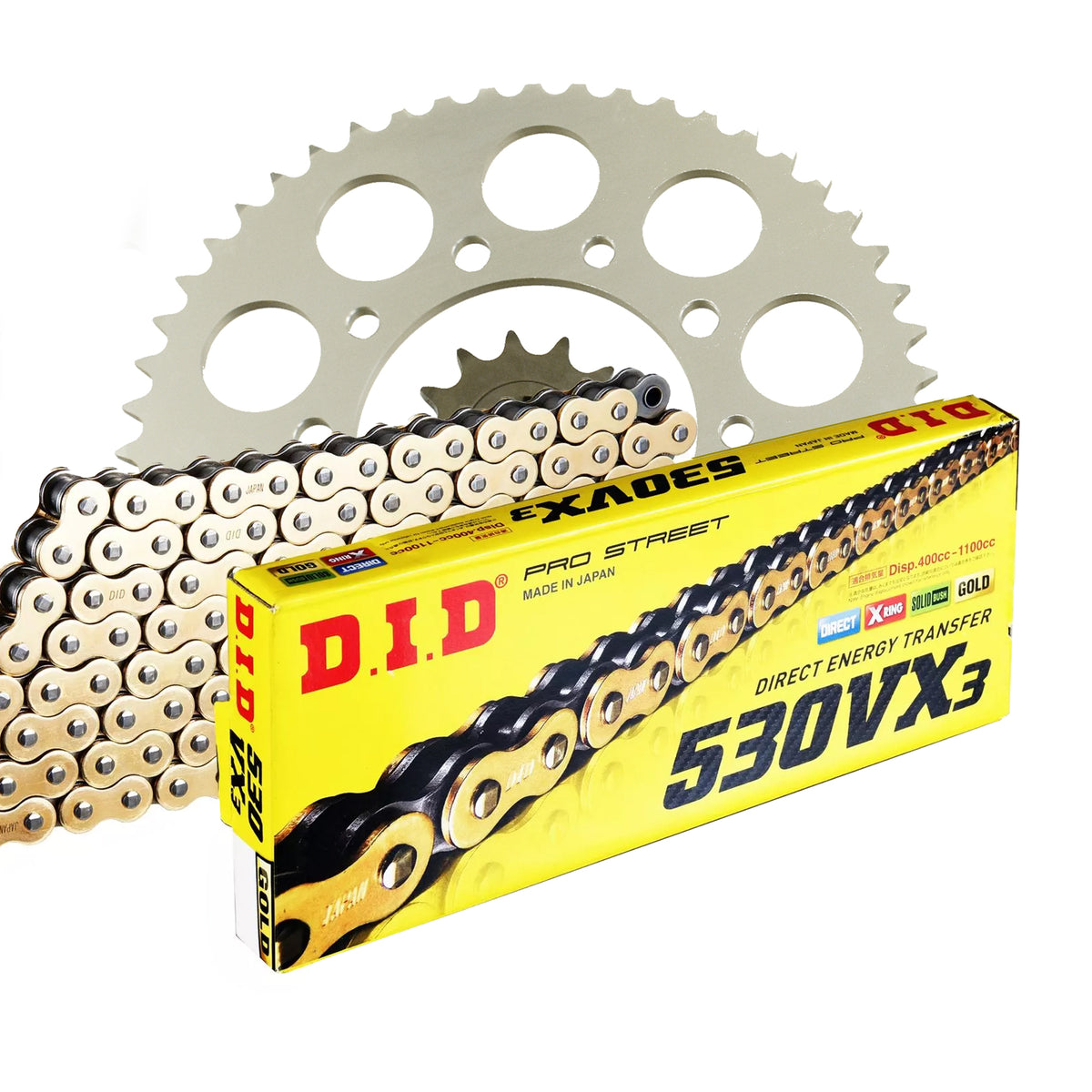

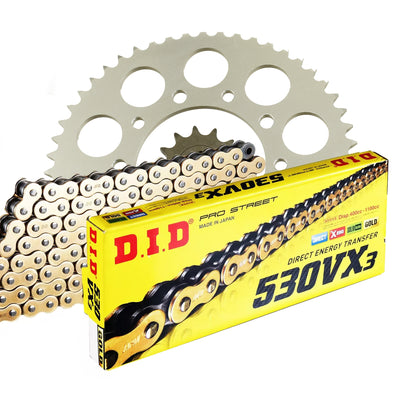

Components of the chain kit Suzuki GS 550 E GS550E 1980-1980

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: DID chain 530 VX3 G&B 110 with rivet connecting link - d530vx3.g-110

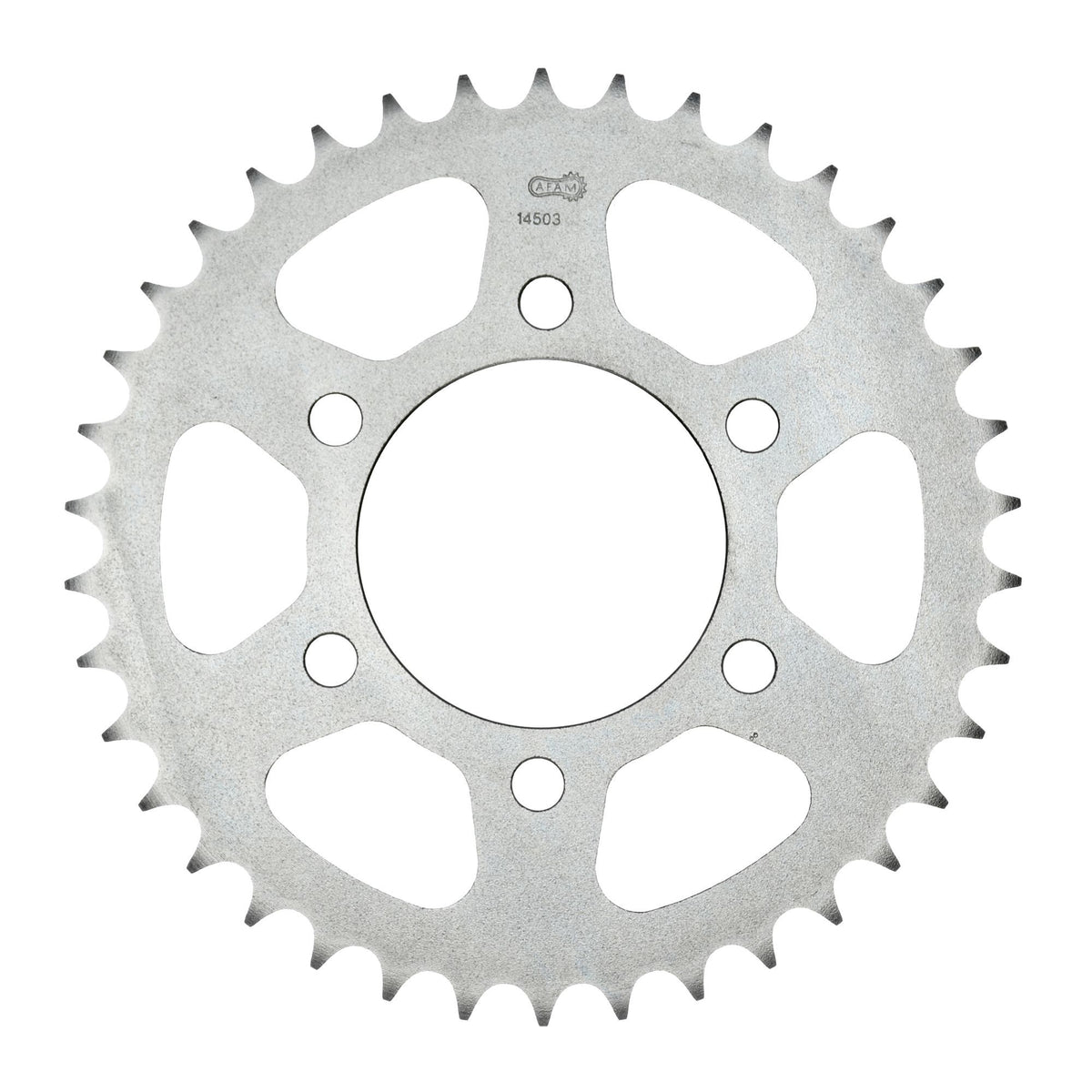

• Rear sprocket: AFAM rear sprocket STEEL #530 50 teeth - a14503.50
• Transmission ratio sprocket-chain-rear sprocket: 15-110-50

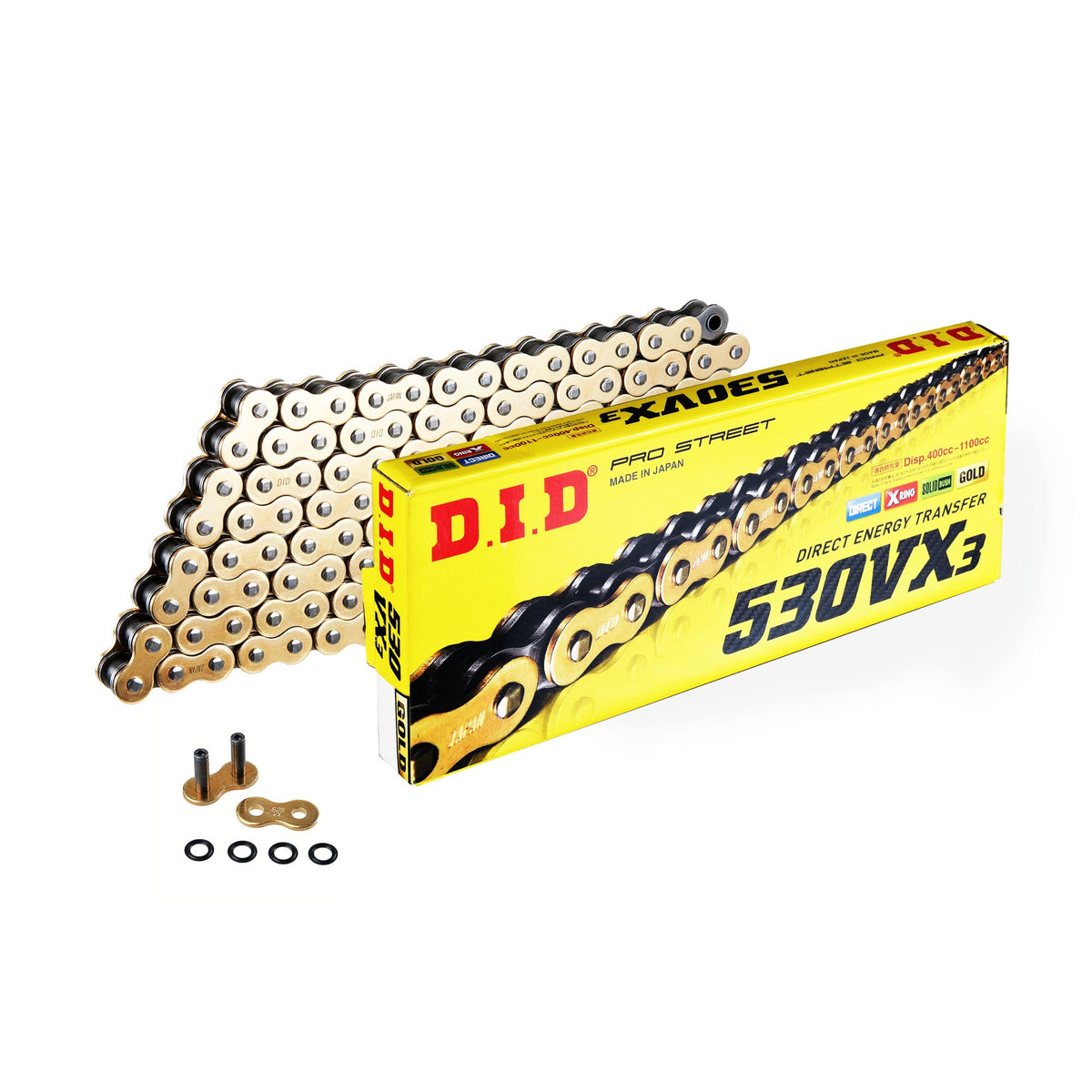

DID 530 VX3

Successor to the proven 530 VX
X-ring chain
Color: Black/Black (also called silver), or Gold/Black (G&B)
Application by displacement: up to 1100 cc

Technical data:
Pitch: 530
Pin length: 23.3 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.94 kg

Unless stated otherwise: The goods offered are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-36781

Fits

Suzuki 501 - 750 cc GS 550 E GS550E 1980
